The ESG DN15 is a heavy-duty industrial pneumatic angle seat valve engineered for high-cycle shutoff of neutral and aggressive media in process lines. Its 15 mm nominal bore and angled body geometry provide a straight-through flow path with minimal pressure loss and self-draining characteristics.
ESG DN15 Technical Specifications
| Nominal Bore | DN15 (1/2 in) |
| Body Configuration | Angle seat, 2/2-way |
| Actuation | Pneumatic piston actuator, single or double acting |
| Control Pressure | 3–10 bar |
| Operating Pressure | Up to 16 bar (media dependent) |
| Media Temperature | -10 °C to +180 °C |
| Body Material | Stainless steel 1.4408 / brass options |
| Seal Material | PTFE / EPDM / FKM |
| Port Connections | Threaded G 1/2, NPT, or weld end |
| Mounting | Inline, any orientation |
Key Engineering Features
- Angled body design for unobstructed flow and reduced water hammer
- Piston actuator with visual position indicator and optional stroke limit
- Maintenance-free stem seal with wiper ring for contaminated media
- Compact envelope for dense manifold and skid layouts
- Compatible with pilot solenoid valves and position feedback units
Industrial Applications
- Steam and hot water distribution in process plants
- Chemical dosing and neutral media transfer lines
- Food and beverage CIP circuits
- Compressed air and inert gas shutoff
- Water treatment and filtration skids
For technical inquiries, dimensional drawings, or replacement support for ESG DN15, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

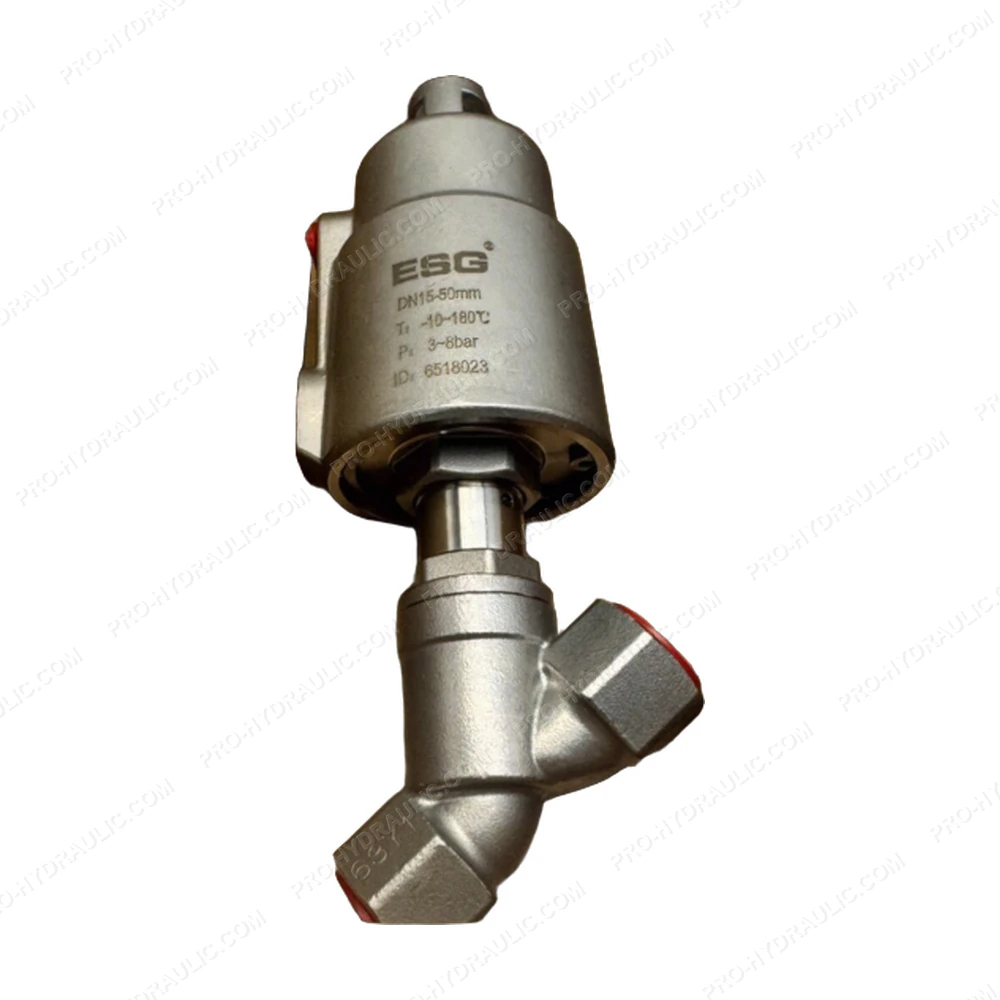

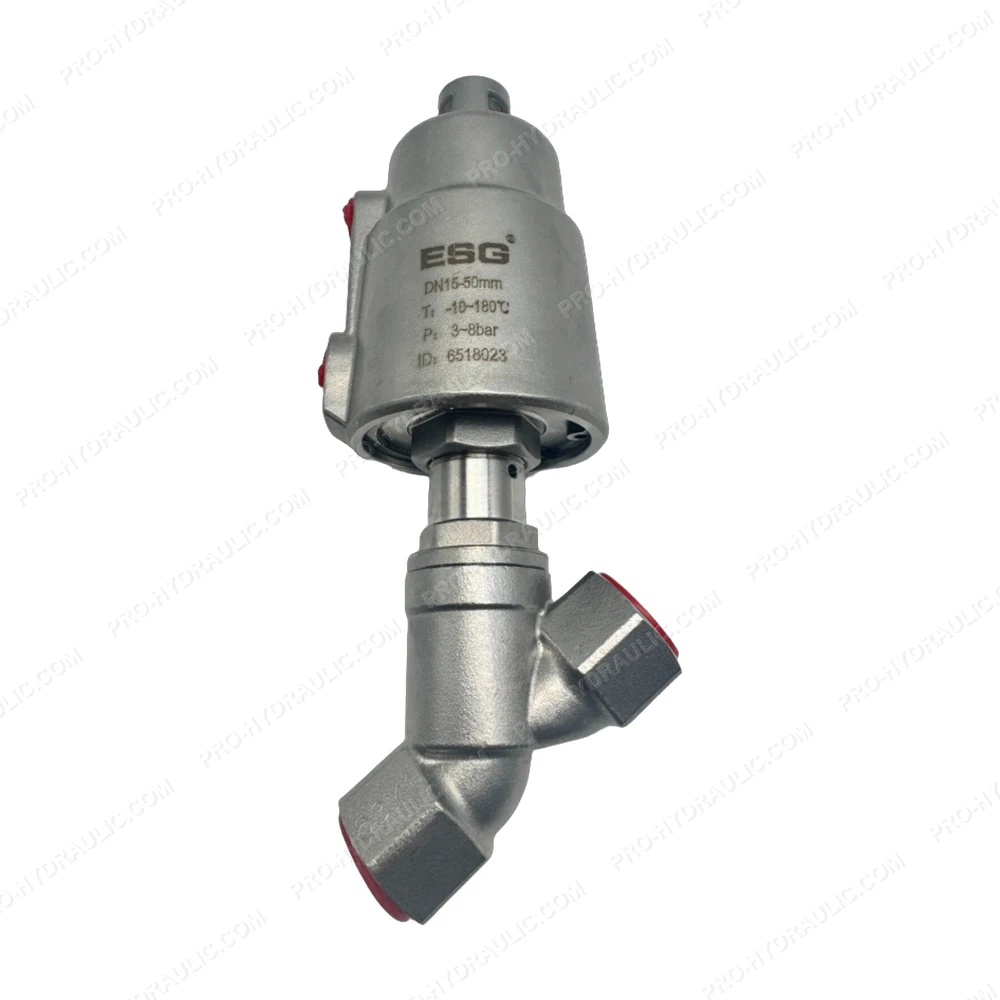

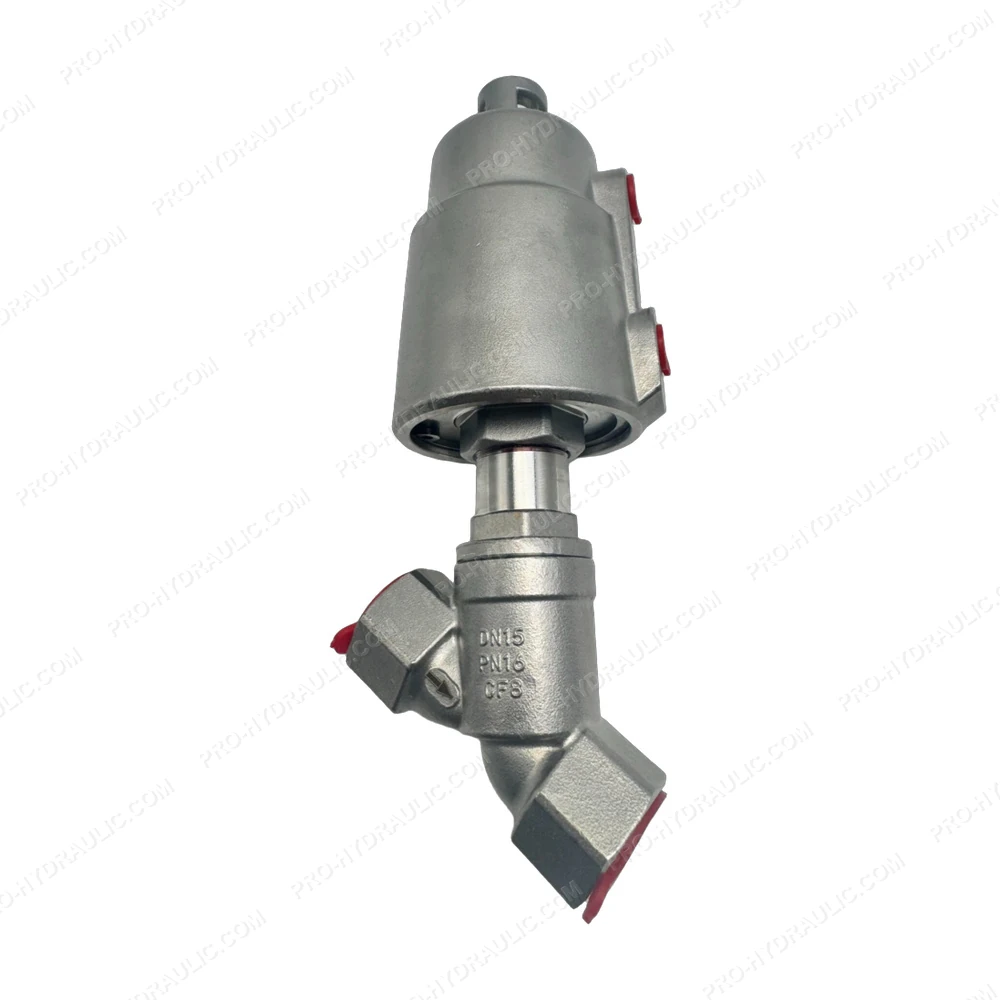

ESG DN15 Pneumatic Angle Seat Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the ESG DN15 Pneumatic Angle Seat Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
