Product Overview
The FAIRCHILD TD7800-401 is a precision electro-pneumatic transducer engineered to convert a variable electrical input signal into a proportional pneumatic output pressure. Manufactured by Fairchild Industrial Products, a recognized authority in precision pneumatic control, this model belongs to the T7800 series of high-resolution transducers. The TD7800-401 utilizes a force-balance, closed-loop feedback mechanism in which an electromagnetic actuator (torque motor) positions a pneumatic pilot stage, delivering a stable and repeatable output pressure directly proportional to the input current or voltage signal. This device serves as a critical signal interface in process control loops, enabling electronic controllers, PLCs, and DCS systems to command pneumatic final control elements such as control valves, dampers, and positioners with high accuracy. Its robust construction and precision metering characteristics make it a preferred choice for demanding industrial process environments where reliable electro-pneumatic signal conversion is essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Transducer (Process & Pneumatic Valve Accessory) |
| Model Designation | TD7800-401 |
| Manufacturer | Fairchild Industrial Products |
| Input Signal | Standard electrical input (mA or VDC, model-dependent configuration) |
| Output Pressure Range | Proportional pneumatic output (typical 3–15 psig or 0–100 kPa range, model-specific) |
| Operating Pressure | Standard Industrial Grade (supply pressure per manufacturer rating) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (pipe or panel mount) |
| Control Mechanism | Force-balance closed-loop feedback with torque motor pilot stage |
Engineering Features & Advantages
- Precision Signal Conversion: High-resolution electro-pneumatic transduction delivers a stable, repeatable output pressure directly proportional to the electrical input, ensuring accurate process control and minimal hysteresis.
- Force-Balance Feedback Design: Closed-loop feedback mechanism maintains output accuracy despite variations in supply pressure, temperature, and vibration, providing consistent performance in dynamic process conditions.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with rugged housing and components selected for long service life in demanding plant environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Fairchild TD7800 series standards, enabling straightforward drop-in replacement without system modification.
- Low Air Consumption: Efficient pilot stage design minimizes compressed air usage while maintaining responsive output control.
Typical Industrial Applications
The FAIRCHILD TD7800-401 electro-pneumatic transducer is widely deployed in heavy industrial scenarios requiring precise conversion of electronic control signals to pneumatic actuation. Typical applications include control valve positioning in petrochemical and refining process loops, damper and louver actuation in power generation and
PRODUCT IMAGES

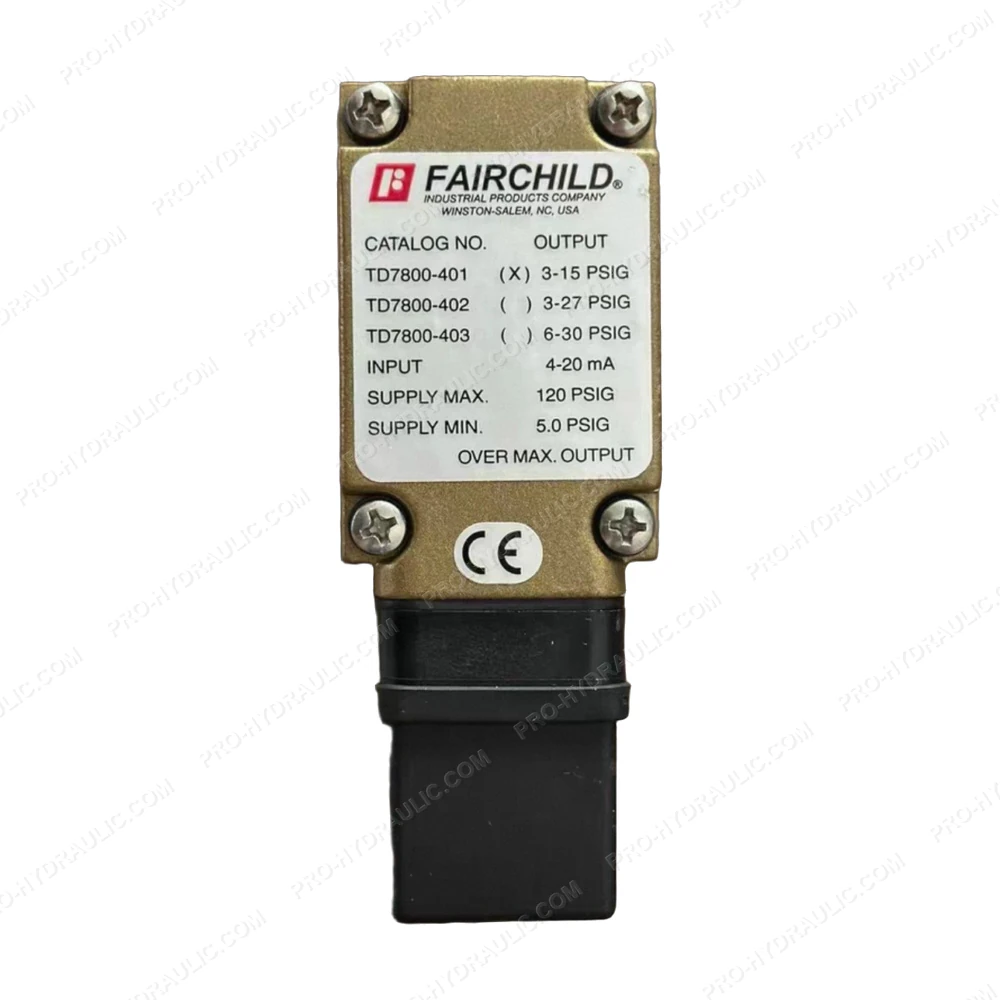

FAIRCHILD TD7800-401 Electro-Pneumatic Transducer
