Product Overview
The FESTO CPE10-M1BH-5/3E-QS6-B (Part No. 533155) is a compact 5/3-way pneumatic solenoid valve from the FESTO CPE10 series, engineered for precise directional control of compressed air in industrial automation and process systems. Utilizing a poppet-style spool mechanism actuated by a single solenoid with spring return, this valve delivers reliable 5/3-way closed-center function for cylinder positioning, holding, and safe mid-position stopping. Its QS6 push-in pneumatic fittings enable rapid, tool-free tubing connection, while the M1BH solenoid coil provides robust electrical actuation compatible with standard industrial control voltages. Designed as a direct-fit replacement for OEM FESTO assemblies, the CPE10-M1BH-5/3E-QS6-B is ideal for space-constrained valve manifolds and modular automation platforms.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (5/3-Way Directional Control Valve) |
| Model Designation | CPE10-M1BH-5/3E-QS6-B / 533155 |
| Valve Function | 5/3-way, closed center (E) |
| Actuation Type | Single solenoid, spring return |
| Operating Pressure | Standard Industrial Grade (approx. 2.5 to 8 bar) |
| Pneumatic Connection | QS6 push-in fittings (6 mm tubing) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (manifold or individual mounting) |
| Electrical Connection | M1BH solenoid coil, standard industrial plug interface |
Engineering Features & Advantages
- Precision Performance: 5/3 closed-center spool design provides accurate directional control and reliable mid-position holding for double-acting actuators, preventing drift during neutral state.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust solenoid actuation and spring-return fail-safe behavior.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original FESTO OEM standards, including QS6 push-in ports and M1BH coil interface.
- Compact Modular Design: CPE10 series footprint enables high-density valve manifold integration, reducing installation space and piping complexity.
- Fast Installation: QS6 push-in fittings allow tool-free tubing connection and quick maintenance turnaround.
Typical Industrial Applications
This FESTO CPE10-M1BH-5/3E-QS6-B solenoid valve is widely deployed in pneumatic automation systems, including plastic injection molding machines for mold and ejector control, packaging and assembly lines for actuator positioning, CNC machine tools and pick-and-place units requiring precise cylinder holding, and general process automation where reliable 5
PRODUCT IMAGES

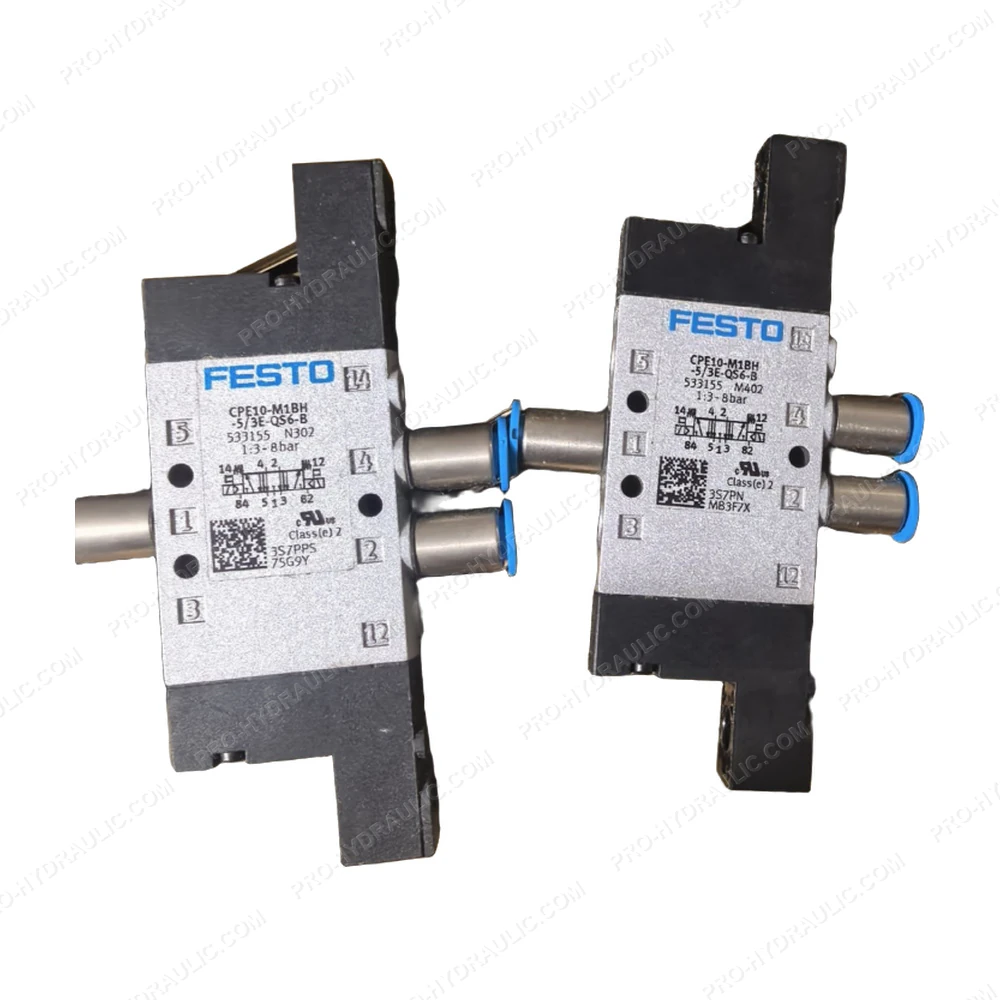

FESTO CPE10-M1BH-5/3E-QS6-B / 533155 Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine FESTO CPE10-M1BH-5/3E-QS6-B / 533155 Solenoid Valve. This Germany-made 24V DC hydraulic component features a 5/3-way directional control, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
