The FESTO CPE10-M1BH-5J-M7 is a heavy-duty industrial pneumatic solenoid valve engineered for compact, high-cycle directional control of compressed air in automated machinery and process systems. This 5/2-way valve uses a direct-acting, wet-pin armature design that shifts a precision spool to route supply and exhaust flows with fast, repeatable response. The M7 threaded port connection and CPE10 body size allow direct inline or manifold mounting in tight control cabinets and valve terminals.
FESTO CPE10-M1BH-5J-M7 Technical Specifications
| Attribute | Specification |
|---|---|
| Valve Function | 5/2-way, single solenoid, spring return |
| Actuation Type | Electrical solenoid, wet-pin armature |
| Port Connection | M7 threaded ports |
| Operating Pressure Range | Approx. 2.5 to 8 bar (dependent on configuration) |
| Nominal Flow Rate | Compact CPE10 flow class, optimized for fast cycling |
| Operating Voltage | 24 V DC coil (standard CPE10 series) |
| Mounting | Individual or manifold / valve terminal mounting |
| Media | Filtered, lubricated or non-lubricated compressed air |
| Seal Material | NBR / nitrile elastomer |
| Body Material | Reinforced polymer / die-cast alloy |
Key Engineering Features
- Direct-acting wet-pin solenoid armature for fast, consistent spool shifting
- 5/2-way function with spring return for defined de-energized state
- Compact CPE10 body size for high-density valve terminal installation
- M7 threaded ports for secure, leak-resistant pneumatic connections
- Low power consumption coil suitable for PLC and fieldbus control
- Manual override for commissioning and troubleshooting
Industrial Applications
- Automated assembly and handling systems
- Packaging and labeling machinery
- Valve terminals and manifold control blocks
- Pneumatic actuators and cylinder directional control
- Process automation and factory automation lines
For technical inquiries, dimensional drawings, or replacement support for FESTO CPE10-M1BH-5J-M7, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

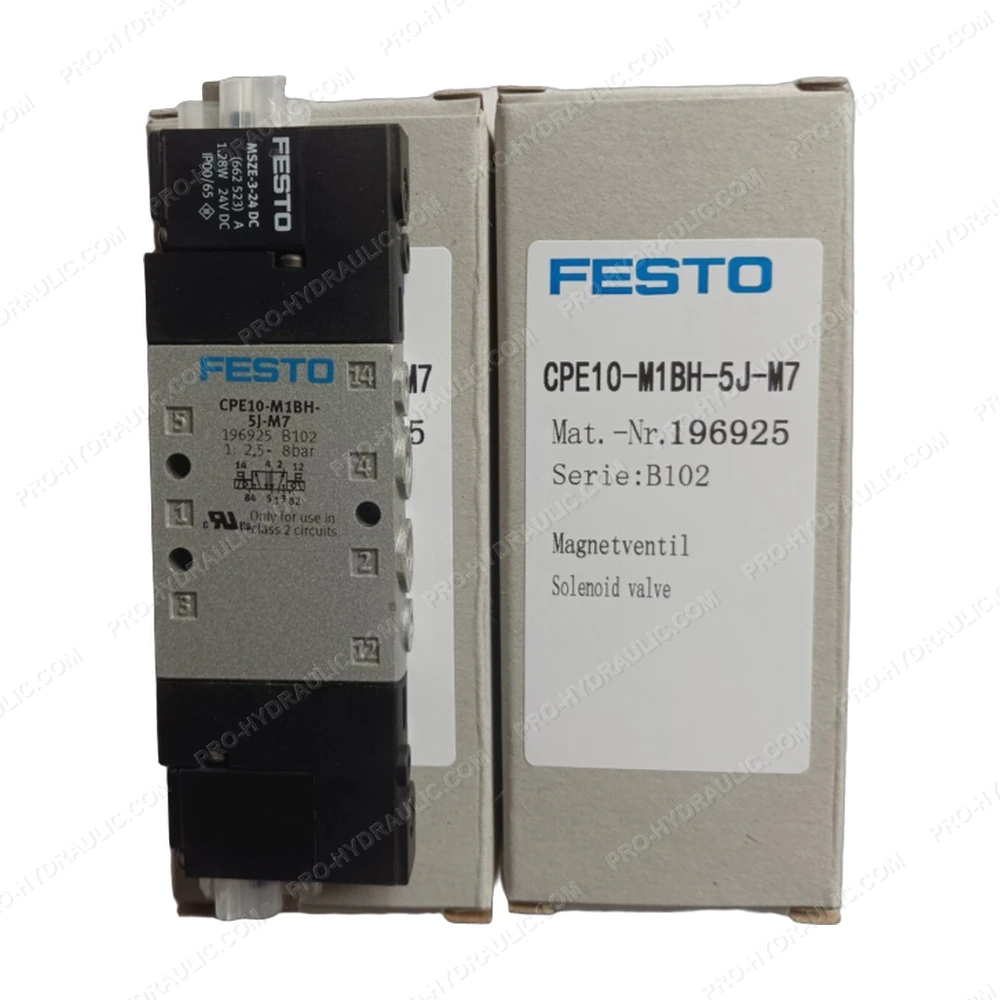

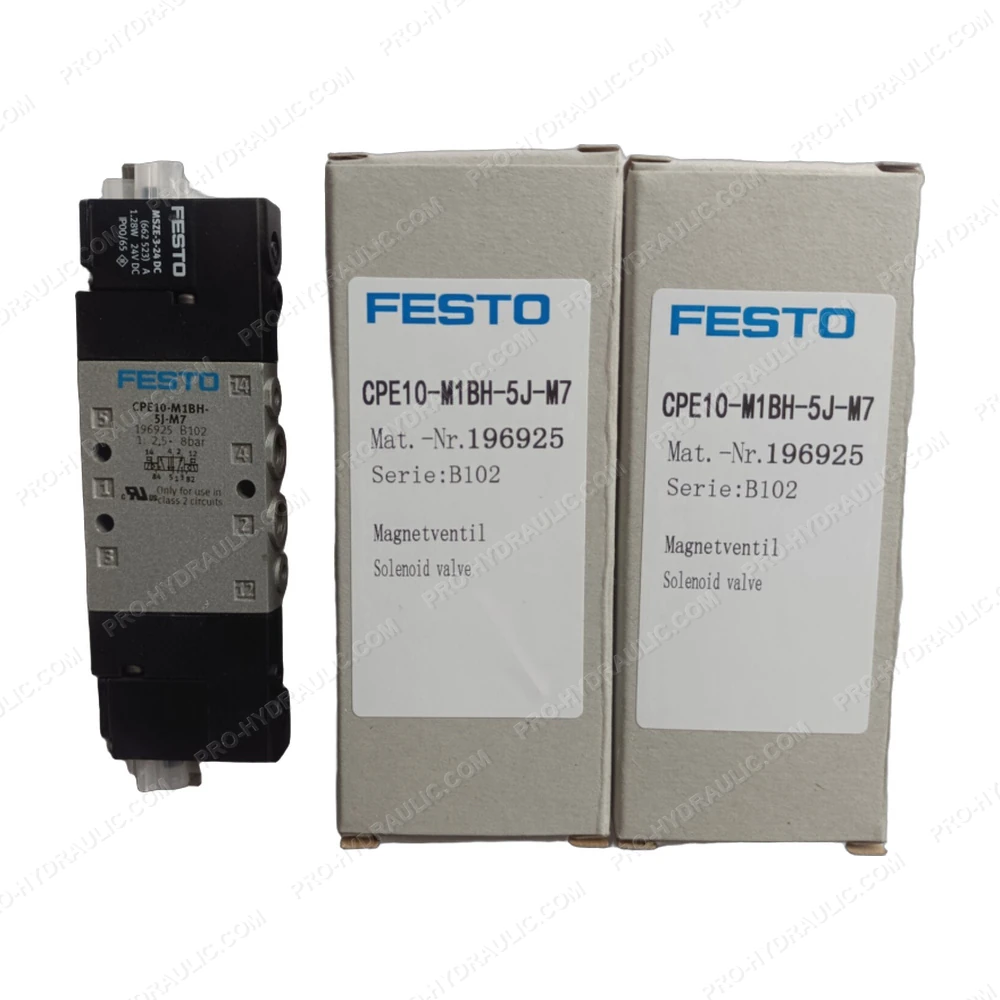

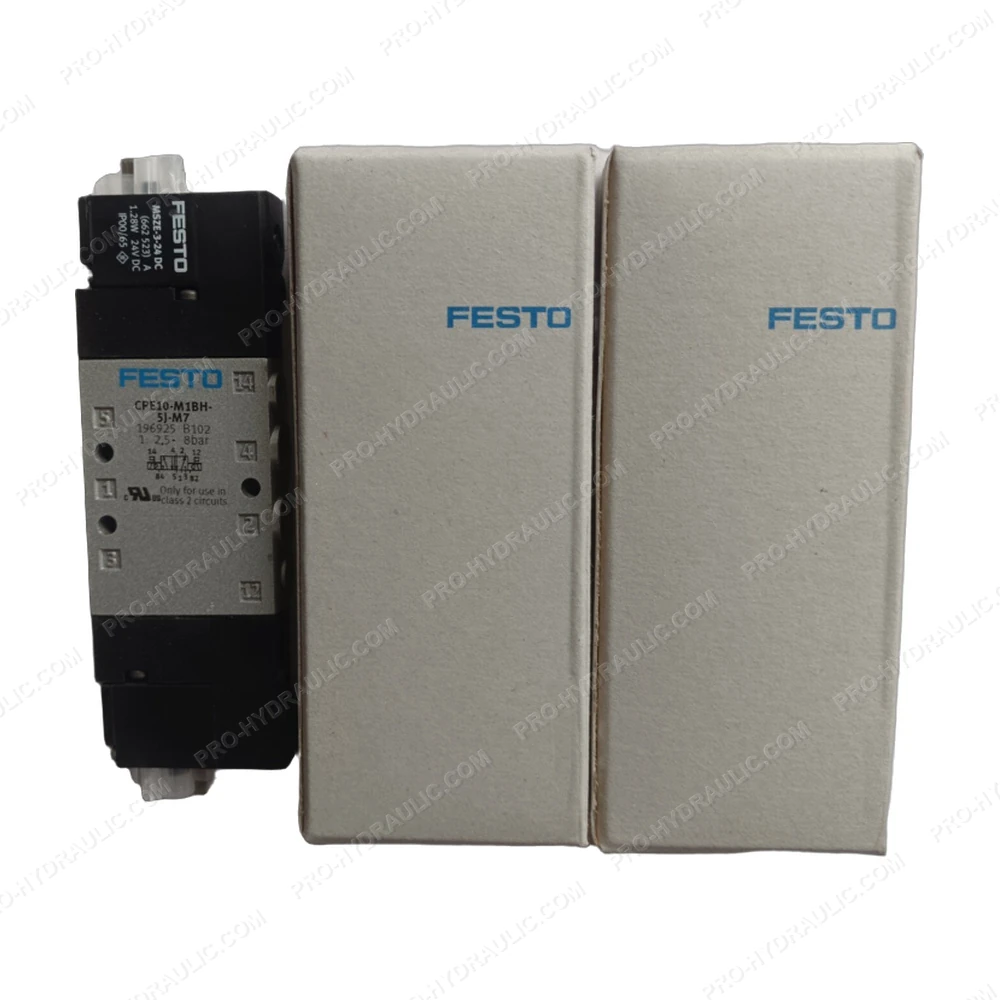

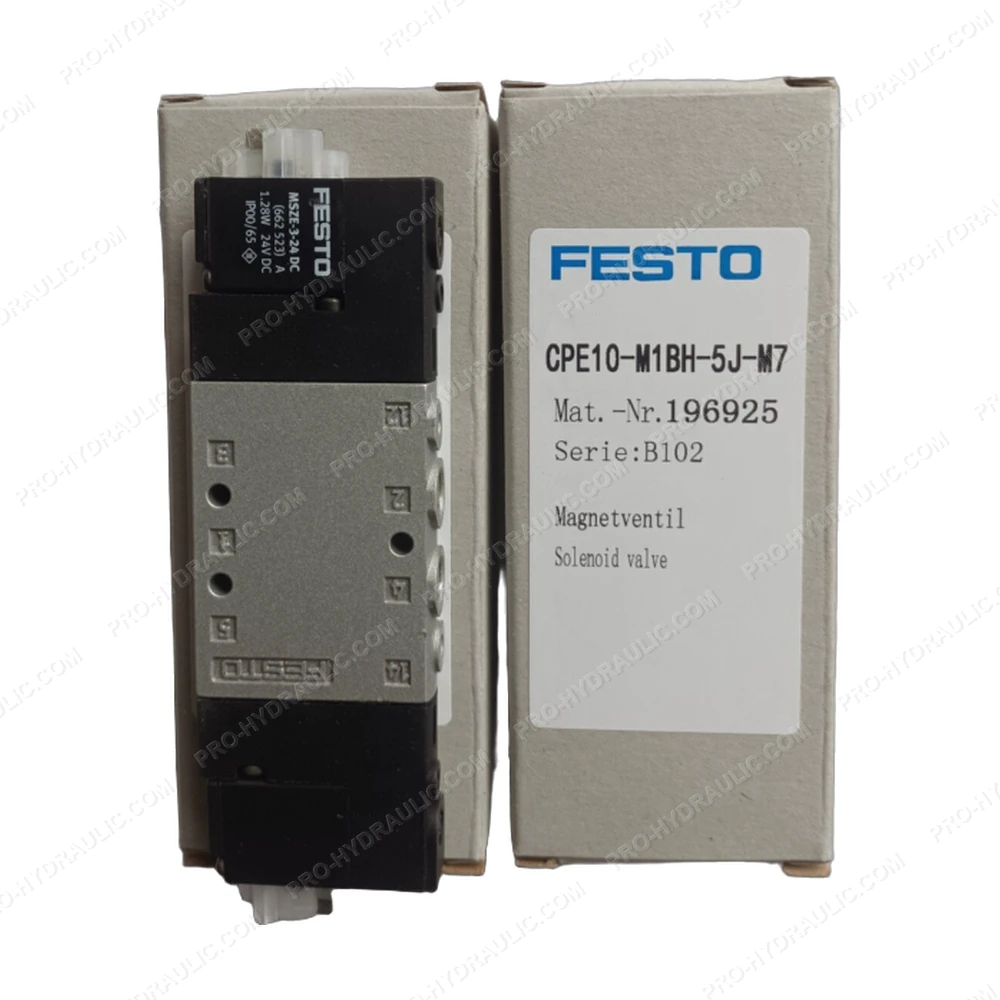

FESTO CPE10-M1BH-5J-M7 Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the FESTO CPE10-M1BH-5J-M7 Pneumatic Solenoid Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
