Product Overview
The FESTO CPE14-M1BH-5/3GS-1/8 is a compact 5/3-way pneumatic solenoid valve from the Festo CPE series, engineered for precise directional control of compressed air in industrial automation and process systems. Featuring a 5/3-way spool configuration with a closed mid-position, this valve provides reliable switching, holding, and exhausting functions for double-acting actuators and pneumatic drive systems. Its 1/8-inch port connection and compact CPE14 body design make it an ideal solution for space-constrained control cabinets, valve terminals, and manifold assemblies where fast response and repeatable switching behavior are essential. As a direct-acting solenoid valve, it delivers consistent performance across a wide operating pressure range and is fully compatible with Festo’s modular pneumatic control architecture.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (5/3-Way Directional Control Valve) |
| Model Designation | CPE14-M1BH-5/3GS-1/8 |
| Valve Function | 5/3-way, closed mid-position (GS) |
| Actuation Type | Electrical solenoid, direct-acting |
| Port Connection | G1/8 (1/8″) threaded ports |
| Operating Pressure | Standard industrial pneumatic range (approx. 2.5 to 8 bar, depending on configuration) |
| Operating Medium | Filtered compressed air, lubricated or non-lubricated |
| Mounting & Connection | Individual mounting or manifold / valve terminal integration (Festo CPE modular interface) |
| Sealing Principle | Soft-sealing spool design for tight shut-off and low leakage |
Engineering Features & Advantages
- Precision Spool Metering: The 5/3-way closed mid-position spool configuration enables accurate directional control and reliable load holding, preventing unintended actuator movement when the valve is de-energized.
- Compact CPE14 Design: The space-saving body footprint allows high-density valve mounting on manifolds and valve terminals, reducing cabinet size and tubing complexity.
- Fast Solenoid Response: Direct-acting solenoid actuation delivers rapid switching times for high-cycle automation tasks and precise sequence control.
- Industrial Reliability: Built for continuous operation under demanding industrial conditions, with durable seals and a robust spool assembly for long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with Festo CPE series standards, ensuring drop-in replacement without modification.
Typical Industrial
PRODUCT IMAGES

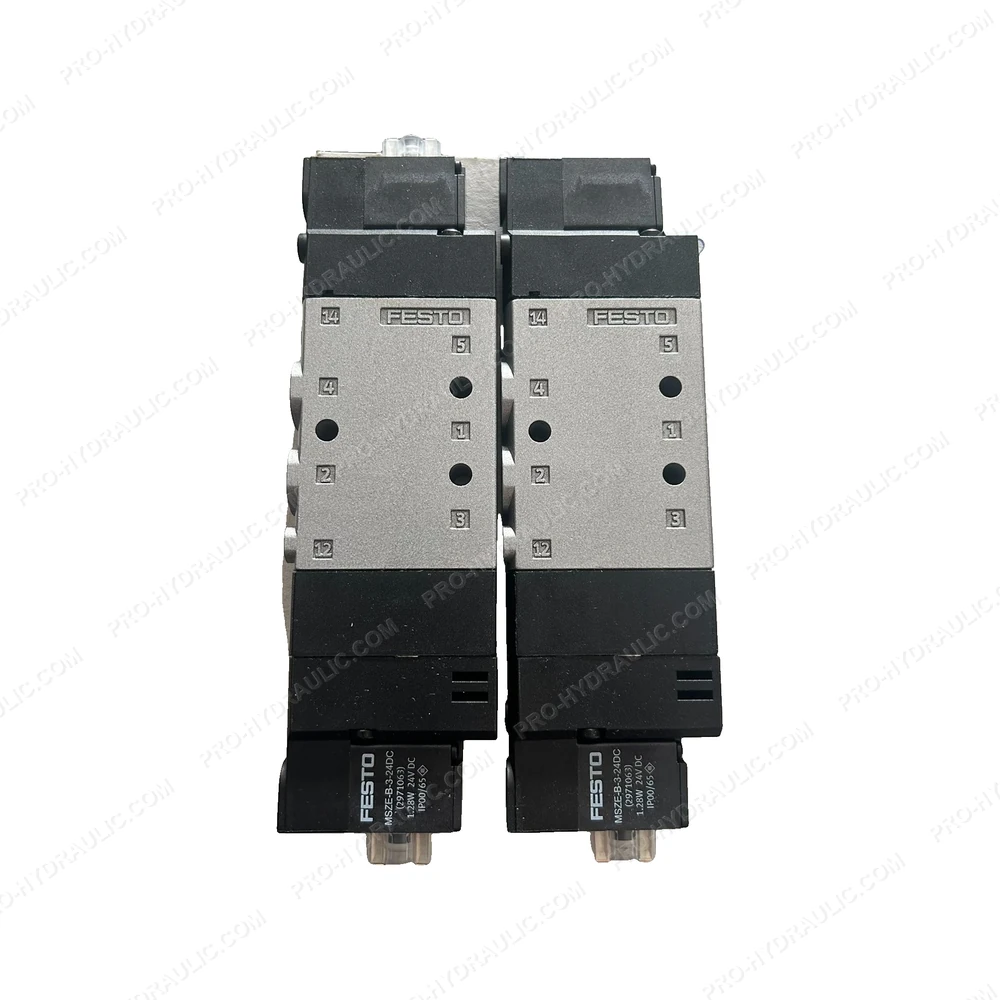

FESTO CPE14-M1BH-5/3GS-1/8 Pneumatic Solenoid Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine FESTO CPE14-M1BH-5/3GS-1/8 Solenoid Valve. This Germany-made pneumatic component features a 5/3-way closed center function, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
