Product Overview
The FESTO CPE14-M1BH-5L-1/8 (Part No. 196941) is a compact, high-performance pneumatic solenoid valve from Festo’s CPE series, engineered for precise directional control of compressed air in automated industrial systems. Featuring a 5/2-way monostable function with a 14 mm valve body width, this valve utilizes a direct-acting poppet spool mechanism that delivers fast, reliable switching even at low operating pressures. The M1BH solenoid actuation system provides single-solenoid, spring-return operation, making it ideal for fail-safe positioning in pneumatic cylinders, actuators, and process control circuits. Its 1/8″ threaded port connection and compact footprint allow seamless integration into tight manifold assemblies and modular valve terminals, ensuring optimal flow performance with minimal pressure drop.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (5/2-Way, Monostable) |
| Model Designation | CPE14-M1BH-5L-1/8 / 196941 |
| Valve Function | 5/2-way, single solenoid, spring return |
| Operating Pressure | 2.5 to 8 bar (typical operating range for CPE14 series) |
| Nominal Flow Rate | Approx. 400 l/min (standard CPE14 flow class) |
| Pneumatic Connection | G1/8 threaded ports (ISO 228) |
| Electrical Actuation | Solenoid coil, 24 V DC nominal (M1BH series) |
| Mounting & Connection | Individual or manifold mounting, Festo modular interface |
| Body Width | 14 mm (CPE14 compact platform) |
| Seal Material | NBR (Nitrile) – standard for compressed air service |
Engineering Features & Advantages
- Precision Performance: Direct-acting poppet design ensures consistent switching response and reliable operation even at low pilot pressures, with minimal internal leakage for accurate actuator control.
- Compact Modular Design: The 14 mm body width and Festo modular interface enable high-density valve manifold configurations, reducing installation space and tubing complexity in control cabinets.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust solenoid construction and proven spring-return fail-safe functionality.
- Direct Fit Replacement: Precision-manufactured to original FESTO specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
196941) is a compact, high-performance pneumatic solenoid valve from Festo’s CPE series, engineered for precise directional control of compressed air in automated industrial systems.
PRODUCT IMAGES

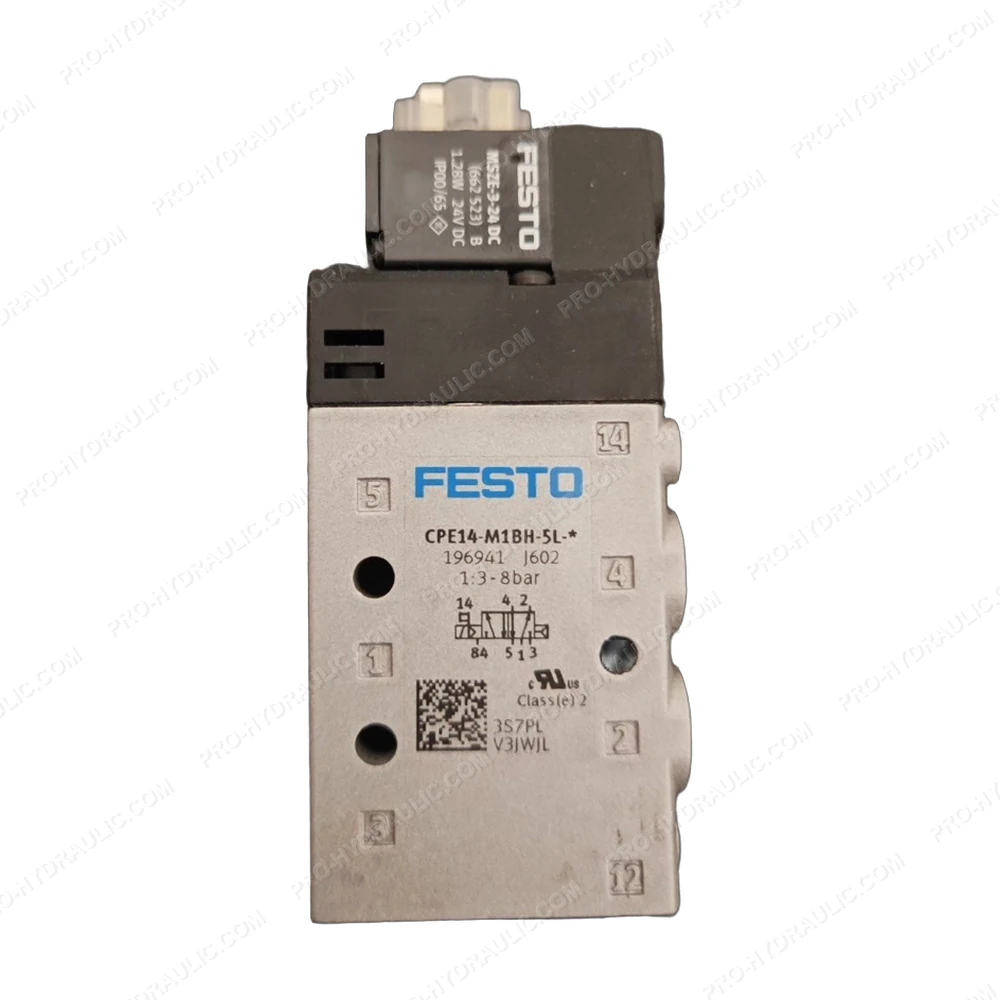

FESTO CPE14-M1BH-5L-1/8 / 196941 Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine FESTO CPE14-M1BH-5L-1/8 / 196941 Solenoid Valve. This Germany-made 24V DC hydraulic component features a 5/2-way solenoid actuated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
