Product Overview
The FESTO HE-1/2-D-MIDI (Part No. 162810) is a manually actuated pneumatic on/off valve from Festo’s proven D-series MIDI valve family. Designed as a 2/2-way shut-off valve, it features a robust manual lever mechanism that provides reliable, quarter-turn style actuation for isolating or enabling compressed air flow within pneumatic circuits. With a 1/2″ nominal connection size and MIDI (medium-duty) body platform, this valve is engineered for dependable service in industrial automation, machine tools, and process control systems where positive pneumatic isolation is required. Its poppet-style sealing design ensures tight shut-off with minimal leakage, making it an ideal choice for maintenance isolation, safety circuits, and sectional control of compressed air distribution networks.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic On/Off Valve (Manual Shut-Off Valve) |
| Model Designation | HE-1/2-D-MIDI / 162810 |
| Valve Function | 2/2-way, manually actuated, normally closed |
| Nominal Connection Size | 1/2″ (G1/2 thread) |
| Operating Pressure | Standard Industrial Grade (up to 16 bar) |
| Actuation Type | Manual lever / hand-operated |
| Mounting & Connection | Threaded port connection, standard Festo D-series interface |
| Body Material | Die-cast aluminum housing with brass sealing elements |
Engineering Features & Advantages
- Precision Performance: Poppet-style sealing mechanism delivers tight, repeatable shut-off with minimal leakage, ensuring reliable isolation of pneumatic circuits during maintenance or emergency stop conditions.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a durable die-cast aluminum body and corrosion-resistant internal components rated for demanding factory environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Festo OEM standards, allowing drop-in replacement without modification to existing piping or mounting arrangements.
- Manual Override Capability: Lever actuation provides clear visual indication of valve position (open/closed), supporting safe lockout/tagout procedures and rapid system isolation.
- Compact MIDI Platform: The D-MIDI body size balances flow capacity with a space-efficient footprint, ideal for modular pneumatic panels and manifold assemblies.
Typical Industrial Applications
This FESTO pneumatic on/off valve is commonly deployed in plastic injection molding machines for air circuit isolation, metallurgical presses and forming equipment for controlled pneumatic actuation, construction and marine hydraulic-pneumatic control panels, CNC machine tools for spindle and clamping air supply management, and general factory automation systems requiring reliable manual shut-off of compressed air lines. It is
PRODUCT IMAGES

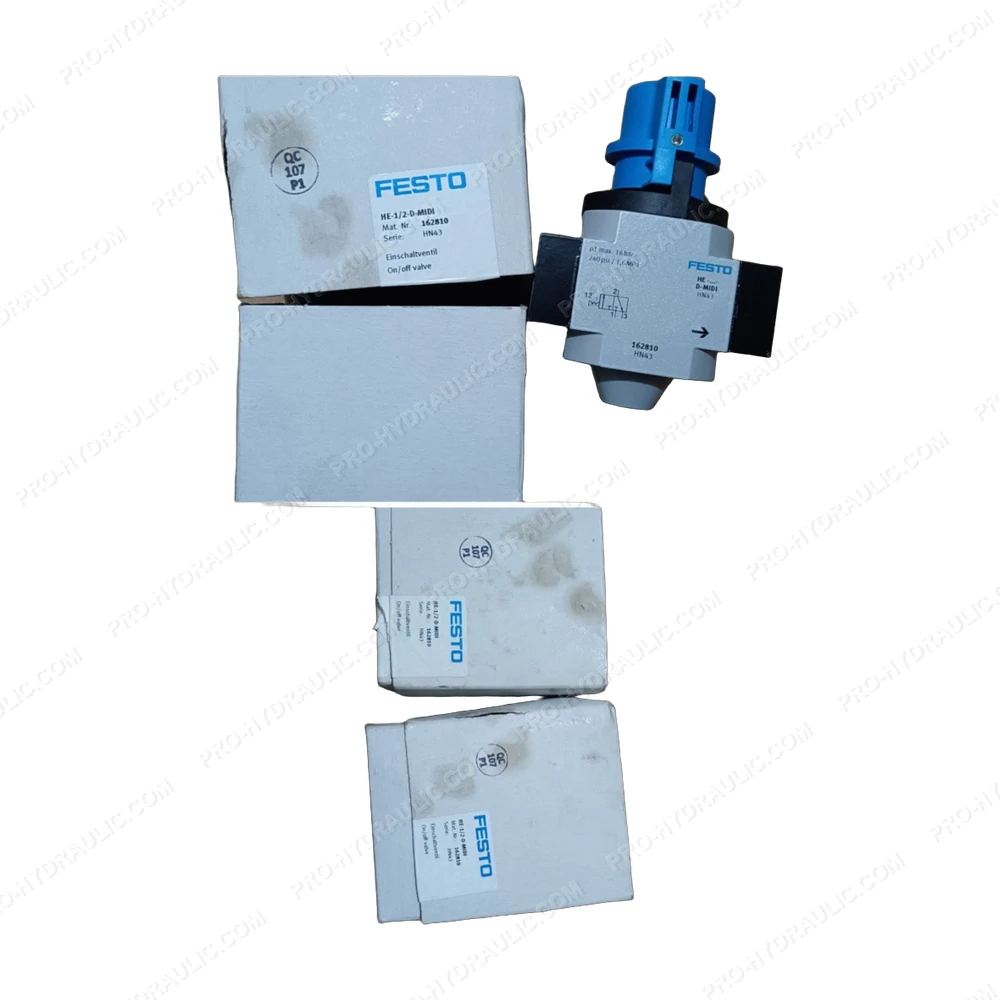

FESTO HE-1/2-D-MIDI / 162810 Pneumatic On/Off Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine FESTO HE-1/2-D-MIDI / 162810 On/Off Valve. This Germany-made pneumatic/hydraulic valve features a manually actuated 2/2-way design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
