Product Overview
The FESTO HEL-D-MIDI (Part No. 170691) is a pneumatically actuated soft-start valve engineered to provide controlled, gradual pressurization of pneumatic systems upon startup. As a critical safety and process control component within FESTO’s D-series valve family, this soft-start valve prevents sudden pressure surges that can cause uncontrolled actuator movement, mechanical shock, or damage to downstream equipment. The HEL-D-MIDI operates by initially restricting airflow through an adjustable throttle, allowing system pressure to build gradually to a preset switching point, after which the valve opens fully to deliver unrestricted flow. Its MIDI size designation corresponds to a nominal flow rate suitable for medium-duty industrial pneumatic circuits, making it an essential component for machine safety and controlled system energization.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Soft-Start Valve (Process & Pneumatic Valve) |
| Model Designation | HEL-D-MIDI / 170691 |
| Manufacturer | FESTO |
| Operating Pressure | Standard Industrial Grade (approx. 3 – 16 bar) |
| Size / Flow Class | MIDI (medium flow range) |
| Actuation Type | Pneumatic pilot / pressure-controlled switching |
| Mounting & Connection | Standard FESTO D-Series Interface (threaded port connections) |
| Adjustment | Adjustable throttle for soft-start ramp control |
Engineering Features & Advantages
- Controlled System Pressurization: Gradually increases downstream pressure through an adjustable throttle, eliminating pressure shocks and preventing uncontrolled actuator motion during system startup.
- Integrated Safety Logic: Automatically switches to full flow once the preset pilot pressure is reached, ensuring reliable transition from soft-start to normal operation without manual intervention.
- Industrial Reliability: Built for continuous operation under demanding industrial conditions, with robust sealing and durable valve body construction consistent with FESTO’s D-series modular platform.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original FESTO HEL-D-MIDI OEM standards, ensuring drop-in installation without modification.
- Modular Integration: Designed to integrate seamlessly with FESTO D-series service units, filters, regulators, and lubricators for complete air preparation systems.
Typical Industrial Applications
This FESTO soft-start valve is widely deployed in automated manufacturing and process environments where controlled pneumatic energization is critical. Typical applications include plastic injection molding machines requiring gradual clamping and injection pressure build-up, CNC machine tools and machining centers with multi-actuator pneumatic circuits, packaging and assembly lines where sudden cylinder movement could damage products or tooling, and general factory automation systems utilizing FESTO air preparation units. It is also commonly specified in safety-related pneumatic circuits for metallurgical equipment,
PRODUCT IMAGES

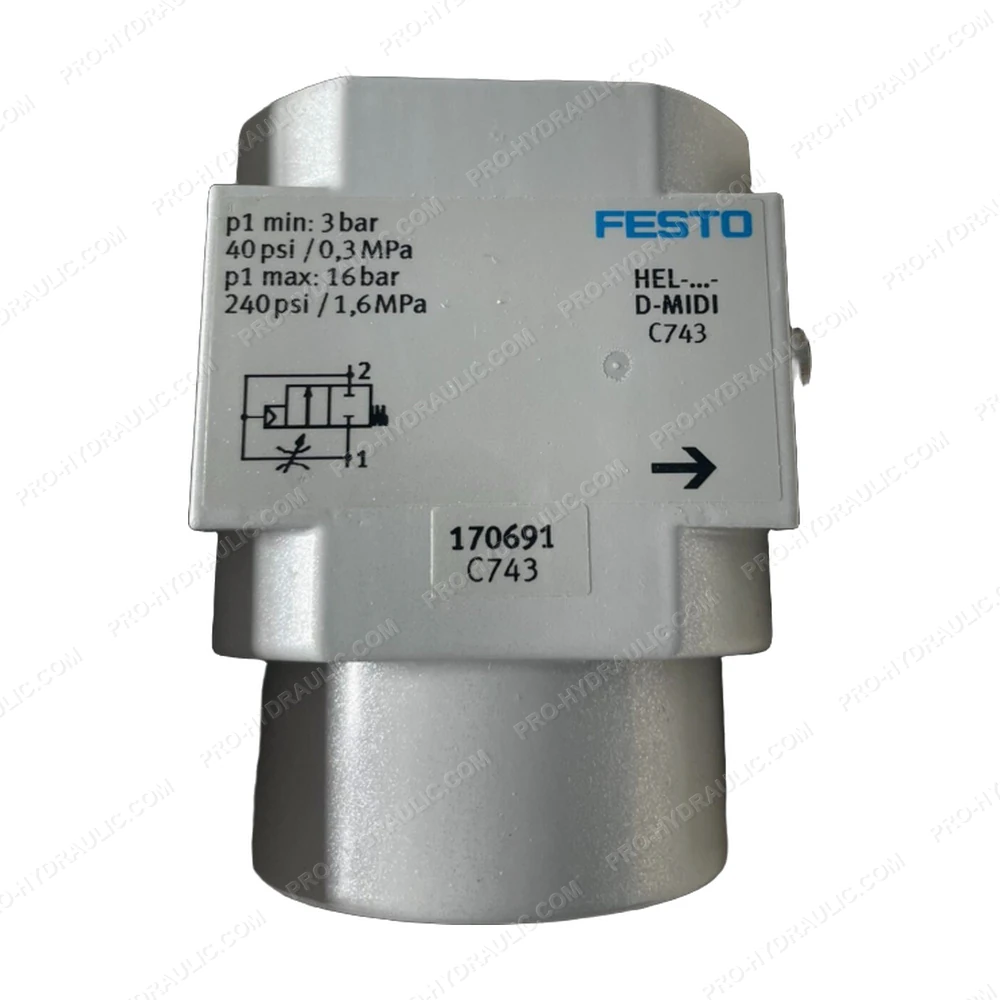

FESTO HEL-D-MIDI / 170691 Pneumatic Soft-Start Valve
