Product Overview
The FESTO JMFH-5-1/4-EX (Part No. 535913) is a high-performance pneumatic solenoid valve engineered by Festo, a global leader in industrial automation and pneumatic control technology. This 5/2-way monostable valve is part of the renowned JMFH series, designed specifically for use in potentially explosive atmospheres (ATEX-compliant, denoted by the “EX” suffix). The valve operates on a direct-acting solenoid principle, utilizing a precision spool and sleeve mechanism to deliver rapid, reliable switching of compressed air flows. With a 1/4-inch port size, it is ideally suited for controlling double-acting cylinders, actuating process valves, and managing complex pneumatic circuits in demanding industrial environments where safety and precision are paramount.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (5/2-way, monostable) |
| Model Designation | JMFH-5-1/4-EX / 535913 |
| Operating Pressure | 2.5 to 10 bar (typical for JMFH series) |
| Mounting & Connection | 1/4″ threaded ports (G1/4), sub-base or manifold mounting per ISO 5599-1 |
| Valve Function | 5/2-way, monostable (spring return) |
| Actuation Type | Electrical solenoid, direct-acting |
| Explosion Protection | ATEX certified (EX) for hazardous zones |
| Operating Voltage | Standard industrial voltages (e.g., 24 V DC, 110 V AC, 230 V AC – dependent on solenoid coil) |
| Seal Material | NBR (Nitrile) or FKM (Viton) for compatibility with compressed air and neutral gases |
| Flow Rate | Approx. 1,000 l/min (at 6 bar, dependent on configuration) |
Engineering Features & Advantages
- Precision Performance: The 5/2-way spool valve design ensures precise and rapid switching, minimizing air consumption and optimizing cycle times in automated processes.
- Industrial Reliability: Constructed with robust materials and a durable solenoid system, this valve is built for continuous operation under severe industrial conditions, including high cycle rates and vibration.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original FESTO OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
With a 1/4-inch port size, it is ideally suited for controlling double-acting cylinders, actuating process valves, and managing complex pneumatic circuits in demanding industrial environments where safety and precision are paramount.
PRODUCT IMAGES

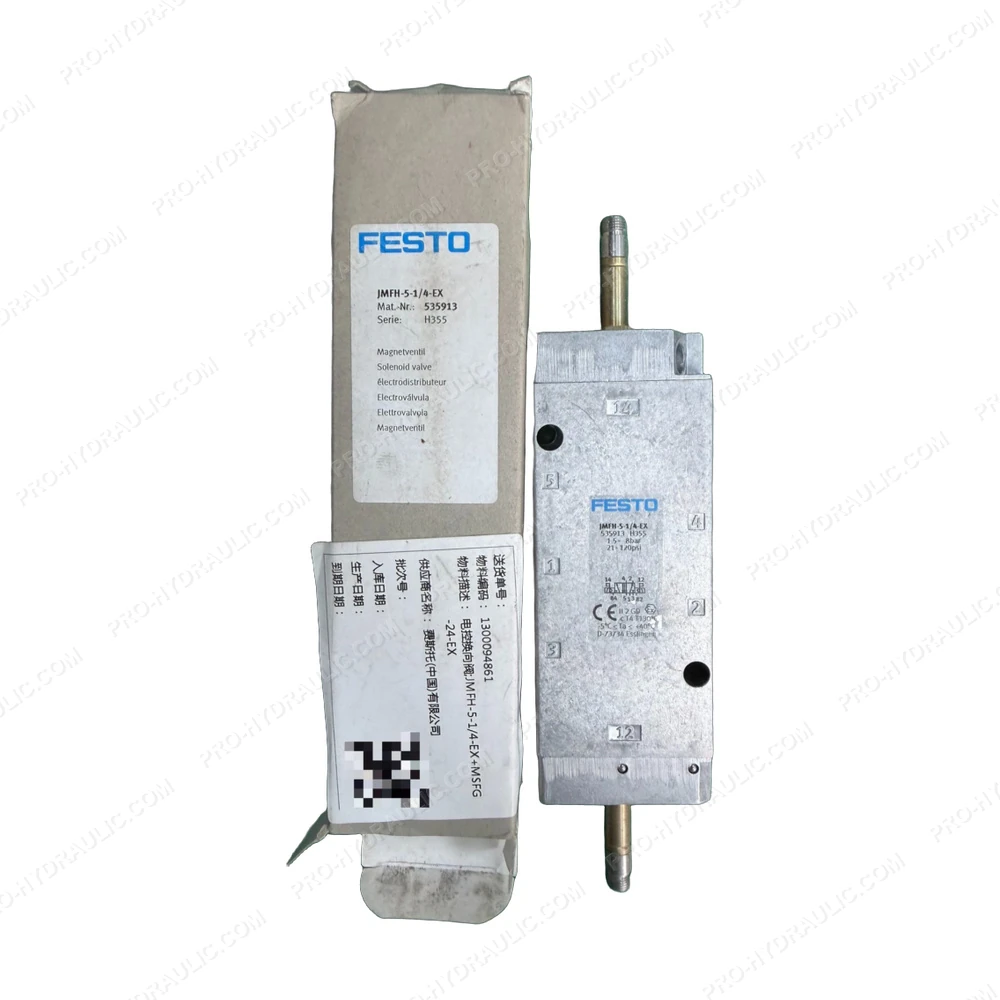

FESTO JMFH-5-1/4-EX / 535913 Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine FESTO JMFH-5-1/4-EX / 535913 Solenoid Valve. This Germany-made 24 VDC hydraulic component features a 5/2-way solenoid actuated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
