Product Overview
The FESTO LR-D-MINI (Part No. 8002390) is a precision pneumatic pressure regulator from the FESTO D-series family, engineered to maintain a stable, user-defined downstream working pressure regardless of fluctuations in upstream supply pressure or changes in flow demand. As a directly actuated diaphragm-type regulator, it operates on a force-balance principle: an adjustable spring acts against a rolling diaphragm to position the valve poppet, delivering accurate secondary pressure regulation with minimal hysteresis. With its compact Mini form factor, the LR-D-MINI is designed for space-constrained pneumatic control panels and integrates seamlessly into FESTO service units, FRL combinations, and modular air preparation systems. It serves as a critical control component in industrial automation, ensuring consistent actuator force, repeatable process behavior, and protection of downstream pneumatic components from over-pressurization.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Pressure Regulator (Process & Pneumatic Valve) |
| Model Designation | LR-D-MINI / 8002390 |
| Series / Size | FESTO D-Series, Mini Size |
| Operating Pressure | Standard Industrial Grade (up to 16 bar inlet, regulated output range per spring variant) |
| Working Medium | Compressed air (filtered, lubricated or non-lubricated) |
| Regulation Type | Directly actuated diaphragm regulator with adjustable spring |
| Mounting & Connection | Standard FESTO modular interface, thread connection (G1/8 / G1/4 class) |
| Adjustment | Manual rotary knob with locking option |
Engineering Features & Advantages
- Precision Pressure Regulation: Diaphragm-controlled force-balance design delivers accurate and repeatable secondary pressure, minimizing drift and hysteresis across varying flow conditions.
- Compact Mini Design: Space-saving form factor enables dense installation in control cabinets, valve manifolds, and modular FRL service units without sacrificing regulation performance.
- Modular System Integration: Fully compatible with FESTO D-series modular air preparation components, allowing quick assembly, expansion, and maintenance within existing pneumatic circuits.
- Industrial Reliability: Robust housing and diaphragm construction engineered for continuous operation under severe industrial conditions, including vibration and temperature variation.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original FESTO OEM standards, ensuring drop-in replacement with no modification required.
Typical Industrial Applications
The FESTO LR-D-MINI pressure regulator is widely deployed across heavy industrial and automation environments, including plastic injection molding machines requiring stable clamping and ejection air pressure, CNC machine tools and automated assembly lines with precise pneumatic actuator control, packaging and material handling systems, and general factory automation where consistent downstream air pressure protects valves, cylinders
PRODUCT IMAGES

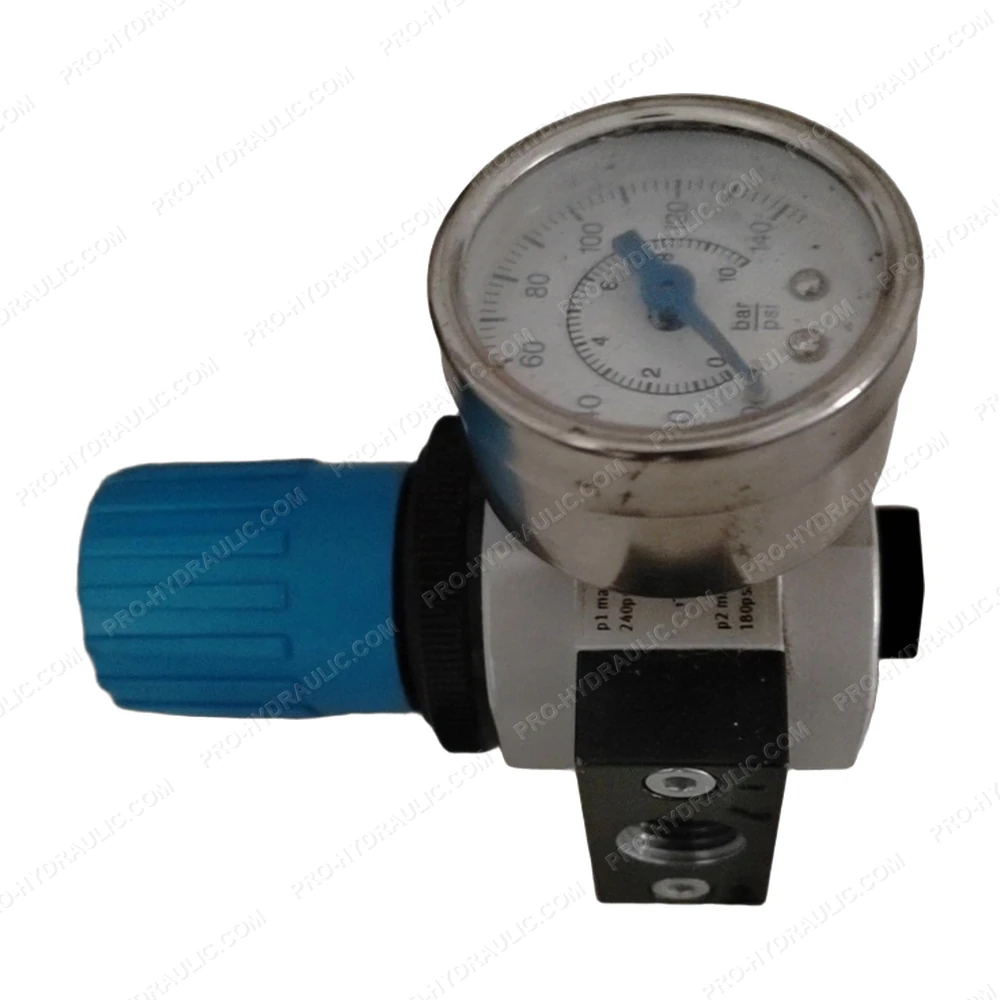

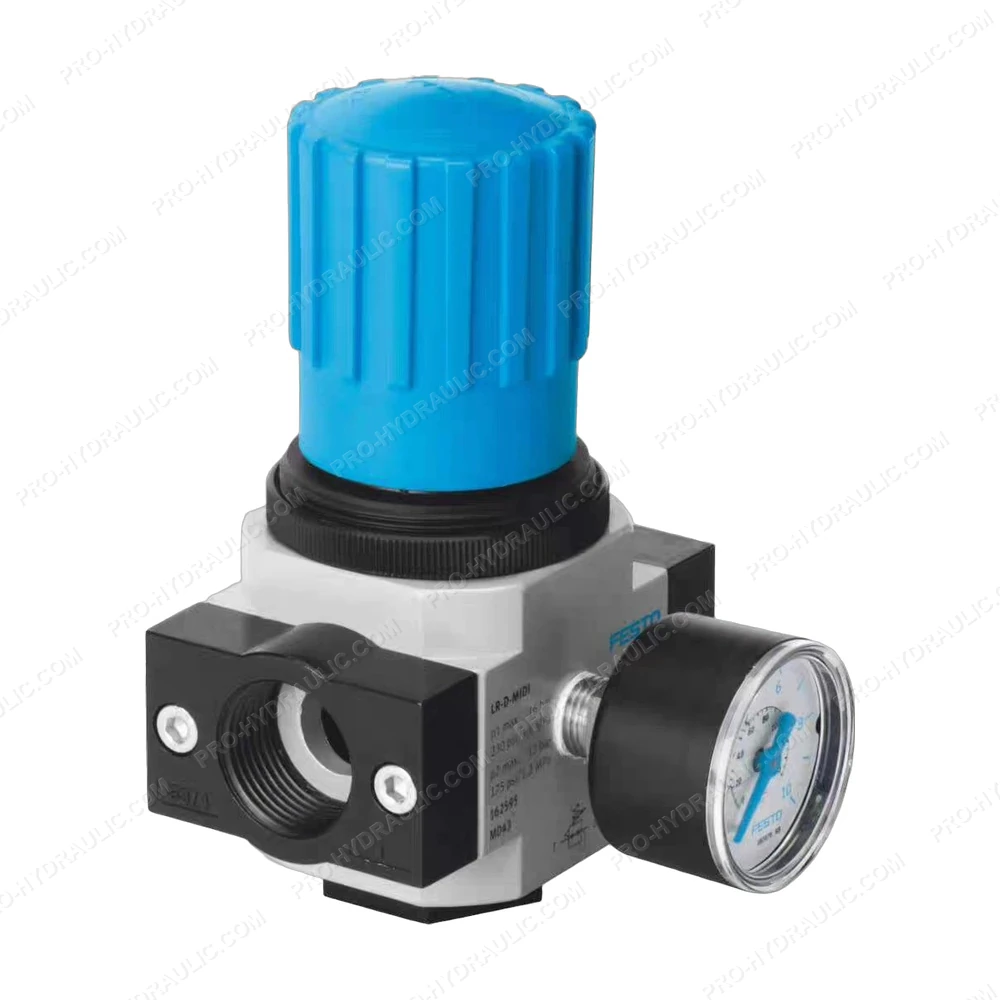

FESTO LR-D-MINI / 8002390 Pneumatic Pressure Regulator
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine FESTO LR-D-MINI / 8002390 Pressure Regulator Valve. This Germany-made pneumatic component features a diaphragm-operated design, delivering leak-free, reliable pressure control for heavy-duty industrial systems.
