Product Overview
The FESTO MEH-5/2-D-3-C is a high-performance pneumatic solenoid valve engineered by Festo, a global leader in industrial automation and pneumatic control technology. This 5/2-way directional control valve is designed to manage the direction of compressed air flow within pneumatic circuits, serving as a critical interface between electrical control signals and pneumatic actuation. Featuring a robust solenoid actuation mechanism with a 5-port, 2-position spool configuration, the MEH-5/2-D-3-C delivers precise, reliable switching for double-acting cylinders and other pneumatic actuators. Its durable construction and optimized flow characteristics make it an ideal choice for demanding industrial environments where consistent performance and long service life are essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (5/2-Way Directional Control Valve) |
| Model Designation | MEH-5/2-D-3-C |
| Valve Function | 5/2-way, 2-position, solenoid actuated with spring return |
| Operating Pressure | Standard Industrial Grade (typically 2 to 10 bar) |
| Actuation Type | Electrical solenoid with manual override |
| Mounting & Connection | Standard ISO / Manufacturer Interface (sub-base or manifold mounting) |
| Seal Material | NBR (Nitrile Butadiene Rubber) for compressed air compatibility |
| Body Material | Die-cast aluminum alloy, corrosion-resistant |
Engineering Features & Advantages
- Precision Performance: The 5/2-way spool design ensures accurate and repeatable directional control of pneumatic actuators, enabling precise extension and retraction of double-acting cylinders with minimal pressure loss.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, the MEH-5/2-D-3-C features a robust solenoid coil and durable internal spool mechanism that withstands millions of switching cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Festo OEM standards, ensuring seamless integration into existing pneumatic systems without modification.
- Fast Response Time: Optimized solenoid and spring return design delivers rapid valve actuation, improving cycle times in automated production processes.
- Manual Override: Integrated manual override allows for easy testing, commissioning, and emergency operation without electrical power.
Typical Industrial Applications
The FESTO MEH-5/2-D-3-C pneumatic solenoid valve is widely deployed across heavy industrial sectors, including plastic injection molding machines for mold opening/closing and ejection control, metallurgical presses for clamping and material handling, packaging machinery for high-speed actuation of grippers and diverters, and CNC machine tools for tool changing and workpiece clamping. Its reliable 5/2-way function also makes it suitable for automotive assembly lines, food and
PRODUCT IMAGES

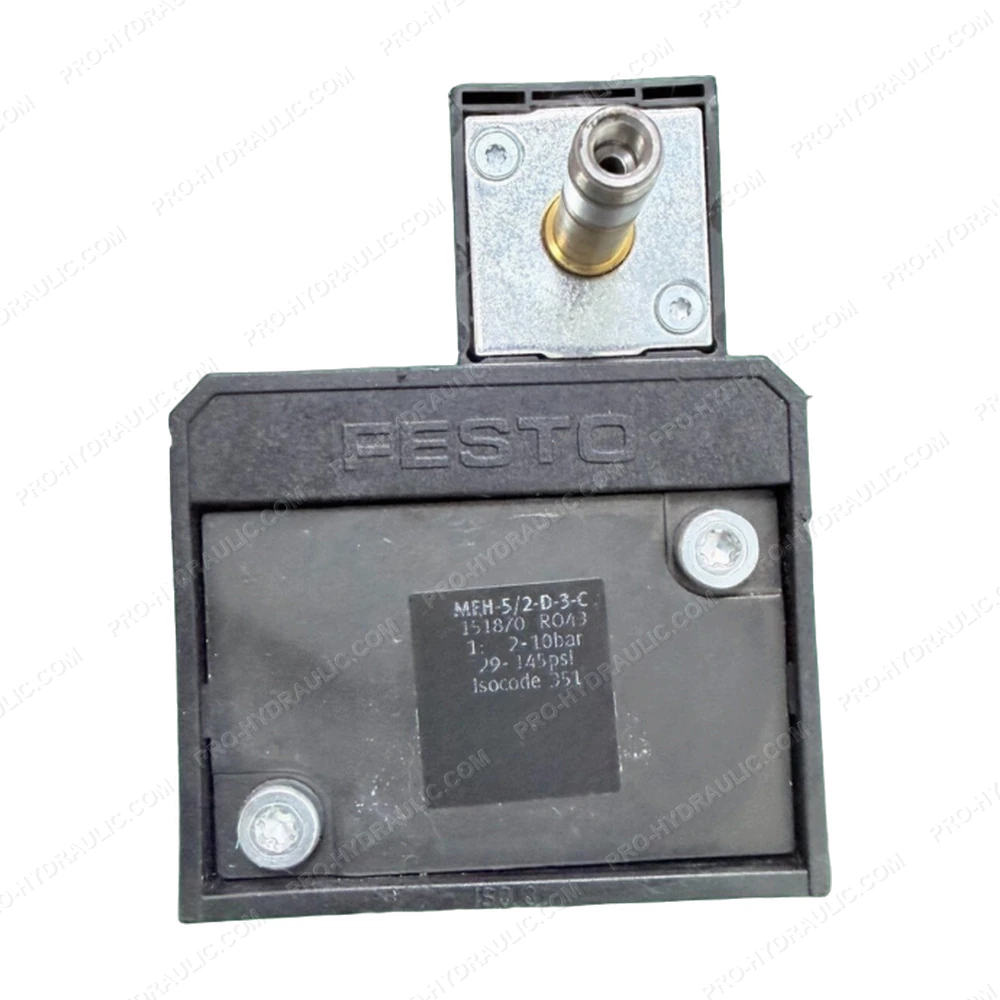

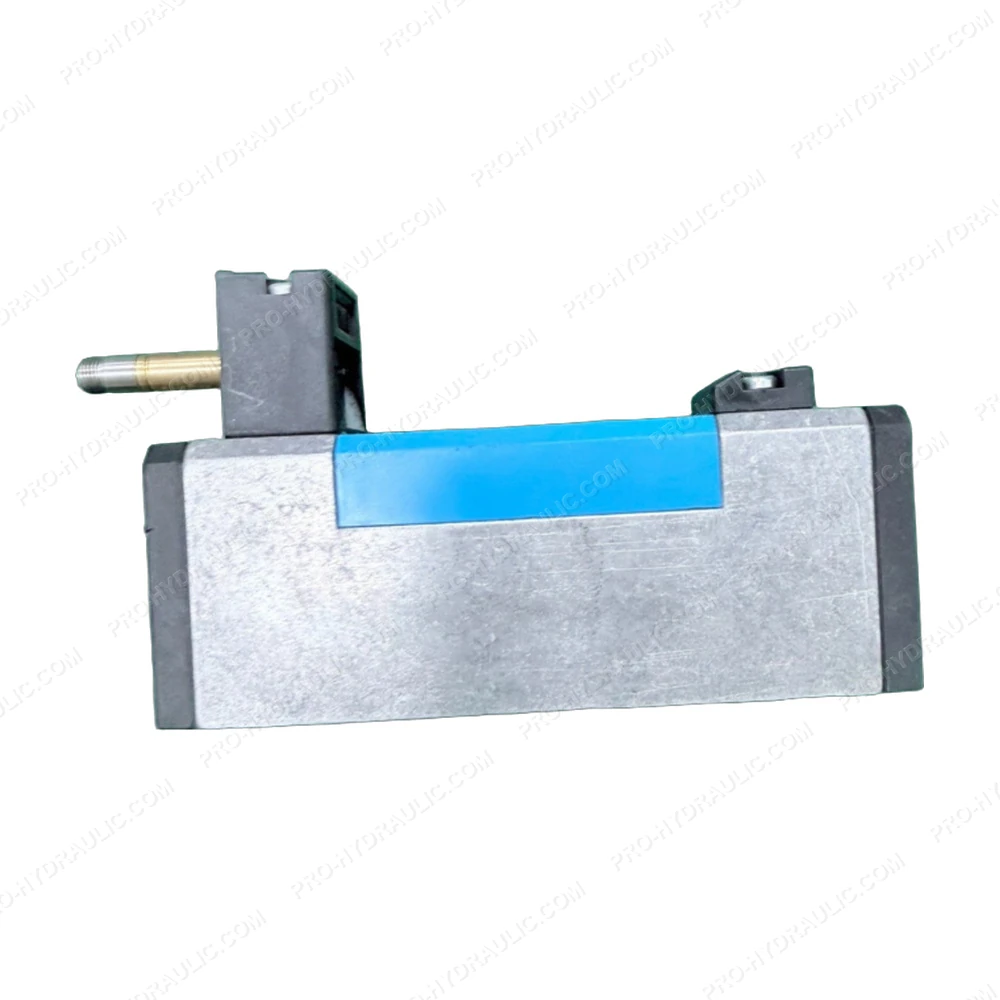

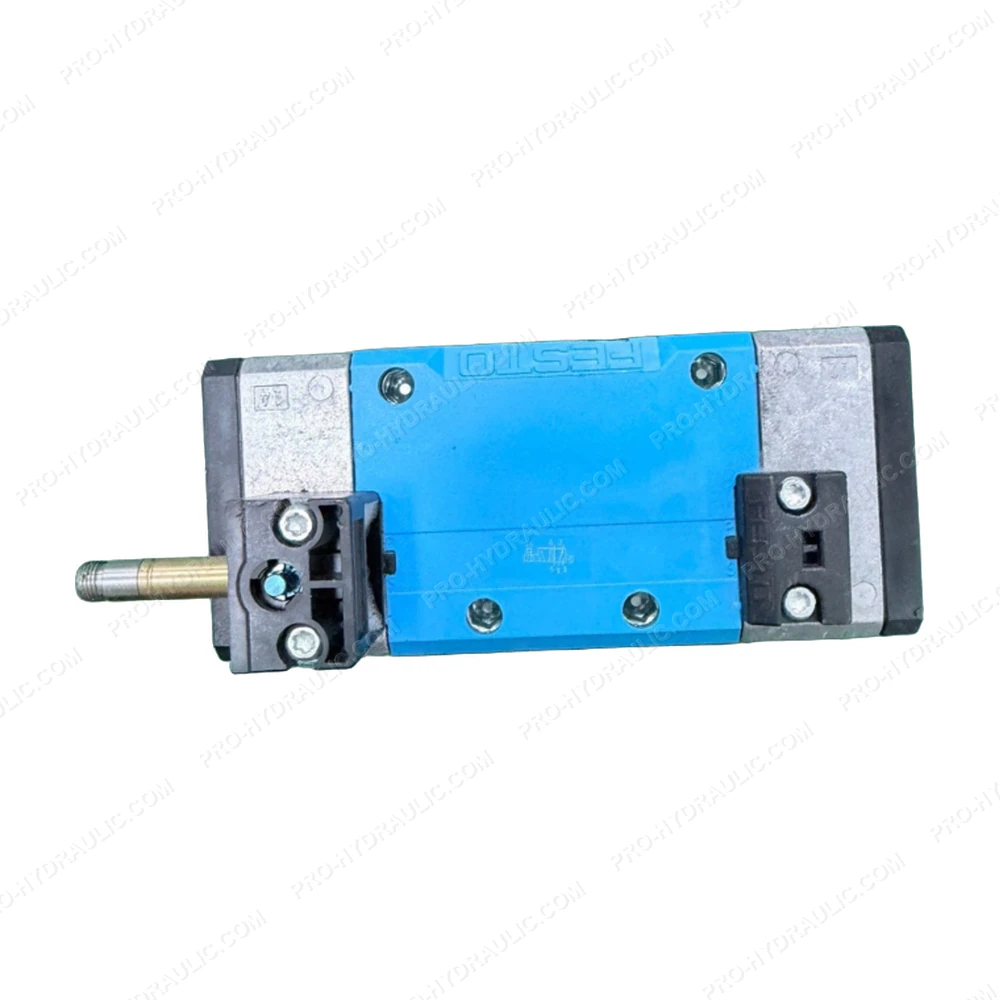

FESTO MEH-5/2-D-3-C Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine FESTO MEH-5/2-D-3-C Solenoid Actuated Directional Control Valve. This Germany-made 24 VDC hydraulic component features a 5/2-way spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
