Product Overview
The FESTO MHE2-MS1H-3/2G-QS-4 (Part No. 196135) is a compact, fast-switching 3/2-way solenoid valve from Festo’s MHE2 series, engineered for high-cycle pneumatic control in demanding automation environments. Operating on a direct-acting poppet principle, this valve delivers precise, repeatable switching of compressed air at high actuation frequencies, making it ideal for rapid-response positioning, gripping, and blow-off tasks. Its 3/2 normally-closed function, QS-4 push-in pneumatic ports, and manual override provide versatile, maintenance-friendly integration into industrial pneumatic circuits. The valve is a direct-fit replacement for OEM Festo installations and is compatible with standard 24 V DC control signals.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (3/2-way, direct-acting) |
| Model Designation | MHE2-MS1H-3/2G-QS-4 / 196135 |
| Valve Function | 3/2-way, normally closed (monostable) |
| Operating Pressure | Standard industrial pneumatic range (approx. 0.1 – 0.8 MPa / 1 – 8 bar) |
| Pneumatic Connection | QS-4 push-in fittings (4 mm tubing) |
| Electrical Actuation | Solenoid, 24 V DC nominal (MS1H coil) |
| Mounting & Connection | Standard Festo MHE2 interface with manual override |
| Switching Response | Fast-switching design for high-cycle operation |
Engineering Features & Advantages
- Precision Performance: Direct-acting poppet design ensures fast, consistent switching with minimal response time, ideal for high-frequency pneumatic actuation.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust solenoid and sealing construction for long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Festo OEM standards, including QS-4 push-in ports and MS1H coil interface.
- Service-Friendly Design: Integrated manual override and compact housing simplify commissioning, troubleshooting, and maintenance.
Typical Industrial Applications
This valve is widely used in high-speed pick-and-place automation, packaging and labeling machinery, pneumatic gripping and clamping systems, blow-off and air-knife circuits, and general factory automation where rapid, reliable 3/2-way pneumatic switching is required.
PRODUCT IMAGES

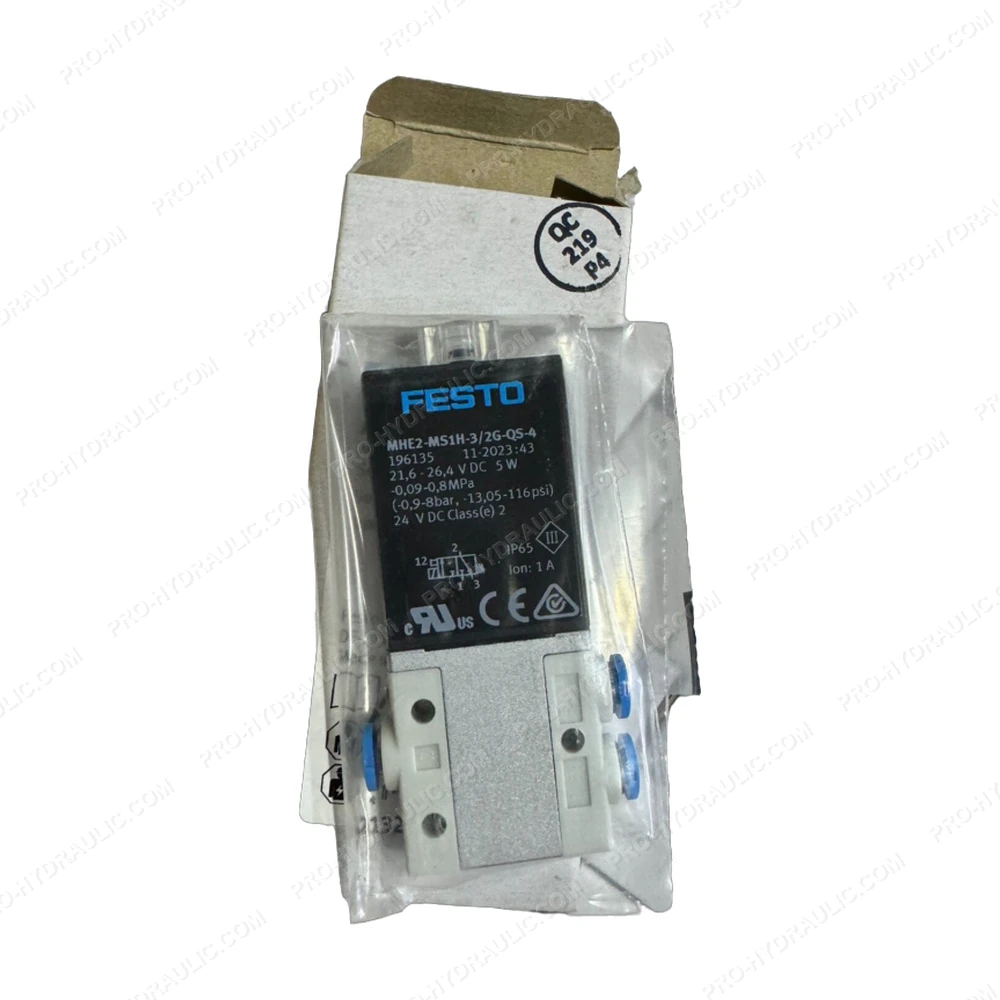

FESTO MHE2-MS1H-3/2G-QS-4 / 196135 Fast-Switching Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine FESTO MHE2-MS1H-3/2G-QS-4 / 196135 Solenoid Valve. This Germany-made 24V DC hydraulic component features a 3/2-way normally closed function, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
