Product Overview
The FESTO MS6-LFR-1/2-D6-C-R-M-AS (Part No. 529176) is a high-precision service unit combination from the FESTO MS series, integrating a filter regulator with a pressure gauge and manual shut-off valve in a single modular assembly. Operating on a diaphragm-controlled pilot principle, this unit conditions compressed air by removing particulate contaminants and condensate while maintaining a stable, adjustable downstream working pressure. As a core component within FESTO’s modular MS6 air preparation system, it serves as the primary conditioning stage in pneumatic control loops, protecting downstream directional control valves, proportional valves, and actuators from contamination and pressure fluctuation in demanding industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Filter Regulator (Service Unit Combination) |
| Model Designation | MS6-LFR-1/2-D6-C-R-M-AS / 529176 |
| Series / Size | MS6 Series (Size 6 Modular System) |
| Port Connection | G1/2 (1/2″ BSPP Threaded Ports) |
| Operating Pressure | Up to 12 bar (Standard Industrial Grade) |
| Regulating Range | 0.5 – 12 bar (Adjustable via Rotary Knob) |
| Filtration Rating | 40 µm Standard Filter Element |
| Pressure Gauge | Integrated Analog Gauge (Bar/PSI Dual Scale) |
| Mounting & Connection | Modular MS6 Interface with Wall / Panel Mount Bracket |
| Condensate Drain | Manual Rotary Drain (Fully Automatic Optional) |
| Housing Material | Die-Cast Aluminum with Painted Finish |
Engineering Features & Advantages
- Precision Pressure Regulation: Diaphragm-controlled pilot regulator delivers highly stable secondary pressure with minimal hysteresis, ensuring consistent actuator response and repeatable process control.
- Integrated Filter-Regulator Design: Combines filtration and pressure regulation in a single compact unit, reducing installation footprint, leak points, and piping complexity within the air preparation line.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Precision-manufactured to original FESTO specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
As a core component within FESTO’s modular MS6 air preparation system, it serves as the primary conditioning stage in pneumatic control loops, protecting downstream directional control valves, proportional valves, and actuators from contamination and pressure fluctuation in demanding industrial environments.
PRODUCT IMAGES

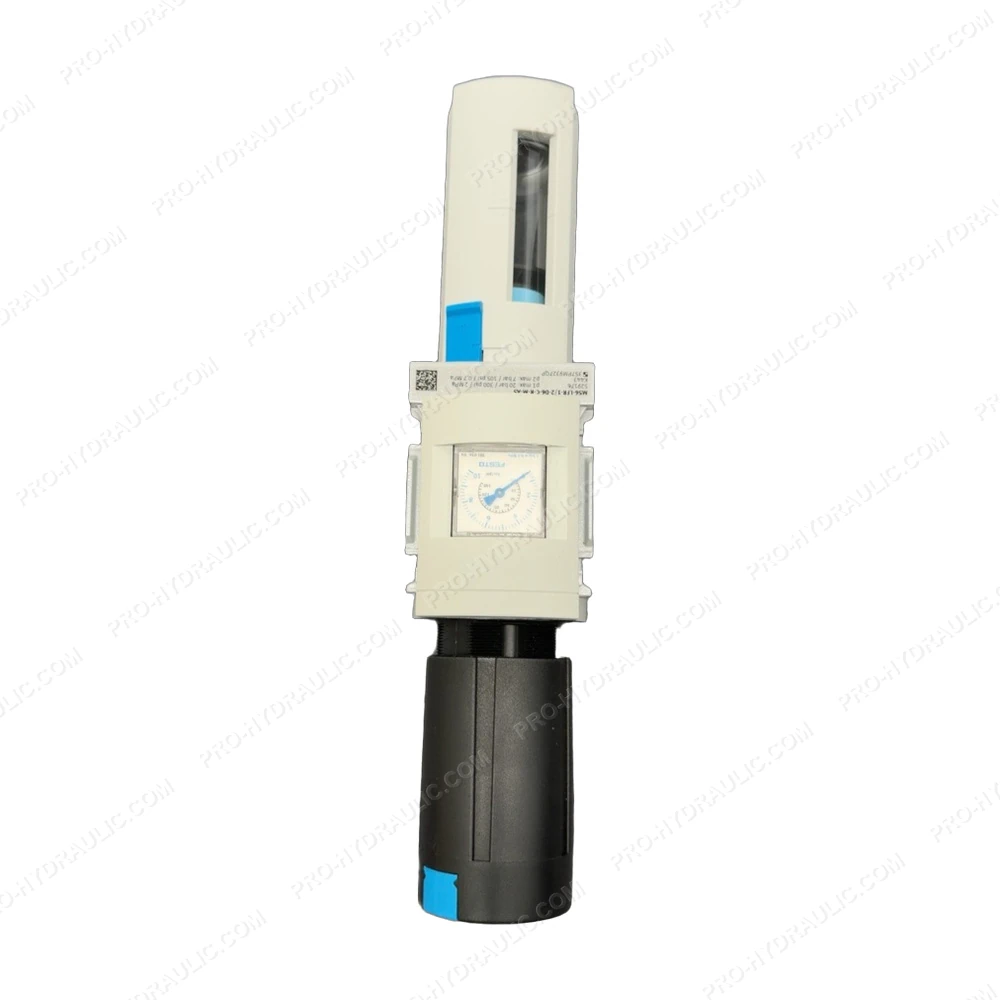

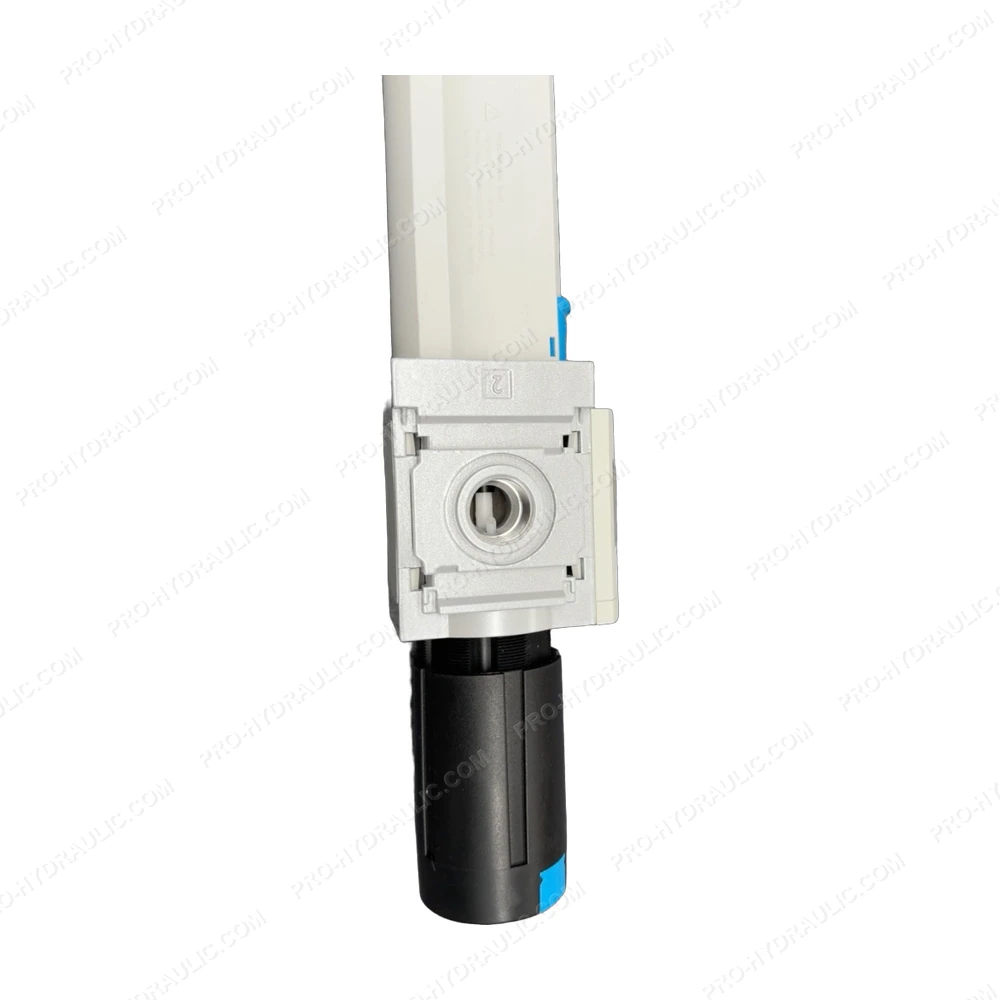

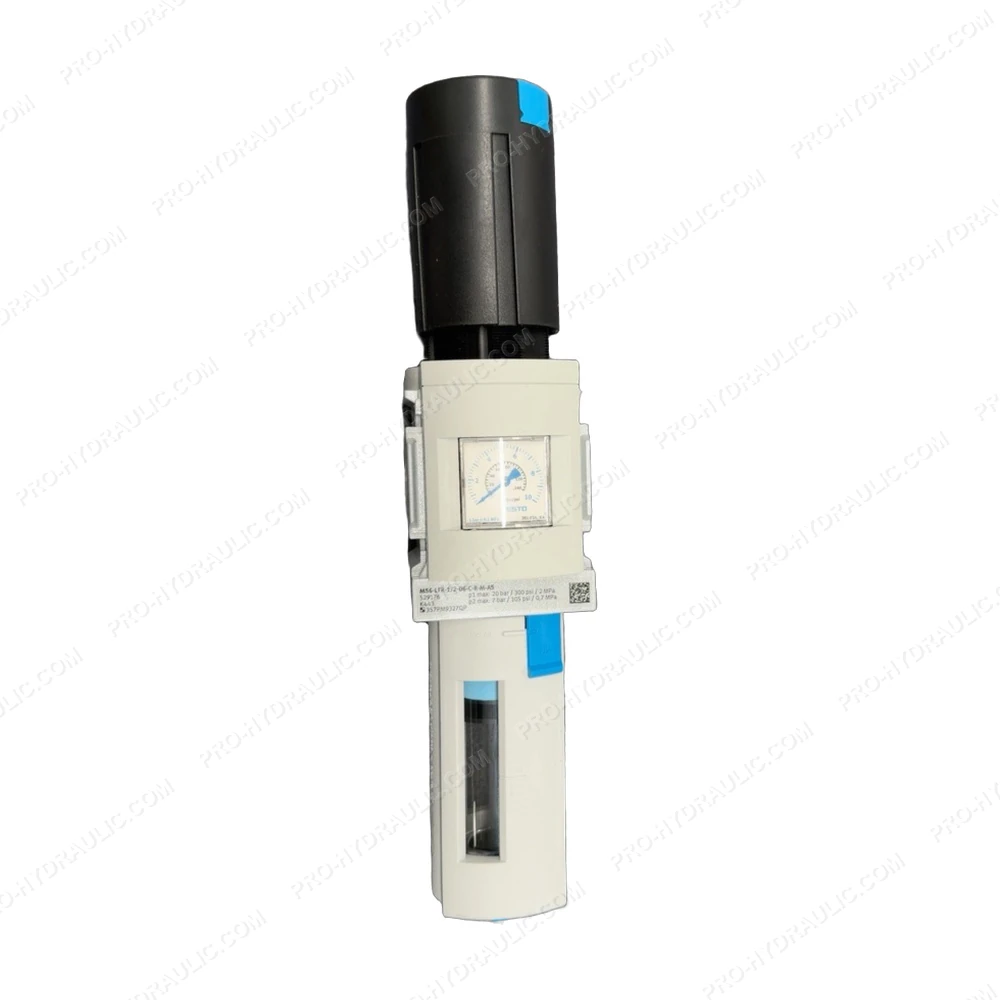

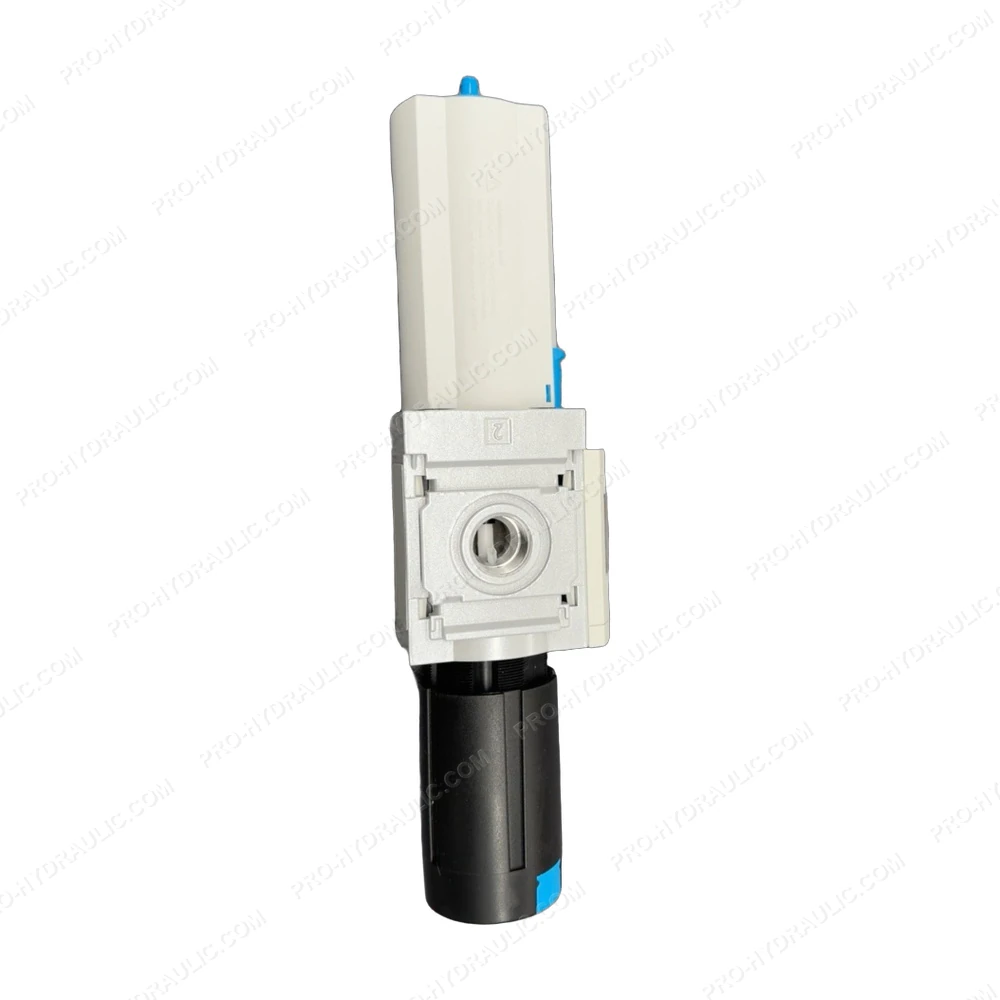

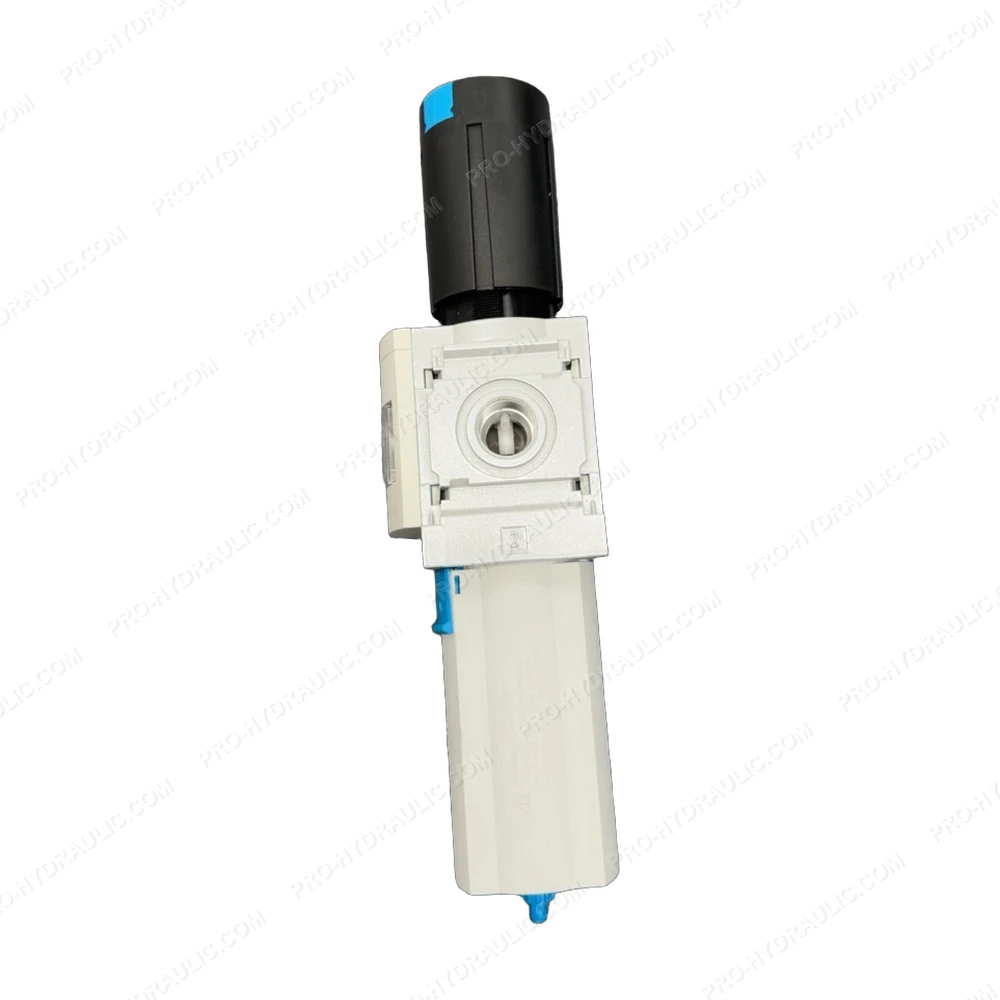

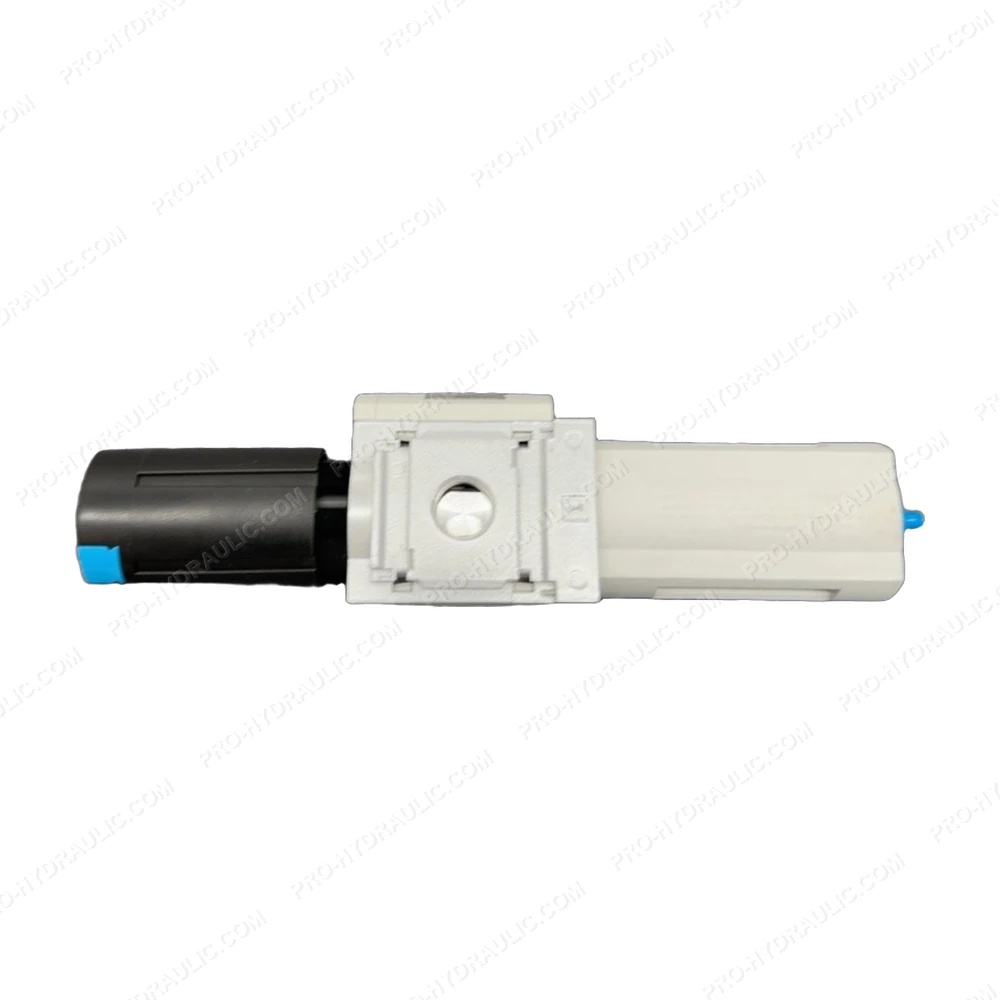

FESTO MS6-LFR-1/2-D6-C-R-M-AS / 529176 Pneumatic Filter Regulator
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine FESTO MS6-LFR-1/2-D6-C-R-M-AS / 529176 Filter Regulator. This Germany-made 1/2 inch pneumatic component features a combined filter and regulator design, delivering leak-free, reliable air preparation for heavy-duty industrial systems.
