Product Overview
The FESTO MS6-LFR-1/2-D6-C-R-M-AS is a service unit combination from the FESTO MS6 series, integrating a filter regulator with a pressure gauge and manual shut-off valve in a single modular assembly. Operating on a diaphragm-controlled pilot principle, this unit conditions compressed air by removing particulate contamination and condensate while maintaining a stable, adjustable downstream working pressure. As a pneumatic service element within the FESTO MS6 modular system, it serves as a critical conditioning stage in industrial air preparation lines, protecting downstream directional control valves, proportional valves, and actuators from contamination and pressure fluctuation. The 1/2-inch connection size and die-cast aluminum housing make it suitable for medium-flow industrial branches requiring reliable pressure regulation and filtration.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Filter Regulator (Service Unit / Air Preparation Valve) |
| Model Designation | MS6-LFR-1/2-D6-C-R-M-AS |
| Series | FESTO MS6 Modular Service Unit Series |
| Pneumatic Connection | G1/2 (1/2 inch) threaded ports |
| Operating Pressure | Standard Industrial Grade (up to 16 bar inlet, regulated outlet range per MS6 series) |
| Filtration Rating | 40 µm standard filter element (condensate separation with manual drain) |
| Pressure Regulation | Diaphragm-type regulator with secondary venting, lockable adjusting knob |
| Pressure Gauge | Integrated gauge (M designation) for direct outlet pressure monitoring |
| Shut-Off Function | Manual shut-off valve (AS designation) for isolation of downstream circuit |
| Mounting & Connection | Modular MS6 system interface, wall or bracket mounting, ISO-compatible port threads |
| Housing Material | Die-cast aluminum housing with condensate bowl |
Engineering Features & Advantages
- Precision Performance: Diaphragm-controlled pressure regulation delivers stable outlet pressure with minimal hysteresis and rapid response to downstream flow variations, ensuring consistent actuation of pneumatic valves and cylinders.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original FESTO standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The 1/2-inch connection size and die-cast aluminum housing make it suitable for medium-flow industrial branches requiring reliable pressure regulation and filtration.
PRODUCT IMAGES

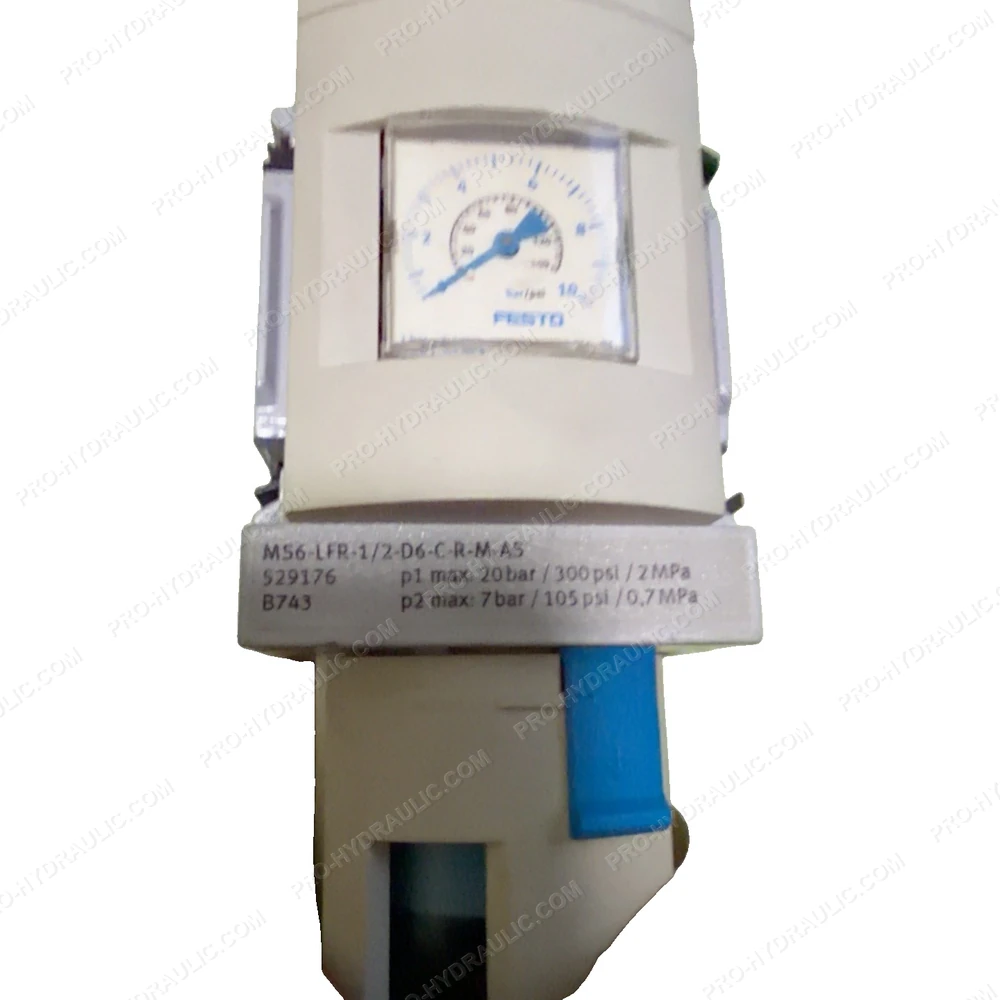

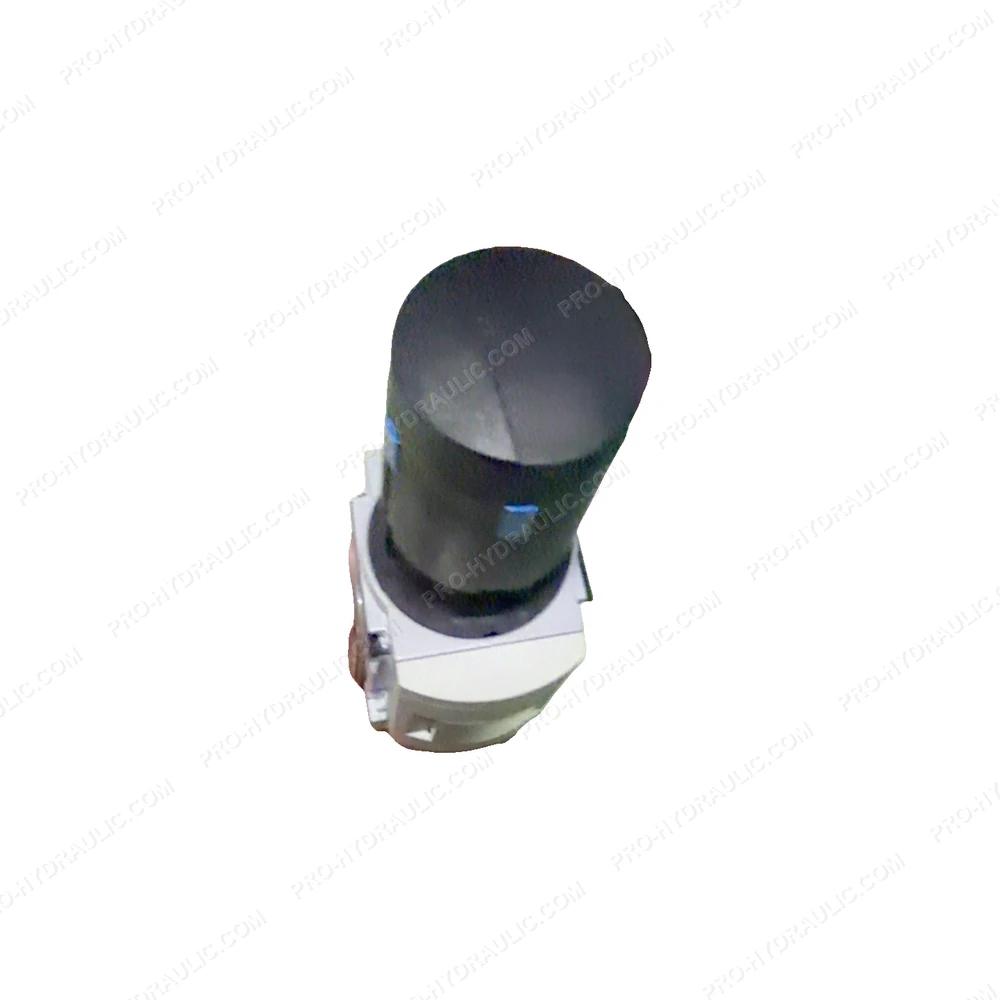

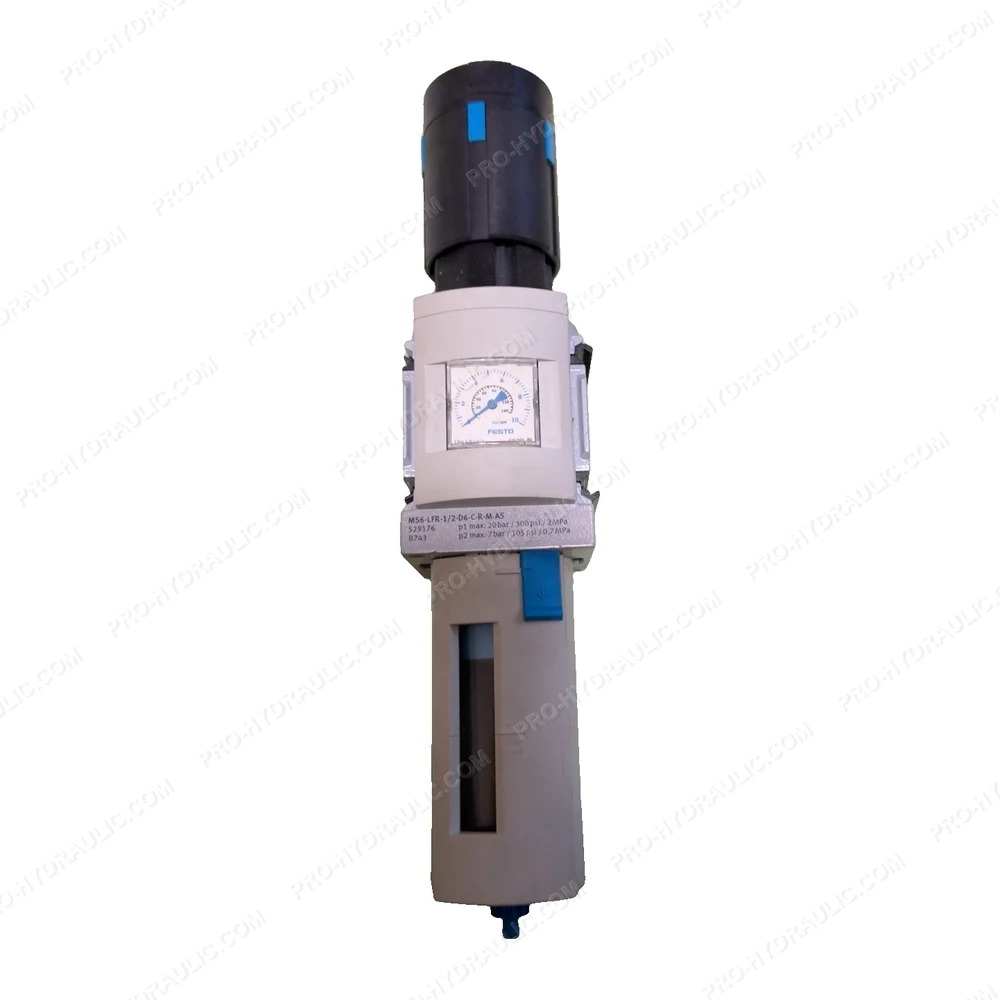

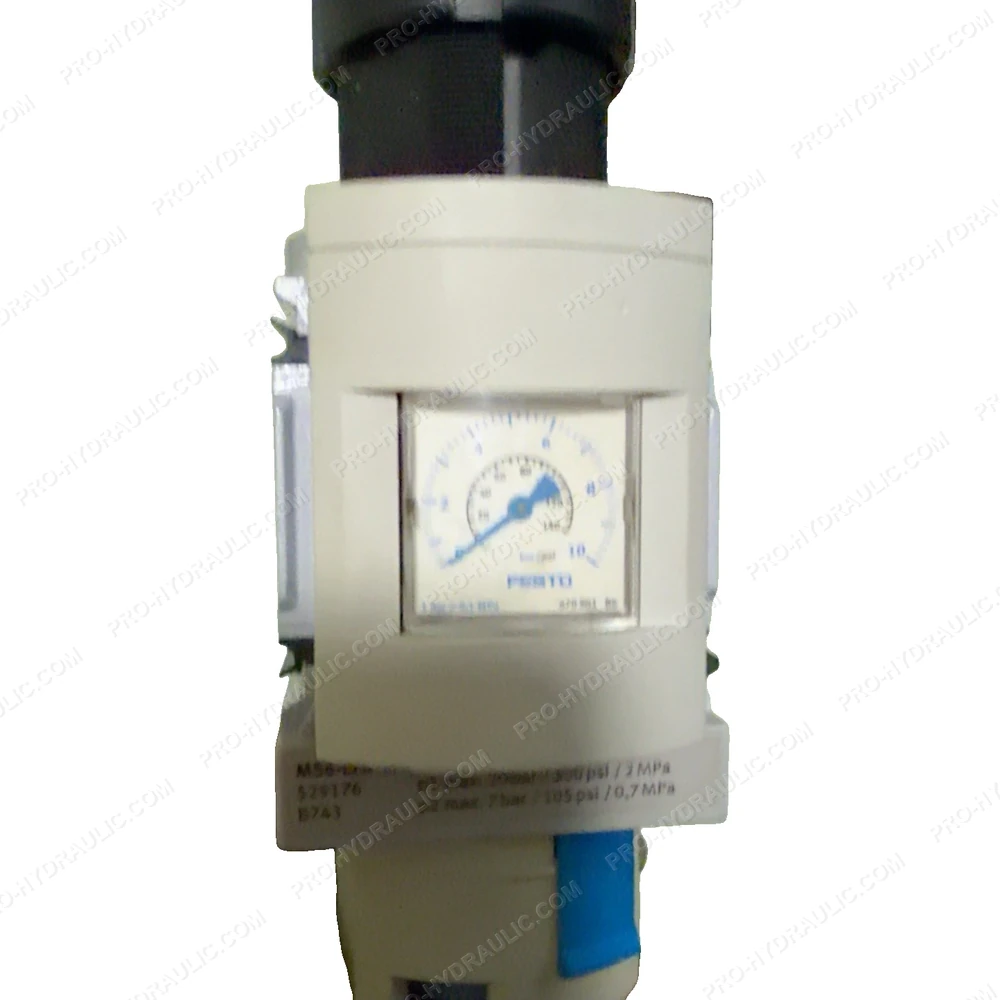

FESTO MS6-LFR-1/2-D6-C-R-M-AS Pneumatic Filter Regulator
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine FESTO MS6-LFR-1/2-D6-C-R-M-AS Service Unit. This German-made pneumatic component features a filter regulator with condensate drain, delivering reliable air preparation for heavy-duty industrial automation systems.
