Product Overview
The FESTO VPPM-6L-L-1-G18-0L2H-V1N-S1 is a precision pneumatic proportional pressure regulator from Festo’s VPPM series, engineered for continuous, electronically controlled pressure regulation in compressed air systems. Unlike conventional manually adjusted regulators, this device modulates its internal pilot-operated valve spool proportionally to an analog electrical setpoint signal, delivering infinitely variable output pressure that tracks the command signal with high repeatability and minimal hysteresis. With a nominal size of 6 mm and G1/8 threaded ports, it is positioned as a compact, high-resolution control valve for applications requiring dynamic pressure profiling rather than simple on/off switching. The unit integrates a piezo-actuated pilot stage and an internal pressure sensor for closed-loop feedback, ensuring stable output even under fluctuating supply pressure or varying downstream flow demand.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Proportional Pressure Regulator (Process & Pneumatic Valve) |
| Model Designation | VPPM-6L-L-1-G18-0L2H-V1N-S1 |
| Series / Family | Festo VPPM Proportional Pressure Regulator Series |
| Nominal Size | 6 mm (size code “6L”) |
| Pneumatic Connection | G1/8 threaded ports (supply, working, exhaust) |
| Operating Pressure Range | Regulated output up to approx. 6 bar (0.6 MPa), depending on configured pressure range |
| Setpoint Signal | Analog voltage input (0–10 V), proportional to target output pressure |
| Feedback / Monitoring | Integrated pressure sensor with analog actual-value output |
| Electrical Connection | M12 / plug connector (V1N configuration) |
| Mounting & Connection | Direct inline mounting via G1/8 ports; standard Festo modular interface |
| Media | Filtered, dried compressed air (lubricated or non-lubricated) |
Engineering Features & Advantages
- Precision Performance: The pneumatic proportional pressure regulator (process & pneumatic valve) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original FESTO OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
With a nominal size of 6 mm and G1/8 threaded ports, it is positioned as a compact, high-resolution control valve for applications requiring dynamic pressure profiling rather than simple on/off switching.
PRODUCT IMAGES

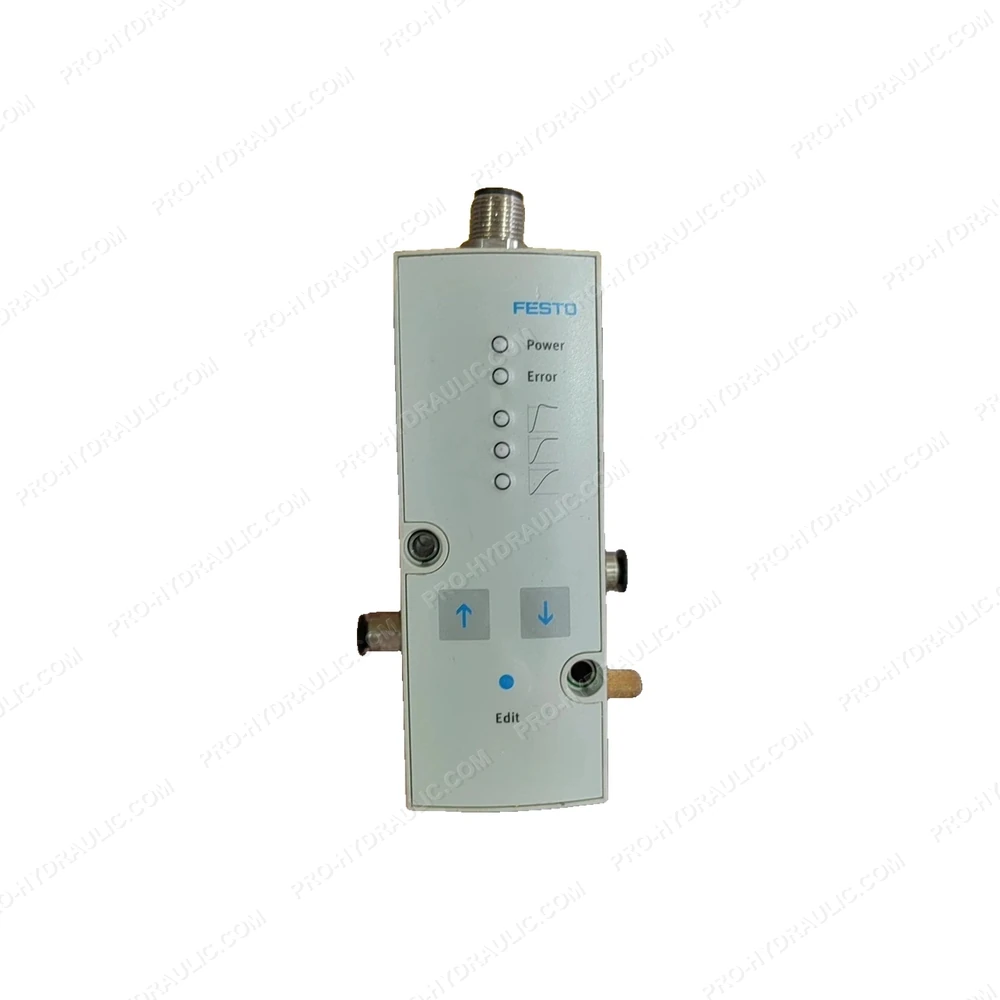

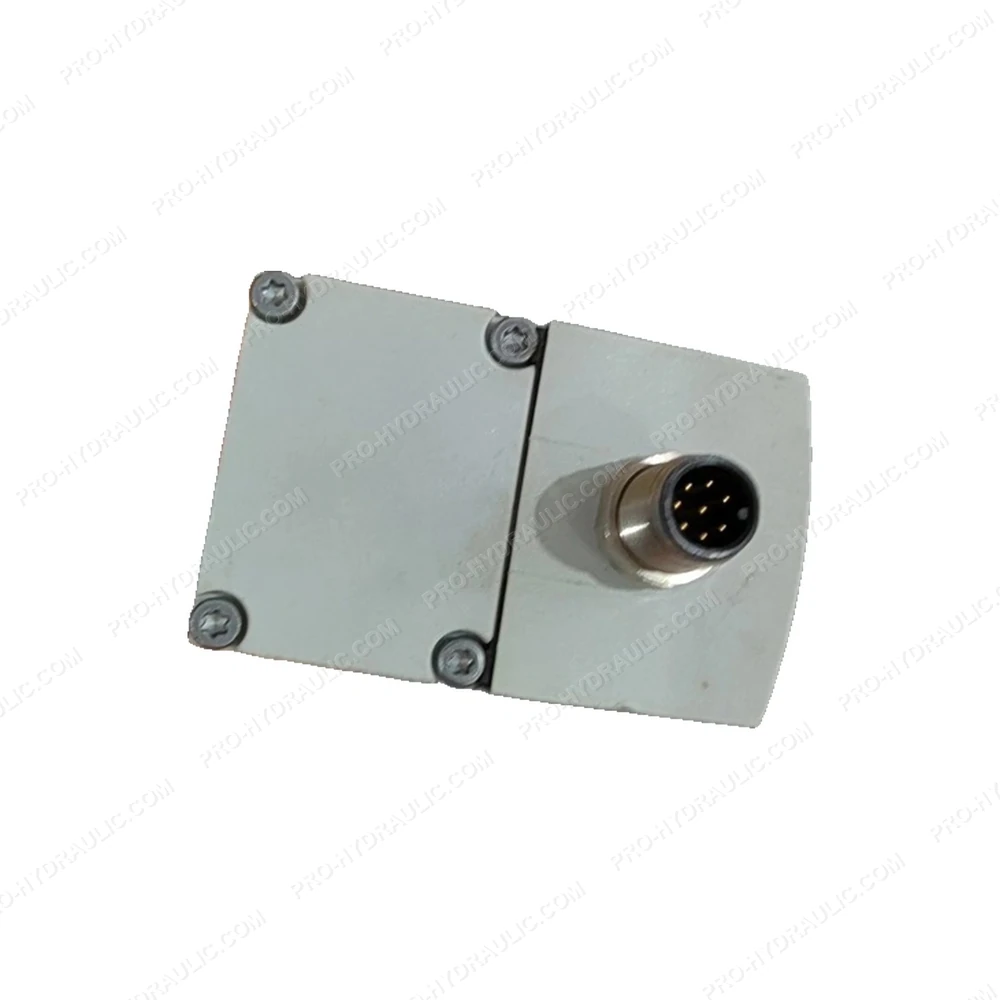

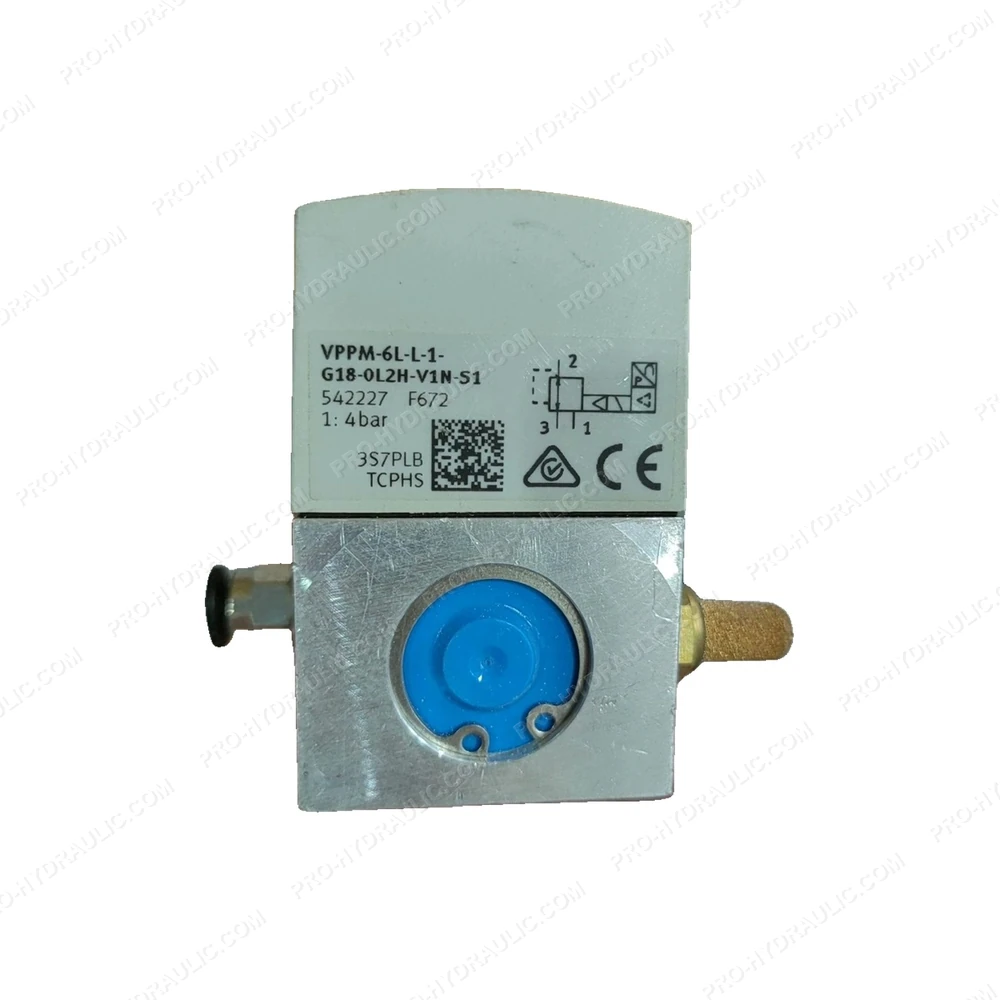

FESTO VPPM-6L-L-1-G18-0L2H-V1N-S1 Pneumatic Proportional Pressure Regulator
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine FESTO VPPM-6L-L-1-G18-0L2H-V1N-S1 Proportional Pressure Regulator Valve. This German-made 24V DC hydraulic component features a proportional solenoid design, delivering precise, leak-free pressure control for heavy-duty industrial systems.
