Product Overview
The FESTO VSVA-B-B52-D-D1-1R5L is a high-performance solenoid-actuated directional control valve from the FESTO VSVA series, engineered for precise control of compressed air and neutral gases in demanding industrial automation systems. This valve utilizes a robust spool-and-sleeve design with a 5/2-way function, enabling reliable directional switching of pneumatic actuators, cylinders, and air motors. The VSVA-B series is renowned for its modular manifold compatibility, high flow rates, and long service life, making it a preferred choice for factory automation, packaging machinery, and process control applications. The “B52” designation indicates a 5/2-way monostable configuration with a 24 V DC solenoid, while the “D1” and “1R5L” suffixes denote specific manual override, electrical connection, and flow characteristics tailored to FESTO’s modular valve terminal systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (Pneumatic) |
| Model Designation | VSVA-B-B52-D-D1-1R5L |
| Valve Function | 5/2-way, monostable (single solenoid, spring return) |
| Operating Pressure | 2 to 10 bar (29 to 145 psi) filtered compressed air |
| Nominal Flow Rate | 1,500 l/min (approx. 53 CFM) at 6 bar |
| Solenoid Voltage | 24 V DC (nominal) |
| Electrical Connection | D1 – FESTO standard plug, 3-pin, with integrated suppression |
| Manual Override | Non-detenting, push-button type |
| Mounting & Connection | Sub-base mounting per FESTO VSVA manifold standard; ISO 15407-1 interface |
| Body Material | Die-cast aluminum alloy with anodized surface |
| Seal Material | NBR (nitrile rubber) – suitable for neutral gases and filtered air |
Engineering Features & Advantages
- Precision Performance: The solenoid directional control valve (pneumatic) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Precision-manufactured to original FESTO specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings of 2 to 10 bar (29 to 145 psi) filtered compressed air and flow rates up to 1,500 l/min, supporting stable operation across the full working range.
Typical Industrial Applications
The “B52” designation indicates a 5/2-way monostable configuration with a 24 V DC solenoid, while the “D1” and “1R5L” suffixes denote specific manual override, electrical connection, and flow characteristics tailored to FESTO’s modular valve terminal systems.
PRODUCT IMAGES

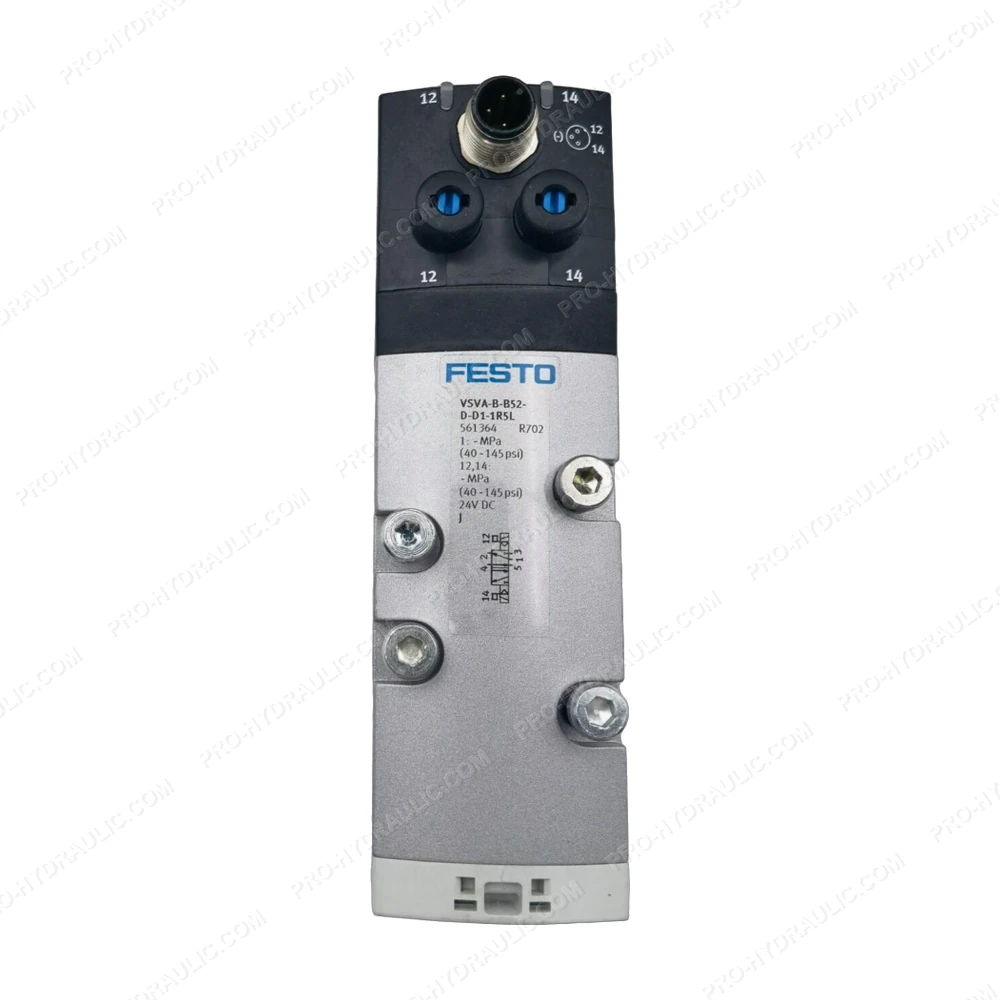

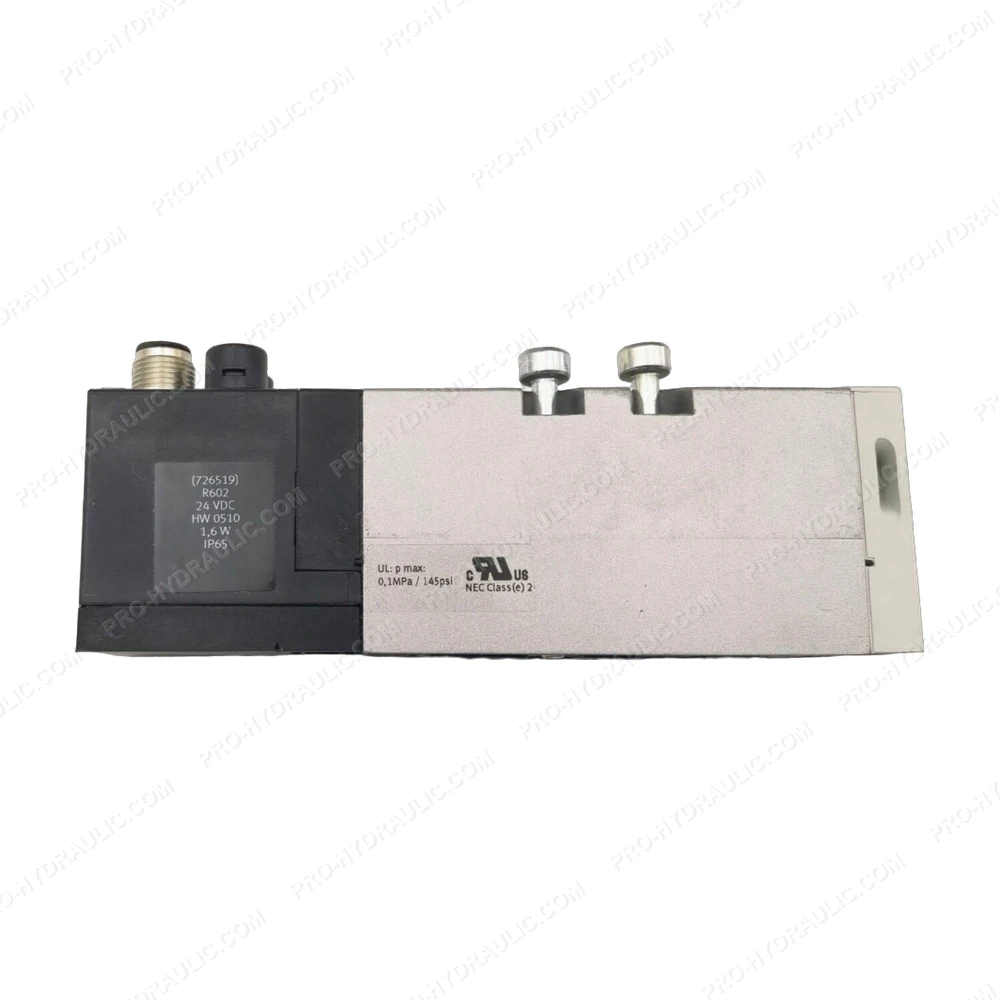

FESTO VSVA-B-B52-D-D1-1R5L Solenoid Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine FESTO VSVA-B-B52-D-D1-1R5L Solenoid Valve. This Germany-made 24V DC pneumatic valve features a 5/2-way design, delivering reliable, leak-free fluid control for heavy-duty industrial automation systems.
