Product Overview
The FESTO VTUG-10-MSDR-B1T-25V22-Q8L-* is a high-performance pneumatic solenoid valve manifold from Festo’s VTUG series, engineered for precise directional control of compressed air in automated industrial systems. This valve terminal utilizes a robust spool-and-sleeve actuation principle, where an electrically energized solenoid shifts the internal valve spool to redirect airflow between supply, working, and exhaust ports. The VTUG-10 platform is designed as a modular valve terminal system, allowing multiple valve slices to be combined on a single manifold block for centralized pneumatic control. With its 10 mm valve width and Q8L push-in fitting interface, this unit delivers reliable, fast-switching pneumatic logic for demanding automation environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (Directional Control Valve) |
| Model Designation | VTUG-10-MSDR-B1T-25V22-Q8L-* |
| Valve Function | 5/2-way directional control (monostable / bistable configuration) |
| Valve Width | 10 mm (VTUG-10 platform) |
| Actuation Type | Electrical solenoid with manual override |
| Pneumatic Connection | Q8L push-in fitting (8 mm tubing) |
| Operating Pressure | Standard industrial grade (typically 2–10 bar, depending on configuration) |
| Mounting & Connection | Manifold / valve terminal mounting per Festo VTUG standard |
| Electrical Interface | 24 V DC solenoid (standard industrial control voltage) |
Engineering Features & Advantages
- Precision Performance: Fast solenoid response and precise spool positioning ensure accurate directional control of pneumatic actuators, minimizing cycle time and air consumption in automated processes.
- Modular Valve Terminal Design: The VTUG-10 platform allows multiple valve slices to be assembled on a single manifold, reducing tubing complexity, installation time, and overall system footprint.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust sealing and durable spool-and-sleeve construction rated for millions of switching cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Festo OEM standards, ensuring drop-in replacement without modification to existing manifolds or control wiring.
- Integrated Manual Override: Allows technicians to actuate the valve without electrical power for commissioning, troubleshooting, and maintenance procedures.
Typical Industrial Applications
This FESTO VTUG-10-MSDR-B1
PRODUCT IMAGES

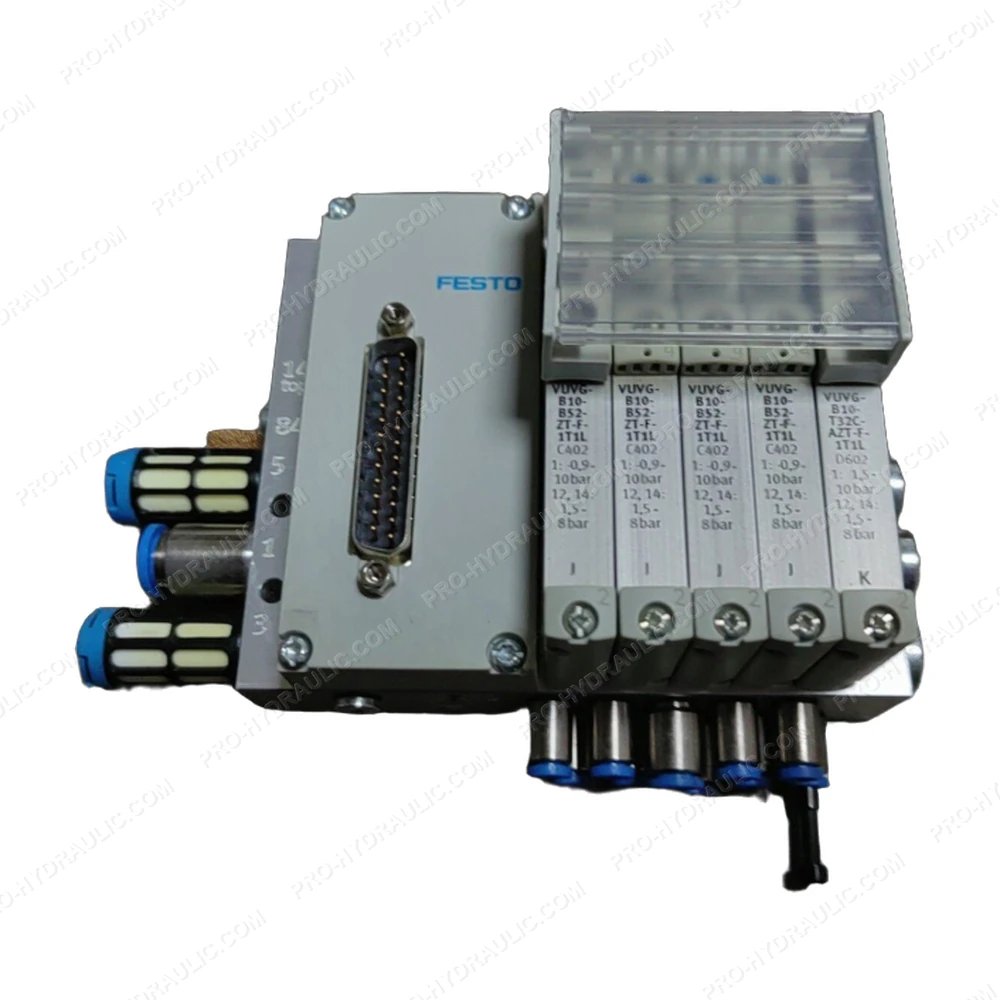

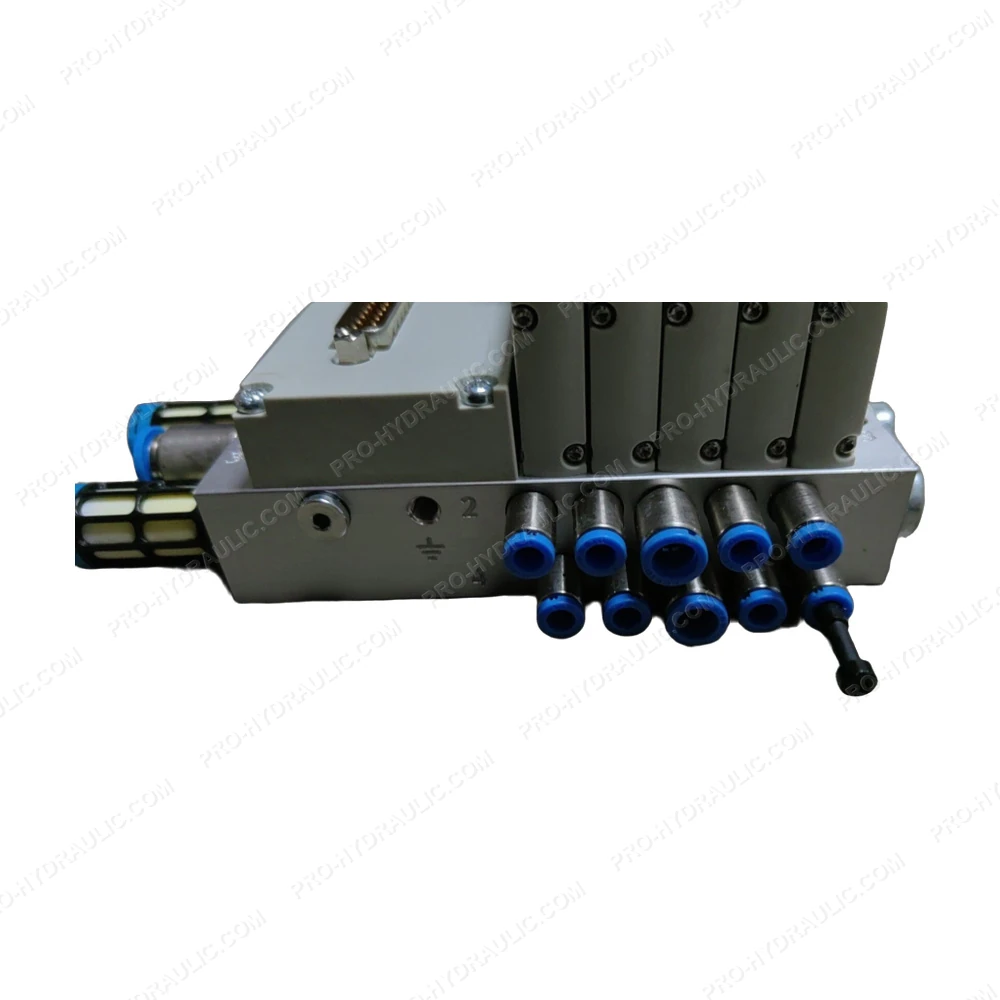

FESTO VTUG-10-MSDR-B1T-25V22-Q8L-* Pneumatic Solenoid Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine FESTO VTUG-10-MSDR-B1T-25V22-Q8L-* Solenoid Valve. This Germany-made 24V DC hydraulic component features a reliable spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
