Product Overview
The FESTO VTUG-10-MSDR-S8-S1T-25V20-Q8LA-UL-Q4S-3AL+TT is a high-performance pneumatic solenoid valve manifold from Festo’s VTUG series, engineered for precise directional control of compressed air in demanding industrial automation systems. This valve terminal assembly operates on a 24V DC solenoid actuation principle, utilizing a spool-type directional control mechanism to manage airflow across multiple valve positions. The VTUG-10 platform is renowned for its compact modular design, allowing flexible configuration of valve functions, electrical interfaces, and pneumatic connections within a single manifold block. With integrated UL certification and Q8LA/Q4S port configurations, this unit is purpose-built for North American industrial installations requiring reliable, repeatable pneumatic switching in high-cycle applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (Directional Control Valve Terminal) |
| Model Designation | VTUG-10-MSDR-S8-S1T-25V20-Q8LA-UL-Q4S-3AL+TT |
| Series / Size | VTUG-10 (Size 10 valve terminal platform) |
| Actuation Type | Electrical solenoid, 24V DC (MSDR configuration) |
| Valve Function | 5/2-way directional control (25V20 designation) |
| Operating Pressure | Standard pneumatic range (typically 2–10 bar, application-dependent) |
| Pneumatic Connections | Q8LA / Q4S push-in fittings (8 mm and 4 mm tube compatibility) |
| Electrical Interface | S1T / 3AL multi-pin electrical connection with LED status indication |
| Certification | UL Recognized (North American compliance) |
| Mounting & Connection | Manifold / valve terminal block mounting, standard Festo interface |
| Special Feature | +TT suffix denotes factory-configured variant with specific terminal/technical options |
Engineering Features & Advantages
- Precision Performance: The pneumatic solenoid valve (directional control valve terminal) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original FESTO standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
With integrated UL certification and Q8LA/Q4S port configurations, this unit is purpose-built for North American industrial installations requiring reliable, repeatable pneumatic switching in high-cycle applications.
PRODUCT IMAGES

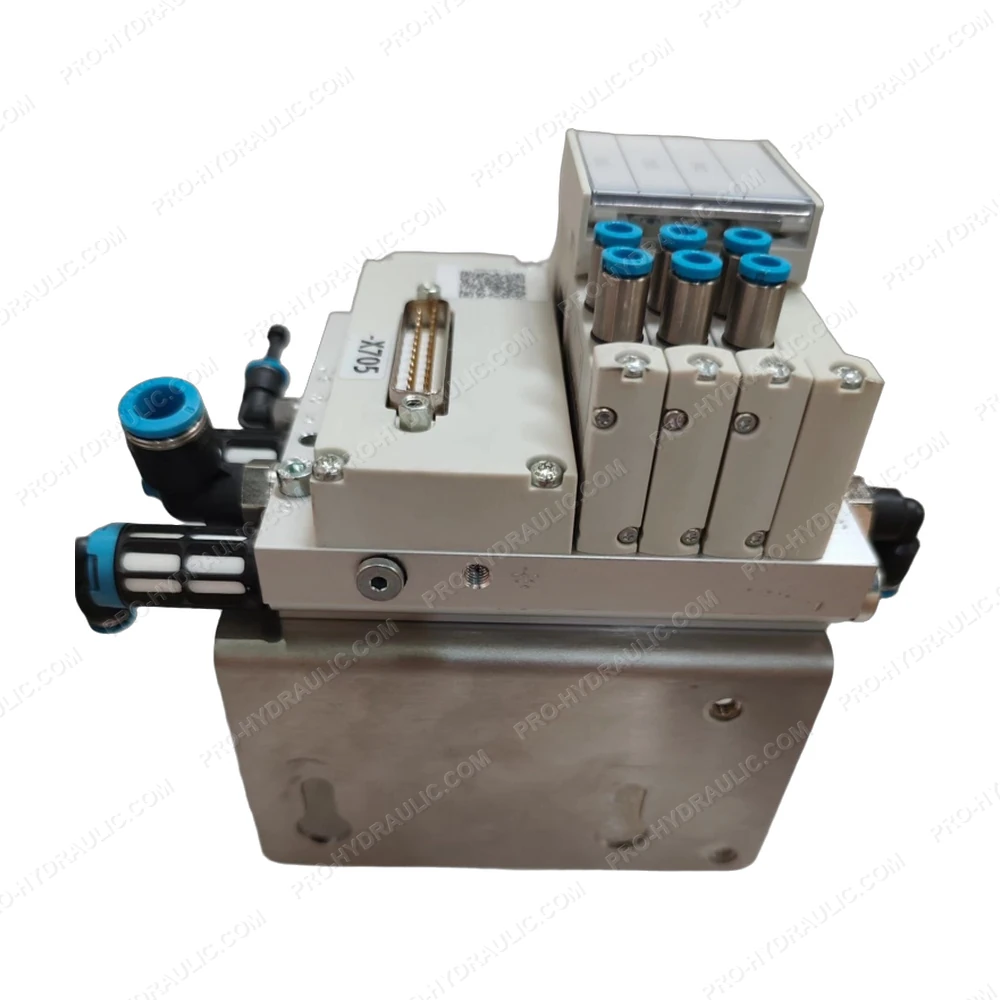

FESTO VTUG-10-MSDR-S8-S1T-25V20-Q8LA-UL-Q4S-3AL+TT Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine FESTO VTUG-10-MSDR-S8-S1T-25V20-Q8LA-UL-Q4S-3AL+TT Solenoid Valve. This Germany-made 24V DC hydraulic component features a 5/2-way spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
