Product Overview
The FESTO VTUG Pneumatic Valve Terminal is a modular, manifold-mounted valve platform engineered for centralized control of compressed air actuators in automated industrial systems. As part of Festo’s VTUG series, this valve terminal integrates multiple individually actuated directional control valves onto a single compact base block, eliminating the need for discrete piping runs and reducing installation footprint, tubing complexity, and leak points. The VTUG platform operates on a modular principle: valve slices, supply plates, and electrical interface modules are assembled in a stacked configuration, allowing system designers to scale valve count and function precisely to the application. Each valve position functions as an independent directional control element, directing compressed air to cylinders, rotary actuators, or air-blast circuits in response to electrical signals from a PLC or fieldbus controller. The terminal is designed for high cycle-rate pneumatic duty, offering fast response, repeatable switching, and consistent flow characteristics across all mounted valve positions.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Valve Terminal (Manifold-Mounted Directional Control Valves) |
| Model Designation | VTUG |
| Manufacturer | Festo |
| Valve Function | 5/2-way and 3/2-way directional control (per valve slice) |
| Actuation Type | Electrical solenoid, pilot-actuated |
| Operating Pressure | Standard pneumatic range (typically 2–10 bar, application dependent) |
| Pneumatic Connection | Push-in fitting / threaded port, metric and inch options |
| Electrical Interface | Multi-pin plug, fieldbus node, or individual coil connection |
| Mounting | DIN rail or direct panel mounting via base block |
| Media | Filtered, lubricated or non-lubricated compressed air |
Engineering Features & Advantages
- Modular Scalability: Valve slices, blanking plates, and supply modules can be combined in any configuration, allowing the terminal to be sized exactly to the required number of actuated functions without wasted manifold positions.
- Compact Centralized Control: Consolidating multiple directional valves onto one manifold dramatically reduces tubing runs, cabinet space, and assembly labor compared to individually mounted valves.
- Fast, Repeatable Switching: Pilot-actuated solenoid design delivers consistent response times and reliable cycling across high-frequency production duty.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original FESTO OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The FESTO VTUG Pneumatic Valve Terminal is a modular, manifold-mounted valve platform engineered for centralized control of compressed air actuators in automated industrial systems.
PRODUCT IMAGES

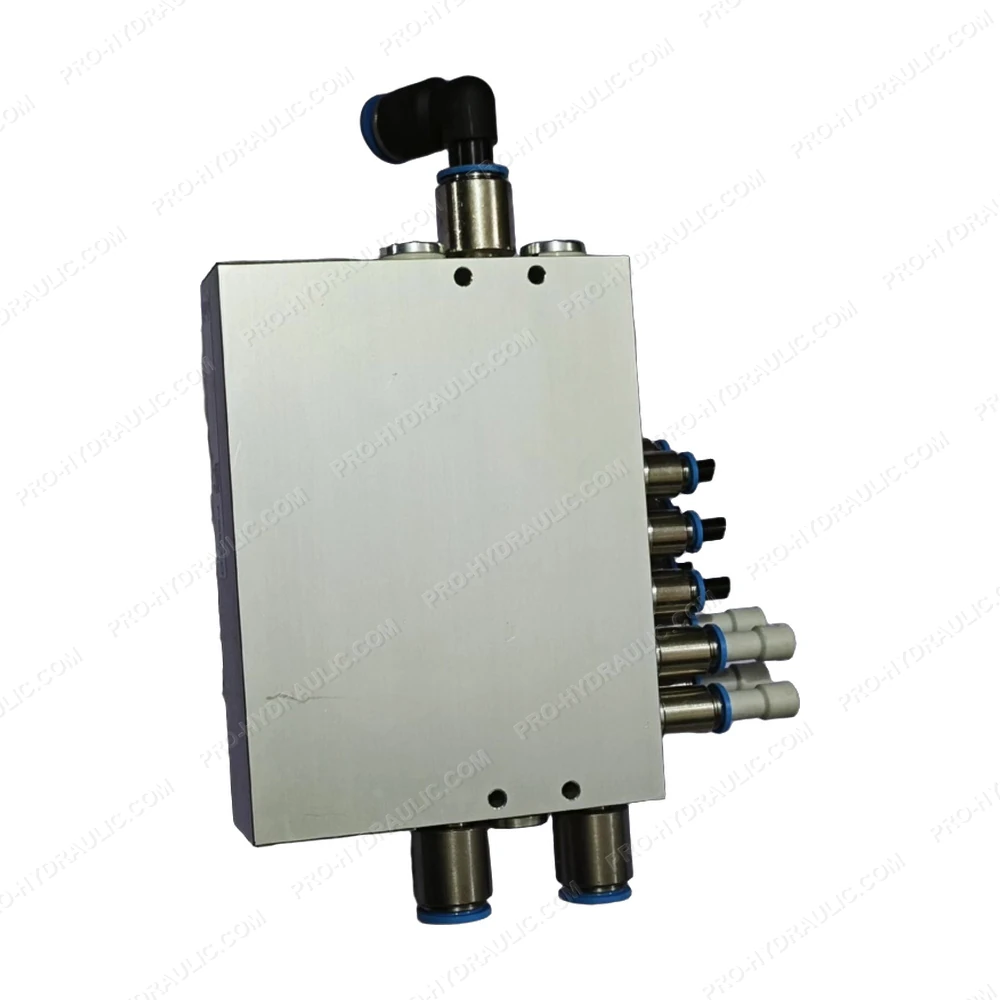

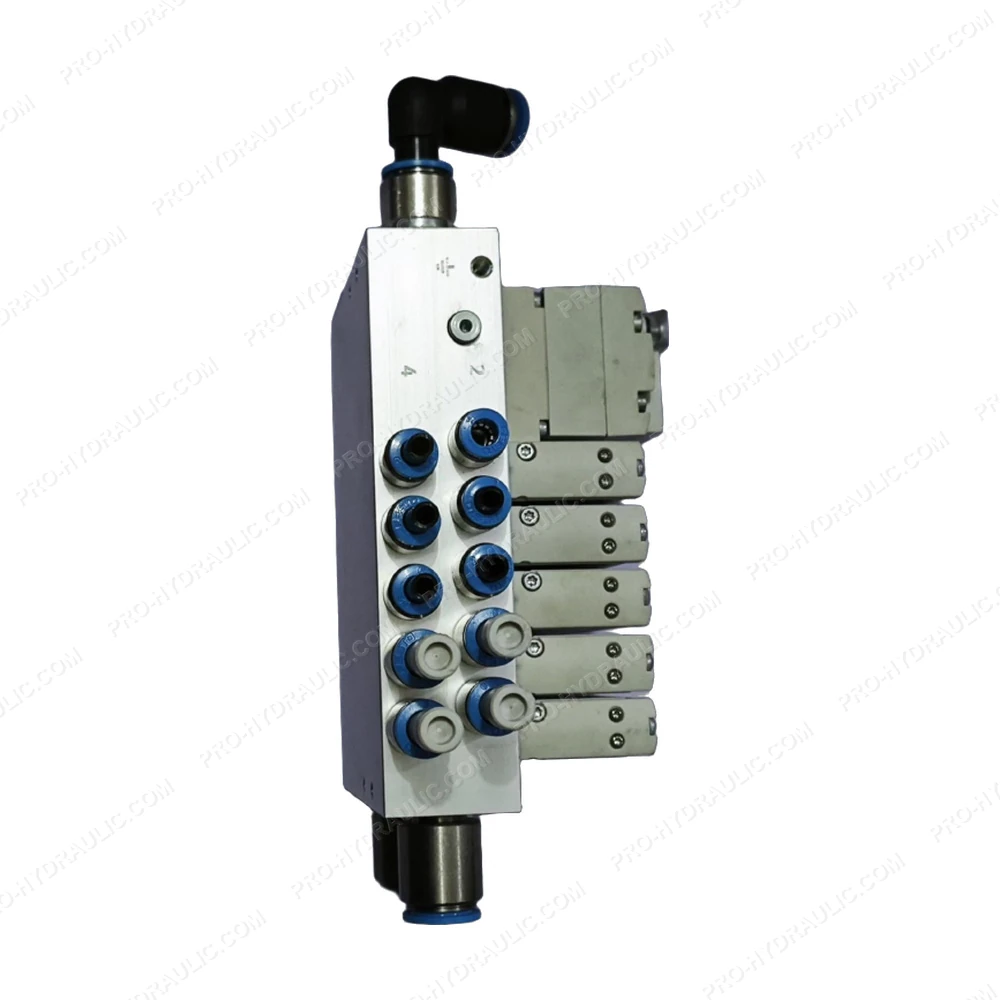

FESTO VTUG Pneumatic Valve Terminal
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine FESTO VTUG Solenoid Valve. This Germany-made pneumatic valve features a compact, modular design, delivering reliable, leak-free fluid control for demanding industrial automation systems.
