Product Overview
The FESTO VUVG-L10-B52-T-M5-1H2L-W1 is a compact, high-performance pneumatic solenoid valve from Festo’s VUVG series, engineered for precise directional control of compressed air in industrial automation systems. This 5/2-way monostable valve features a robust poppet/spool design that delivers fast switching times, high flow rates, and exceptional service life. With its M5 threaded port connections and 10 mm valve width, it is ideally suited for space-constrained manifold assemblies and decentralized pneumatic control architectures. The valve operates reliably within a pressure range of approximately 2 to 8 bar, making it a versatile component for a wide spectrum of factory automation, packaging, and process control applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (5/2-Way, Monostable) |
| Model Designation | VUVG-L10-B52-T-M5-1H2L-W1 |
| Valve Function | 5/2-way, single solenoid, spring return |
| Operating Pressure | 2 to 8 bar (29 to 116 psi) |
| Pneumatic Connection | M5 threaded ports |
| Valve Width | 10 mm (VUVG-L10 size) |
| Electrical Actuation | Solenoid coil, 24 V DC nominal |
| Mounting & Connection | Manifold / individual mounting, ISO-compatible sub-base |
| Seal Material | NBR (Nitrile Rubber) |
| Media | Filtered compressed air (ISO 8573-1:2010, 40 µm filtration) |
Engineering Features & Advantages
- Precision Performance: The 5/2-way spool design ensures rapid, repeatable switching with minimal pressure drop, enabling accurate directional control of pneumatic actuators and cylinders in high-cycle automation processes.
- Compact & Lightweight: The 10 mm valve width and lightweight construction allow high-density manifold mounting, reducing installation footprint and simplifying pneumatic circuit design.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust solenoid coil and durable NBR seals providing long service life and consistent performance.
- Direct Fit Replacement: Precision-manufactured to original FESTO specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
With its M5 threaded port connections and 10 mm valve width, it is ideally suited for space-constrained manifold assemblies and decentralized pneumatic control architectures.
PRODUCT IMAGES

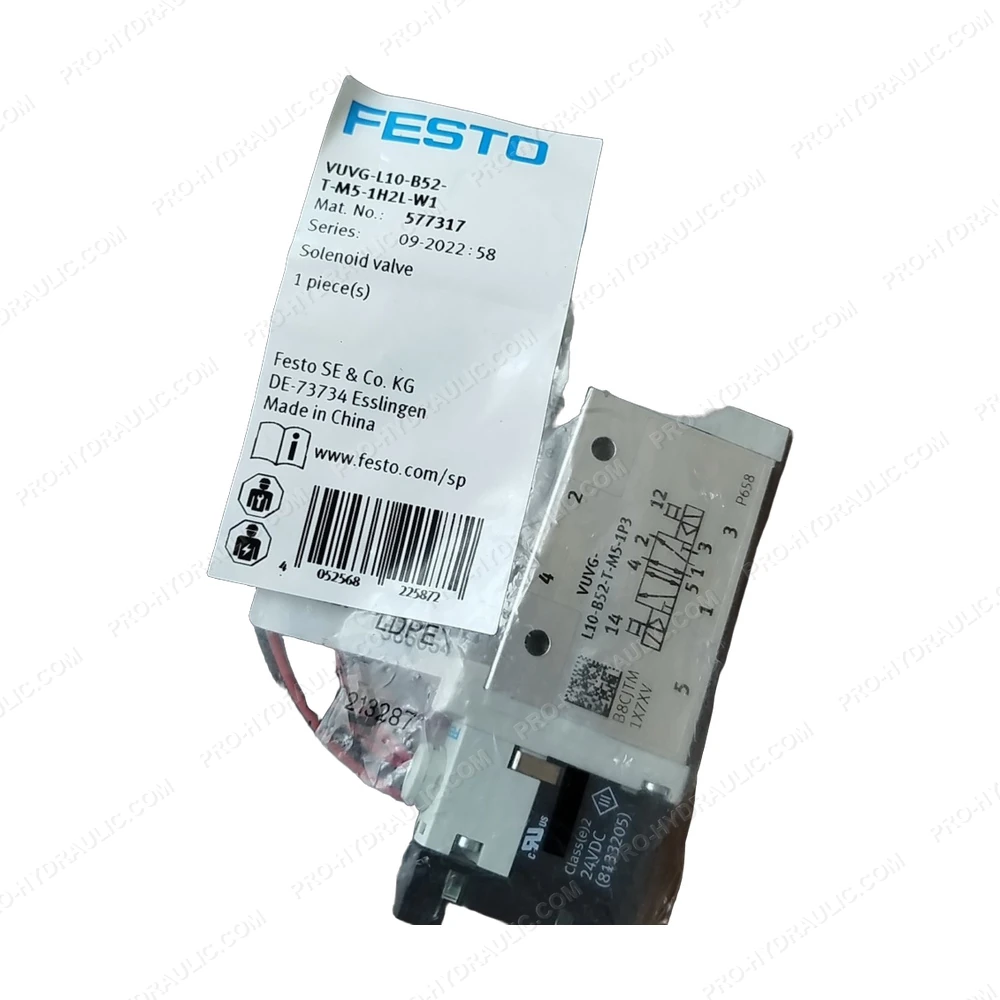

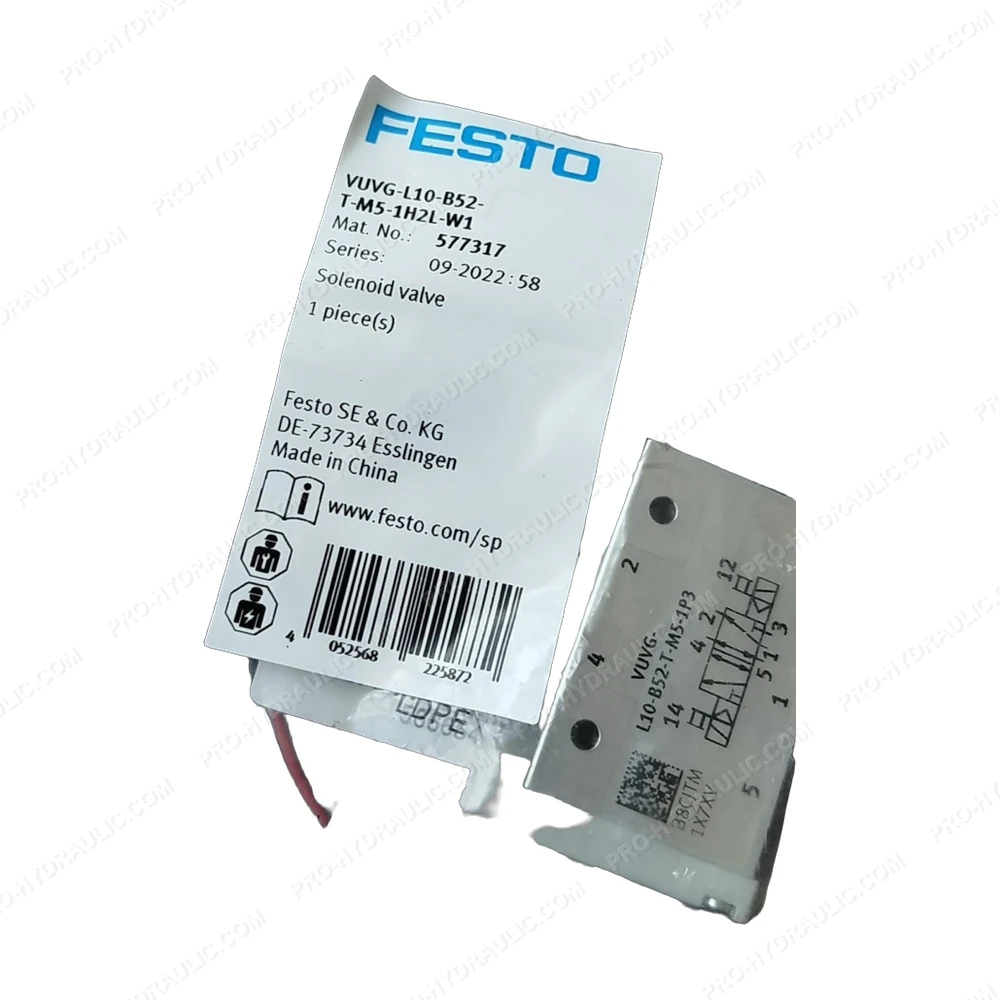

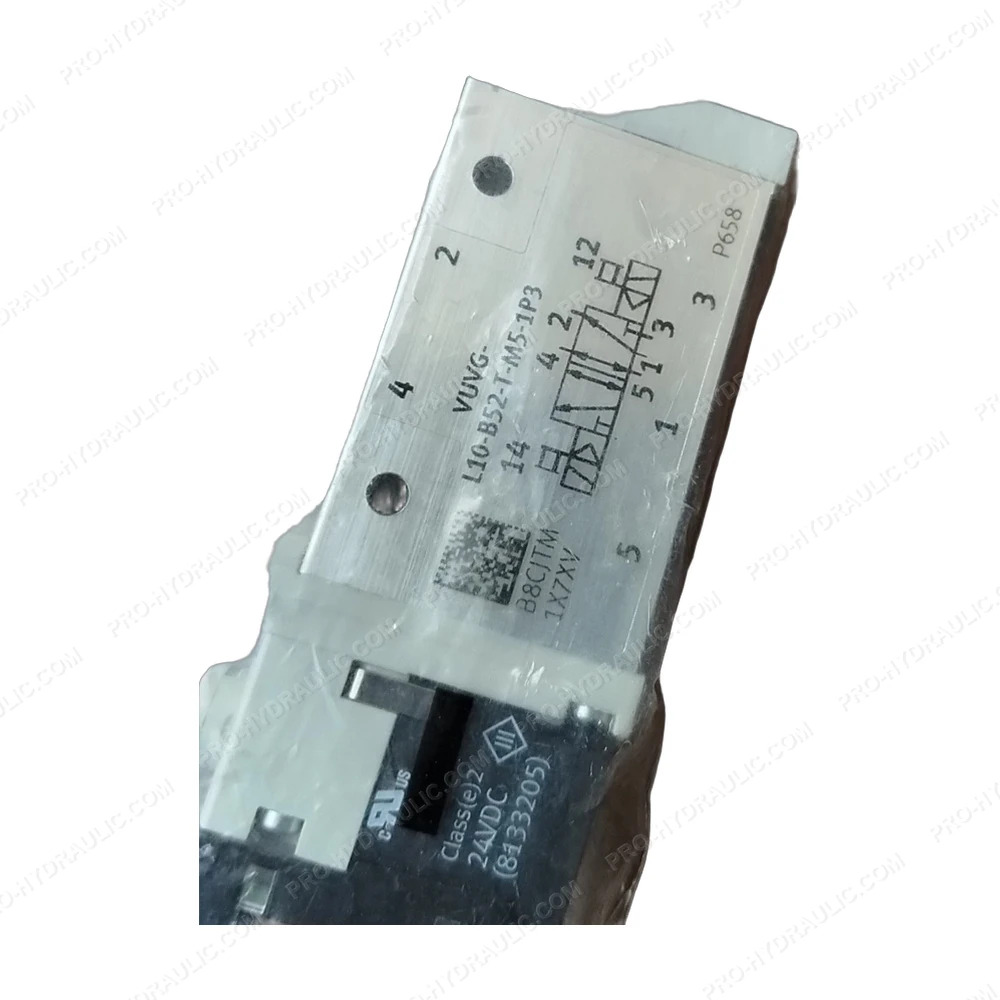

FESTO VUVG-L10-B52-T-M5-1H2L-W1 Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine FESTO VUVG-L10-B52-T-M5-1H2L-W1 Solenoid Valve. This Germany-made 24V DC hydraulic component features a 5/2-way poppet design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
