Product Overview
The FESTO VZBD-1/2-W3-16-T-2-F0304-V1 (Part No. 4783595) is a pneumatically actuated 2-way ball valve designed for reliable shut-off and control of neutral and aggressive media in industrial process systems. Manufactured by Festo, a global leader in pneumatic and process automation, this valve combines a robust brass ball valve body with a high-cycle pneumatic rotary actuator. The quarter-turn actuation principle ensures rapid, full-bore flow with minimal pressure drop, making it an ideal choice for automated fluid handling, isolation, and safety shut-off applications. Its modular design allows for direct integration into Festo valve terminals and process control networks, delivering precise media control with high operational reliability.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Ball Valve (Process & Pneumatic Valve) |
| Model Designation | VZBD-1/2-W3-16-T-2-F0304-V1 / 4783595 |
| Nominal Diameter | 1/2″ (DN15) – Full Bore |
| Operating Pressure | Up to 16 bar (media side); pneumatic pilot 2–10 bar |
| Actuation Type | Pneumatic rotary actuator, double-acting or spring-return (per model code) |
| Mounting & Connection | Threaded connection (G 1/2″), standard ISO 228 / NAMUR interface for actuator |
| Body Material | Brass (CW617N) with PTFE seats and seals |
| Media Compatibility | Neutral gases, water, oils, and non-corrosive fluids |
Engineering Features & Advantages
- Precision Performance: Quarter-turn pneumatic actuation delivers fast, repeatable shut-off with minimal flow resistance and zero leakage across the ball/seat interface.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust brass body and high-cycle actuator designed for millions of switching cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Festo OEM standards, ensuring drop-in replacement without modification.
- Integrated Automation Ready: NAMUR interface and standard pilot ports allow direct mounting of solenoid valves and position sensors for seamless process control integration.
- Corrosion Resistance: PTFE seals and brass construction provide excellent resistance to a wide range of industrial media.
Typical Industrial Applications
This pneumatic ball valve is widely used in automated process lines, including plastic injection molding machines for cooling water control, metallurgical presses for hydraulic fluid isolation, construction and marine hydraulics for media shut-off, and CNC machine tools for coolant and compressed air management. It is also suitable for water treatment, chemical dosing, and general industrial
PRODUCT IMAGES

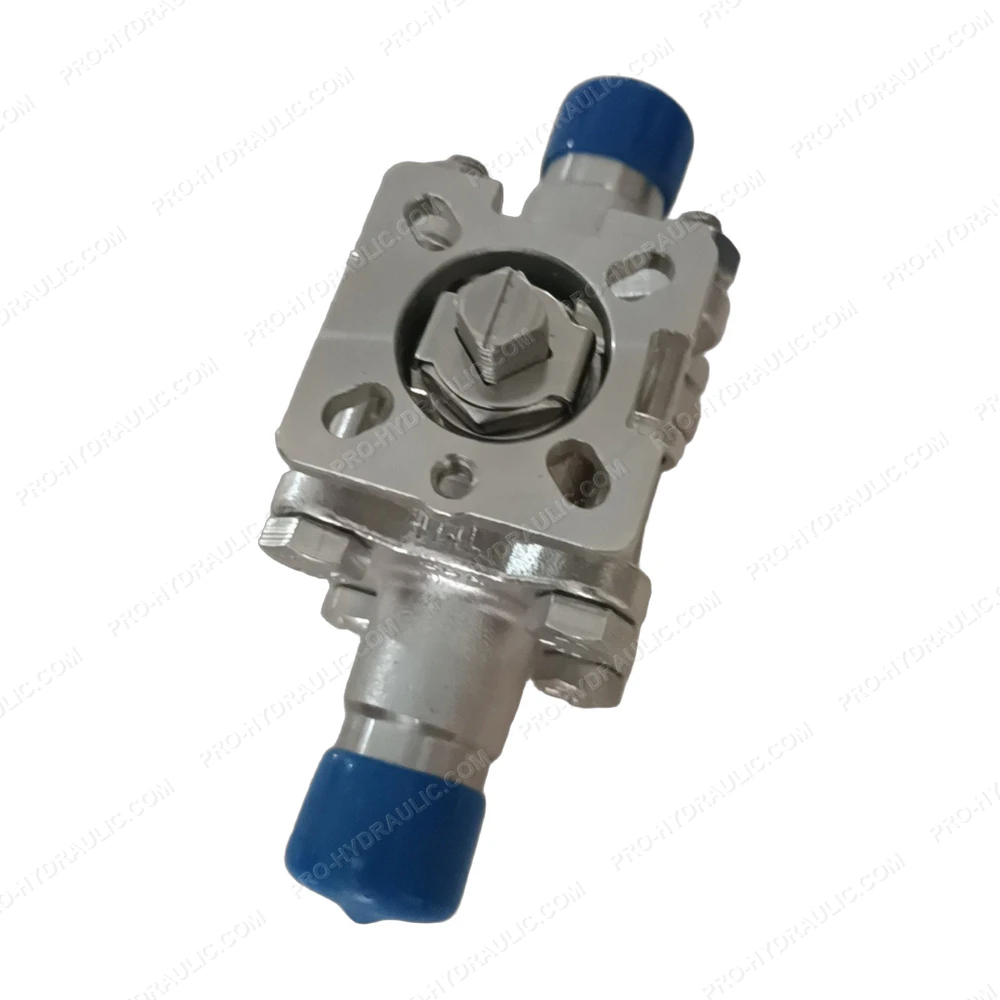

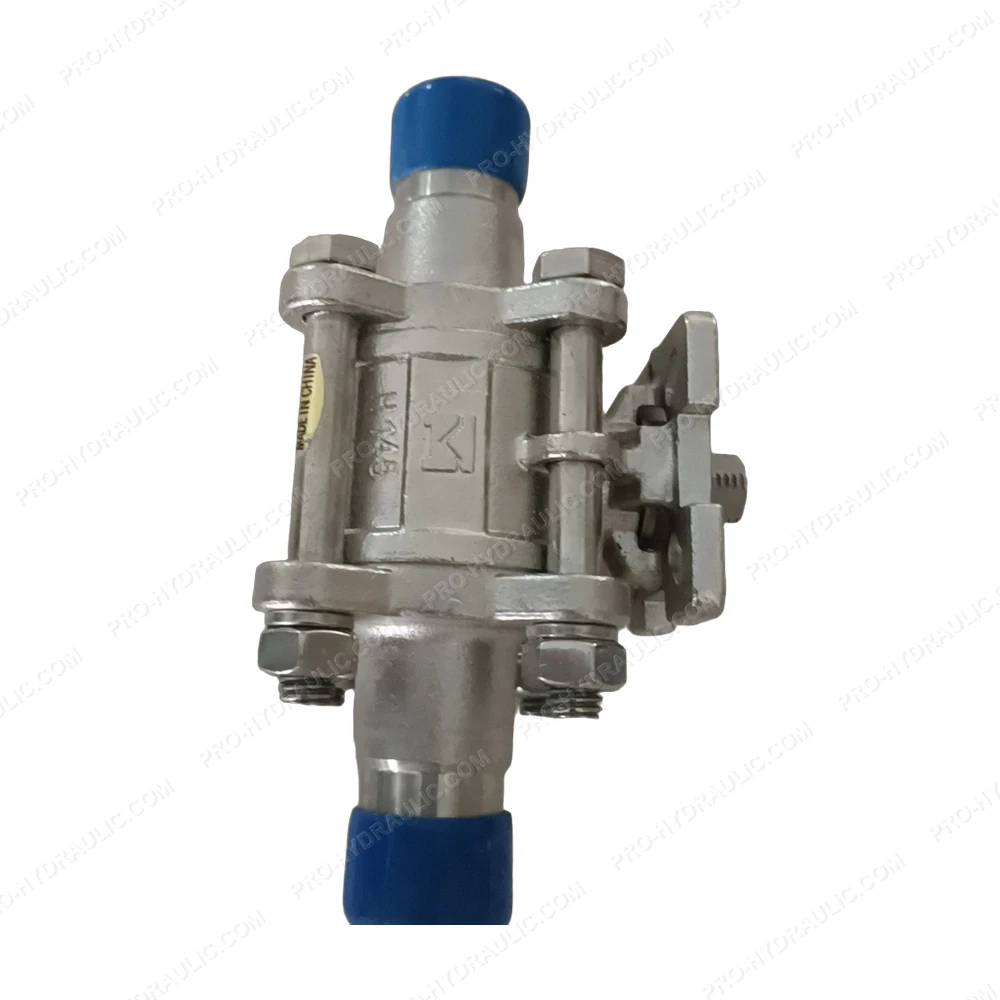

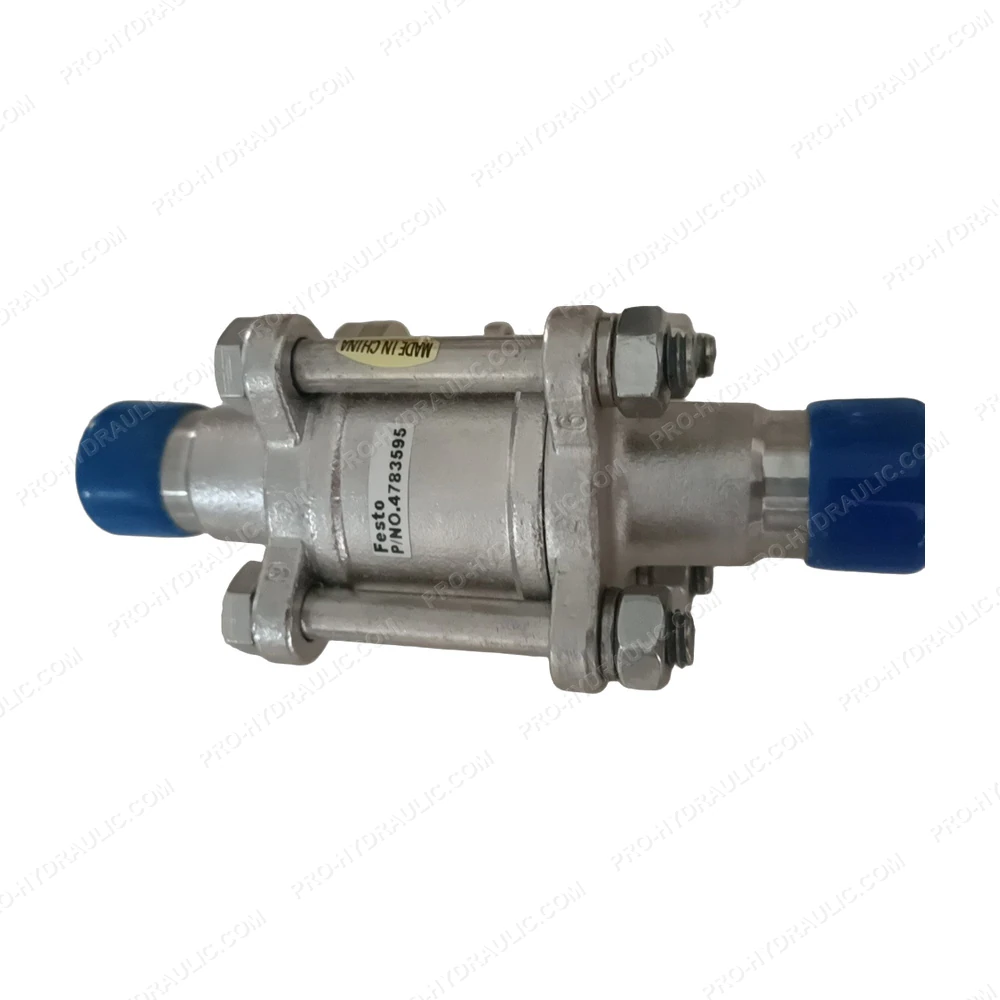

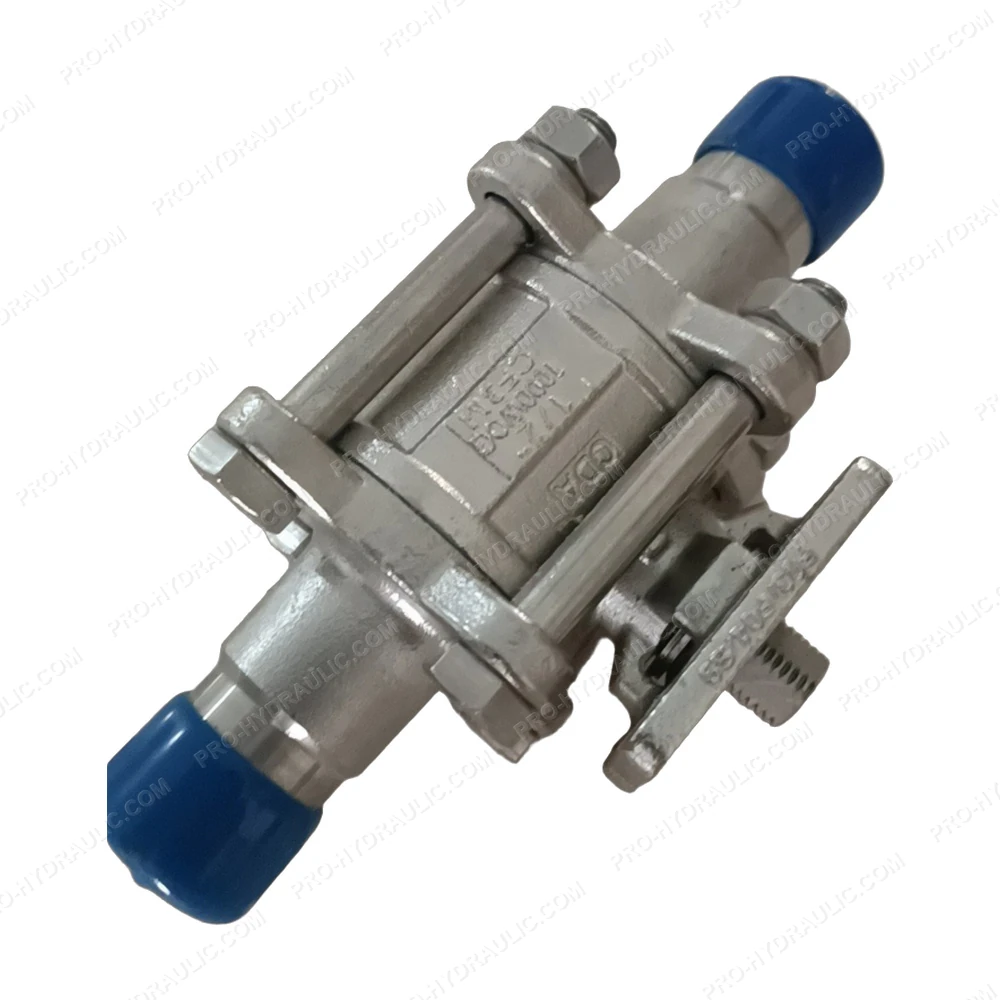

FESTO VZBD-1/2-W3-16-T-2-F0304-V1 / 4783595 Pneumatic Ball Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine FESTO VZBD-1/2-W3-16-T-2-F0304-V1 / 4783595 Solenoid Directional Control Valve. This Germany-made 24 VDC hydraulic component features a 2-position, 4-way design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
