Product Overview
The FITOK NF6L-UMB14-9-G is a precision-engineered needle valve from FITOK’s NF series of general process and pneumatic valves. Designed for fine manual flow regulation and reliable isolation in high-pressure hydraulic and pneumatic systems, this valve features a 6 mm (1/4 in) tube outer diameter connection with a 9 mm hex body configuration. The needle valve’s tapered stem and matched seat deliver precise, repeatable throttling characteristics, making it ideal for instrumentation, sampling systems, and analytical panels where accurate flow control is critical. Its robust 316 stainless steel construction ensures compatibility with a wide range of aggressive media and provides long-term leak-tight performance in demanding industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Needle Valve (General Process & Pneumatic) |
| Model Designation | NF6L-UMB14-9-G |
| Operating Pressure | Up to 6,000 psig (413 bar) at 21°C for 316 SS |
| Mounting & Connection | 6 mm (1/4 in) Tube OD, FITOK Compression Fitting |
| Body Material | 316 Stainless Steel |
| Stem Type | Tapered Needle, Non-Rotating Tip |
| Orifice Size | 0.9 mm (0.035 in) – Designated by “9” in model code |
| Hex Body Size | 9 mm (Designated by “9” in model code) |
| Temperature Range | -54°C to 232°C (-65°F to 450°F) with PTFE packing |
| Seal Material | PTFE (Standard) |
| Flow Coefficient (Cv) | 0.09 (Approximate, fully open) |
| Handle Type | Knurled Knob, Panel Mount Ready |
Engineering Features & Advantages
- Precision Performance: The needle valve (general process & pneumatic) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original FITOK specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
Its robust 316 stainless steel construction ensures compatibility with a wide range of aggressive media and provides long-term leak-tight performance in demanding industrial environments.
PRODUCT IMAGES

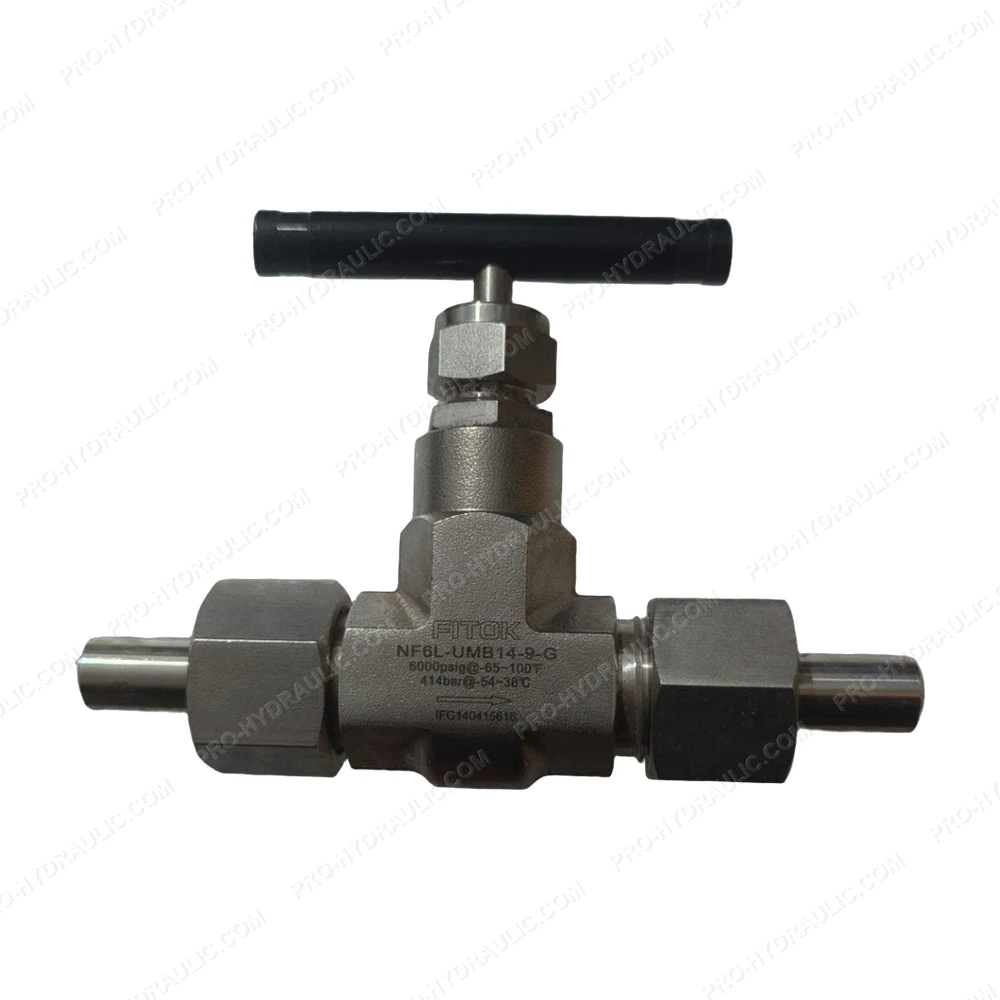

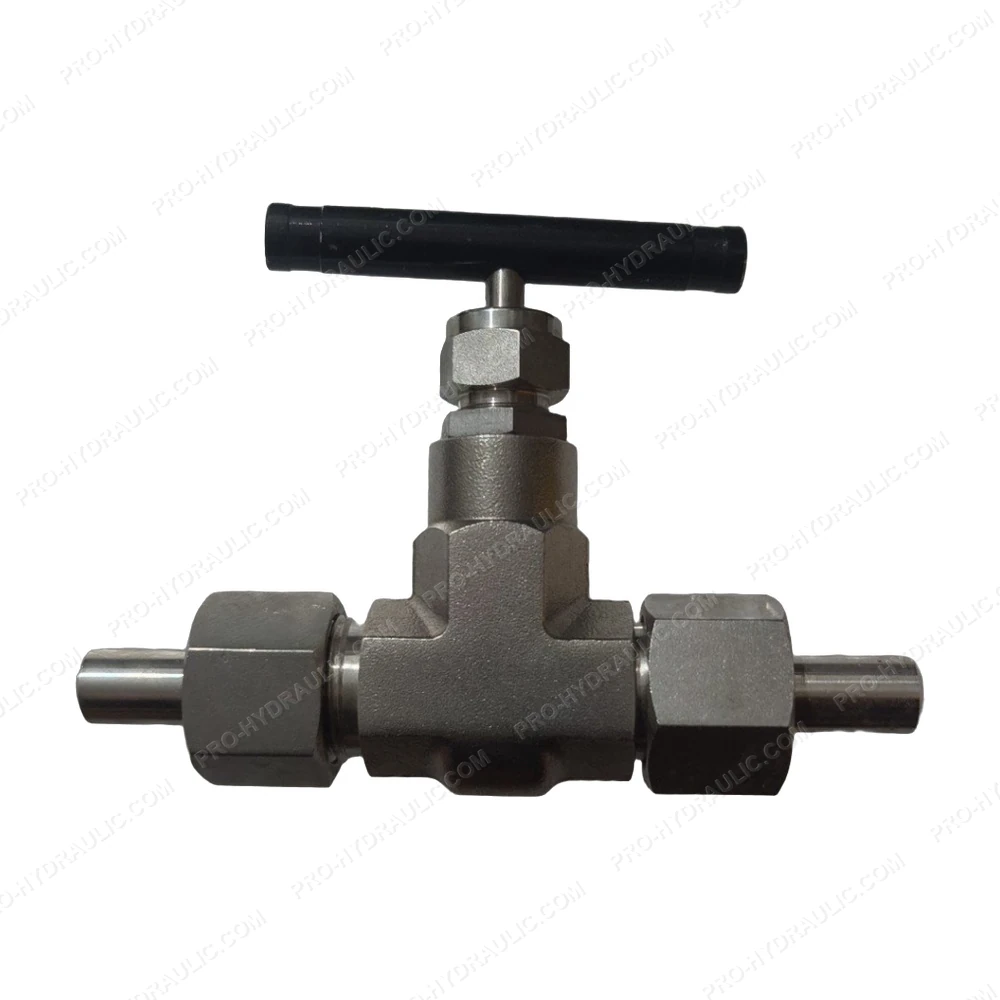

FITOK NF6L-UMB14-9-G Needle Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine FITOK NF6L-UMB14-9-G Needle Valve. This USA-made high-pressure hydraulic component features a precision needle design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
