Product Overview
The FOXBORO SRI986-BIDS6ZZZNA is a high-performance electro-pneumatic valve positioner engineered for precise control of pneumatically actuated control valves in demanding industrial process environments. As part of the Foxboro SRI986 series, this instrument converts a standard electrical input signal (typically 4–20 mA) into a proportional pneumatic output pressure, driving the valve actuator to a position that precisely matches the commanded setpoint. The SRI986-BIDS6ZZZNA features a robust, field-proven design with advanced feedback sensing and a high-capacity pneumatic relay, delivering fast response, excellent repeatability, and minimal steady-state air consumption. It is a critical automation component in closed-loop process control architectures, ensuring accurate flow, pressure, level, and temperature regulation across a wide range of industrial applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Valve Positioner (Automation & Control Instrument) |
| Model Designation | SRI986-BIDS6ZZZNA |
| Manufacturer | FOXBORO (Schneider Electric) |
| Input Signal | 4–20 mA DC (standard analog control signal) |
| Pneumatic Supply Pressure | Standard industrial instrument air (typically 20–100 psi / 1.4–7 bar) |
| Actuator Compatibility | Single-acting and double-acting linear & rotary pneumatic actuators |
| Mounting & Connection | Standard NAMUR / ISO 60534 interface with universal mounting bracket |
| Enclosure Rating | Industrial-grade housing suitable for harsh process environments |
| Feedback Mechanism | Non-contact position feedback for high-resolution valve stem/ shaft sensing |
Engineering Features & Advantages
- Precision Valve Positioning: Advanced electro-pneumatic conversion delivers highly accurate and repeatable valve positioning, minimizing process variability and improving product quality in closed-loop control.
- High-Capacity Pneumatic Relay: Integrated relay provides rapid stroking speeds and high air delivery capacity, ensuring fast response to setpoint changes even on large actuators.
- Low Air Consumption: Optimized nozzle-flapper and relay design minimizes steady-state instrument air consumption, reducing plant utility costs.
- Robust Industrial Construction: Engineered for continuous duty in severe process conditions, including vibration, temperature extremes, and corrosive atmospheres.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original FOXBORO SRI986 series mounting and pneumatic connection standards for drop-in service.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
Typical Industrial Applications
It is a critical automation component in closed-loop process control architectures, ensuring accurate flow, pressure, level, and temperature regulation across a wide range of industrial applications.
PRODUCT IMAGES

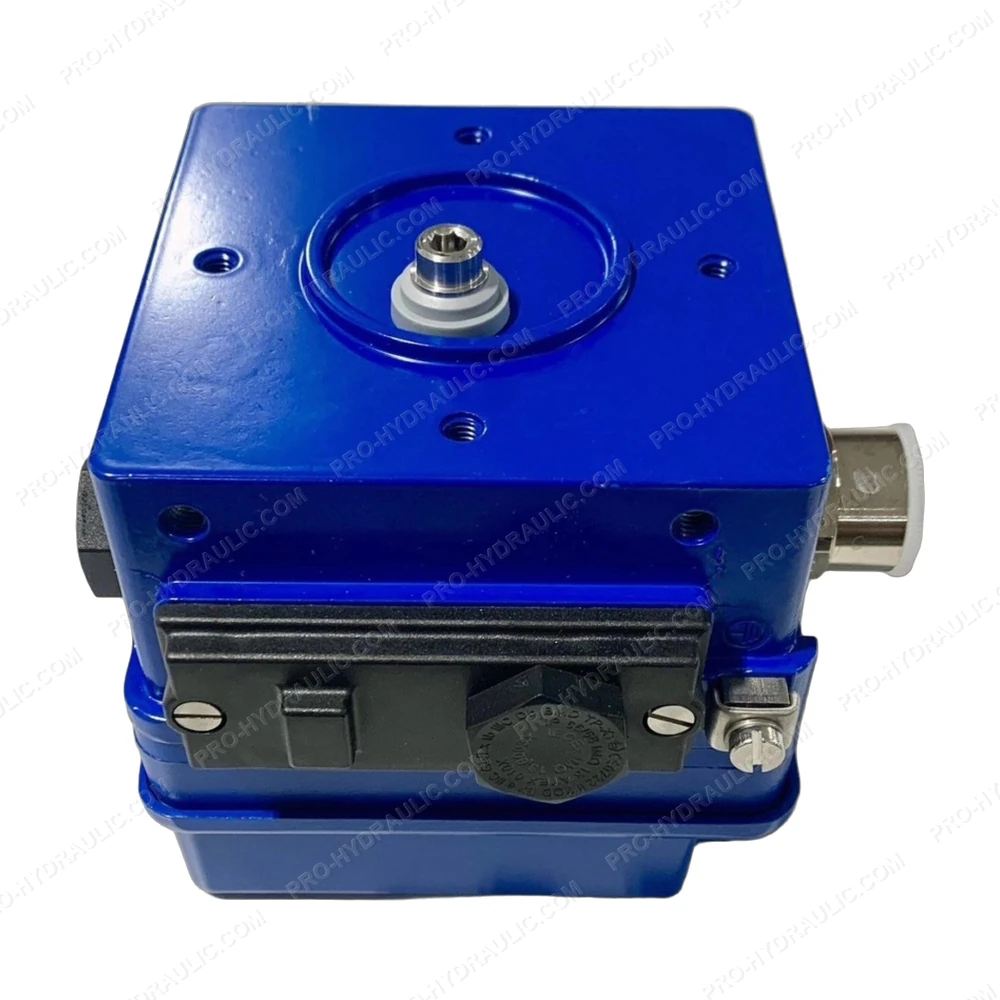

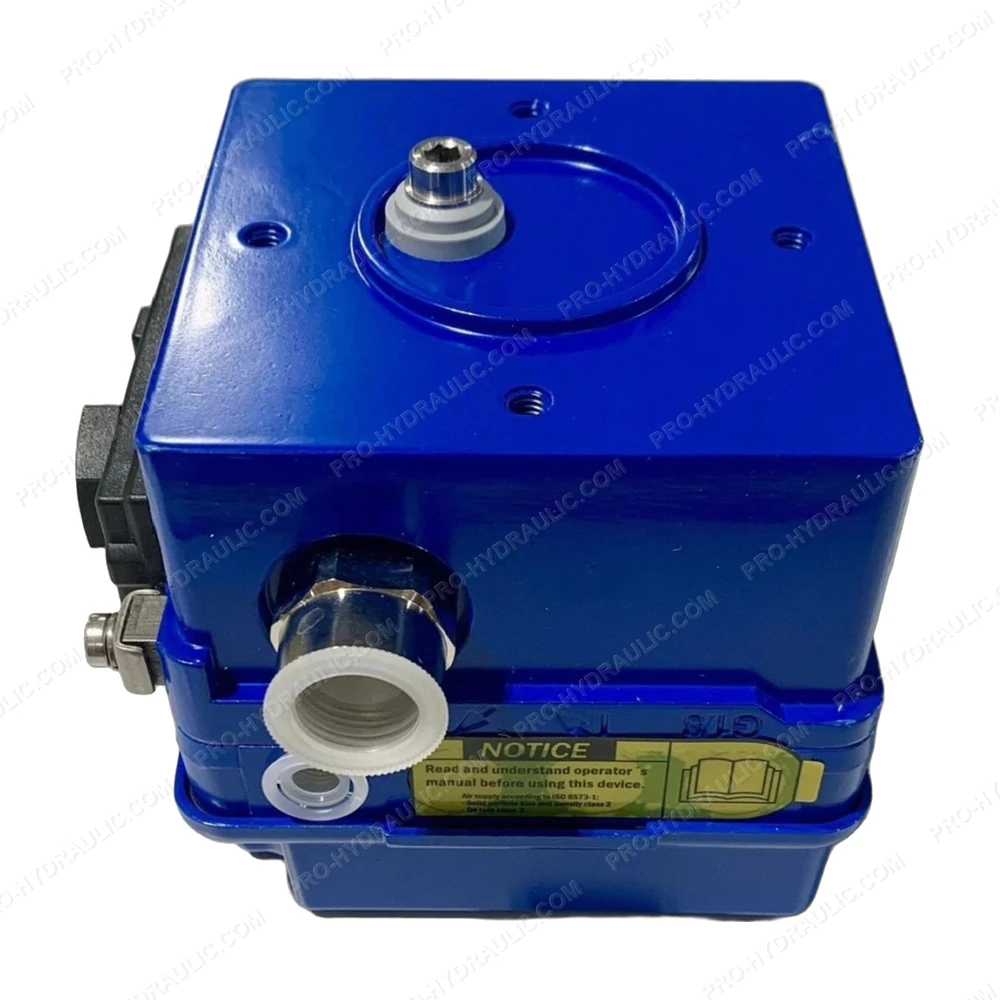

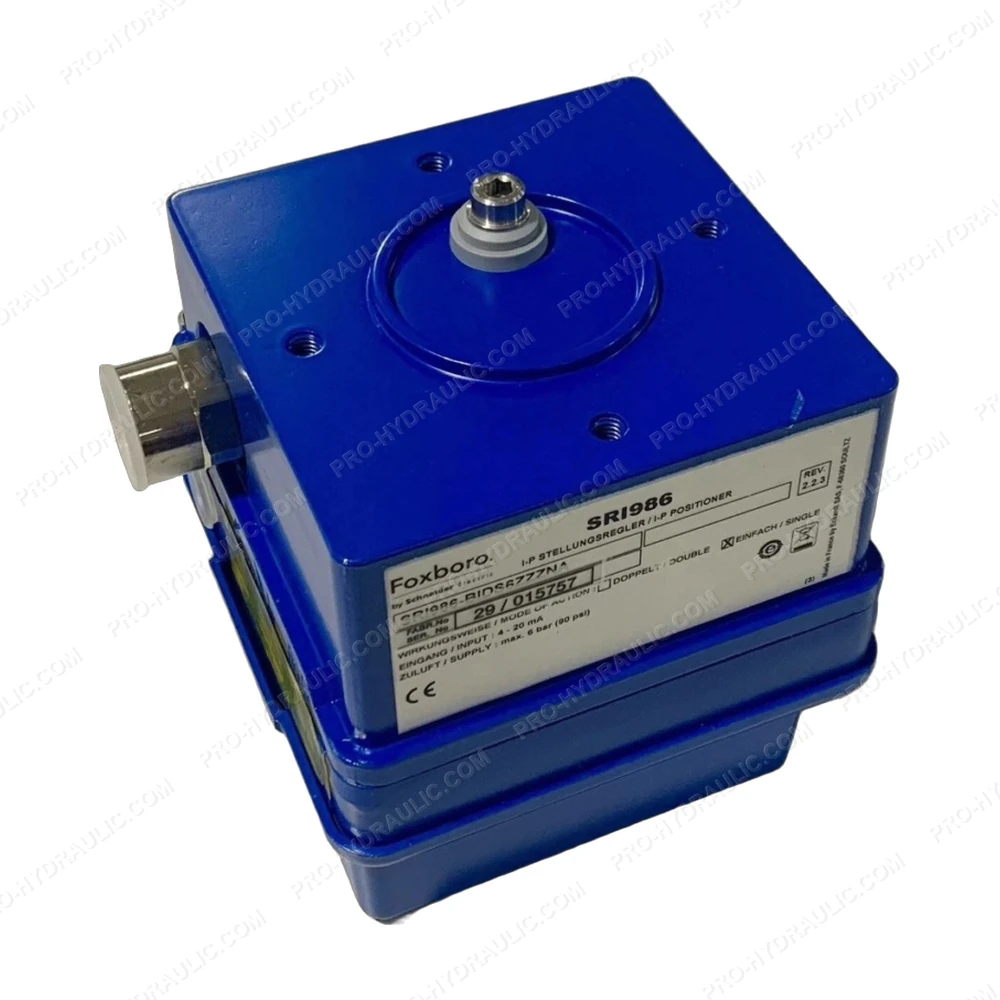

FOXBORO SRI986-BIDS6ZZZNA Electro-Pneumatic Positioner
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine FOXBORO SRI986-BIDS6ZZZNA Solenoid Valve. This USA-made 24V DC hydraulic component features a 2-way normally closed design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
