Product Overview
The FUJIKIN 796-029684-321 REV. A / 1001360 is an ultra-pure diaphragm valve engineered by Fujikin, a global leader in precision fluid control technology. Operating on a pneumatically actuated diaphragm principle, this valve isolates the working fluid from all internal actuation components, eliminating dead volume, particle generation, and contamination pathways. It is specifically designed for high-purity gas and chemical delivery systems where molecular-level cleanliness and leak-tight shutoff are mandatory. The valve serves as a critical control element in semiconductor fabrication, pharmaceutical processing, and advanced analytical instrumentation, providing precise on/off flow control with exceptional cycle life.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Ultra-Pure Pneumatic Diaphragm Valve |
| Model Designation | 796-029684-321 REV. A / 1001360 |
| Manufacturer | Fujikin |
| Actuation Type | Pneumatic (Air-Operated Diaphragm) |
| Operating Pressure | Standard Industrial Grade (Up to rated bar) |
| Mounting & Connection | Standard ISO / Manufacturer Interface |
| Body Configuration | Two-Way, Normally Closed (NC) or Normally Open (NO) per revision |
| Diaphragm Material | Ultra-pure PTFE / PFA (per Fujikin ultra-pure standard) |
| Leak Integrity | Bubble-tight shutoff, helium leak tested |
Engineering Features & Advantages
- Precision Performance: The diaphragm isolation design ensures zero dead volume and eliminates entrapment zones, providing consistent, repeatable flow control critical for ultra-pure media handling. The pneumatic actuator delivers fast, uniform response with minimal hysteresis.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, the valve’s robust construction and high-cycle diaphragm withstand aggressive chemicals and high-purity gases without degradation or particle shedding.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in replacement for Fujikin 796 series installations without modification to existing manifolds or pneumatic supply lines.
- Contamination-Free Operation: All wetted surfaces are electropolished and passivated to minimize surface roughness and adsorption, meeting stringent semiconductor and pharmaceutical cleanliness requirements.
- Compact Modular Design: Space-efficient body allows high-density integration into gas sticks, valve manifold boxes (VMBs), and process gas panels.
Typical Industrial Applications
This ultra-pure diaphragm valve is deployed in semiconductor wafer
PRODUCT IMAGES

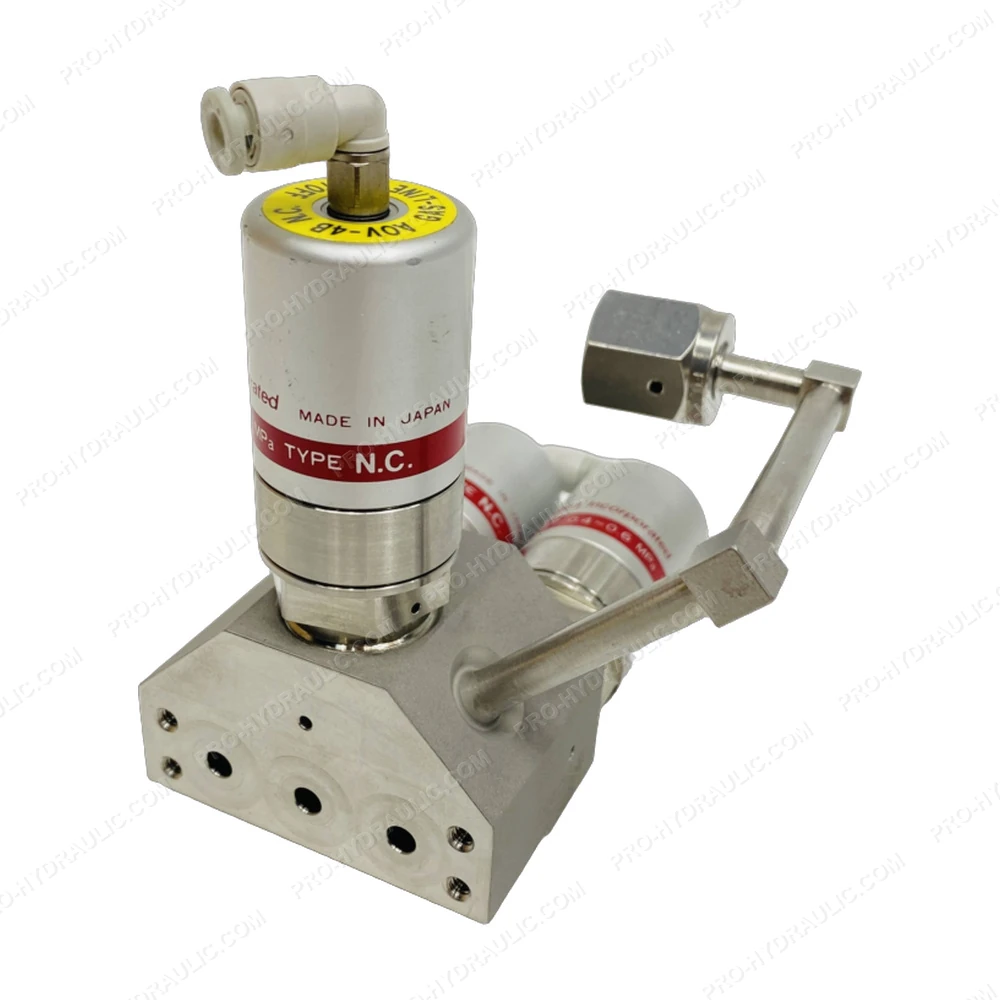

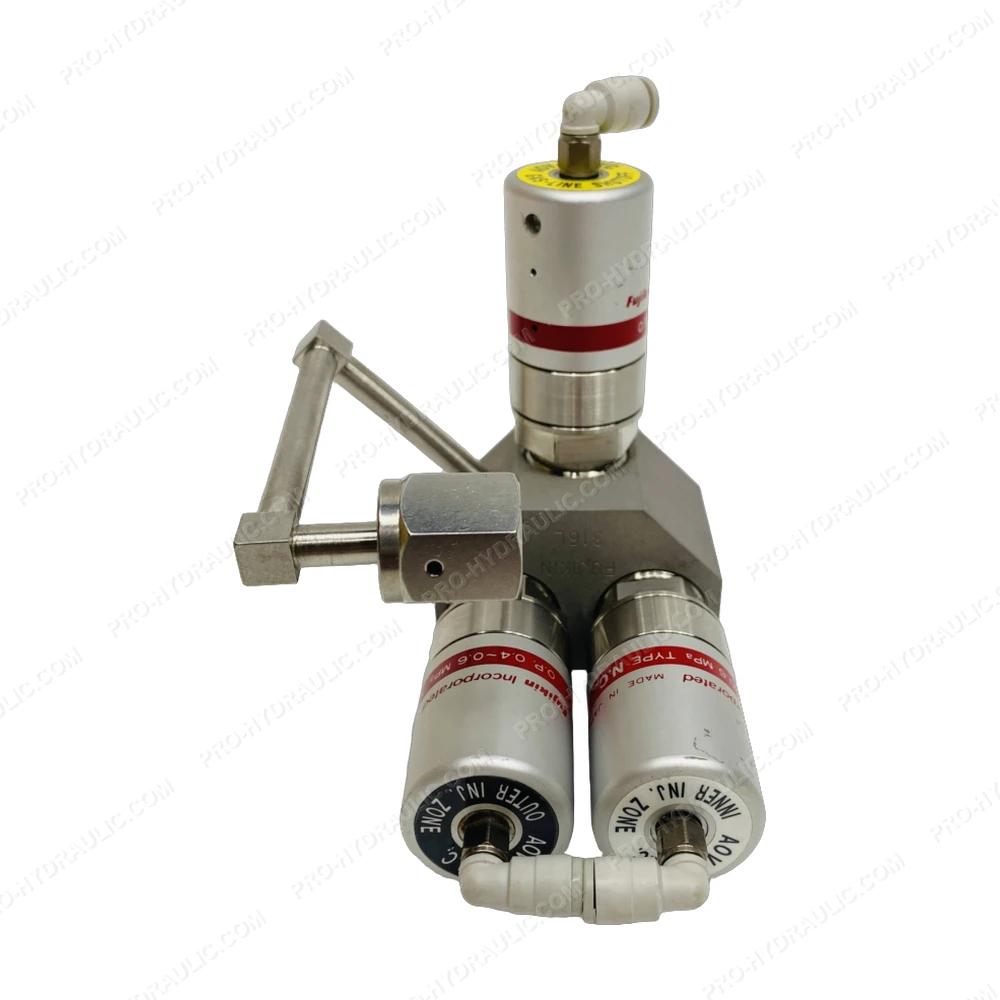

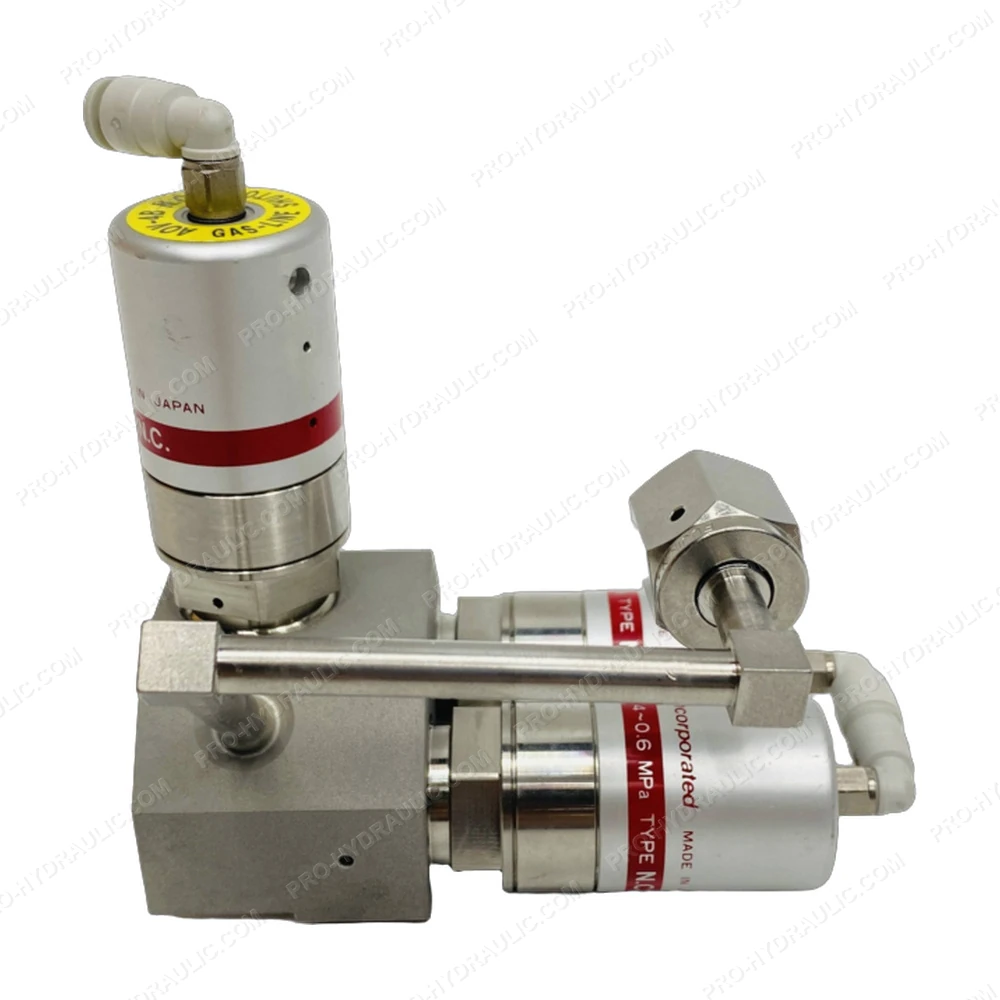

FUJIKIN 796-029684-321 REV. A / 1001360 Ultra-Pure Diaphragm Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine FUJIKIN 796-029684-321 REV. A / 1001360 Solenoid Directional Control Valve. This Japan-made hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
