Product Overview
The FUJIKIN 796-029684-321 is an ultra-pure diaphragm valve engineered for high-purity fluid and gas handling in critical semiconductor, pharmaceutical, and analytical process lines. Manufactured by Fujikin, a global leader in precision fluid control technology, this valve utilizes a flexible diaphragm as the sole moving sealing element, isolating the process media from the actuator and external environment. This design eliminates packing, stem seals, and dead-volume entrapment zones, ensuring zero leakage and minimal particle generation. The 796-029684-321 is a direct-fit replacement component intended for integration into OEM gas delivery panels, chemical distribution systems, and ultra-pure water circuits where contamination control is paramount.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Ultra-Pure Diaphragm Valve (Process & Pneumatic Valve) |
| Model Designation | 796-029684-321 |
| Operating Pressure | Standard Industrial Grade (Up to rated bar for high-purity service) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Fujikin ultra-pure fitting configuration) |
| Actuation Type | Pneumatic (air-operated) diaphragm actuation |
| Body & Wetted Materials | High-purity corrosion-resistant alloy / PTFE or equivalent diaphragm |
| Sealing Principle | Static diaphragm seal — no dynamic stem packing |
Engineering Features & Advantages
- Precision Performance: The diaphragm sealing architecture provides bubble-tight shutoff and precise flow control with minimal internal volume, reducing purge times and media waste in high-purity circuits.
- Contamination-Free Operation: With no sliding stem seals or exposed threaded internals, the valve minimizes particle shedding and outgassing, meeting stringent ultra-pure and cleanroom compatibility requirements.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, including corrosive media, high-cycle pneumatic actuation, and elevated temperature process lines.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Fujikin standards, ensuring drop-in installation without modification to existing manifolds or gas sticks.
Typical Industrial Applications
This ultra-pure diaphragm valve is typically deployed in semiconductor fabrication gas delivery systems, pharmaceutical and biotech sterile process lines, ultra-pure water and chemical distribution skids, and analytical instrumentation sampling circuits. It is also suitable for high-purity specialty gas panels, flat-panel display manufacturing, and any process requiring zero dead-volume, leak-free isolation of aggressive or contamination-sensitive media.
PRODUCT IMAGES

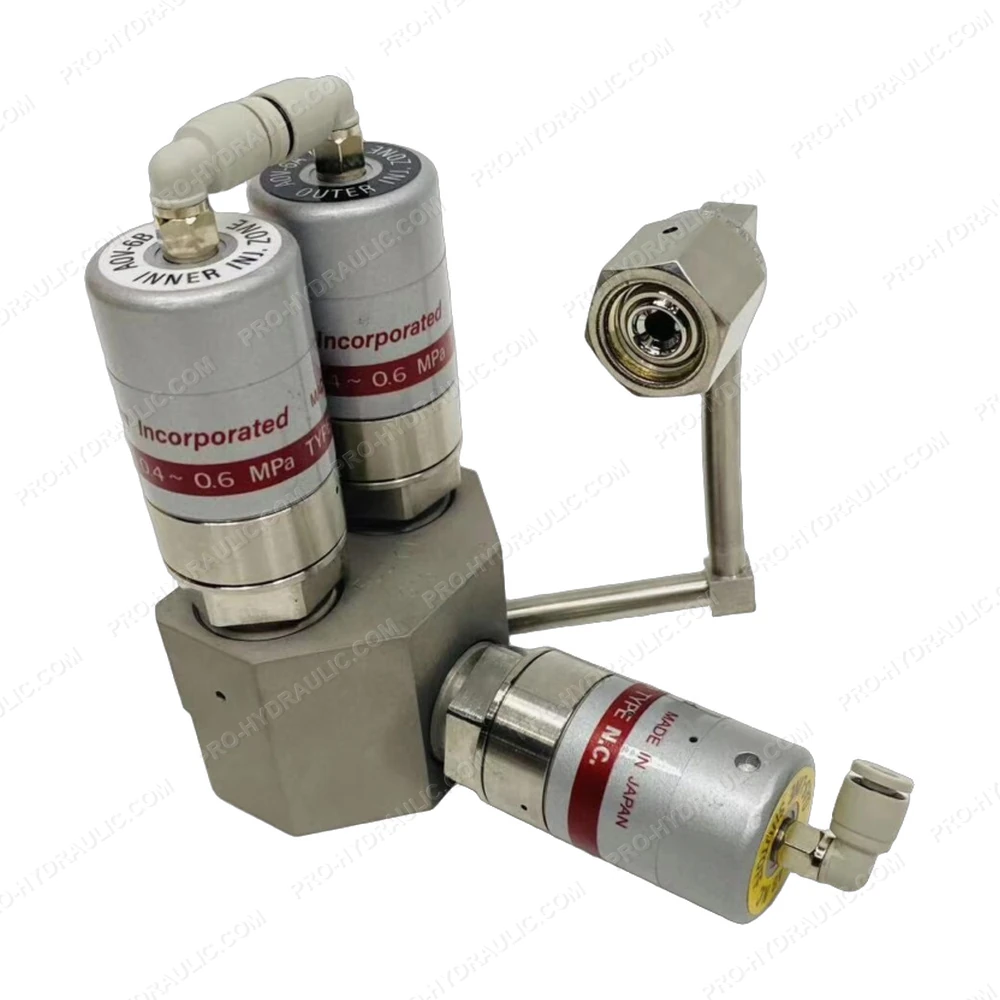

FUJIKIN 796-029684-321 Ultra-Pure Diaphragm Valve
