Product Overview
The FUJIKIN ALMC4000 (Part No. 408092) is an ultra-pure, air-operated diaphragm valve engineered for high-purity fluid and gas handling in semiconductor, pharmaceutical, and advanced industrial process systems. Manufactured by FUJIKIN, a global leader in fluid control technology, this valve utilizes a pneumatically actuated diaphragm mechanism that isolates the process media from the actuator and external environment, eliminating dead volume, particle generation, and contamination risks. The ALMC4000 series is specifically designed for critical ultra-pure applications where metallic contact and shear-sensitive fluid handling are prohibited, delivering leak-tight shutoff and superior corrosion resistance in aggressive chemical delivery lines.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Ultra-Pure Pneumatic Diaphragm Valve |
| Model Designation | ALMC4000 / 408092 |
| Actuation Type | Air-Operated (Pneumatic), Normally Closed (NC) / Normally Open (NO) configurations |
| Operating Pressure | Standard Industrial Grade (Up to rated bar; consult factory for specific pressure ratings) |
| Body & Wetted Materials | High-purity PTFE / PFA diaphragm, corrosion-resistant metallic body |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Flare, Tube, or Weld end connections) |
| Sealing Principle | Diaphragm isolation, bubble-tight shutoff |
Engineering Features & Advantages
- Precision Performance: The diaphragm sealing mechanism provides complete isolation of the process fluid from the valve actuator, ensuring zero contamination and eliminating dead pockets where particles or bacteria could accumulate.
- Ultra-Pure Construction: Designed for high-purity chemical and gas delivery, with wetted surfaces engineered to minimize particle shedding and ionic contamination, meeting stringent semiconductor and pharmaceutical cleanliness standards.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust pneumatic actuator providing consistent cycle life and reliable shutoff performance.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in replacement without modification to existing manifolds or tubing systems.
- Corrosion Resistance: High-performance diaphragm and body materials resist aggressive acids, bases, and solvents commonly used in wet chemical processing.
Typical Industrial Applications
The FUJIKIN ALMC4000 ultra-pure diaphragm valve is widely deployed in semiconductor fabrication for high-purity chemical delivery (CVD, etch, and cleaning processes), pharmaceutical and biotech fluid handling where sterility and contamination control are critical, ultra-pure water and chemical distribution systems in electronics manufacturing, and analytical instrumentation requiring precise, leak-free flow control of aggressive or high-purity media.
PRODUCT IMAGES

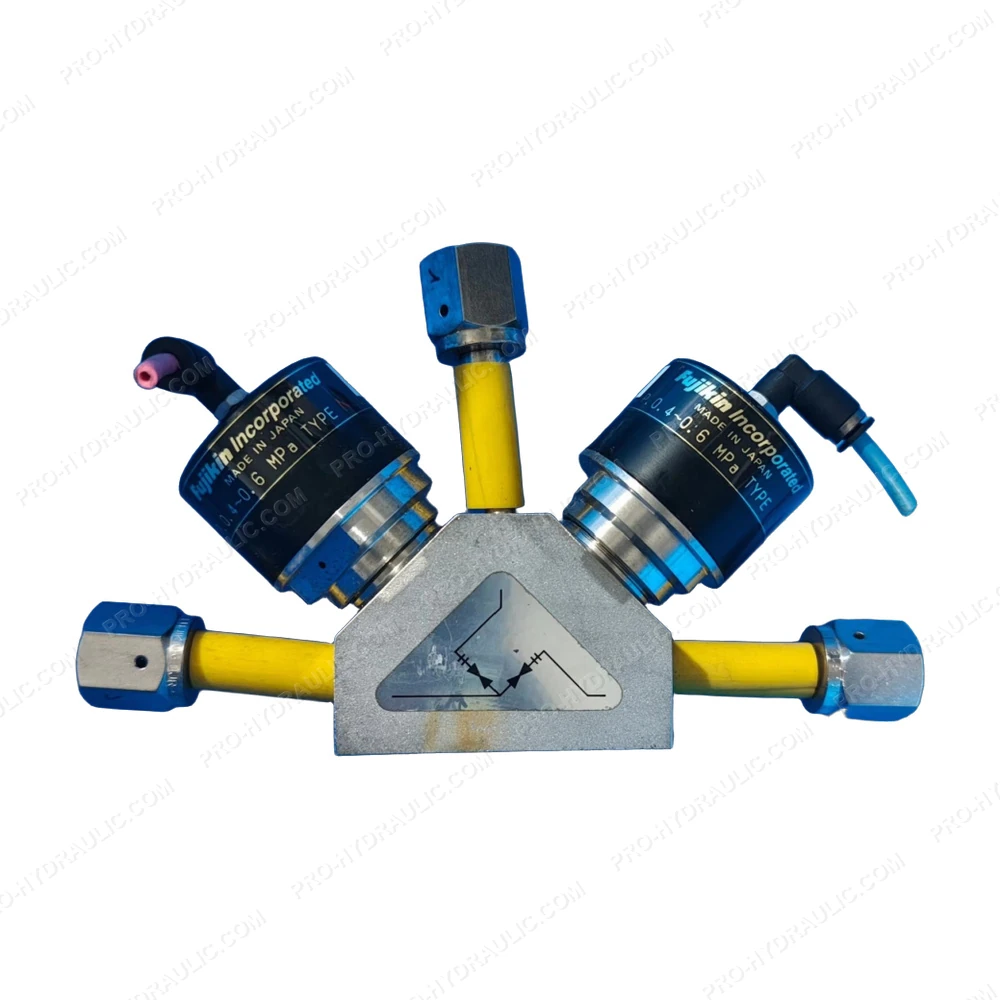

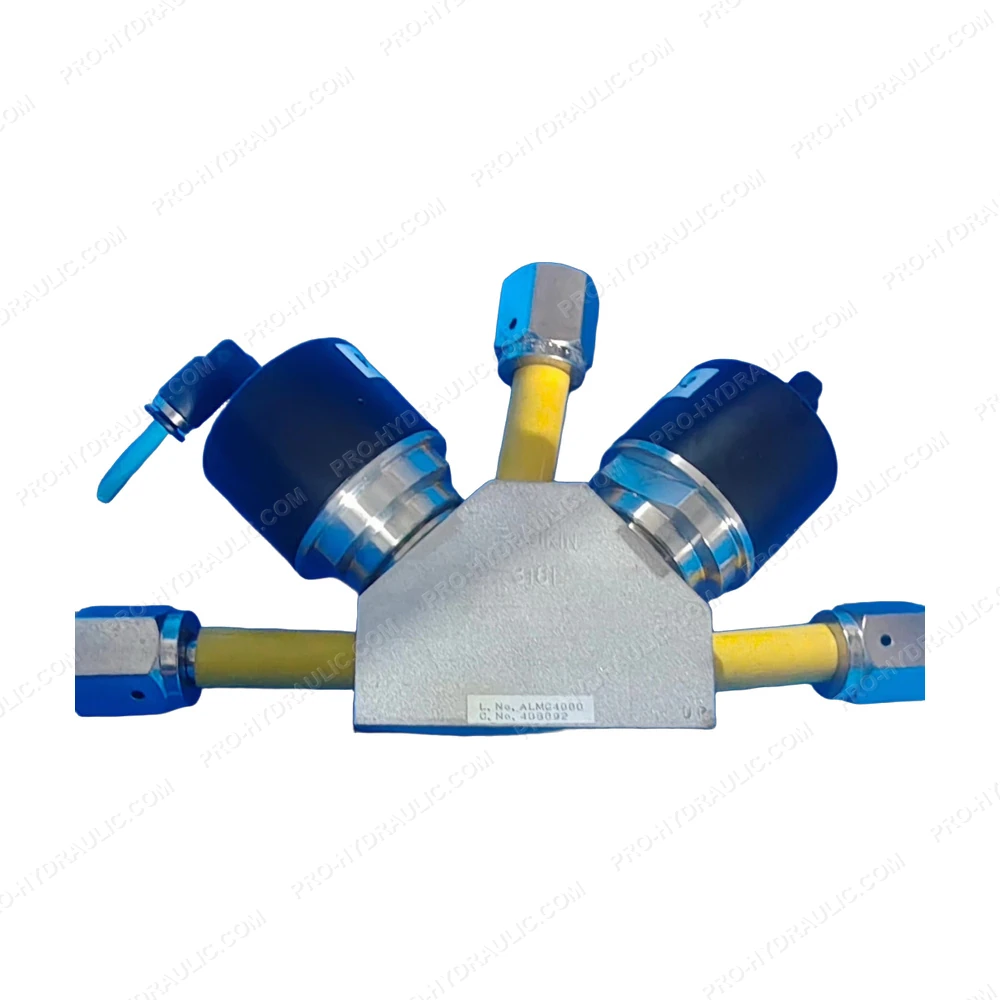

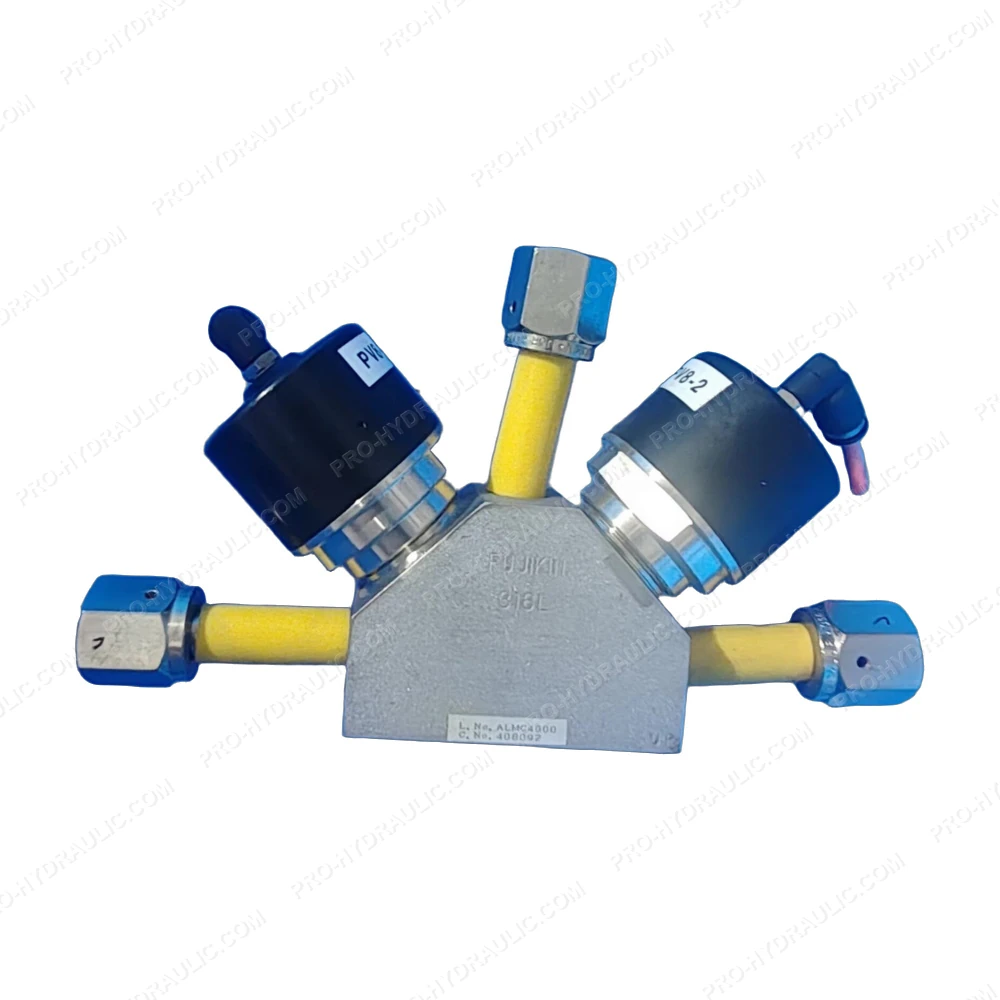

FUJIKIN ALMC4000 / 408092 Ultra-Pure Diaphragm Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine FUJIKIN ALMC4000 / 408092 Solenoid Directional Control Valve. This Japan-made 24V DC hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
