Product Overview
The GAMESA GP019868R02 / HG960-KPL/2 is a precision-engineered proportional directional valve designed for advanced electro-hydraulic control in demanding industrial environments. Manufactured by GAMESA (a recognized brand in wind turbine and industrial hydraulic systems), this valve operates on a proportional solenoid actuation principle, enabling infinitely variable spool positioning and precise directional control of hydraulic flow. Unlike standard on/off directional valves, the HG960-KPL/2 provides proportional metering of flow in both directions, allowing smooth acceleration and deceleration of actuators, accurate velocity control, and reduced hydraulic shock. It serves as a critical control element in closed-loop and open-loop hydraulic circuits, interfacing with proportional amplifier cards or PLC-based control systems to deliver responsive, repeatable motion control for heavy-duty machinery.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve |
| Model Designation | GP019868R02 / HG960-KPL/2 |
| Actuation Type | Proportional Solenoid (Single or Dual Solenoid Configuration) |
| Spool Configuration | 4-Way, 3-Position Proportional Spool with Metering Notches |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Nominal Flow Rate | Proportional to Input Signal (Typical Range 40–160 L/min depending on pressure drop) |
| Control Signal | Analog ±10 V DC or 4–20 mA via Proportional Amplifier |
| Hysteresis & Repeatability | < 5% Hysteresis, High Repeatability for Precision Metering |
| Mounting & Connection | Standard ISO 4401 / CETOP Subplate Interface |
| Fluid Compatibility | Mineral Oil-Based Hydraulic Fluids (HLP, HLVP per DIN 51524) |
Engineering Features & Advantages
- Precision Proportional Metering: The HG960-KPL/2 spool is engineered with fine metering notches that deliver a linear flow-to-signal relationship, enabling accurate velocity and position control of hydraulic actuators. This eliminates the abrupt motion associated with standard directional valves and reduces mechanical stress on system components.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original GAMESA standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
It serves as a critical control element in closed-loop and open-loop hydraulic circuits, interfacing with proportional amplifier cards or PLC-based control systems to deliver responsive, repeatable motion control for heavy-duty machinery.
PRODUCT IMAGES

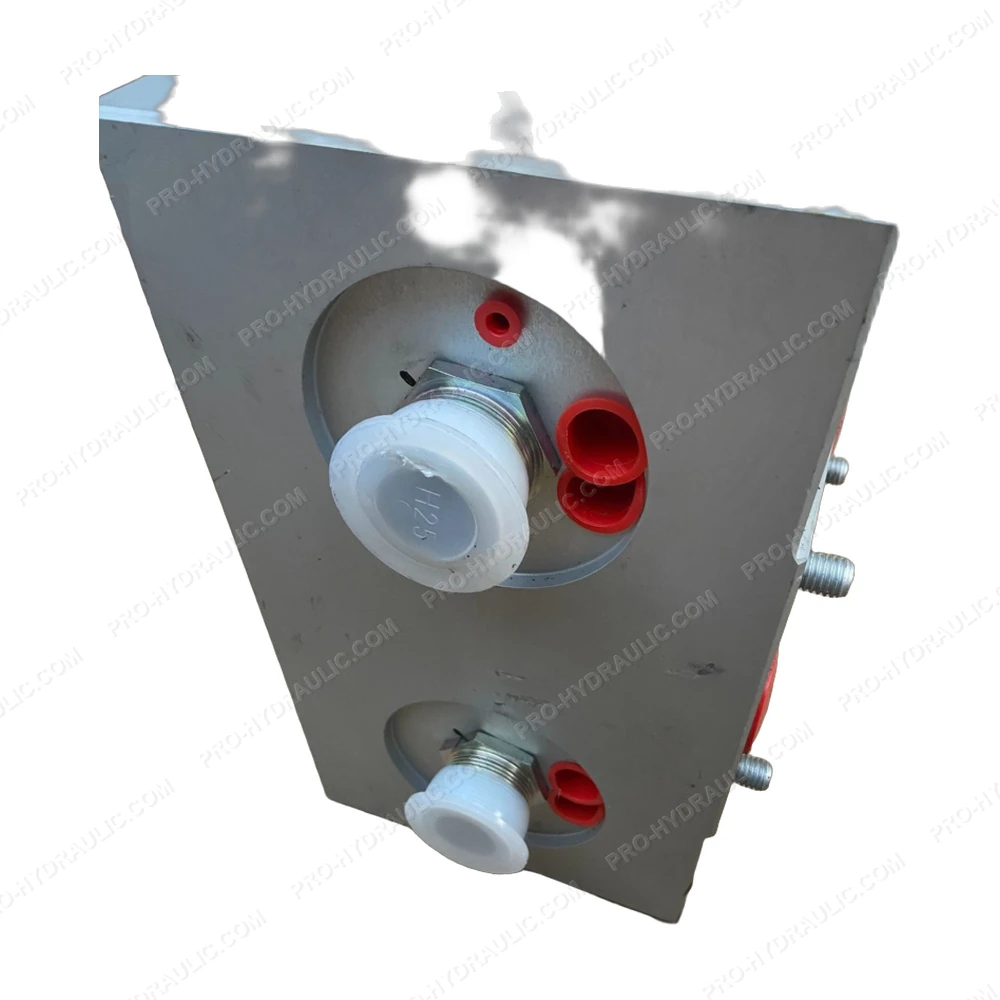

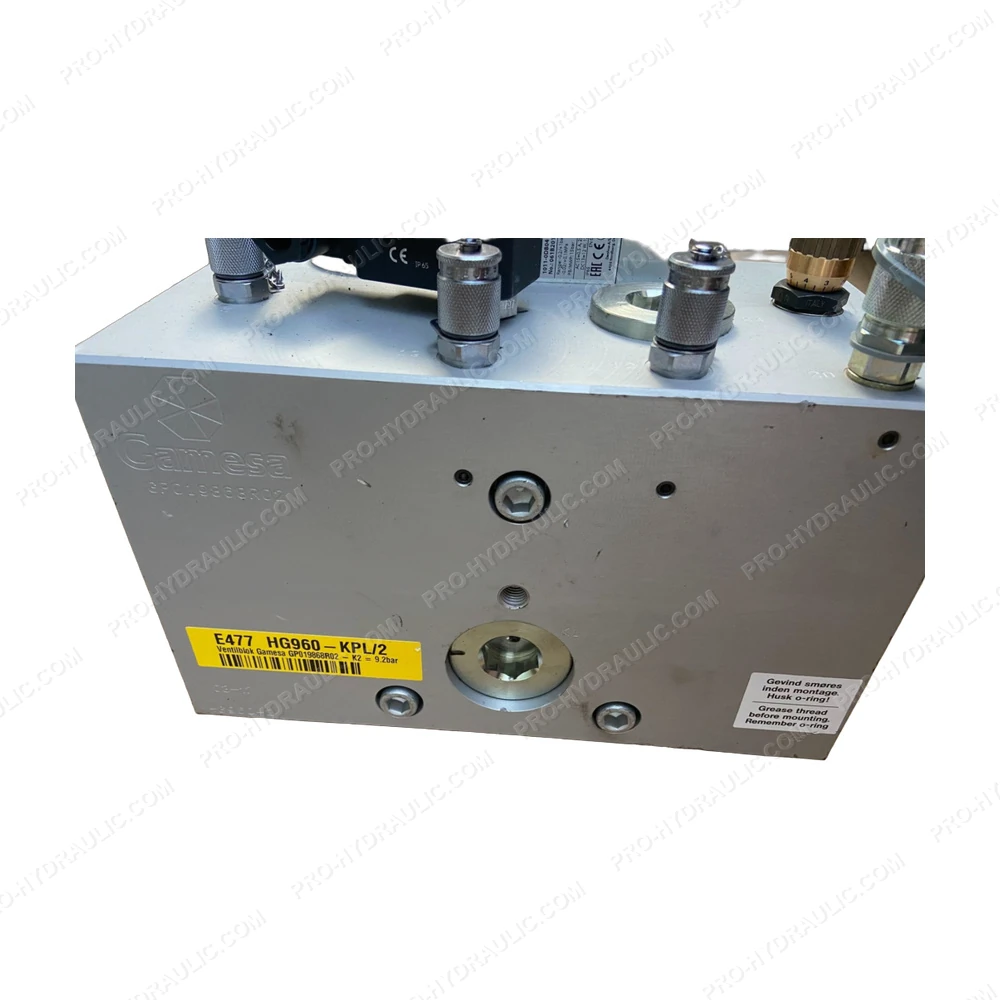

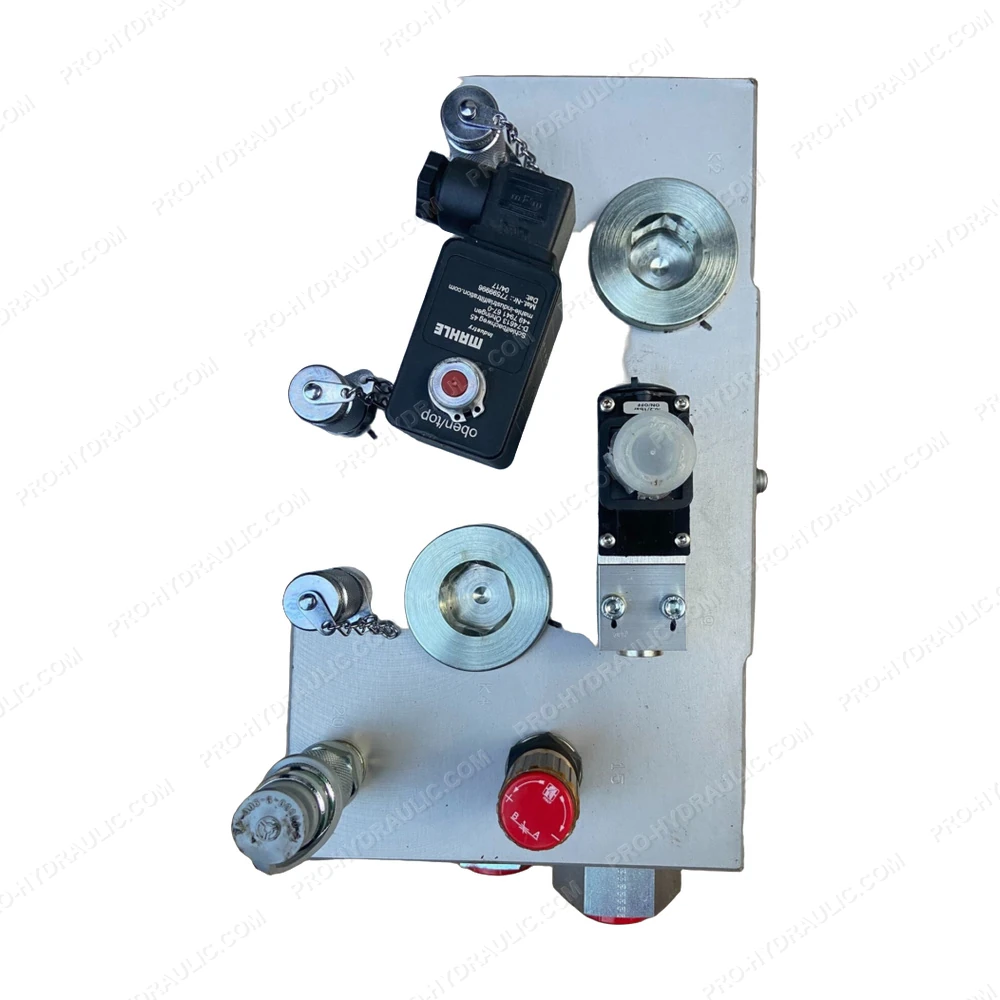

GAMESA GP019868R02 / HG960-KPL/2 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine GAMESA GP019868R02 / HG960-KPL/2 Proportional Directional Valve. This Spain-made 24V DC hydraulic component features a spool-type design with integrated position feedback, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
