Product Overview
The GEMU 550 15D 937 511G1 is a pneumatically actuated angle seat globe valve engineered by GEMÜ for precise shut-off and control of neutral, slightly aggressive, and aggressive media in industrial process systems. The valve operates on a linear piston actuator principle, where compressed air drives a spring-return piston to lift the globe plug off the seat, providing reliable on/off flow control with a high cycle life. Its angle seat body design ensures excellent flow characteristics with minimal pressure loss, making it a preferred choice for demanding process lines where tight shut-off and fast response are essential. The 15D designation indicates a DN15 (1/2″) line size, and the valve is configured for standard pneumatic actuation with a G1 threaded connection interface.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Angle Seat Globe Valve |
| Model Designation | GEMU 550 15D 937 511G1 |
| Nominal Line Size | DN15 (1/2″) |
| Operating Pressure | Standard Industrial Grade (Up to rated bar, media-dependent) |
| Actuation Type | Pneumatic piston actuator, spring-return |
| Mounting & Connection | G1 threaded connection / Standard ISO interface |
| Body Configuration | Angle seat globe design |
Engineering Features & Advantages
- Precision Performance: The angle seat globe design delivers high flow capacity with low pressure drop, while the precision-machined plug and seat ensure tight shut-off and accurate flow control across the full operating range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust pneumatic piston actuator and spring-return mechanism designed for high cycle life and dependable performance.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring straightforward integration into existing GEMÜ 550 series installations.
- Fast Pneumatic Response: Compact actuator design enables rapid opening and closing cycles, ideal for automated process control loops requiring quick valve actuation.
Typical Industrial Applications
The GEMU 550 15D 937 511G1 is widely deployed in chemical and petrochemical processing, pharmaceutical and biotechnology production lines, water and wastewater treatment systems, and food and beverage processing. Its angle seat globe valve construction makes it particularly suitable for steam, neutral gases, and aggressive media handling where reliable shut-off and precise flow regulation are critical to process integrity and safety.
PRODUCT IMAGES

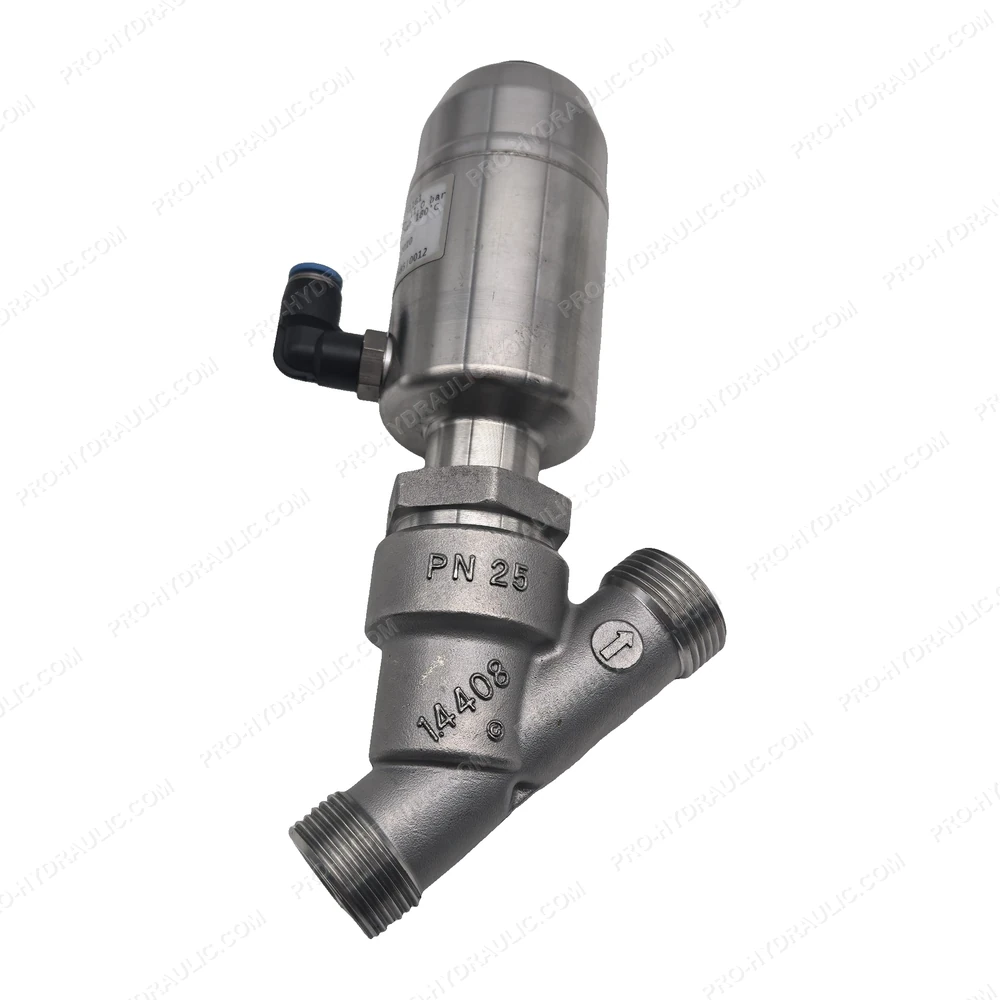

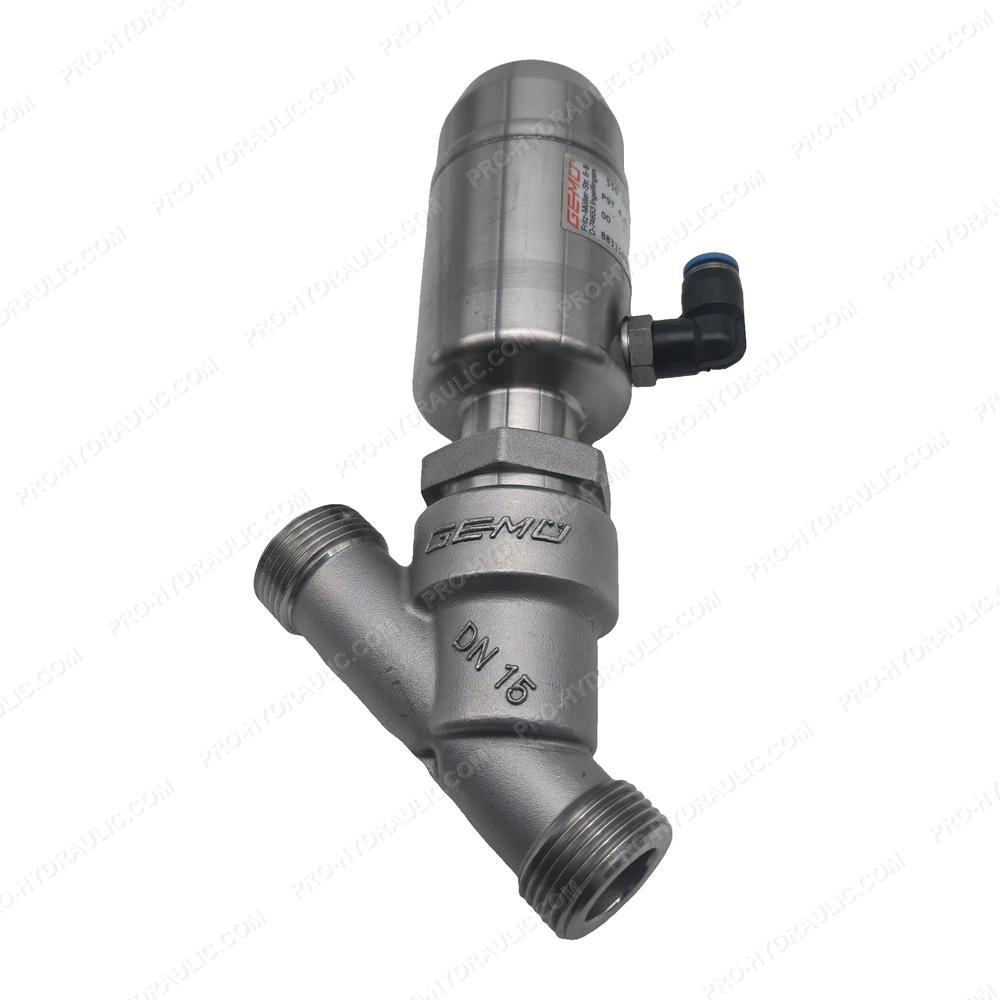

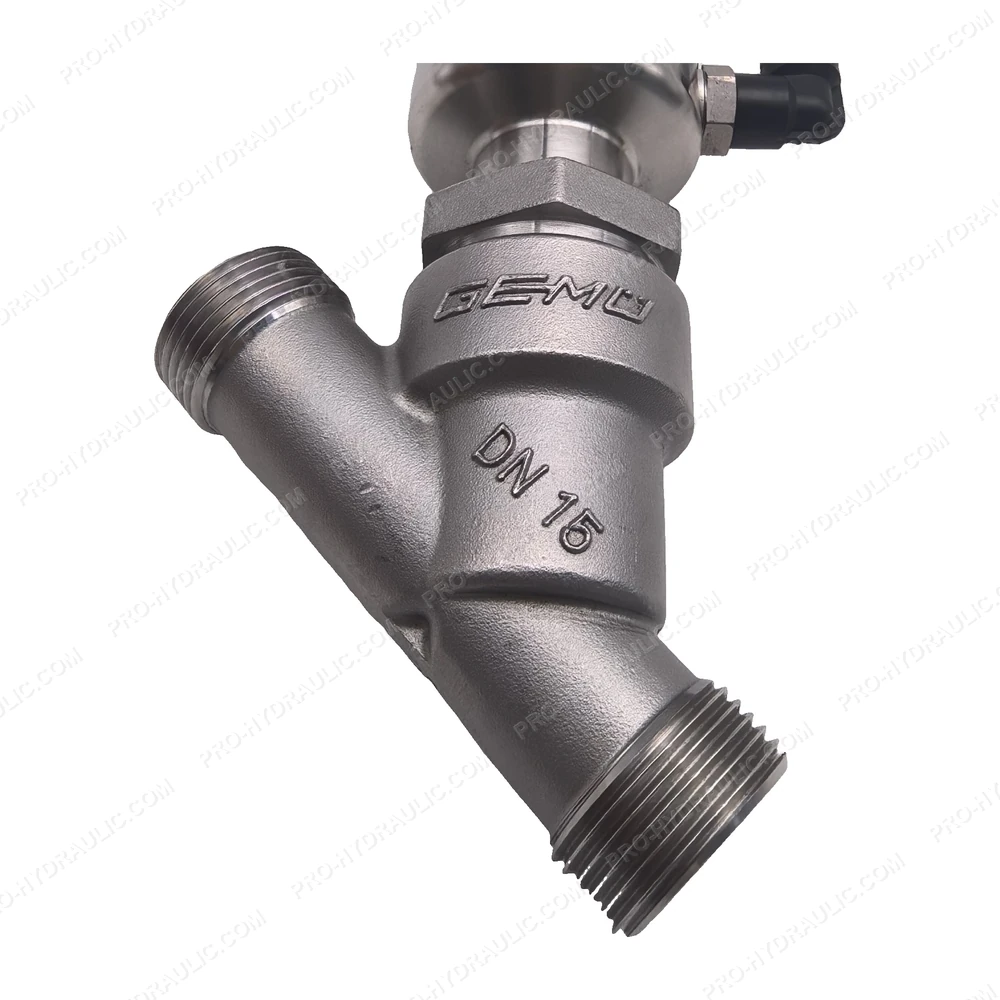

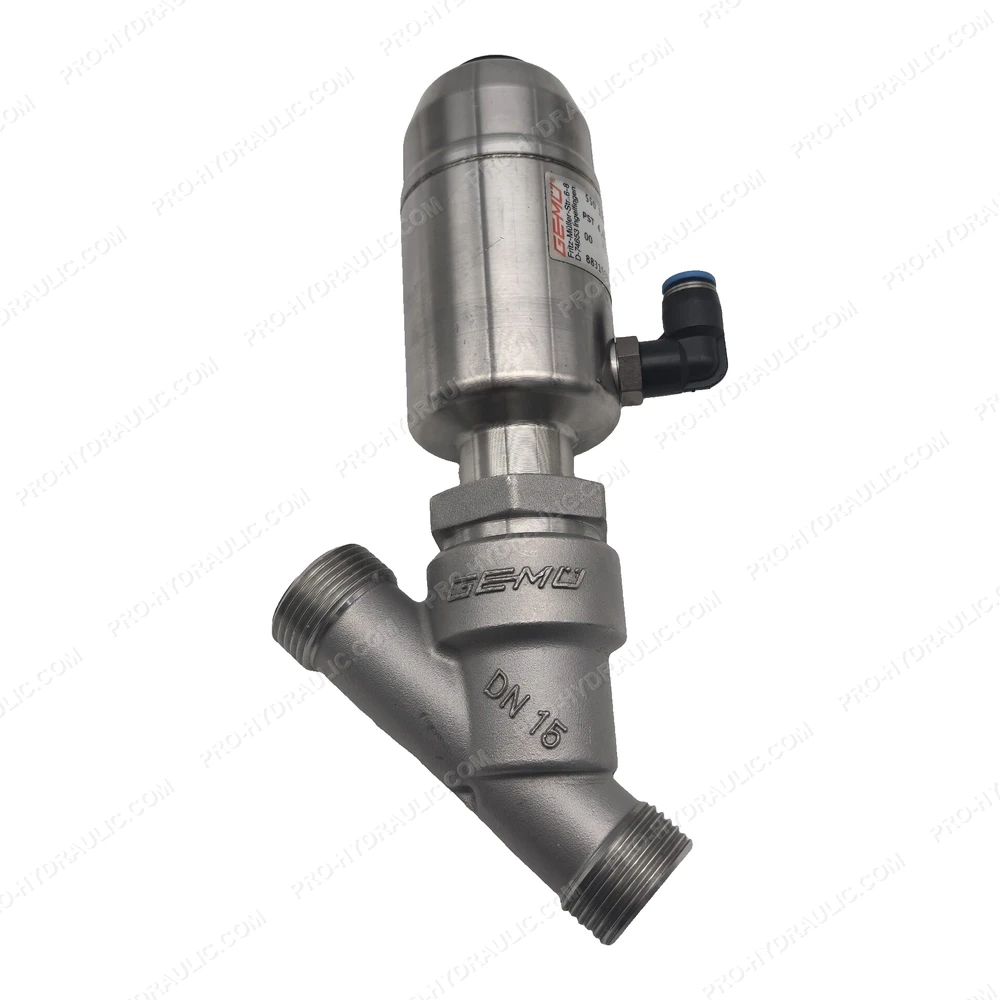

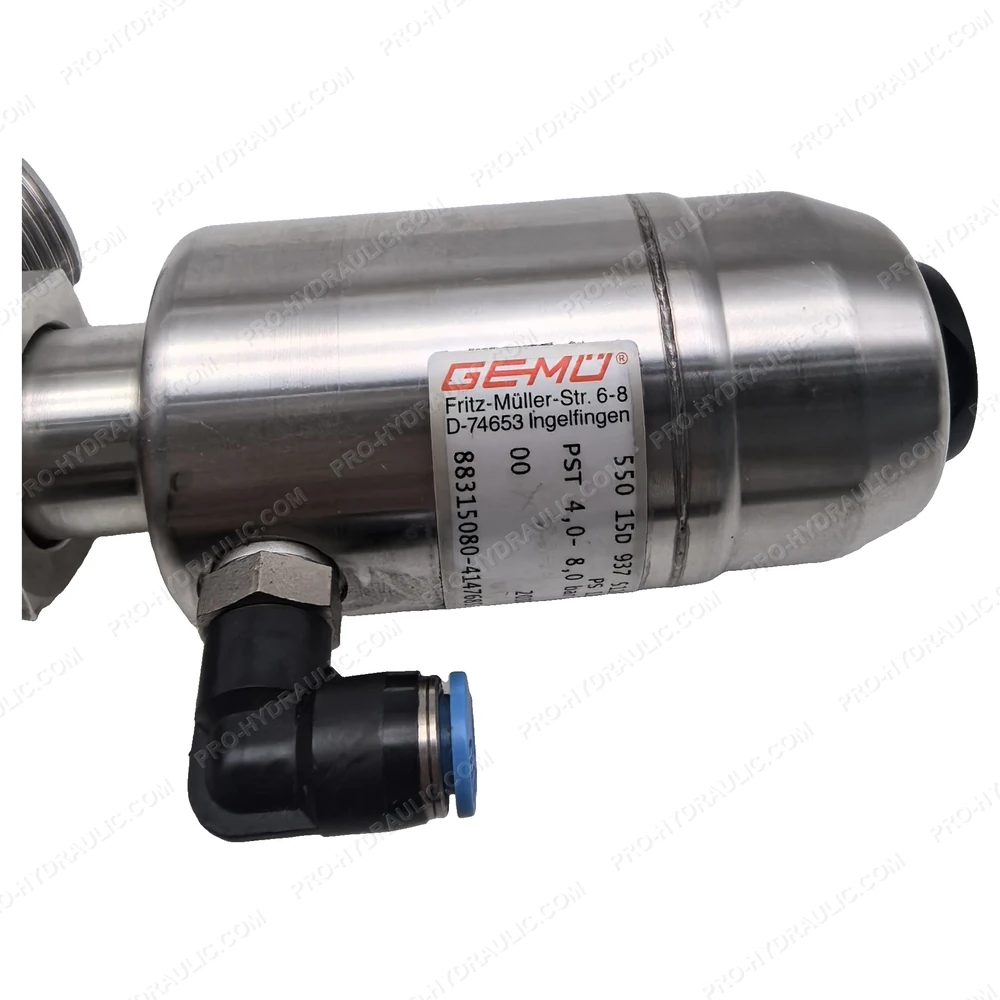

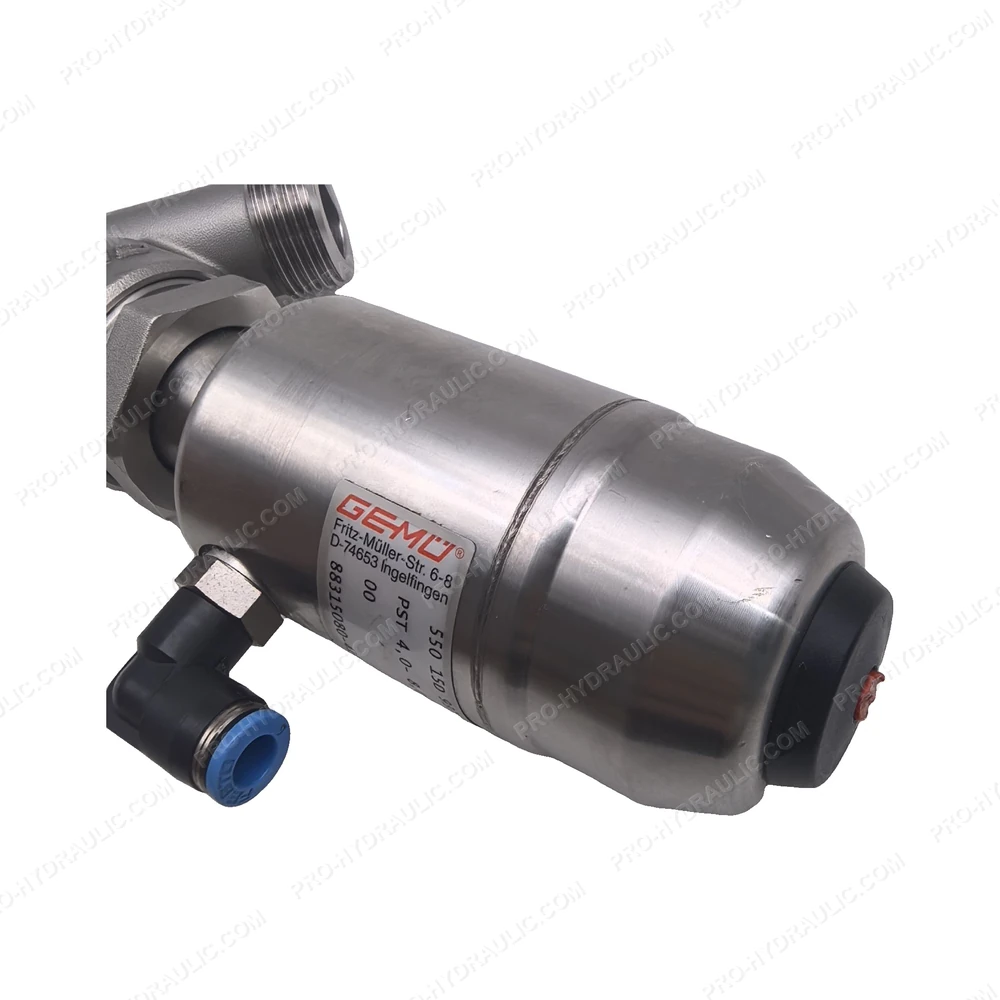

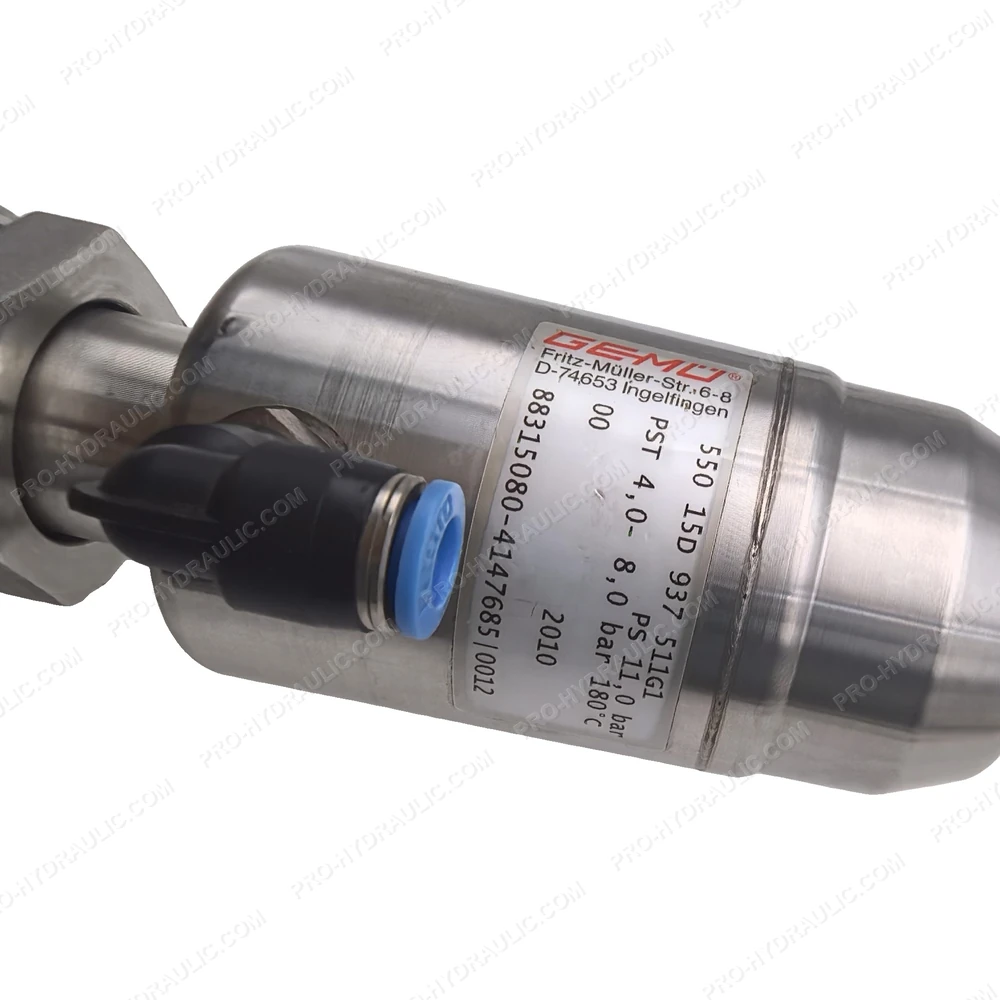

GEMU 550 15D 937 511G1 Pneumatic Angle Seat Globe Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine GEMU 550 15D 937 511G1 Solenoid Diaphragm Valve. This German-made 24V DC hydraulic component features a direct-acting diaphragm design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
