Product Overview
The Grundfos UP15-14 BA PM is a high-efficiency, wet-rotor circulator pump engineered for domestic and light commercial hot water recirculation systems. As a member of the Grundfos UP series, this pump operates on a canned-motor (wet-rotor) principle, where the rotor is fully encapsulated and lubricated by the pumped medium, eliminating the need for mechanical shaft seals and external lubrication. The “BA” designation indicates built-in line-cord electrical connection, while “PM” signifies a permanent magnet motor design that delivers exceptional energy efficiency compared to conventional induction-motor circulators. This pump is specifically designed to maintain consistent hot water delivery at fixtures, reduce water waste, and improve system response in closed-loop potable water and hydronic heating circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hot Water Circulator Pump (Wet-Rotor, Canned-Motor) |
| Model Designation | UP15-14 BA PM |
| Operating Pressure | Maximum 145 psi (10 bar) system pressure |
| Mounting & Connection | 1/2″ NPT union connections; standard flange or threaded installation |
| Motor Type | Permanent Magnet (PM) motor, electronically commutated |
| Maximum Head | Approximately 4.5 ft (1.4 m) |
| Maximum Flow Rate | Up to 14 GPM (3.2 m³/h) |
| Liquid Temperature Range | 32°F to 230°F (0°C to 110°C) |
| Electrical Supply | 115V, 60 Hz, single-phase with line cord |
| Power Consumption | Low-wattage PM design (typically 5–25 W depending on operating point) |
Engineering Features & Advantages
- Precision Performance: The permanent magnet motor and wet-rotor design deliver stable, low-noise circulation with minimal vibration, ensuring consistent hot water delivery without the pulsation or cavitation risks associated with less refined circulator designs.
- Industrial Reliability: Built for continuous duty in closed-loop potable water and hydronic systems; the absence of shaft seals eliminates leak paths and reduces maintenance intervals significantly.
- Direct Fit Replacement: Exact dimensional and functional compatibility with standard Grundfos UP-series mounting footprints, allowing drop-in replacement without piping modifications.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original GRUNDFOS OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The Grundfos UP15-14 BA PM is a high-efficiency, wet-rotor circulator pump engineered for domestic and light commercial hot water recirculation systems.
PRODUCT IMAGES

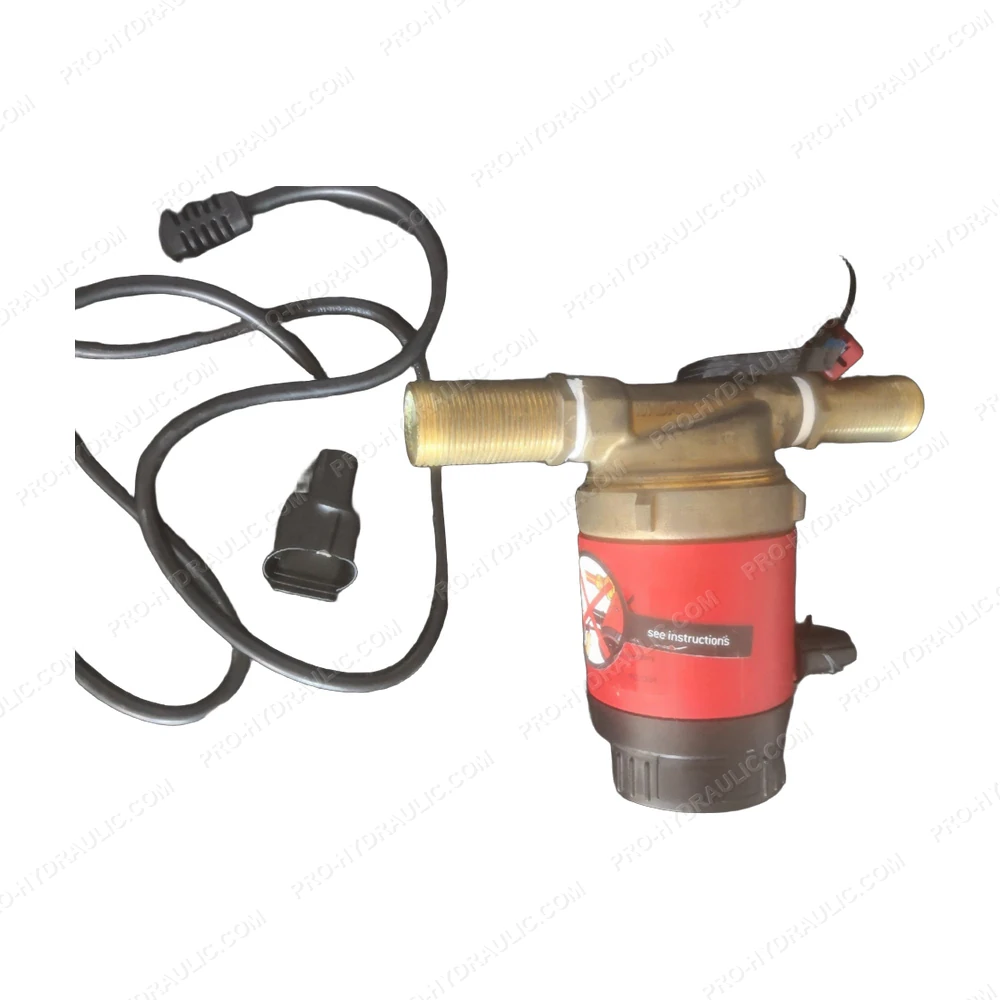

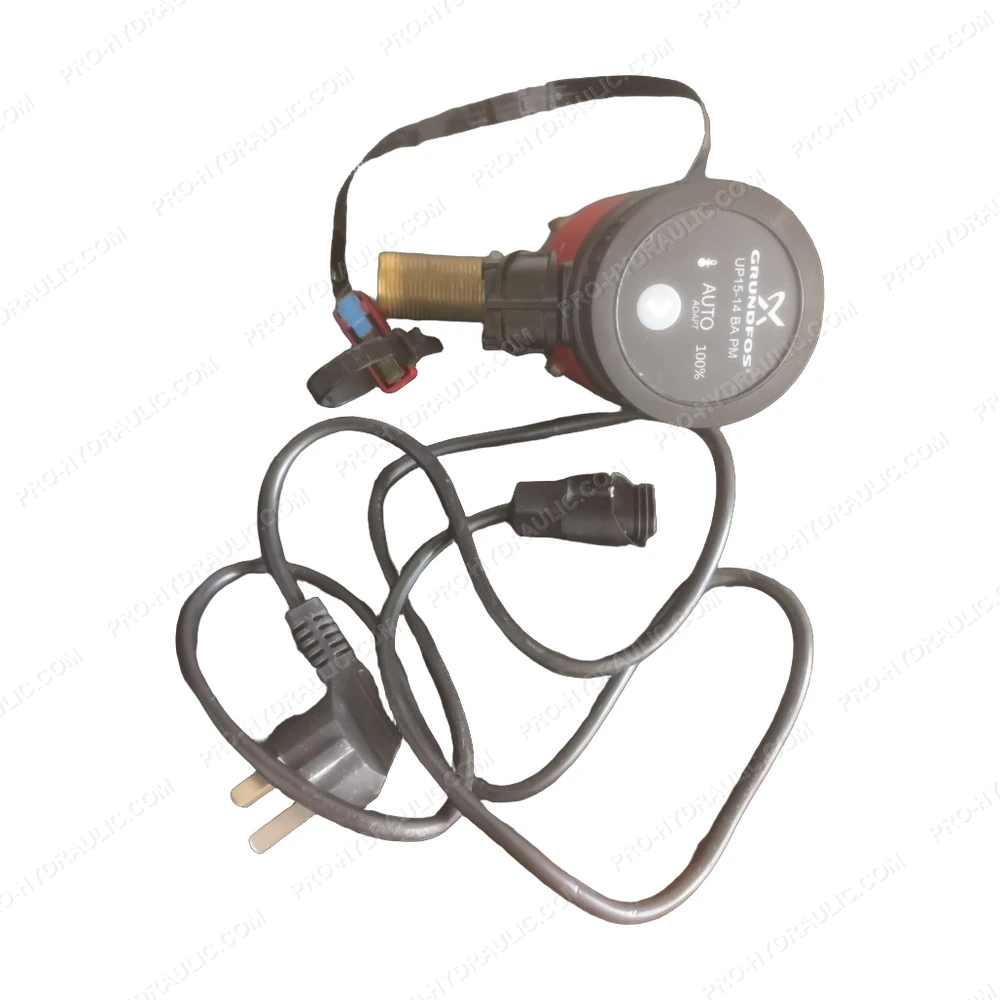

GRUNDFOS UP15-14 BA PM Hot Water Circulator Pump
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine GRUNDFOS UP15-14 BA PM Circulator Pump. This Germany-made 230V hydraulic component features a maintenance-free wet-rotor design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
