The GS-HYDRO BKH-DN25-G1 is a heavy-duty industrial hydraulic ball valve engineered for reliable shut-off and flow control in high-pressure hydraulic systems. Featuring a DN25 (1 inch) nominal bore and G1 threaded ports, this two-way ball valve provides tight sealing and low pressure drop across a wide range of operating conditions.
GS-HYDRO BKH-DN25-G1 Technical Specifications
| Parameter | Specification |
|---|---|
| Type | Two-way hydraulic ball valve |
| Nominal Diameter | DN25 (1 inch) |
| Port Connection | G1 (BSPP) threaded |
| Body Material | Carbon steel / stainless steel options |
| Seal Material | NBR / FKM (depending on configuration) |
| Max Operating Pressure | Up to 500 bar (dependent on seal and body material) |
| Temperature Range | -20°C to +100°C (NBR) / -20°C to +200°C (FKM) |
| Actuation | Manual lever handle (standard) |
| Mounting | Inline, panel mount optional |
Key Engineering Features
- Precision-machined ball and seats for bubble-tight shut-off
- Low operating torque for smooth manual actuation
- Robust body construction for high-pressure hydraulic circuits
- G1 threaded ports for easy integration into standard pipework
- Available with NBR or FKM seals for fluid compatibility
- Optional panel mounting for secure installation
Industrial Applications
- Hydraulic power units and test benches
- Industrial machinery and press systems
- Mobile hydraulic circuits
- Process fluid isolation and shut-off
- Marine and offshore hydraulic systems
For technical inquiries, dimensional drawings, or replacement support for GS-HYDRO BKH-DN25-G1, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

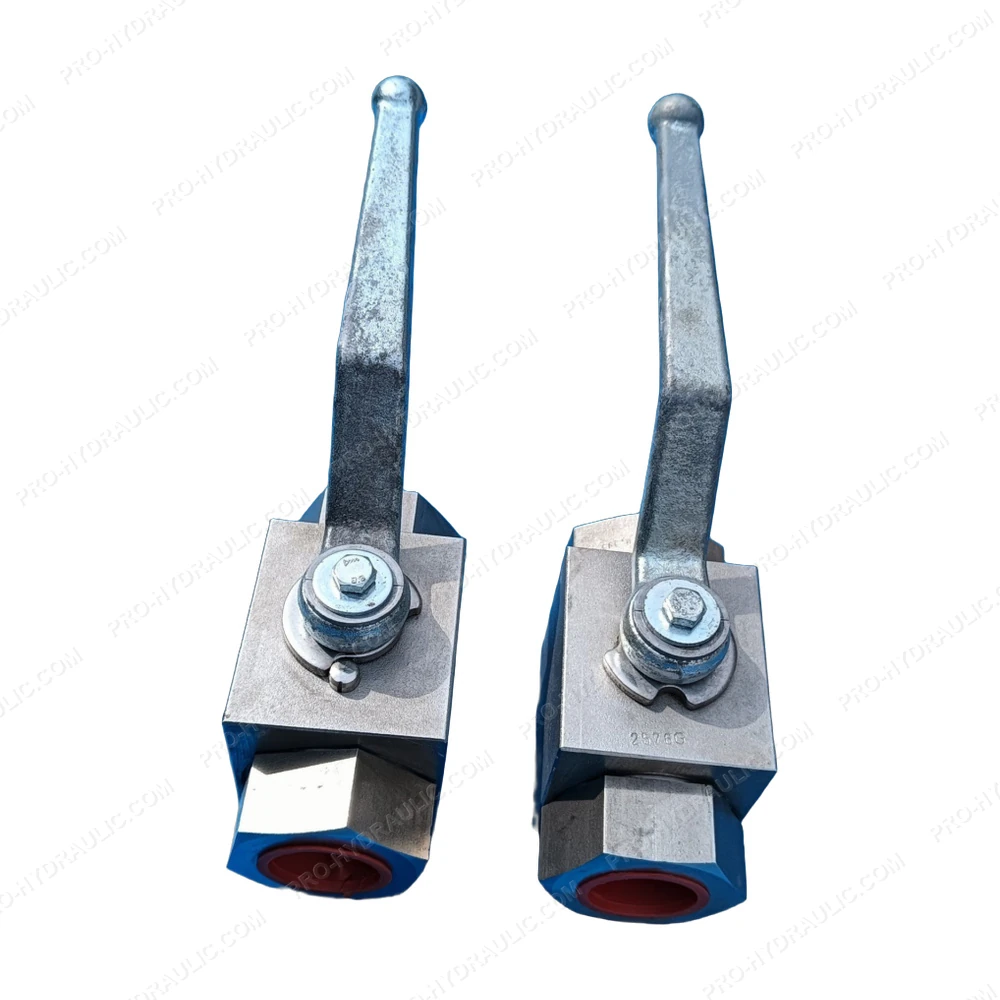

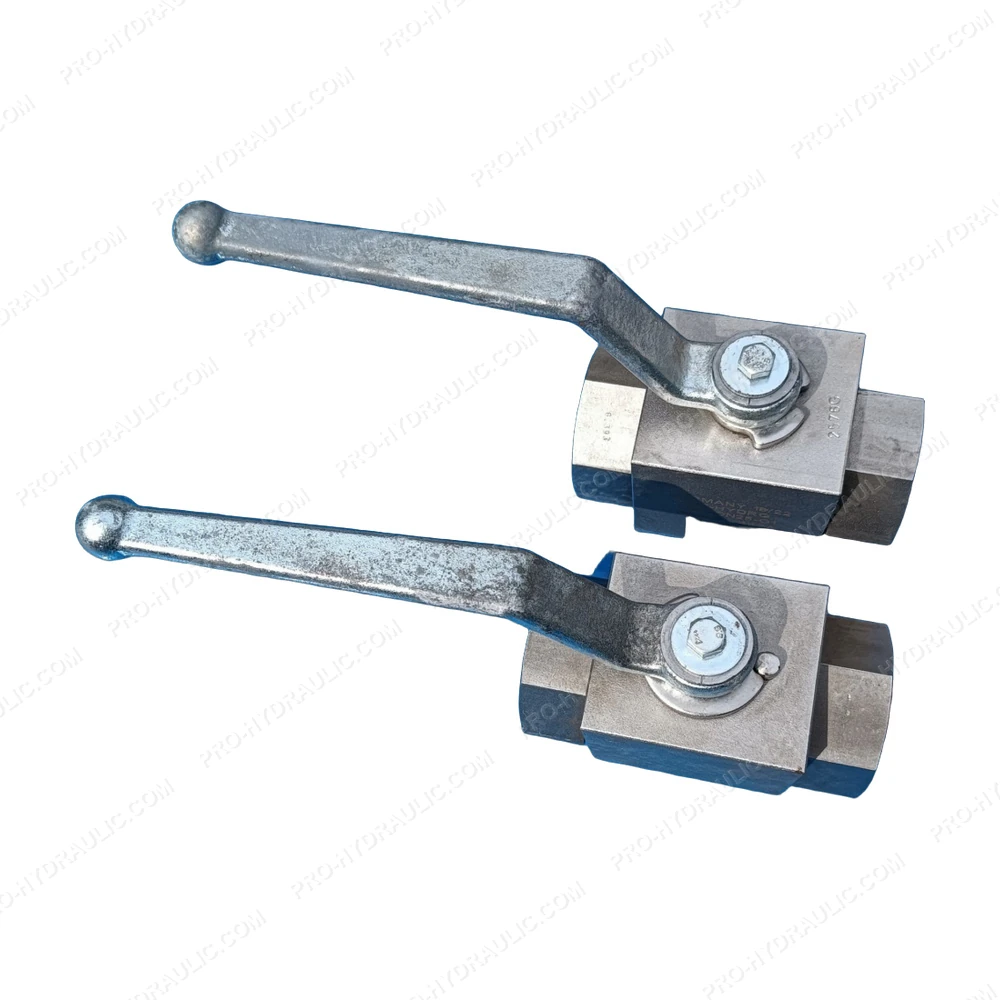

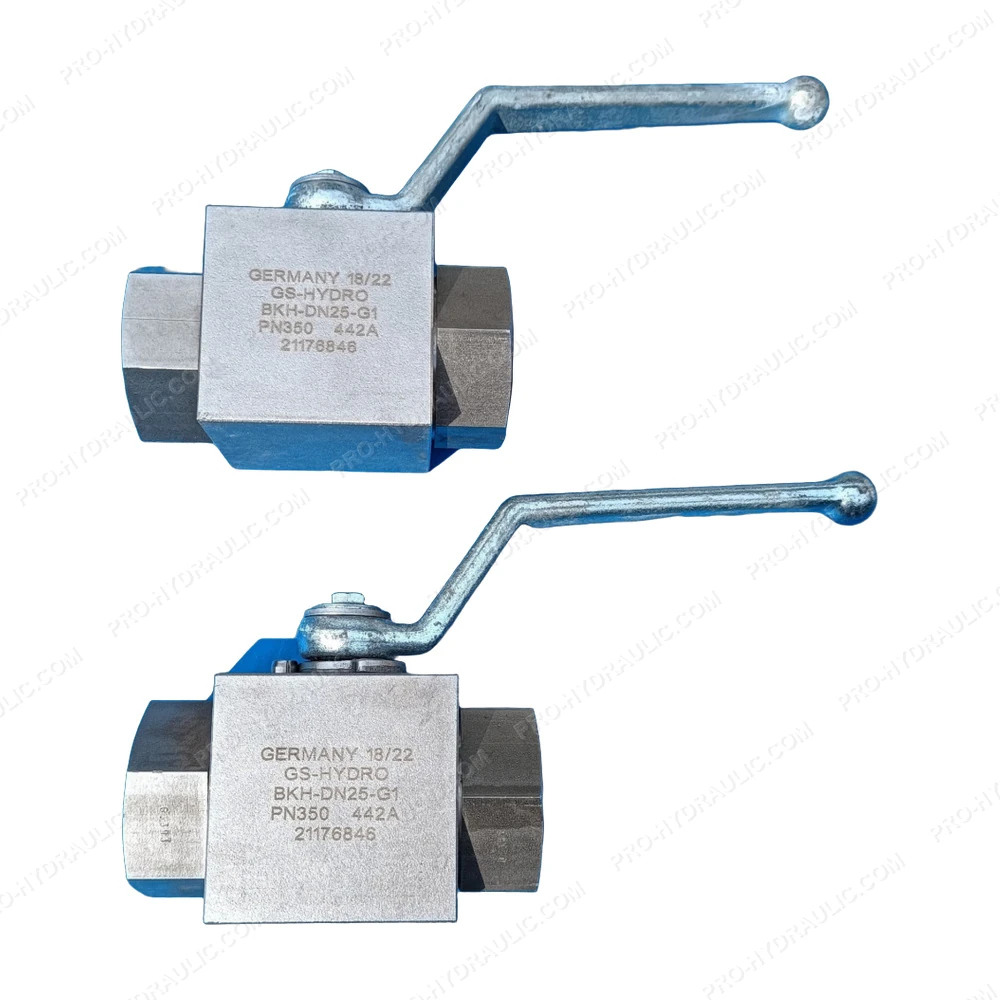

GS-HYDRO BKH-DN25-G1 Hydraulic Ball Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the GS-HYDRO BKH-DN25-G1 Hydraulic Ball Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
