Product Overview
The HAITIAN FEOV-10-3C2-50L-E5 is a high-performance solenoid-operated directional control valve engineered for precise hydraulic circuit switching in industrial machinery. Manufactured by HAITIAN, this valve utilizes a robust spool-and-sleeve design actuated by a wet-armature AC/DC solenoid, providing reliable directional control of hydraulic flow. With a nominal size of 10 (NG10 / CETOP 5 interface), the FEOV-10 series is designed for manifold or subplate mounting and delivers dependable performance in demanding hydraulic systems requiring frequent shifting, low pressure drop, and long service life.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (Standard Directional Control Valve) |
| Model Designation | FEOV-10-3C2-50L-E5 |
| Nominal Size | NG10 (CETOP 5 / ISO 4401-05) |
| Spool Configuration | 3C2 — Three-position, closed-center spool |
| Actuation Type | Solenoid actuated (E5 coil designation) |
| Operating Pressure | Up to 315 bar (standard industrial grade) |
| Rated Flow | Up to 50 L/min nominal (per size 10 rating) |
| Mounting & Connection | Subplate / manifold mounting per ISO 4401-05, CETOP 5 interface |
| Seal Material | NBR (Buna-N) standard; FKM available on request |
| Electrical Connection | DIN 43650 connector, IP65 rated |
Engineering Features & Advantages
- Precision Spool Metering: The 3C2 closed-center spool provides accurate flow direction control with minimal internal leakage, ensuring stable actuator positioning when the valve is de-energized.
- High-Flow Capacity: Optimized internal flow passages in the NG10 body minimize pressure drop across the valve, reducing heat generation and improving overall system efficiency.
- Robust Solenoid Design: The E5 wet-armature solenoid delivers consistent shifting force, high cycle rates, and reliable operation under continuous duty industrial conditions.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original HAITIAN OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
With a nominal size of 10 (NG10 / CETOP 5 interface), the FEOV-10 series is designed for manifold or subplate mounting and delivers dependable performance in demanding hydraulic systems requiring frequent shifting, low pressure drop, and long service life.
PRODUCT IMAGES

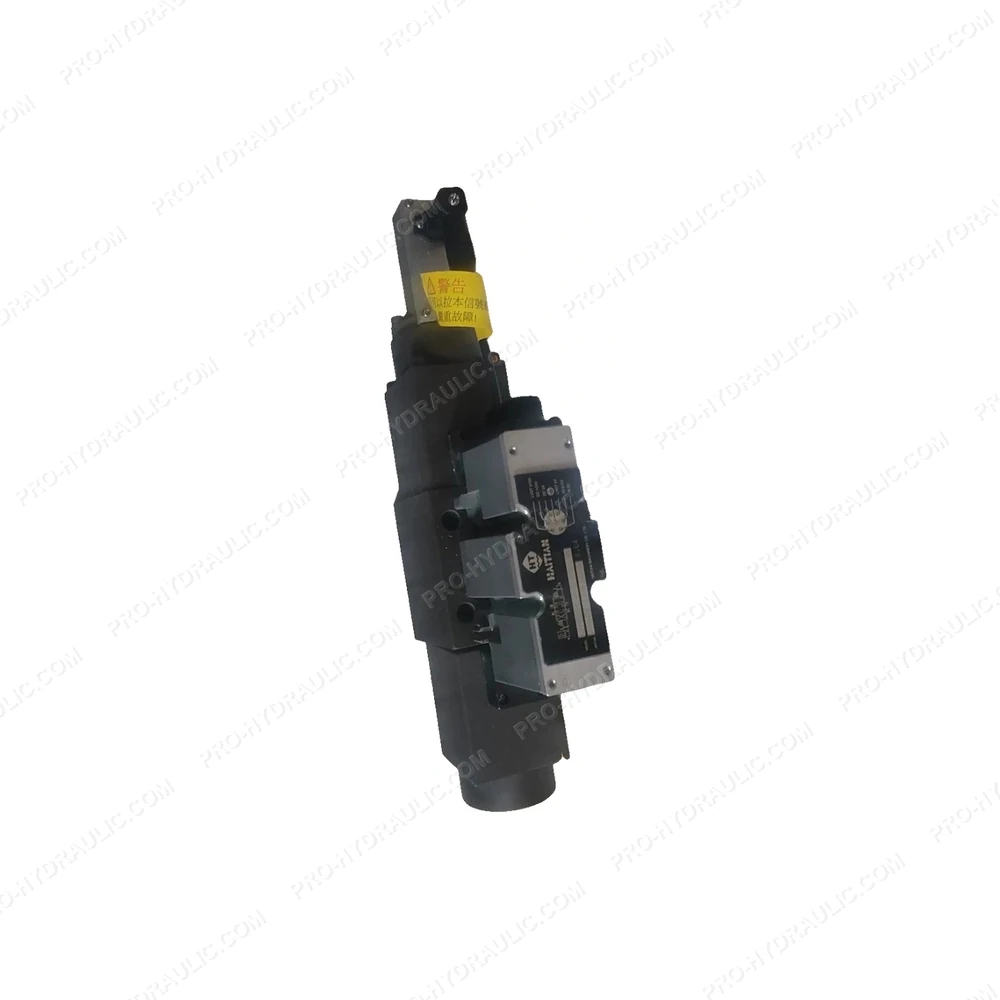

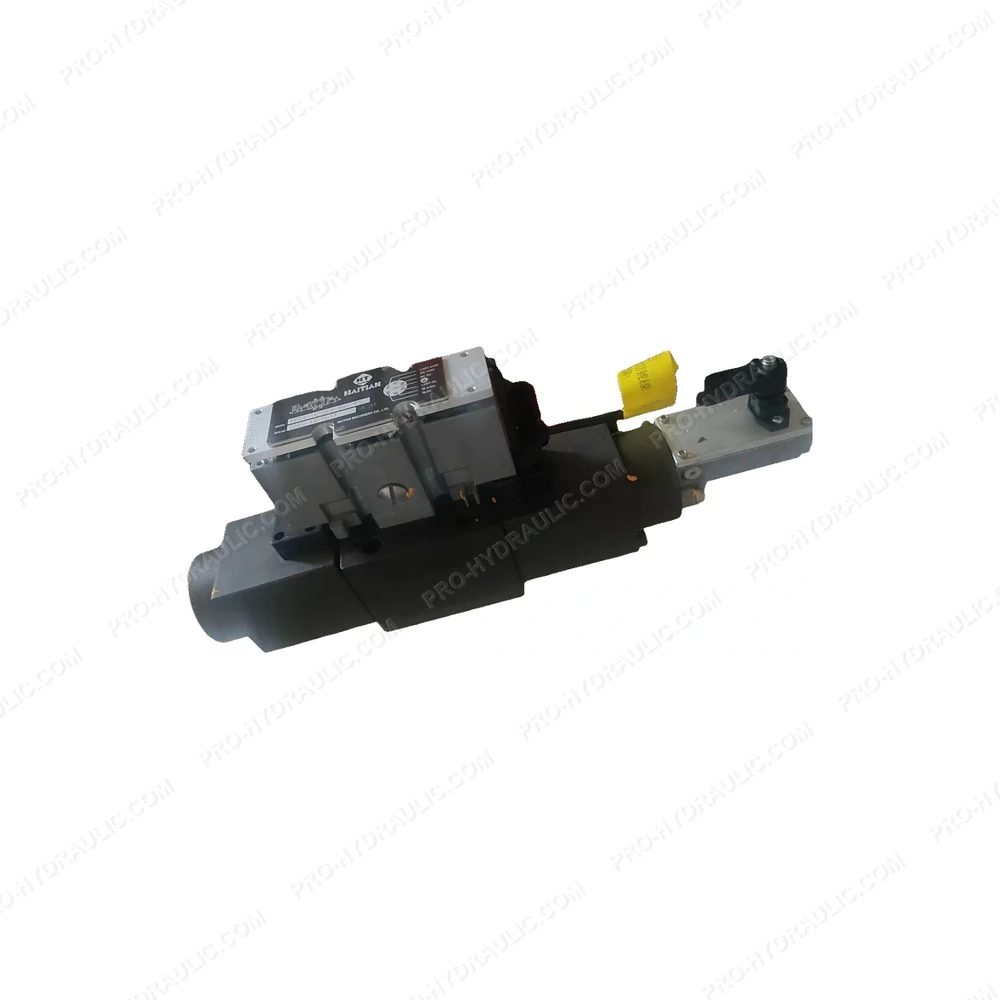

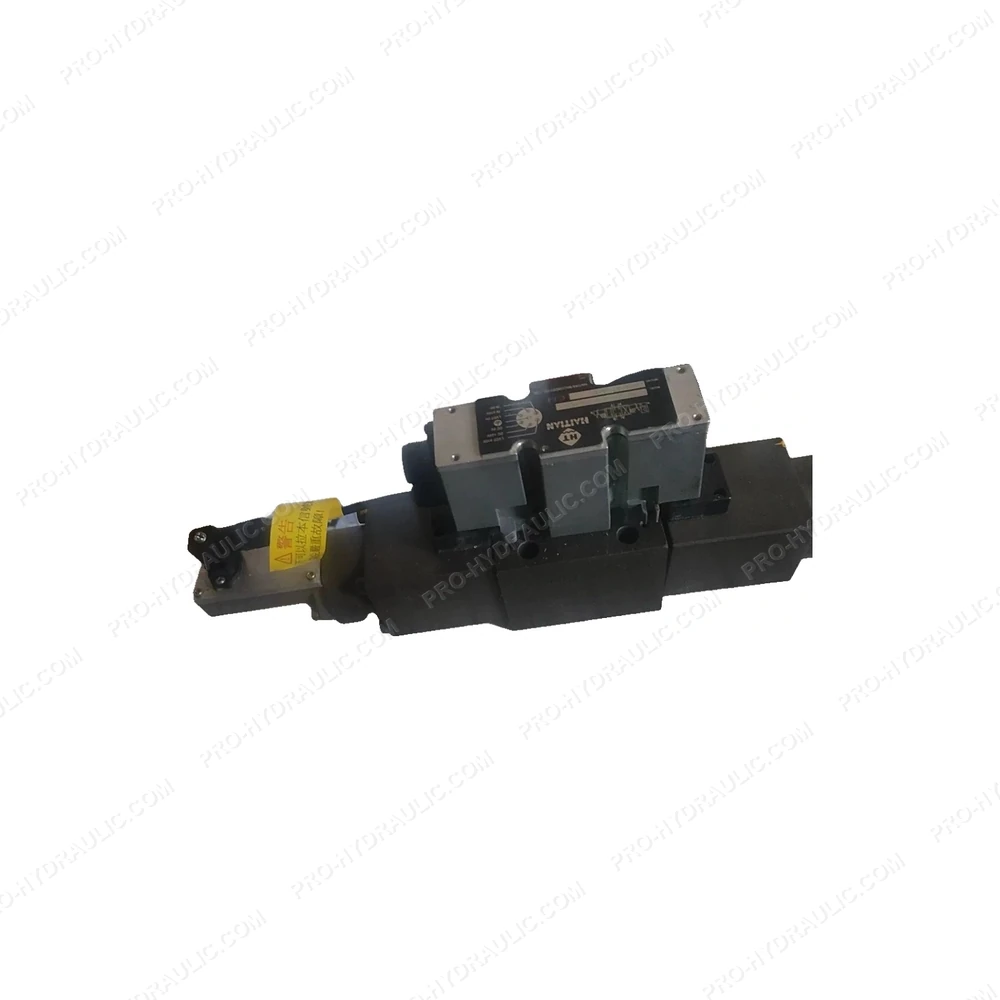

HAITIAN FEOV-10-3C2-50L-E5 Solenoid Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine HAITIAN FEOV-10-3C2-50L-E5 Solenoid Directional Control Valve. This China-made hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
