The HAWE 13689.005 / We02-4R100R024/0H is a heavy-duty industrial directional seat valve engineered for leak-free shut-off and reliable switching in high-pressure hydraulic circuits. This valve operates on a seat-and-ball principle, ensuring zero leakage in the closed position and fast response times under demanding conditions.
HAWE 13689.005 / We02-4R100R024/0H Technical Specifications
| Type | Directional seat valve |
| Model | We02-4R100R024/0H |
| Part Number | 13689.005 |
| Actuation | Solenoid operated |
| Mounting Pattern | CETOP / ISO 4401 |
| Max. Operating Pressure | Up to 350 bar |
| Nominal Flow Rate | Up to 100 l/min |
| Fluid Temperature Range | -20 °C to +80 °C |
| Seal Material | NBR (standard) |
| Connection | Subplate mounting |
Key Engineering Features
- Zero-leakage seat design for reliable load holding
- Fast switching times and high cycle life
- Wet-pin solenoid armature for efficient operation
- Compact CETOP mounting interface
- Robust construction for harsh industrial environments
Industrial Applications
- Hydraulic clamping and fixture systems
- Presses and forming machinery
- Material handling and lifting equipment
- Mobile and industrial hydraulic power units
- Test rigs and specialized fluid control circuits
For technical inquiries, dimensional drawings, or replacement support for HAWE 13689.005 / We02-4R100R024/0H, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

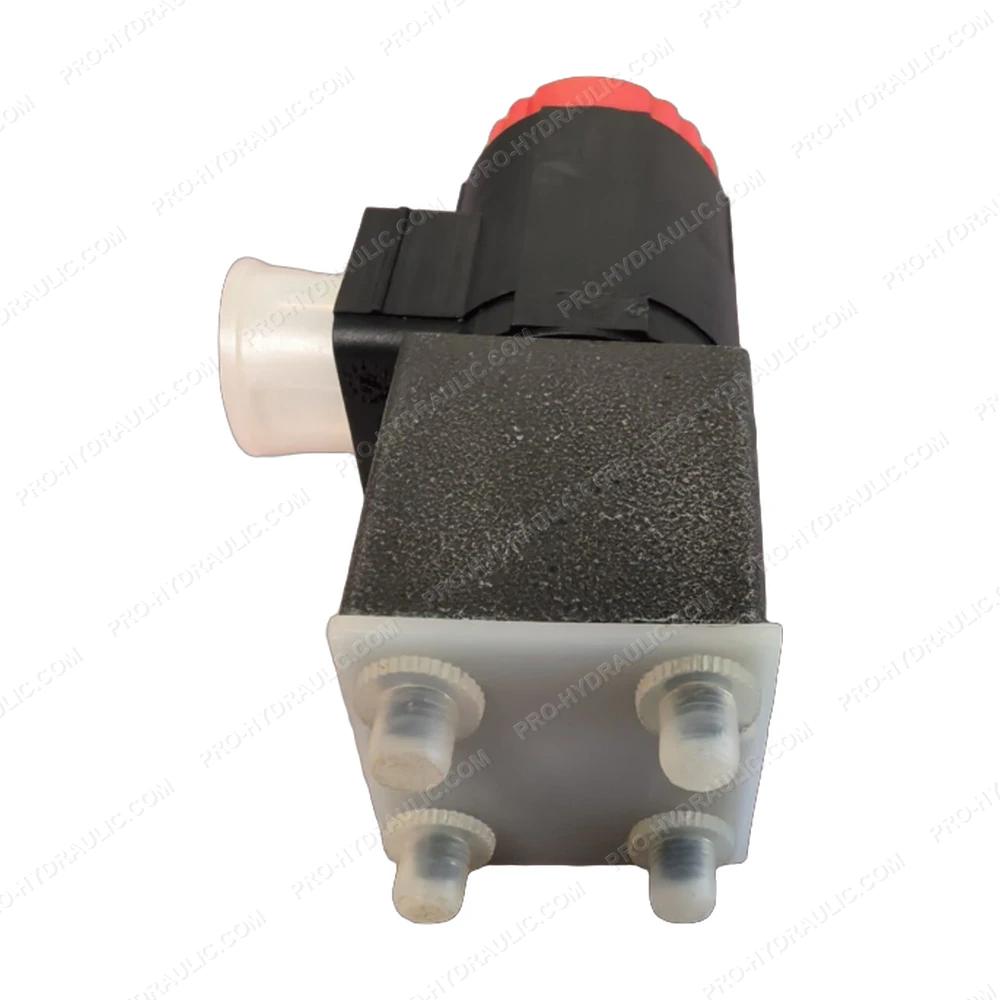

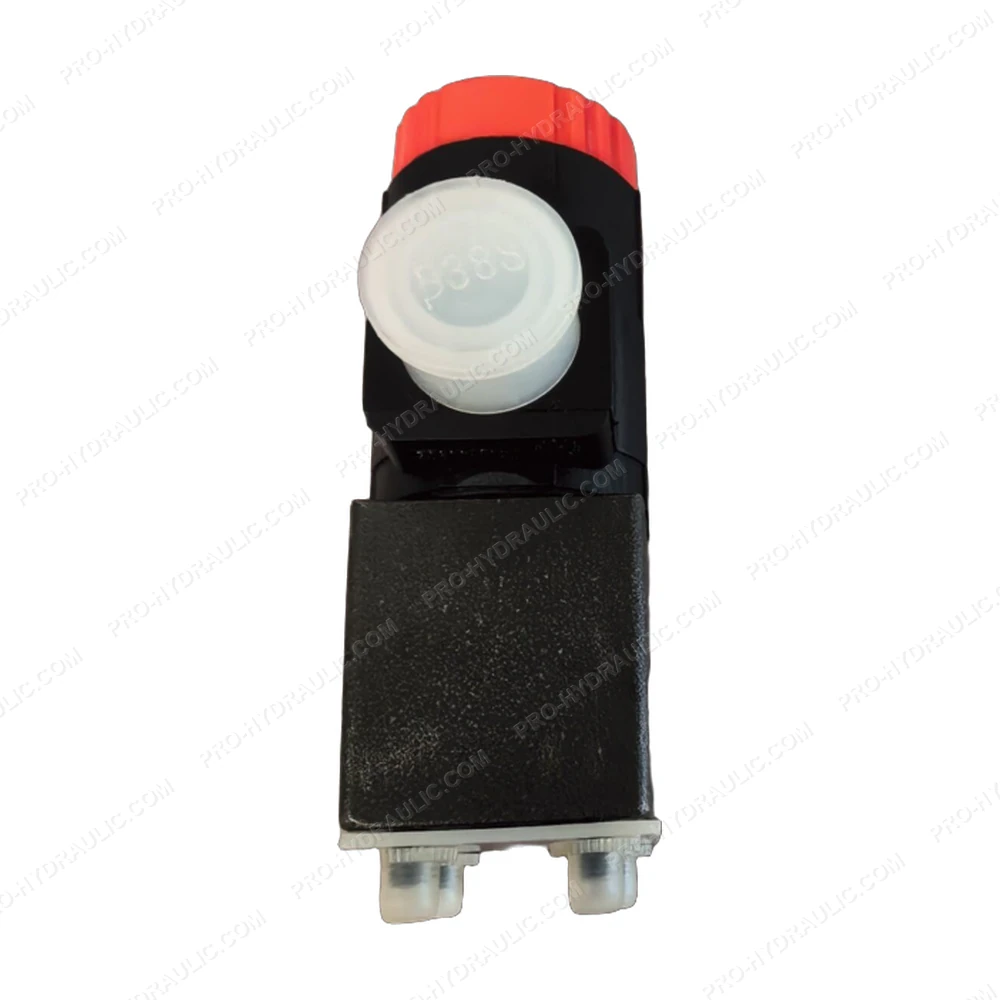

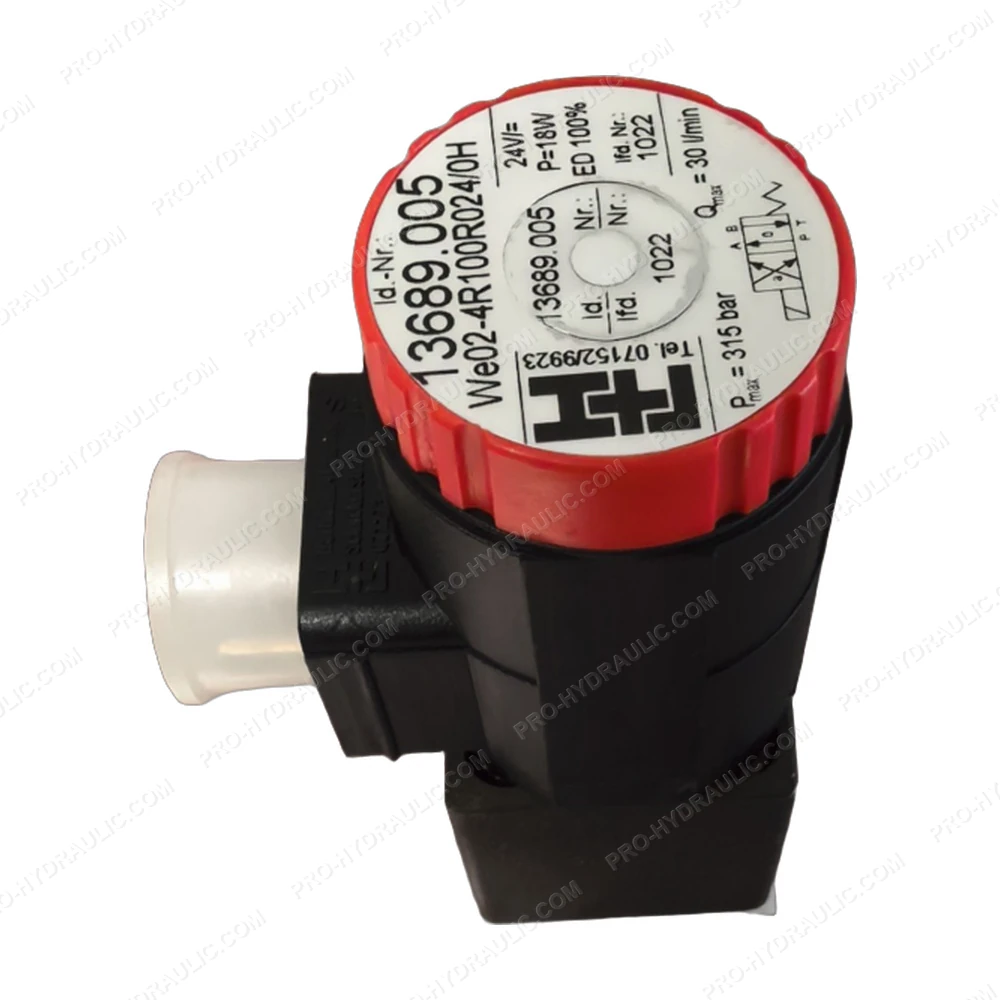

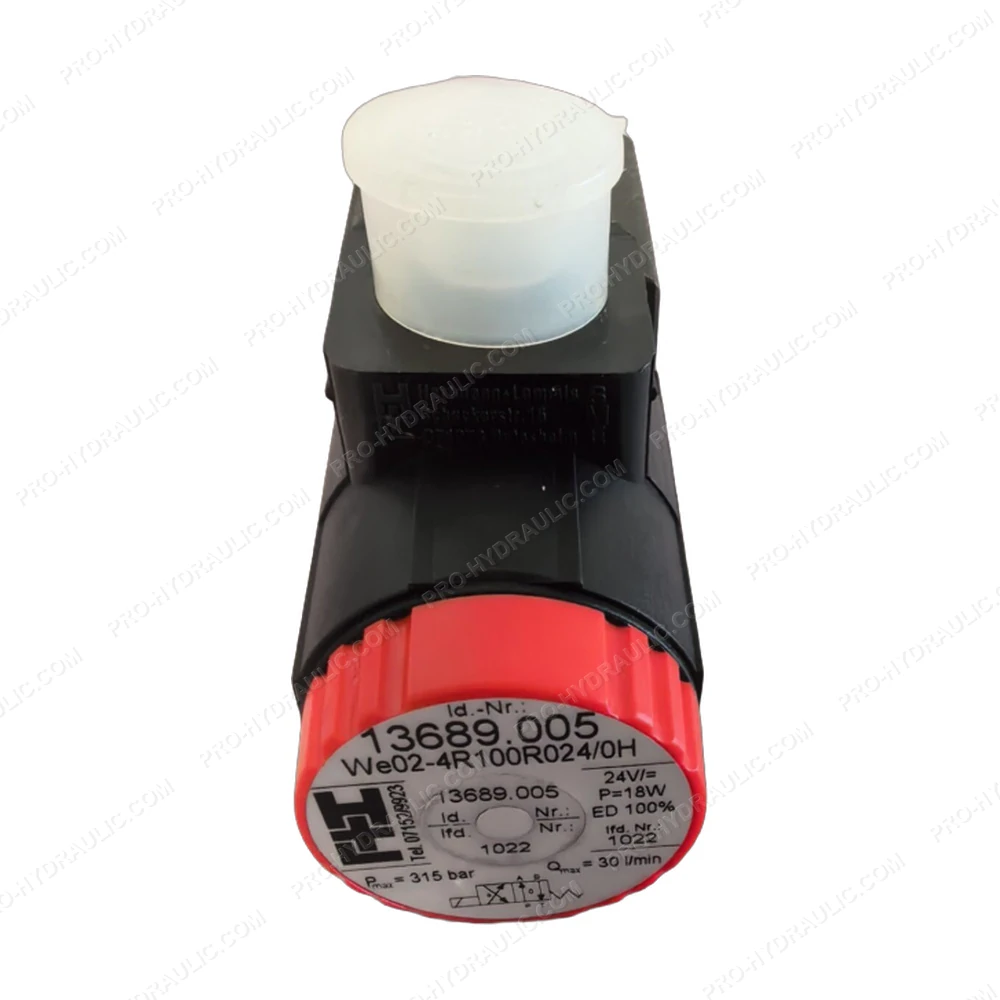

HAWE 13689.005 / We02-4R100R024/0H Directional Seat Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the HAWE 13689.005 / We02-4R100R024/0H Directional Seat Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
