The HAWE CWPN 06 D-W-WG110 is a heavy-duty industrial directional seat valve engineered for leak-free load holding and precise flow control in high-pressure hydraulic circuits. This direct-operated, poppet-type valve provides zero-leak sealing in the closed position, making it suitable for applications requiring sustained pressure retention without internal leakage.
HAWE CWPN 06 D-W-WG110 Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | Direct-operated directional seat valve (poppet type) |
| Nominal Size | NG 6 (CETOP 3 / ISO 4401-03) |
| Function | 2/2-way, normally closed |
| Actuation | Wet-pin solenoid, AC/DC coil |
| Max. Operating Pressure | Up to 400 bar (dependent on port) |
| Max. Flow Rate | Up to 20 L/min |
| Mounting Pattern | Subplate mounting, ISO 4401-03 |
| Sealing Principle | Metal-to-metal seat, zero leakage |
| Coil Voltage | 110 V AC (WG110 designation) |
| Fluid Compatibility | Mineral oil-based hydraulic fluids |
Key Engineering Features
- Poppet-type seat design ensures zero internal leakage in closed position
- Wet-pin solenoid armature for efficient force transmission and long service life
- Compact NG 6 subplate mounting per ISO 4401-03 for space-constrained manifolds
- High pressure rating up to 400 bar for demanding load-holding circuits
- Fast response and reliable switching under high-pressure differentials
- Robust construction suitable for continuous industrial duty cycles
Industrial Applications
- Hydraulic clamping and fixture systems requiring leak-free pressure retention
- Load holding and lowering circuits in mobile and industrial machinery
- Press and forming equipment with high-pressure directional control
- Manifold-integrated circuits in machine tools and automation systems
- Safety-related blocking functions in hydraulic power units
For technical inquiries, dimensional drawings, or replacement support for HAWE CWPN 06 D-W-WG110, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

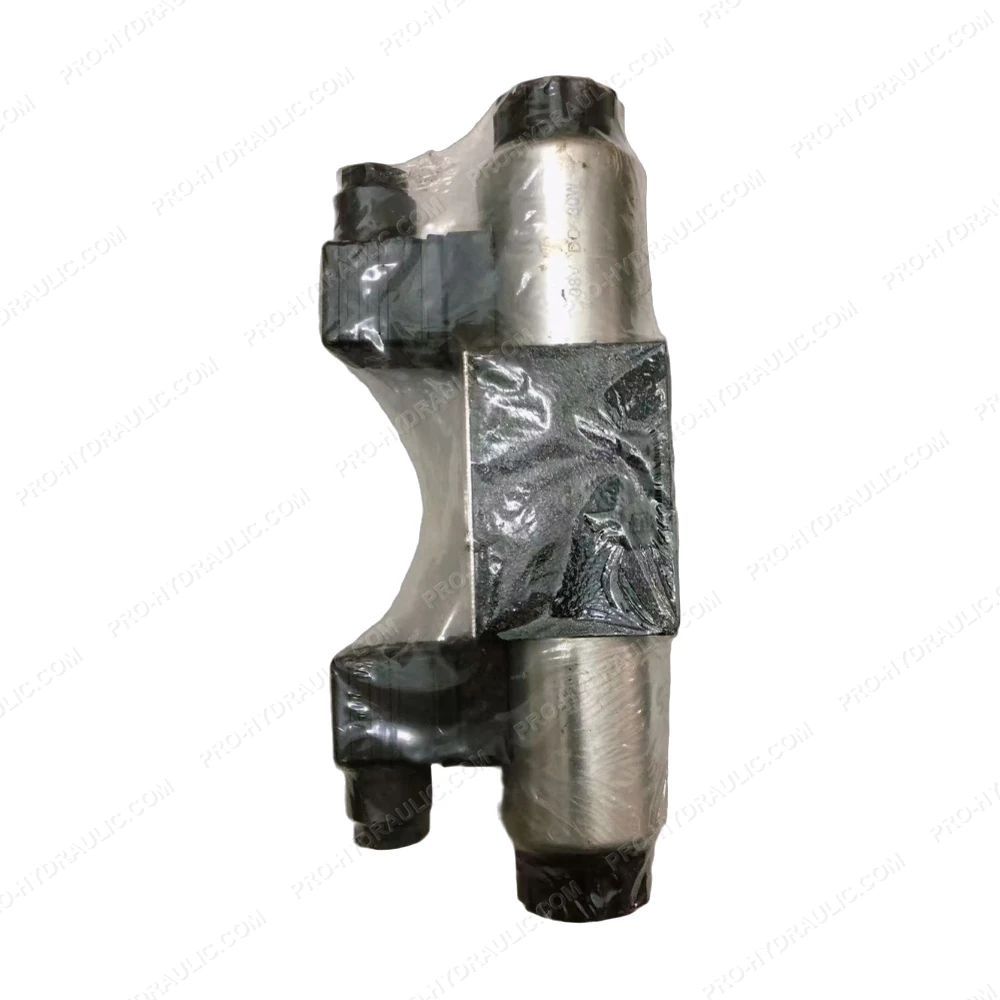

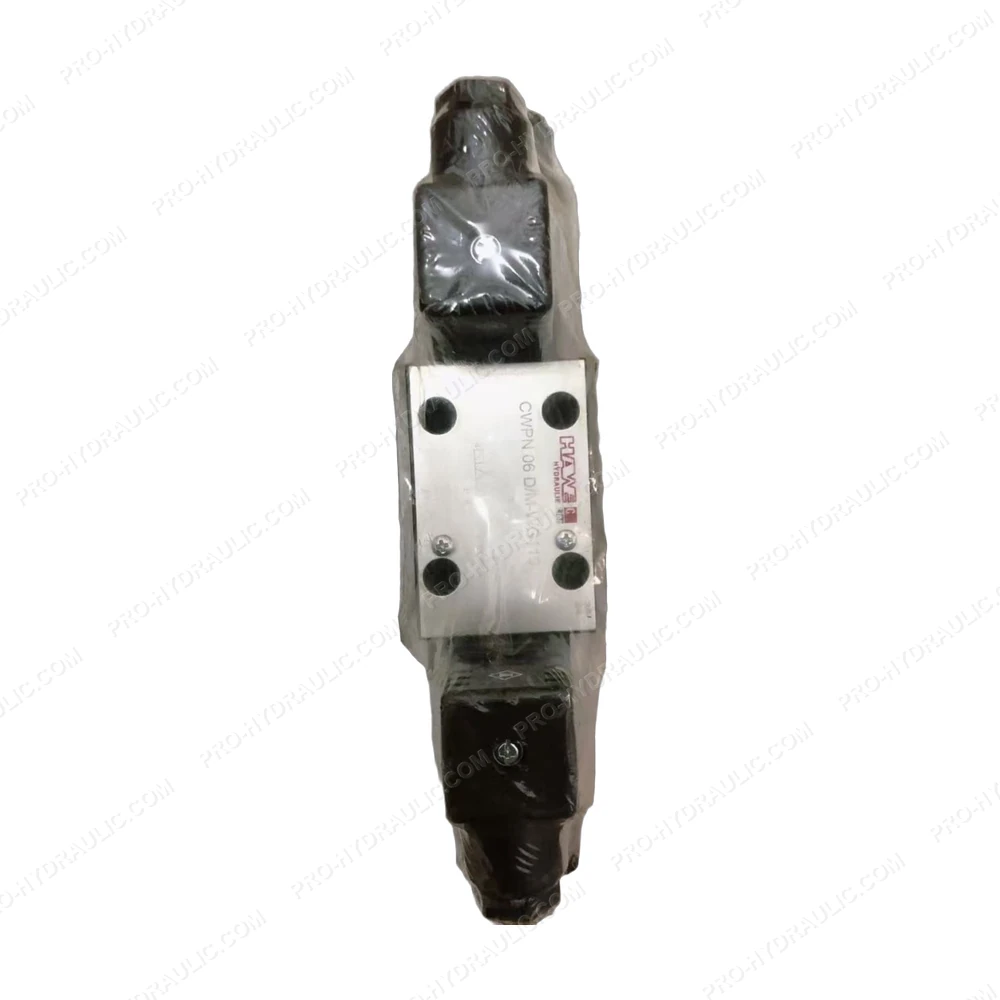

HAWE CWPN 06 D-W-WG110 Directional Seat Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the HAWE CWPN 06 D-W-WG110 Directional Seat Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
