The HAWE DMV53 E/E-40/40 is a heavy-duty industrial pressure control valve engineered for precise pressure regulation and reliable load holding in hydraulic systems. As a modular pressure valve from HAWE’s DMV series, it is designed for direct sandwich mounting between a directional valve and a subplate, providing a compact, leak-tight interface for demanding circuits.
HAWE DMV53 E/E-40/40 Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Pressure Control Valve (Modular / Sandwich Plate) |
| Series | DMV 53 |
| Model Code | DMV53 E/E-40/40 |
| Function | Pressure regulation / pressure limiting |
| Nominal Size | NG 6 (CETOP 3 / ISO 4401-03) |
| Max. Operating Pressure | Up to 400 bar (dependent on adjustment element) |
| Pressure Setting | 40 bar (per circuit, E/E configuration) |
| Mounting Interface | Sandwich plate, ISO 4401-03-02-0-05 |
| Actuation | Mechanical / hydraulic pilot, no electrical coil |
| Media | Mineral oil based hydraulic fluid |
| Seal Material | NBR (standard) |
Key Engineering Features
- Modular sandwich design for space-saving integration in CETOP 3 stacks
- Two independently set pressure stages (E/E) for dual-circuit control
- Precise pressure limiting and load-holding capability
- Robust spool and seat geometry for stable regulation across the flow range
- Leak-tight sealing interface with standard O-ring ports
- Compatible with HAWE modular valve systems and standard subplates
Industrial Applications
- Machine tool clamping and fixture circuits
- Hydraulic presses and forming equipment
- Mobile and industrial load-holding systems
- Test stands and hydraulic power units
- General manifold-based pressure control in CETOP 3 systems
For technical inquiries, dimensional drawings, or replacement support for HAWE DMV53 E/E-40/40, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

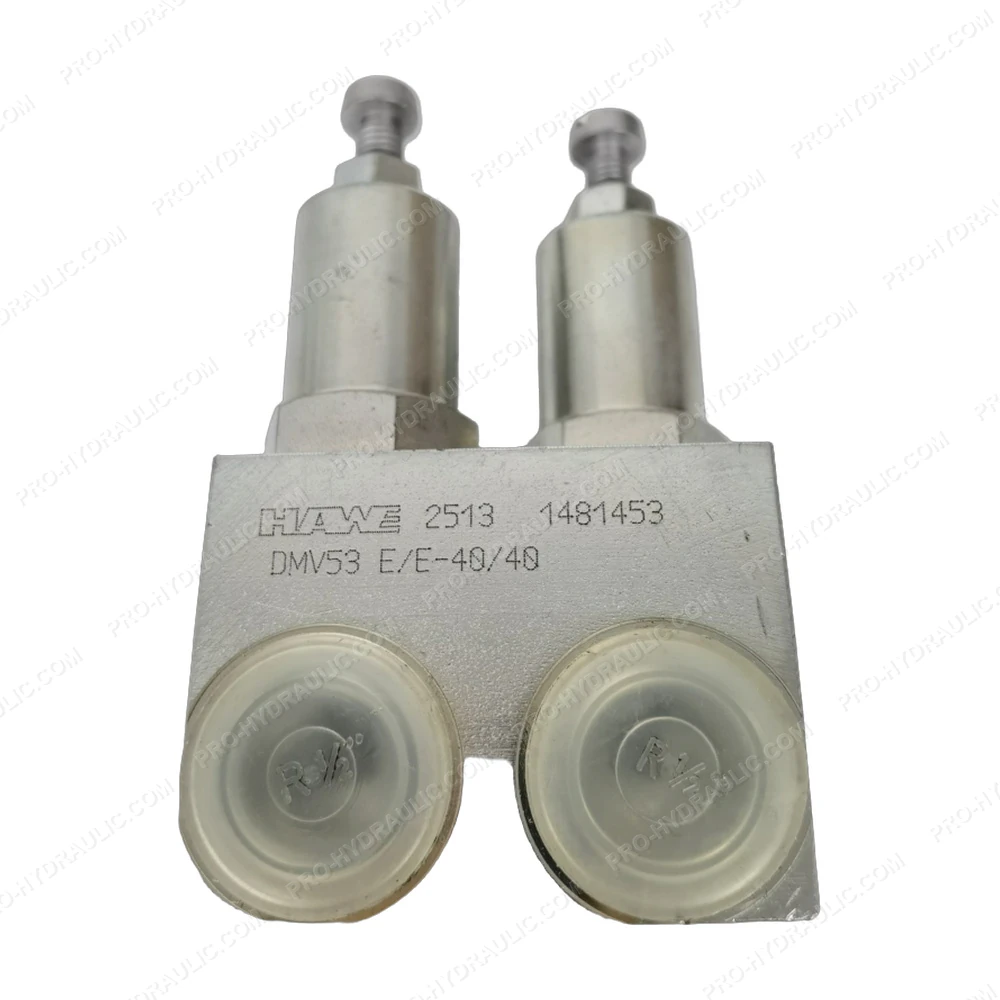

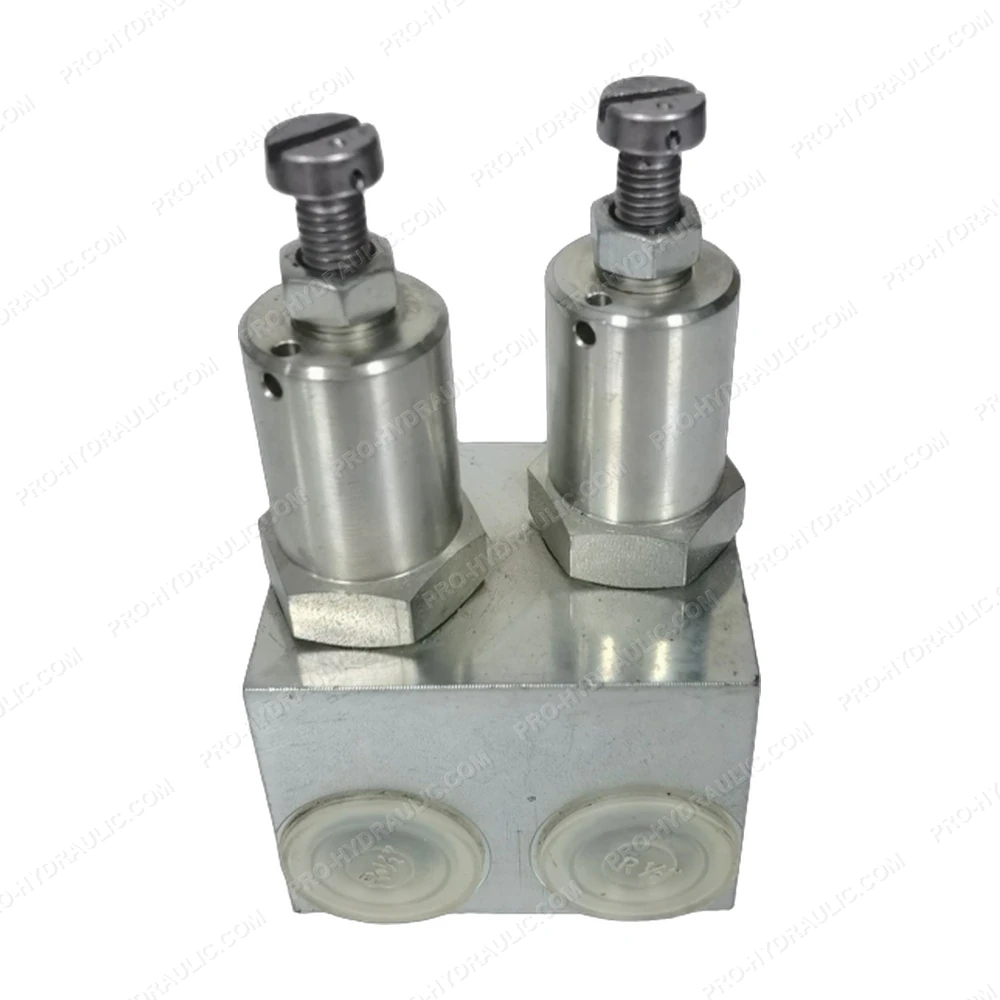

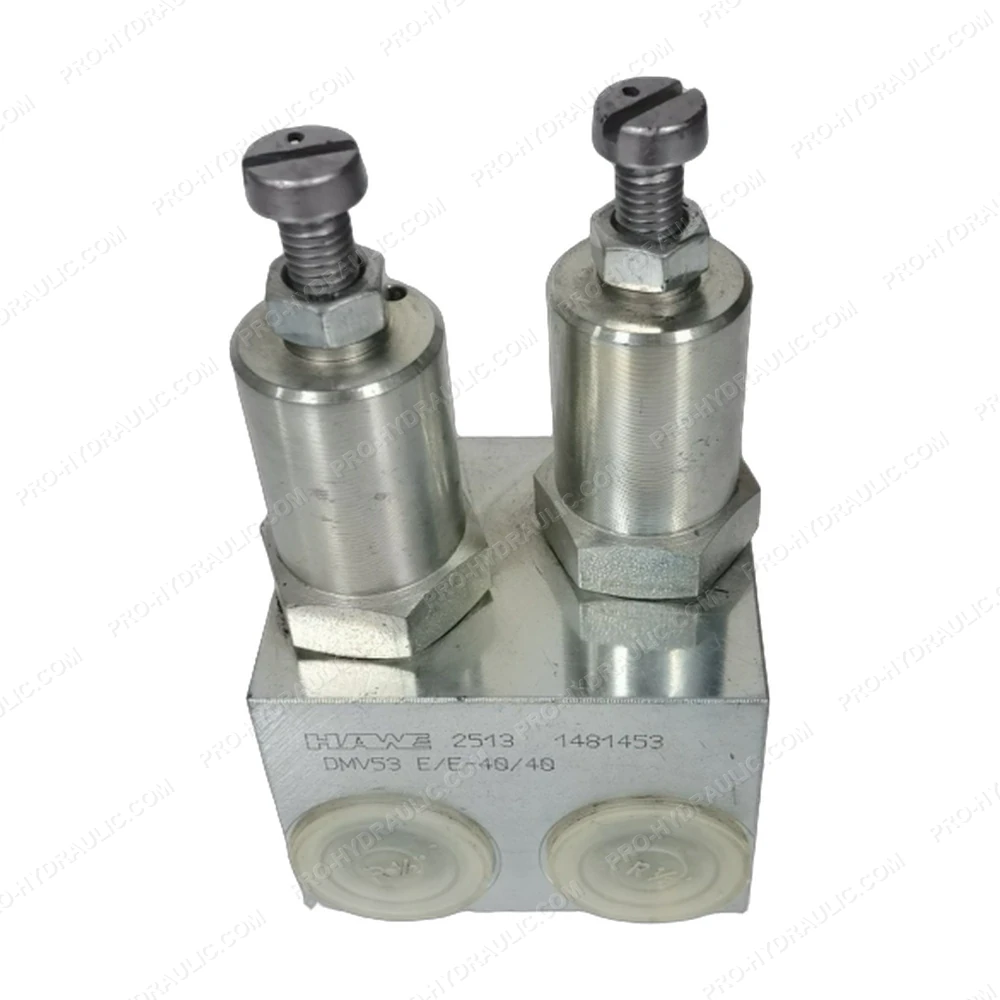

HAWE DMV53 E/E-40/40 Pressure Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the HAWE DMV53 E/E-40/40 Pressure Control Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
