Product Overview
The HAWE ED 31 K is a precision proportional pressure limiting valve engineered by HAWE Hydraulik for continuous, electro-proportional control of system pressure in industrial hydraulic circuits. Unlike a simple on/off relief valve, the ED 31 K modulates its pressure setting in direct proportion to an electrical command signal, allowing stepless, infinitely variable pressure regulation from a remote or automated control system. The valve operates on a balanced spool and seat principle in which an integrated proportional solenoid acts against a calibrated spring, shifting the pressure-limiting stage to establish the commanded set pressure. This design delivers fast, repeatable response and stable pressure holding, making the ED 31 K a core component in systems requiring programmable pressure profiles, soft-start ramps, and precise force or torque control. As a genuine HAWE proportional valve, it is built to the manufacturer’s exacting tolerances and is intended for direct integration into both new machine builds and OEM replacement applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Pressure Limiting Valve (Precision Proportional & Servo Valve) |
| Model Designation | HAWE ED 31 K |
| Manufacturer | HAWE Hydraulik |
| Actuation Principle | Electro-proportional solenoid with calibrated pressure-setting spring |
| Control Function | Stepless, infinitely variable pressure limiting proportional to command signal |
| Operating Pressure | Standard Industrial Grade (up to rated bar per model variant) |
| Mounting & Connection | Standard ISO / HAWE interface, subplate or manifold mounting |
| Electrical Interface | Proportional solenoid, analog command signal input |
| Hydraulic Fluid | Mineral-based hydraulic oil per standard industrial viscosity range |
Engineering Features & Advantages
- Precision Proportional Performance: The proportional solenoid and balanced pressure-limiting stage deliver smooth, stepless pressure modulation with high repeatability, enabling accurate force, torque, and load control across the full command range.
- Fast Dynamic Response: Optimized spool and seat geometry provides rapid reaction to command signal changes, supporting soft-start ramps, controlled deceleration, and programmable pressure profiles.
- Stable Pressure Holding: Low internal leakage and a robust pressure-limiting design maintain the commanded set pressure reliably, even under fluctuating flow and load conditions.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened internal components and contamination-tolerant clearances for long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original HAWE standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
As a genuine HAWE proportional valve, it is built to the manufacturer’s exacting tolerances and is intended for direct integration into both new machine builds and OEM replacement applications.
PRODUCT IMAGES

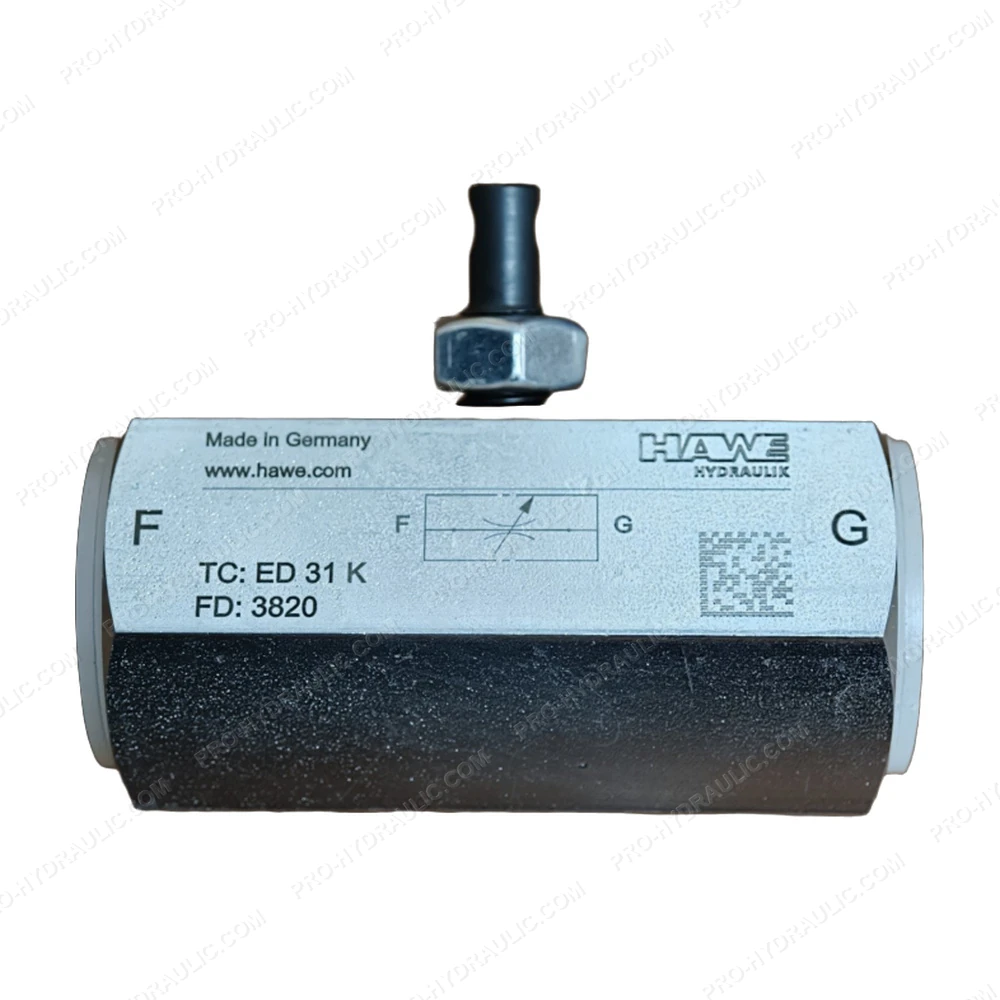

HAWE ED 31 K Proportional Pressure Limiting Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine HAWE ED 31 K Solenoid Directional Seat Valve. This Germany-made 24V DC hydraulic component features a 2/2-way poppet design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
