The HAWE G 3-1 R-A 24 is a heavy-duty industrial directional seat valve engineered for leak-free shut-off and reliable switching in high-pressure hydraulic circuits. Its seat-type design provides zero-leakage sealing in the closed position, making it suitable for load-holding and pressure-holding functions where spool valves are unsuitable.
HAWE G 3-1 R-A 24 Technical Specifications
| Type | Directional seat valve, ball/cone seat design |
|---|---|
| Actuation | 24 V DC solenoid, wet-pin armature |
| Mounting Pattern | Subplate mounting per HAWE connection pattern |
| Function | 2/2 or 3/2 seat function (model-dependent) |
| Operating Pressure | Up to 500 bar (dependent on configuration) |
| Nominal Flow | Low-flow pilot and control circuits |
| Sealing | Metal-to-metal seat, zero internal leakage when closed |
| Media | Mineral oil based hydraulic fluids per DIN 51524 |
| Coil Voltage | 24 V DC |
Key Engineering Features
- Seat-type sealing principle eliminates internal leakage in the closed position
- Wet-pin solenoid armature for direct, fast and wear-resistant actuation
- Compact subplate-mounted body for space-restricted manifold assemblies
- High pressure rating suitable for load-holding and clamping circuits
- Robust construction for continuous industrial duty cycles
Industrial Applications
- Hydraulic clamping and fixture systems
- Load-holding and pressure-holding circuits
- Machine tool and press control manifolds
- Pilot circuits in high-pressure power units
- Industrial automation and test rig hydraulics
For technical inquiries, dimensional drawings, or replacement support for HAWE G 3-1 R-A 24, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

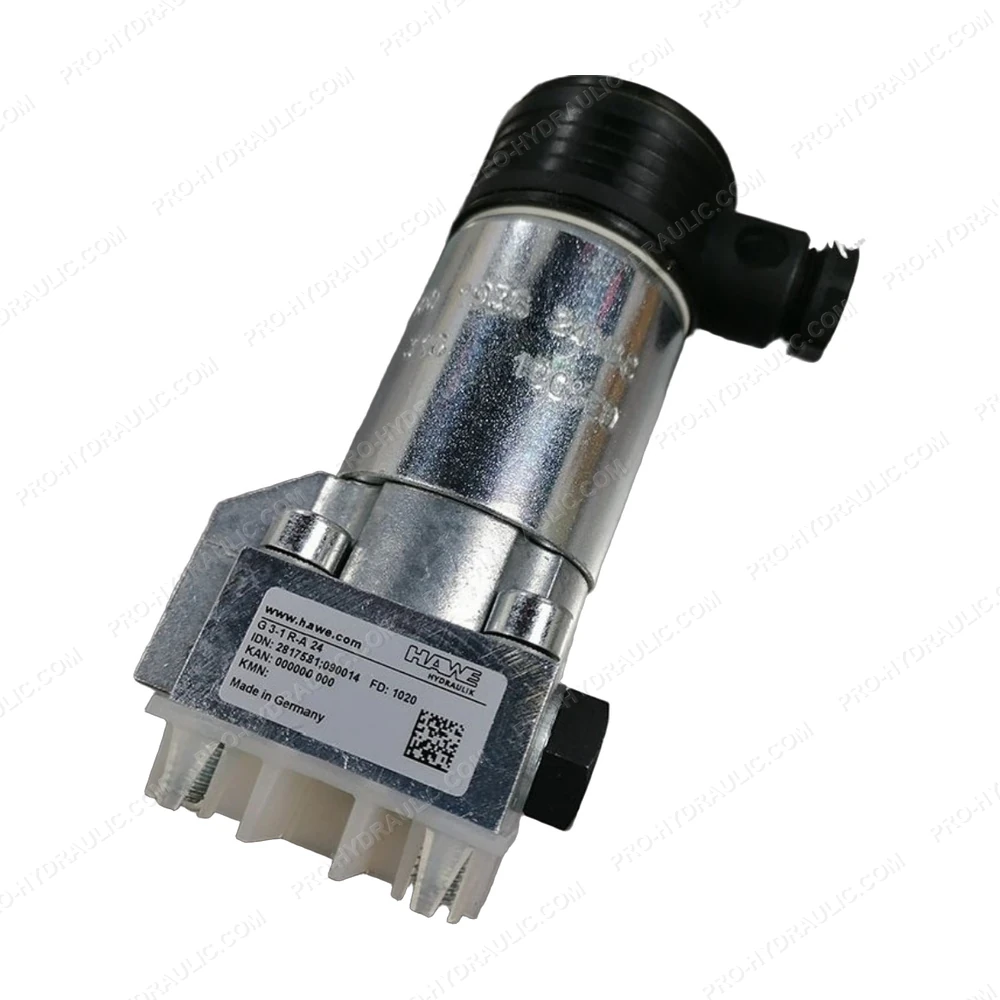

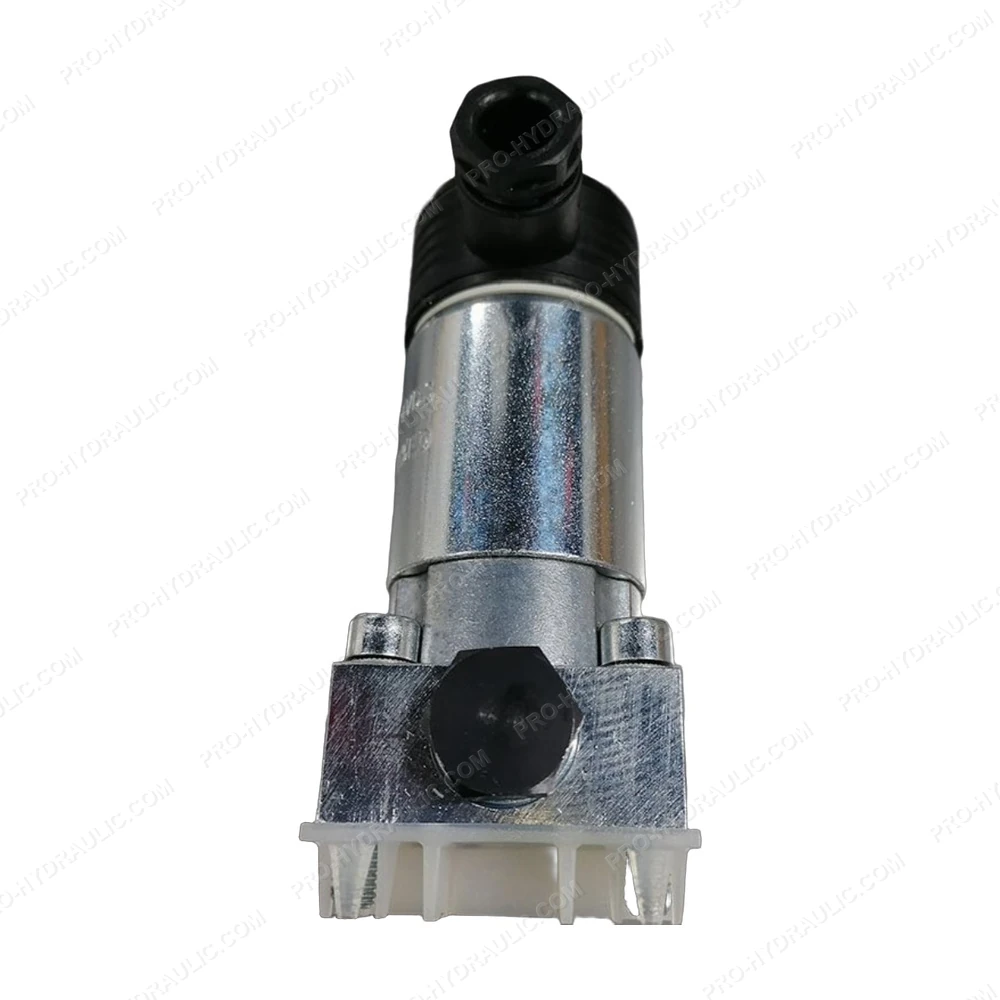

HAWE G 3-1 R-A 24 Directional Seat Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the HAWE G 3-1 R-A 24 Directional Seat Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
