The HAWE GZ 4-12-GM 24 is a heavy-duty industrial directional seat valve engineered for leak-free load holding and precise flow control in high-pressure hydraulic circuits. As a direct-acting, poppet-type valve, it operates without internal leakage, making it ideal for safety-critical clamping, lifting, and positioning functions.
HAWE GZ 4-12-GM 24 Technical Specifications
| Type | Directional seat valve, direct-acting poppet design |
| Nominal Size | NG 4 (DIN 24 340 / ISO 4401) |
| Max. Operating Pressure | 400 bar (P, A, B ports) |
| Max. Flow Rate | 12 L/min |
| Actuation | GM solenoid, 24 V DC |
| Coil Type | Wet-pin armature, DC solenoid |
| Mounting Pattern | Subplate, ISO 4401-03 / CETOP 3 |
| Sealing | Poppet seat, zero internal leakage |
| Fluid | Mineral oil per DIN 51524 |
| Temperature Range | -20 °C to +80 °C |
Key Engineering Features
- Direct-acting poppet design ensures zero leakage in closed position
- Wet-pin armature solenoid for reliable, long-life switching
- Compact NG 4 subplate mounting per ISO 4401-03 / CETOP 3
- High pressure rating up to 400 bar for demanding circuits
- Fast response for precise load holding and positioning
- Robust construction for continuous industrial duty
Industrial Applications
- Hydraulic clamping and fixture systems
- Lifting and load-holding circuits
- Machine tool and press controls
- Mobile and industrial hydraulic power units
- Safety-related shut-off and blocking functions
For technical inquiries, dimensional drawings, or replacement support for HAWE GZ 4-12-GM 24, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

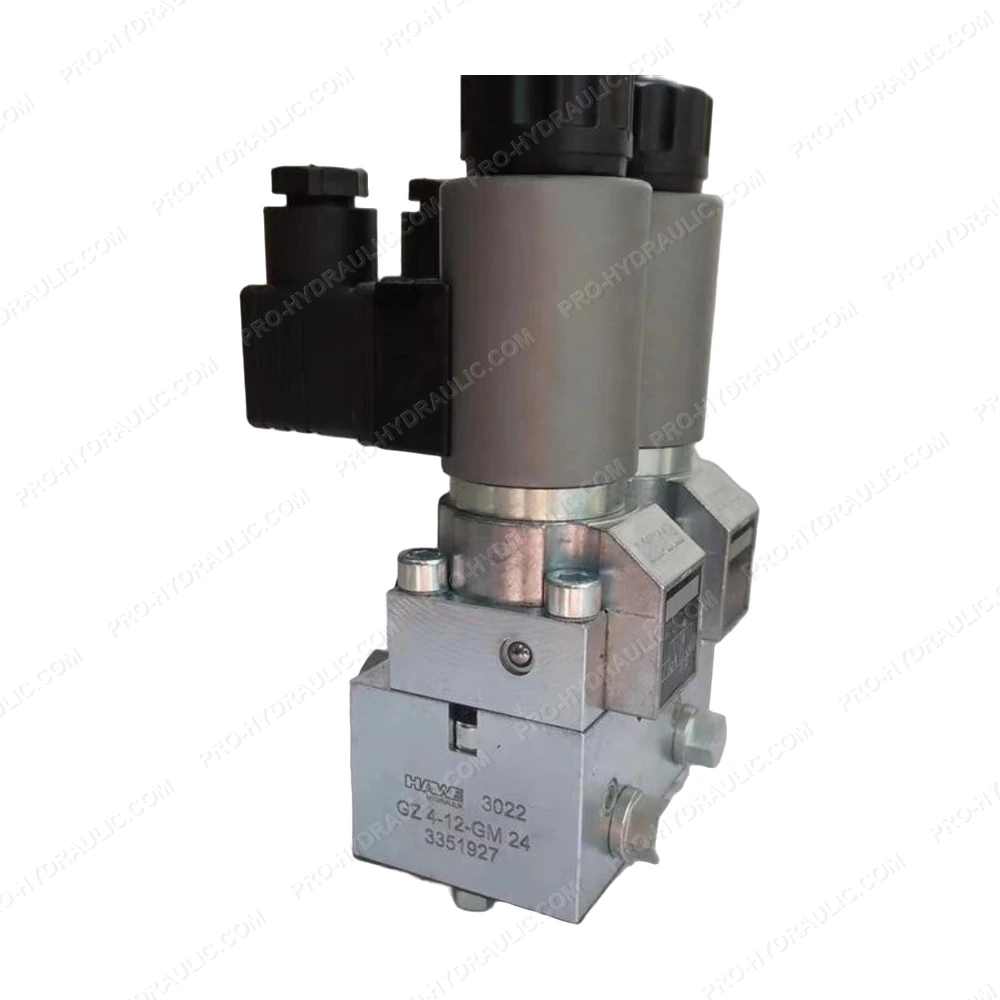

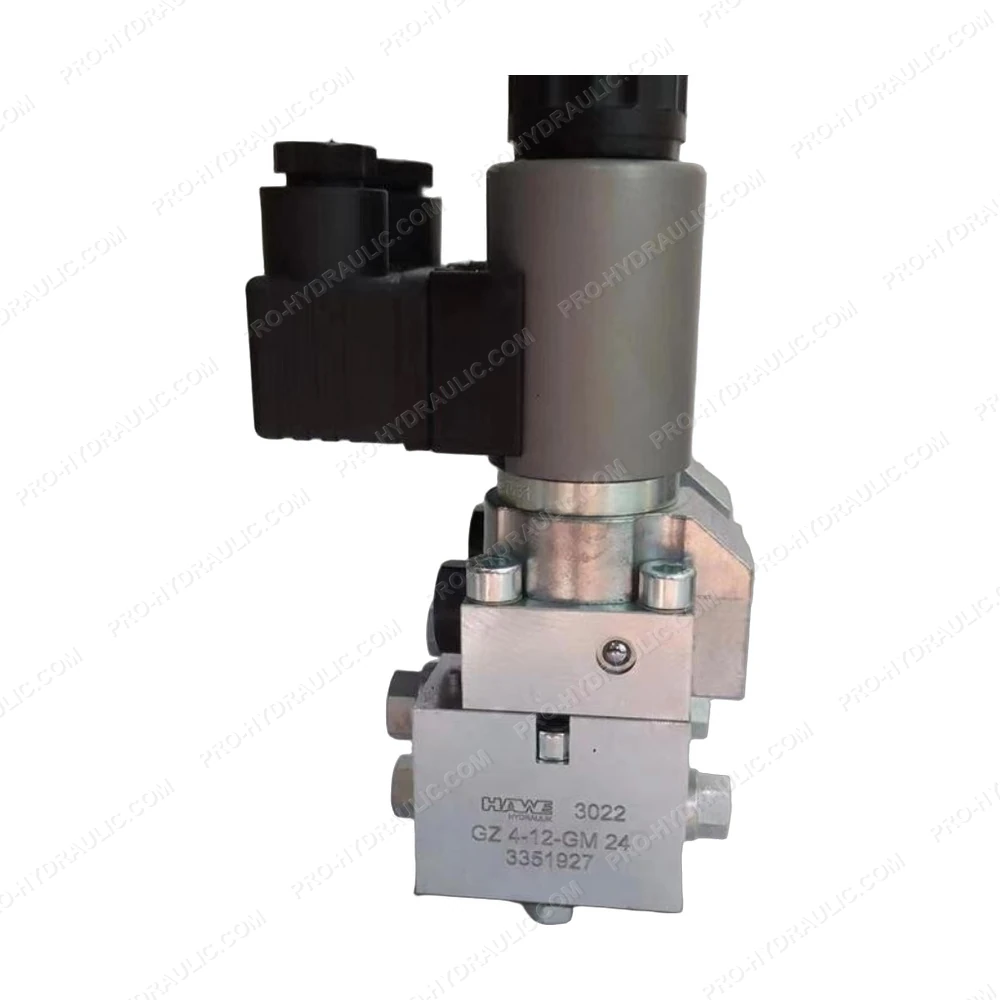

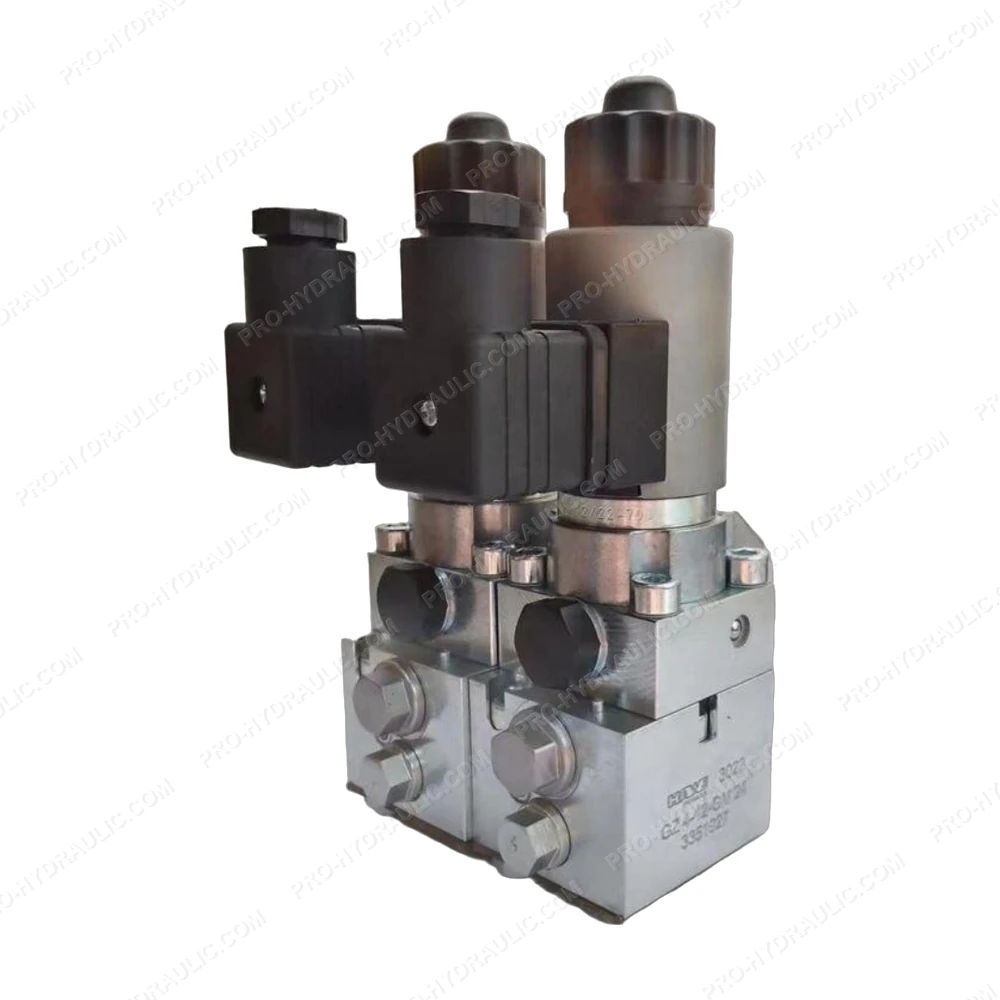

HAWE GZ 4-12-GM 24 Directional Seat Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the HAWE GZ 4-12-GM 24 Directional Seat Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
