Product Overview
The HAWE HK 43 DT/1 M-H 0,9-Z 11,3-SWPN 21-G/NZP 16 Q 33/3-1-X 24 is a compact hydraulic power pack engineered by HAWE Hydraulik, a globally recognized manufacturer of high-pressure hydraulic components. This integrated unit combines a radial piston pump, a gear pump, a valve manifold, and a reservoir into a single space-saving assembly. The radial piston pump section delivers high-pressure flow for demanding clamping and holding circuits, while the gear pump section provides auxiliary low-pressure flow for pilot and return functions. The integrated NZP 16 valve manifold enables precise directional and pressure control. Designed for minimal installation footprint, this power pack is ideal for machine tools, clamping systems, and industrial automation where reliable, compact hydraulic power is essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Compact Hydraulic Power Pack (Gear Pump & Radial Piston Pump Combination) |
| Model Designation | HK 43 DT/1 M-H 0,9-Z 11,3-SWPN 21-G/NZP 16 Q 33/3-1-X 24 |
| Operating Pressure | Up to 700 bar (radial piston section); up to 200 bar (gear pump section) |
| Displacement | 0.9 cm³/rev (high-pressure radial piston); 11.3 cm³/rev (gear pump) |
| Valve Manifold | NZP 16 directional valve with Q 33/3-1-X 24 solenoid actuation |
| Mounting & Connection | Compact block design with standard ISO port connections |
| Reservoir | Integrated compact reservoir (approximately 1.5–3 L depending on configuration) |
Engineering Features & Advantages
- Precision Performance: The combination of a high-pressure radial piston pump and a high-flow gear pump delivers efficient two-stage operation, reducing cycle times while maintaining precise pressure control for clamping and holding applications.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction that ensures long service life and minimal maintenance.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, allowing drop-in replacement without modification to existing hydraulic circuits.
- Space-Saving Integration: All components—pump, valve, and reservoir—are consolidated into a single compact unit, significantly reducing installation space and piping requirements.
- Advanced Valve Control: The NZP 16 directional valve with Q 33/3-1-X 24 solenoid provides reliable, fast switching for precise actuator control.
Typical Industrial Applications
This compact hydraulic power pack is widely used in machine tool clamping systems, plastic injection molding machines, metallurgical presses, and industrial automation equipment. It is also suitable for marine hydraulics, CNC machine tools, and test stands where space is limited but high-pressure performance is required.
PRODUCT IMAGES

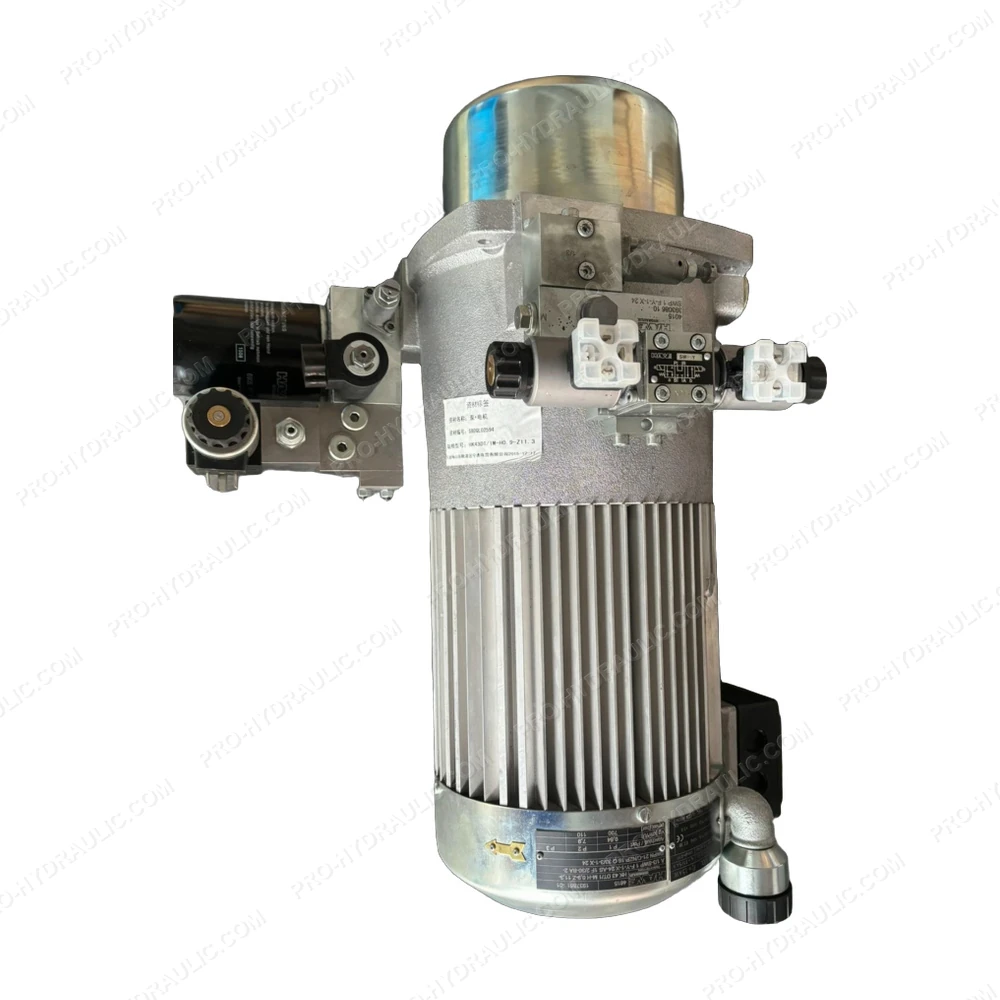

HAWE HK 43 DT/1 M-H 0,9-Z 11,3-SWPN 21-G/NZP 16 Q 33/3-1-X 24 Compact Hydraulic Power Pack
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine HAWE HK 43 DT/1 M-H 0,9-Z 11,3-SWPN 21-G/NZP 16 Q 33/3-1-X 24 Solenoid Directional Seat Valve. This Germany-made 24 VDC hydraulic component features a poppet-type seat design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
