The HAWE PSV 41/250-3 is a heavy-duty industrial proportional directional valve engineered for precise, continuous control of flow direction and magnitude in high-pressure hydraulic circuits. It features a robust spool-and-sleeve design with wet-pin proportional solenoids, providing accurate response to electrical input signals for demanding motion control applications.
HAWE PSV 41/250-3 Technical Specifications
| Type | Proportional directional valve, 4-way, 3-position |
| Maximum operating pressure | 250 bar (port P, A, B) |
| Nominal flow rate | Up to 40 L/min (depending on spool variant) |
| Actuation | Proportional solenoid, wet-pin, 24 V DC (standard) |
| Mounting pattern | ISO 4401 / CETOP 3 (NG6) |
| Fluid temperature range | -20 °C to +80 °C |
| Viscosity range | 10 to 500 mm²/s |
| Filtration | ISO 4406 class 18/16/13 or better |
| Body material | High-strength cast iron |
Key Engineering Features
- Proportional solenoid actuation with low hysteresis and high repeatability
- Wet-pin armature design for efficient heat dissipation and long service life
- Precise spool metering edges for smooth, controllable flow characteristics
- Standard ISO 4401 / CETOP 3 mounting interface for easy integration
- Rugged construction suitable for continuous industrial duty
- Optional integrated manual override for emergency operation
Industrial Applications
- Hydraulic presses and forming machinery
- Injection molding machines
- Machine tool positioning systems
- Material handling and lifting equipment
- Test stands and simulation rigs
- Mobile and industrial hydraulic power units
For technical inquiries, dimensional drawings, or replacement support for HAWE PSV 41/250-3, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

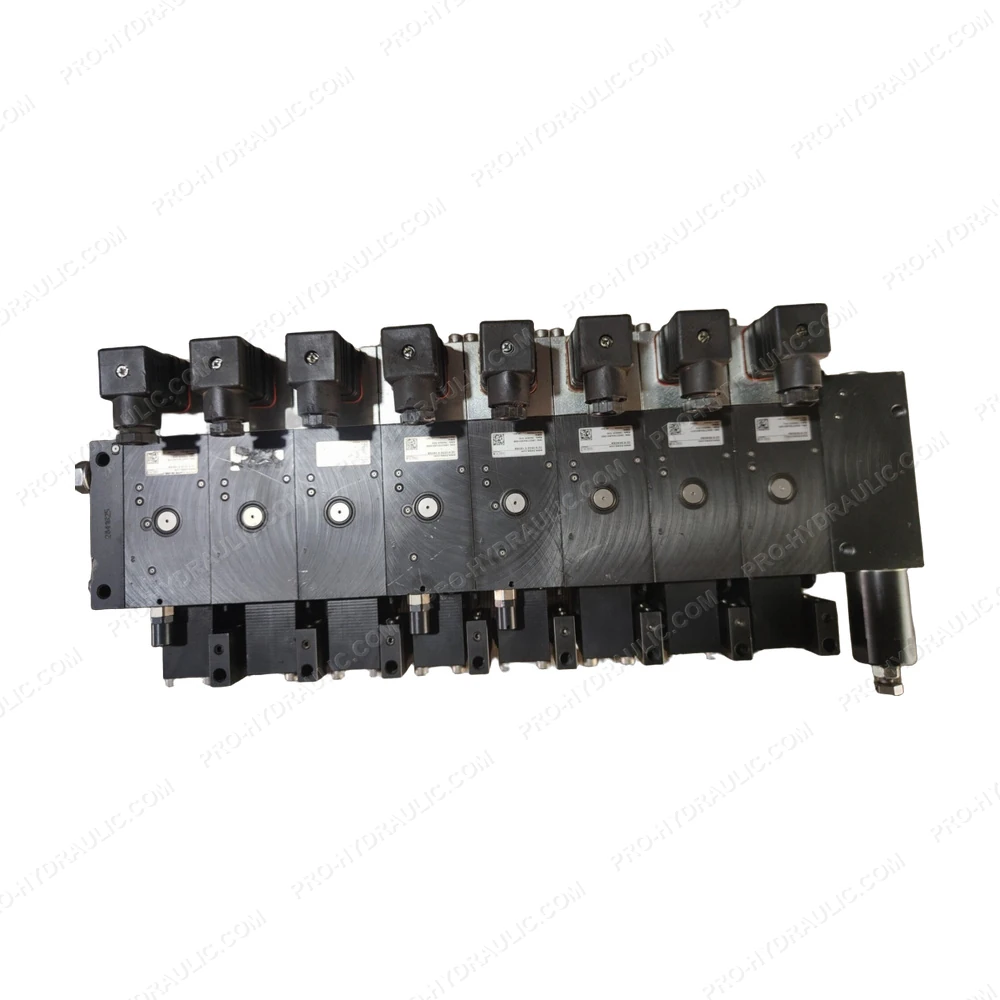

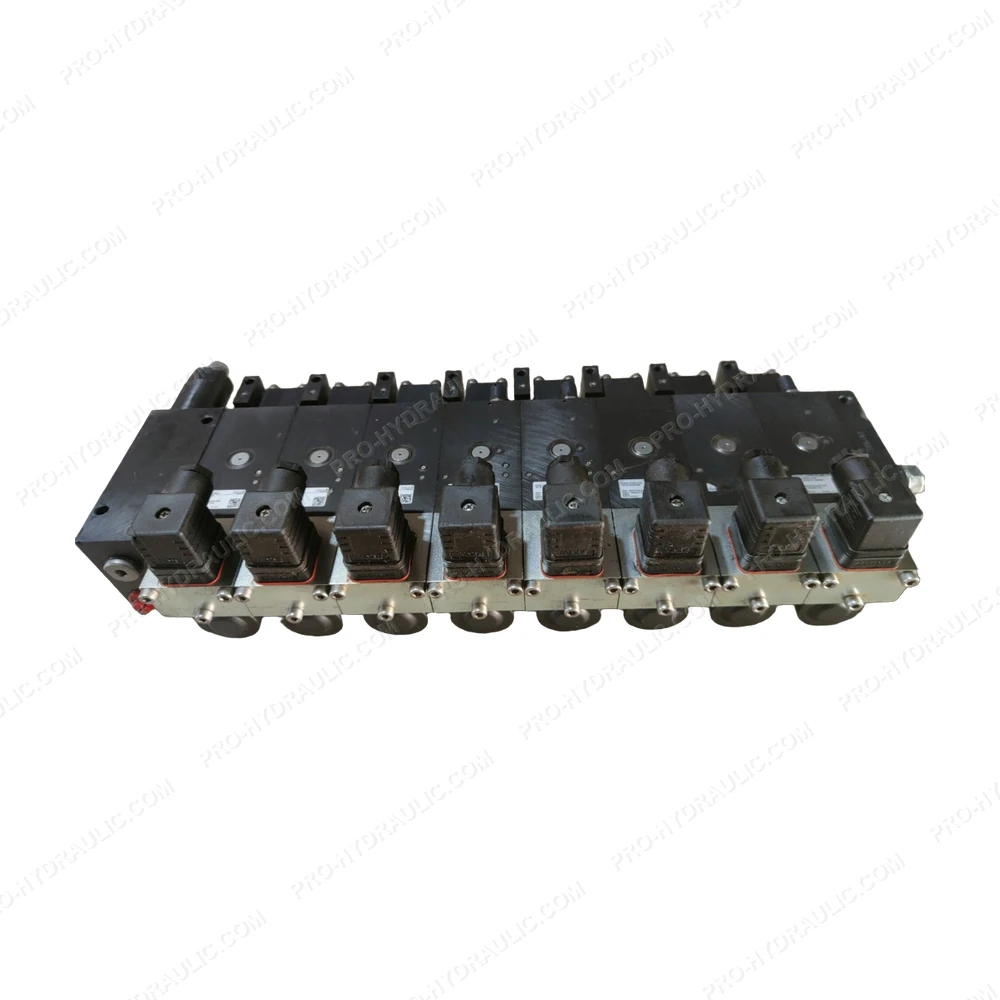

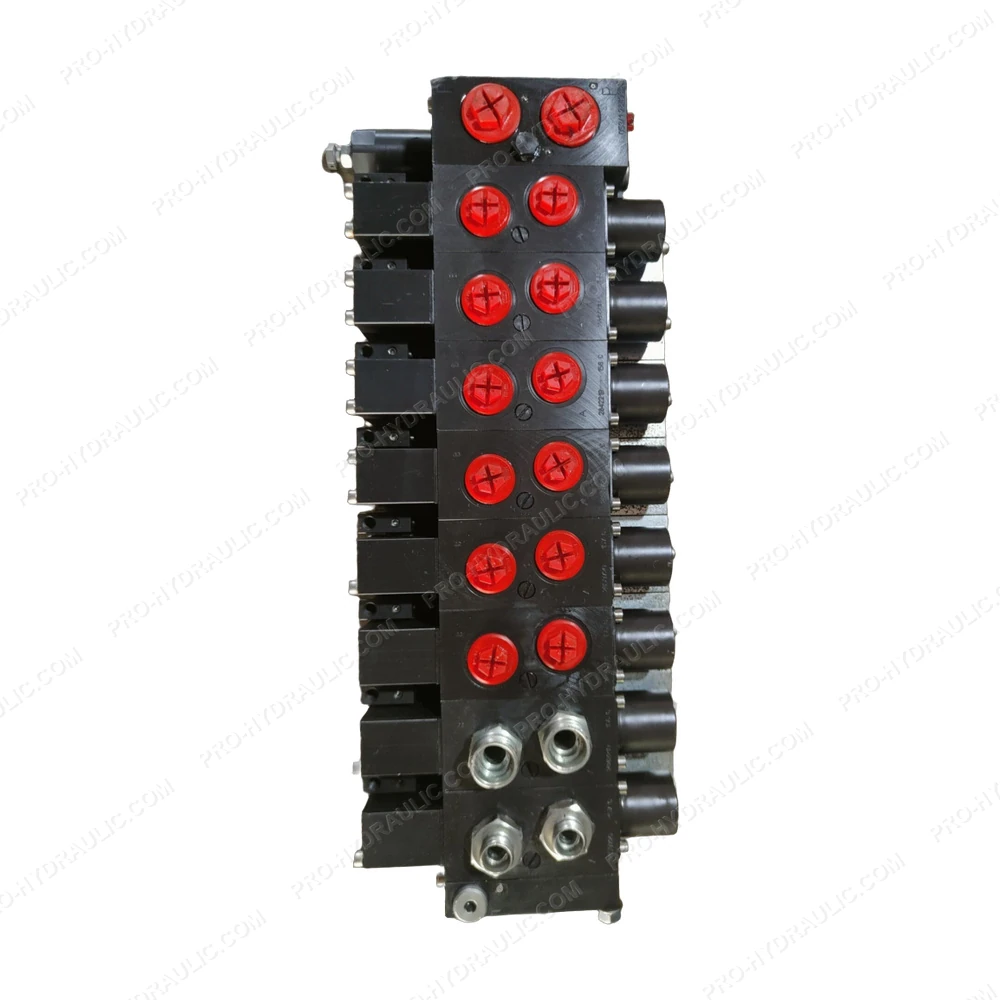

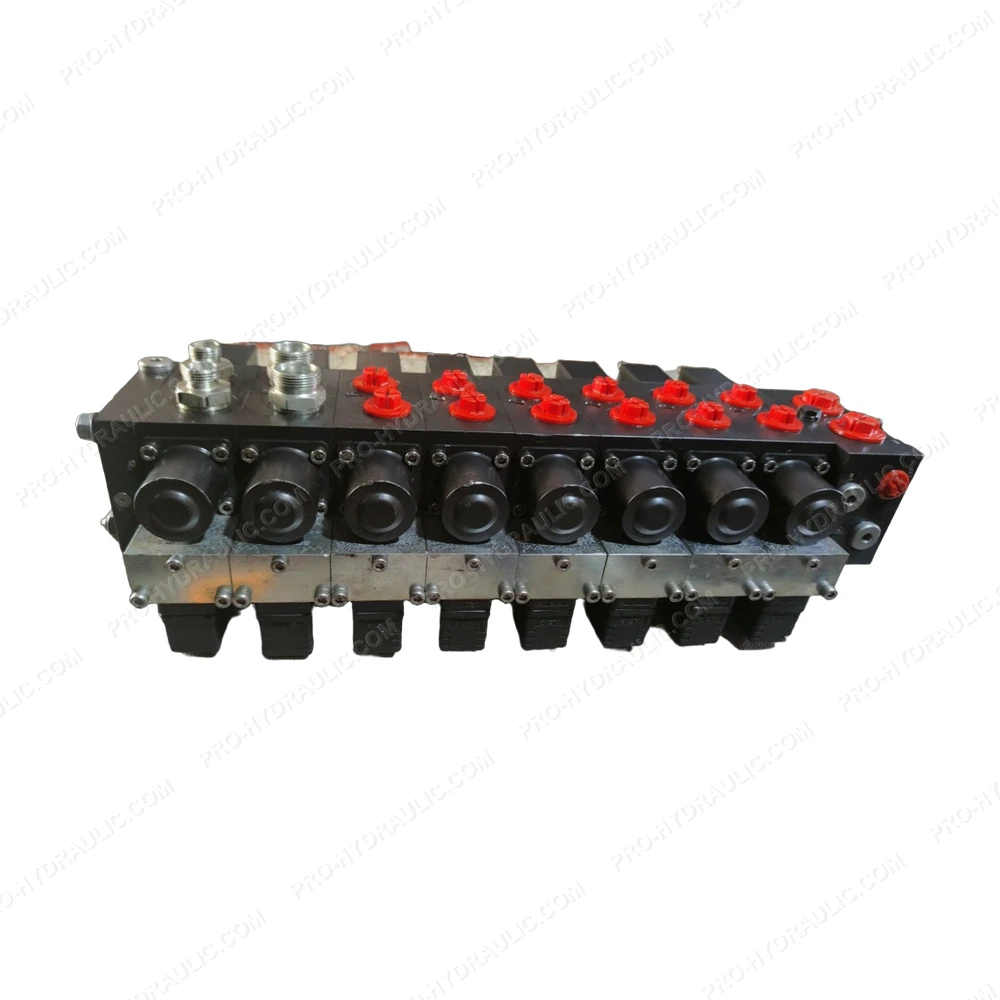

HAWE PSV 41/250-3 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the HAWE PSV 41/250-3 Proportional Directional Valve. This precision-engineered industrial component delivers reliable performance and tight fluid control for heavy-duty systems.
