The HAWE PSV551/220-3-42L80/63/EA-42L80/63/EA-42L80/63/EA-42L80/63/EA-42L80/63/EA-42L80/63/EA-42L80/63/EA-E4-G24 is a heavy-duty industrial proportional valve engineered for precise flow and pressure control in demanding hydraulic systems. This multi-section valve bank features seven proportional directional valve sections, each configured with a 42 L/min nominal flow and 63 bar pressure rating, providing independent metering for complex circuits. The integrated E4-G24 proportional solenoid actuators ensure accurate, repeatable response to electrical input signals, enabling smooth acceleration and deceleration of actuators. Designed for continuous operation, the PSV551 series offers robust construction with a 220 bar maximum working pressure and a compact, modular design that simplifies installation and maintenance.
HAWE PSV551/220-3-42L80/63/EA-42L80/63/EA-42L80/63/EA-42L80/63/EA-42L80/63/EA-42L80/63/EA-42L80/63/EA-E4-G24 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | PSV551/220-3-42L80/63/EA-42L80/63/EA-42L80/63/EA-42L80/63/EA-42L80/63/EA-42L80/63/EA-42L80/63/EA-E4-G24 |
| Valve Type | Proportional directional control valve, multi-section |
| Number of Sections | 7 |
| Nominal Flow per Section | 42 L/min |
| Pressure Rating per Section | 63 bar |
| Maximum Working Pressure | 220 bar |
| Actuation | Proportional solenoid, E4-G24 (24 V DC) |
| Mounting Interface | Modular, ISO 4401 / CETOP |
| Fluid Compatibility | Mineral oil based hydraulic fluids |
| Operating Temperature Range | -20 °C to +80 °C |
Key Engineering Features
- Seven independent proportional sections for simultaneous control of multiple actuators
- E4-G24 proportional solenoids with wet-pin armature for precise, hysteresis-free positioning
- High-resolution flow control proportional to electrical input signal
- Modular design allows flexible configuration and easy integration into existing manifolds
- Robust construction with 220 bar maximum pressure for heavy-duty applications
- Low leakage and stable performance across wide temperature range
Industrial Applications
- Mobile hydraulic systems: cranes, excavators, loaders
- Industrial automation: injection molding, presses, and material handling
- Marine and offshore hydraulic control systems
- Energy sector: wind turbine pitch control, hydroelectric systems
- Test rigs and simulation equipment requiring precise flow control
For technical inquiries, dimensional drawings, or replacement support for HAWE PSV551/220-3-42L80/63/EA-42L80/63/EA-42L80/63/EA-42L80/63/EA-42L80/63/EA-42L80/63/EA-42L80/63/EA-E4-G24, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

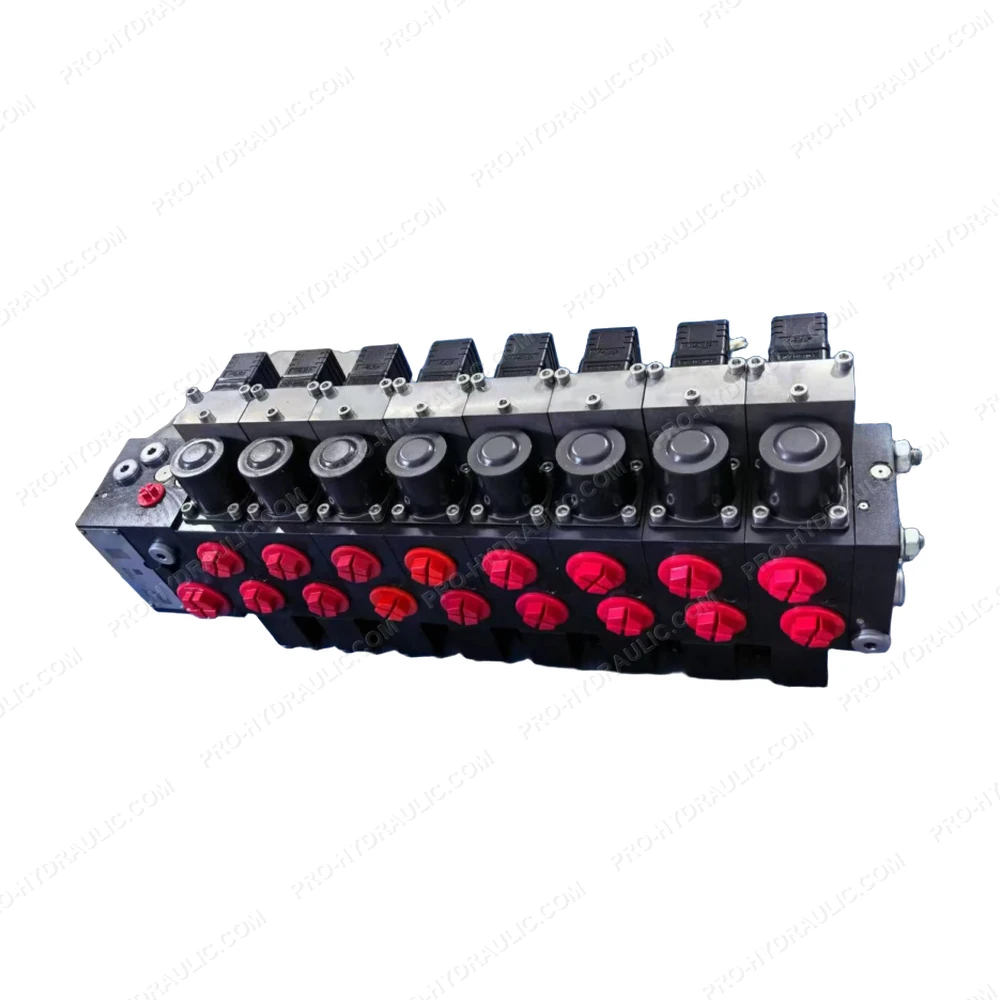

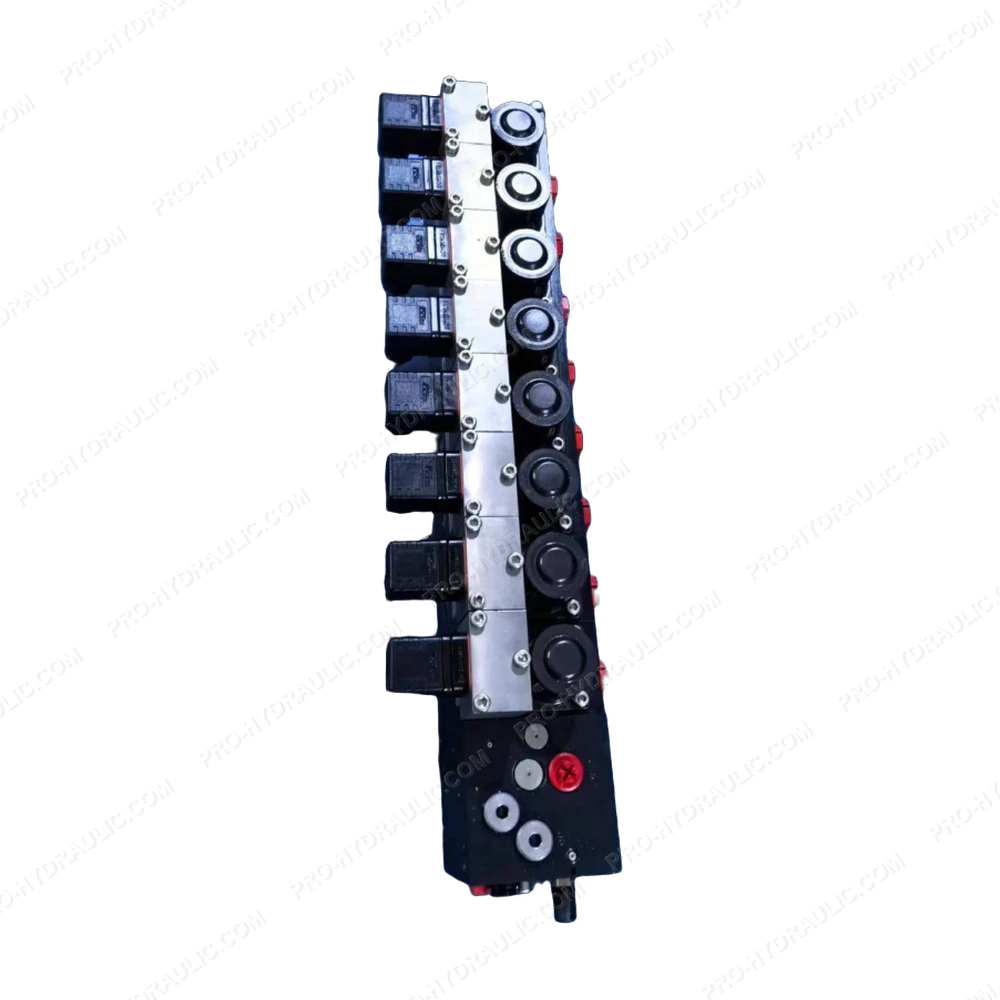

HAWE PSV551/220-3-42L80/63/EA-42L80/63/EA-42L80/63/EA-42L80/63/EA-42L80/63/EA-42L80/63/EA-42L80/63/EA-E4-G24 Proportional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the HAWE PSV551/220-3-42L80/63/EA-42L80/63/EA-42L80/63/EA-42L80/63/EA-42L80/63/EA-42L80/63/EA-42L80/63/EA-E4-G24 Proportional Valve. This precision-engineered industrial component delivers reliable performance and tight fluid control for heavy-duty systems.
