The HAWE TC NBVP 16 Z/2-X 24-PYD / 3693698.0002 is a heavy-duty industrial directional seat valve engineered for leak-free load holding and precise flow control in high-pressure hydraulic circuits. This 2/2-way valve uses a ball seat design with a wet-pin solenoid actuator, ensuring fast response and minimal internal leakage.
HAWE TC NBVP 16 Z/2-X 24-PYD / 3693698.0002 Technical Specifications
| Type | Directional seat valve, 2/2-way |
| Nominal size | NG 16 |
| Pressure rating | Up to 400 bar (depending on configuration) |
| Actuation | Wet-pin solenoid, 24 V DC |
| Mounting | Subplate mounting, ISO 4401 / CETOP |
| Sealing | Ball seat, zero-leakage |
| Flow direction | Optional (Z/2-X indicates flow pattern) |
| Part number | 3693698.0002 |
Key Engineering Features
- Ball seat design ensures zero internal leakage when closed
- Wet-pin solenoid with high switching frequency and long service life
- Compact subplate mounting for space-saving integration
- High pressure capability up to 400 bar
- Fast response times for dynamic load holding
Industrial Applications
- Hydraulic clamping and fixture systems
- Presses and forming machinery
- Lifting and load-holding circuits
- Test rigs and special-purpose machines
- Mobile and industrial hydraulic power units
For technical inquiries, dimensional drawings, or replacement support for HAWE TC NBVP 16 Z/2-X 24-PYD / 3693698.0002, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

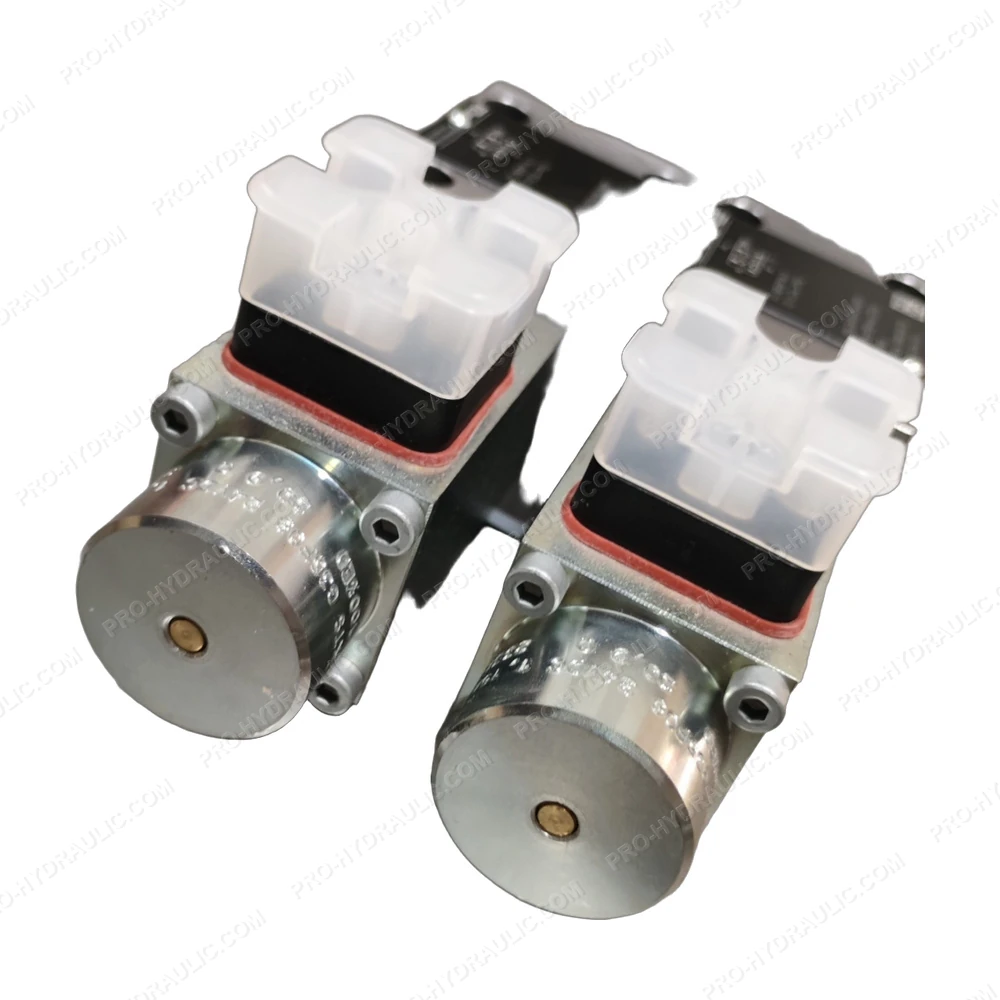

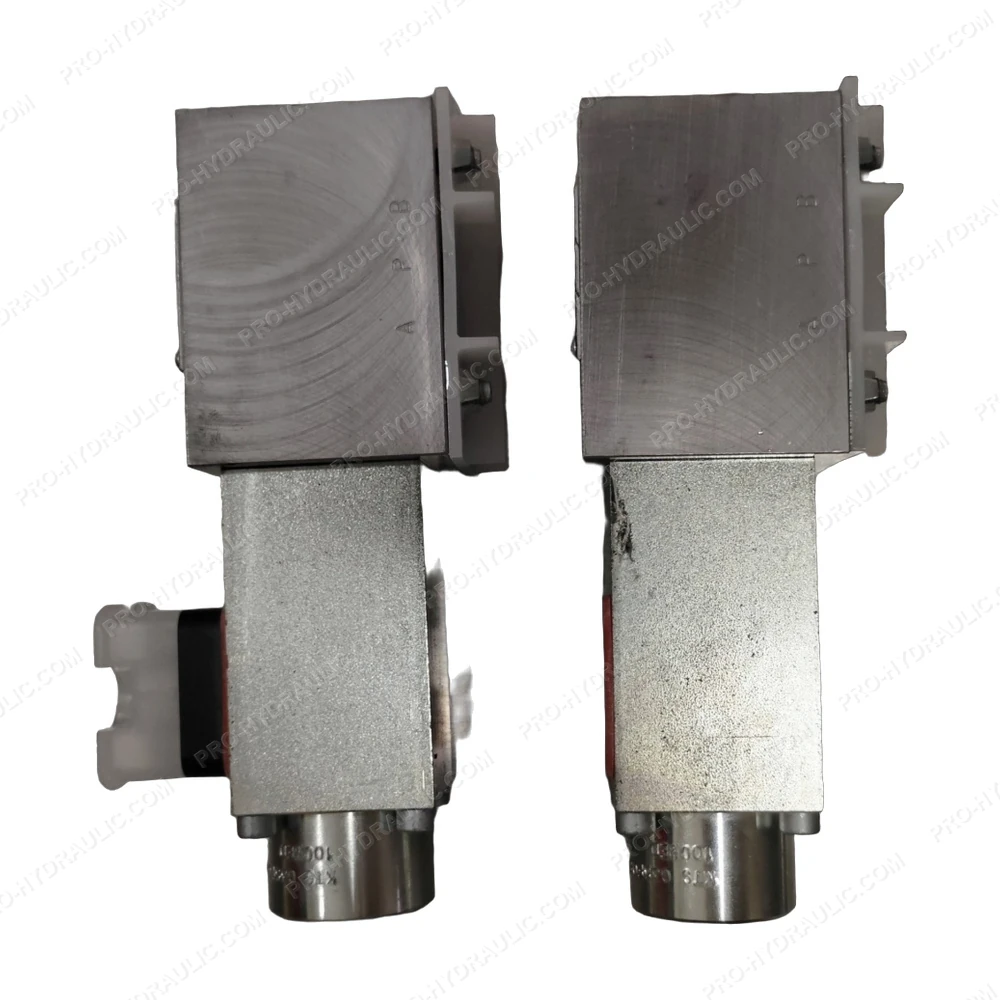

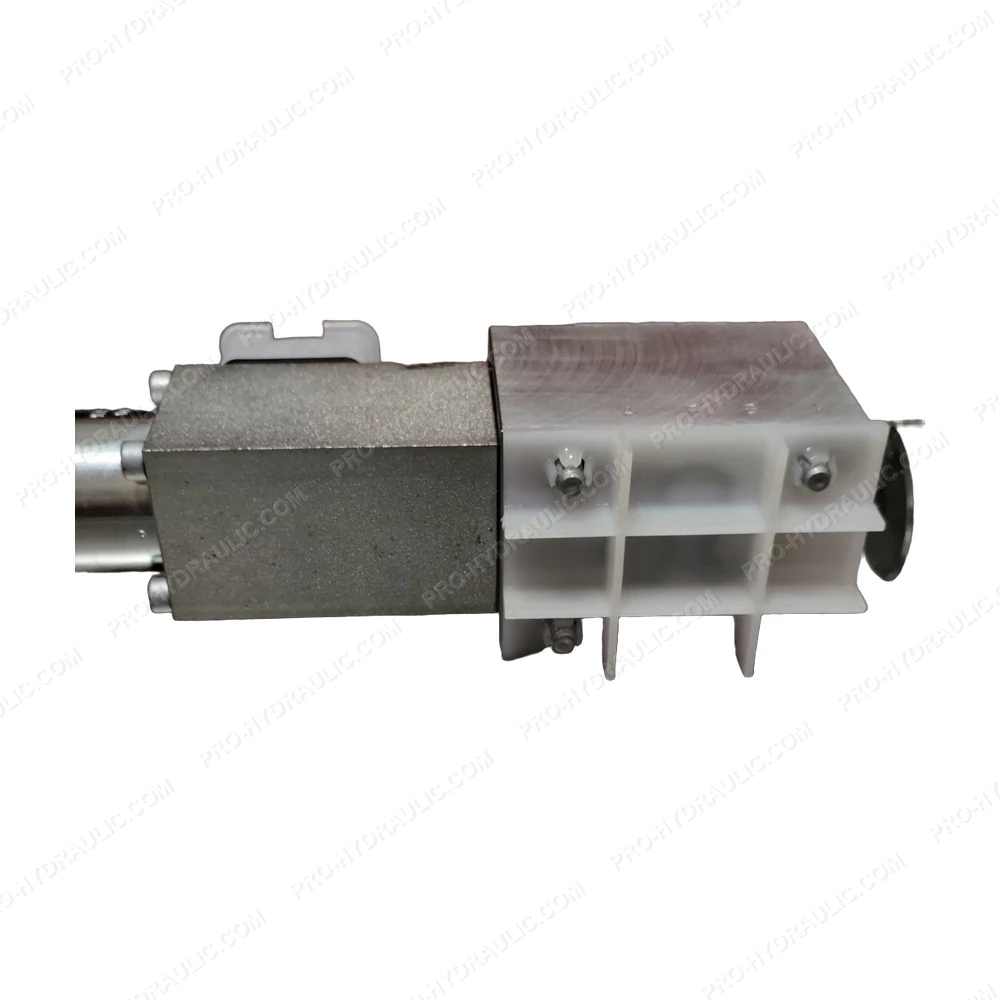

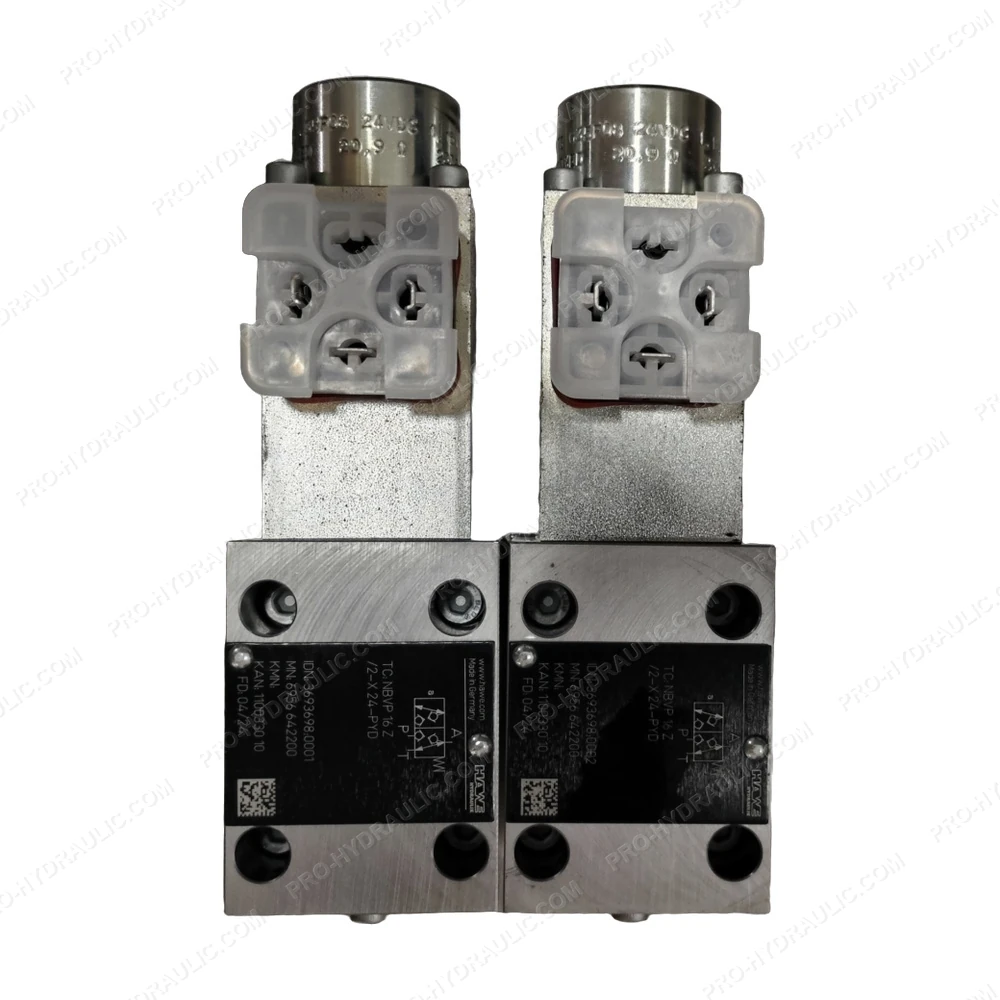

HAWE TC NBVP 16 Z/2-X 24-PYD Directional Seat Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the HAWE TC NBVP 16 Z/2-X 24-PYD Directional Seat Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
