The HAWE VP 1 Z-GM 24 is a heavy-duty industrial directional seat valve engineered for leak-free load holding and reliable switching in high-pressure hydraulic circuits. It operates as a directly actuated 2/2-way seat valve with a wet-pin solenoid and a hardened steel seat/poppet pair, providing zero leakage in the closed position and fast, positive response under pressure.
HAWE VP 1 Z-GM 24 Technical Specifications
| Type | Directly actuated directional seat valve |
|---|---|
| Function | 2/2-way, normally closed (Z) |
| Actuation | Wet-pin solenoid, 24 V DC |
| Mounting Pattern | Modular sandwich / subplate mounting per HAWE modular system |
| Max. Operating Pressure | Up to 400 bar (dependent on configuration) |
| Nominal Flow | Up to 12 l/min (size 1) |
| Sealing Principle | Metal-to-metal seat, leak-free when closed |
| Hydraulic Fluid | Mineral oil per DIN 51524; other fluids on request |
| Fluid Temperature Range | -20 °C to +80 °C |
| Body Material | Steel, corrosion-protected |
| Electrical Connection | DIN EN 175301-803 (DIN 43650) plug |
Key Engineering Features
- Zero-leakage seat design for reliable load holding and pressure isolation
- Wet-pin solenoid armature for efficient force transmission and long service life
- Compact modular construction for direct sandwich mounting in HAWE valve stacks
- Hardened poppet and seat for high cycle durability and contamination tolerance
- Fast, positive switching response independent of flow direction
- 24 V DC coil for standard industrial control voltage
Industrial Applications
- Hydraulic clamping and fixture circuits requiring leak-free holding
- Press and forming machinery with load-holding safety requirements
- Mobile and industrial power units with modular valve stacks
- Test stands and special-purpose hydraulic systems
- Machine tools with high-pressure actuator control
For technical inquiries, dimensional drawings, or replacement support for HAWE VP 1 Z-GM 24, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

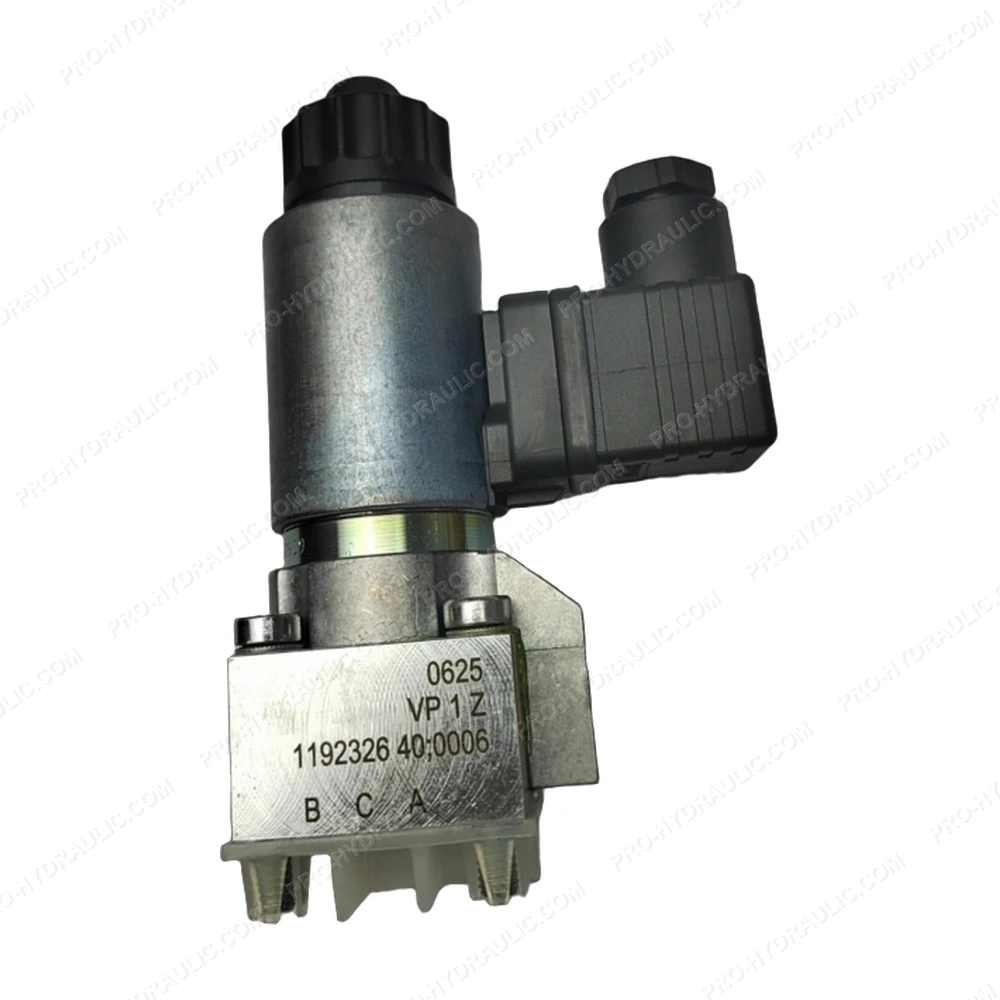

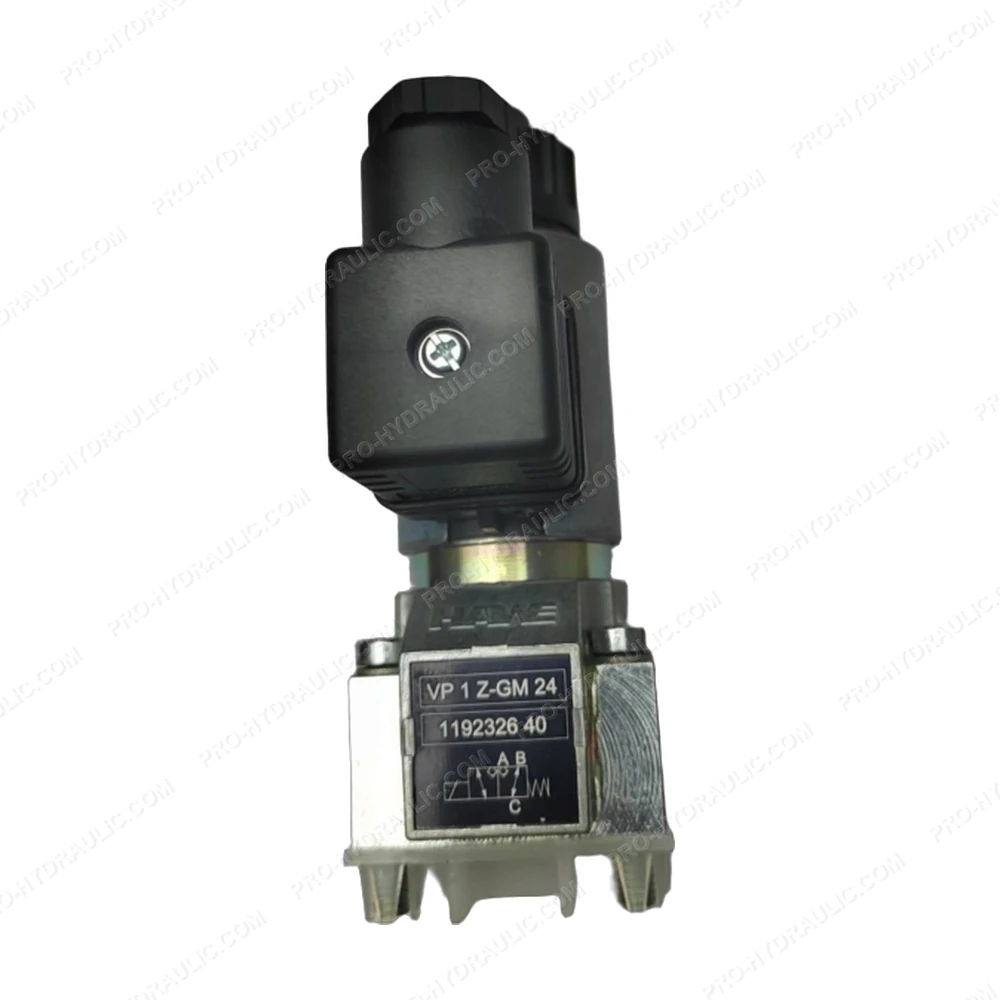

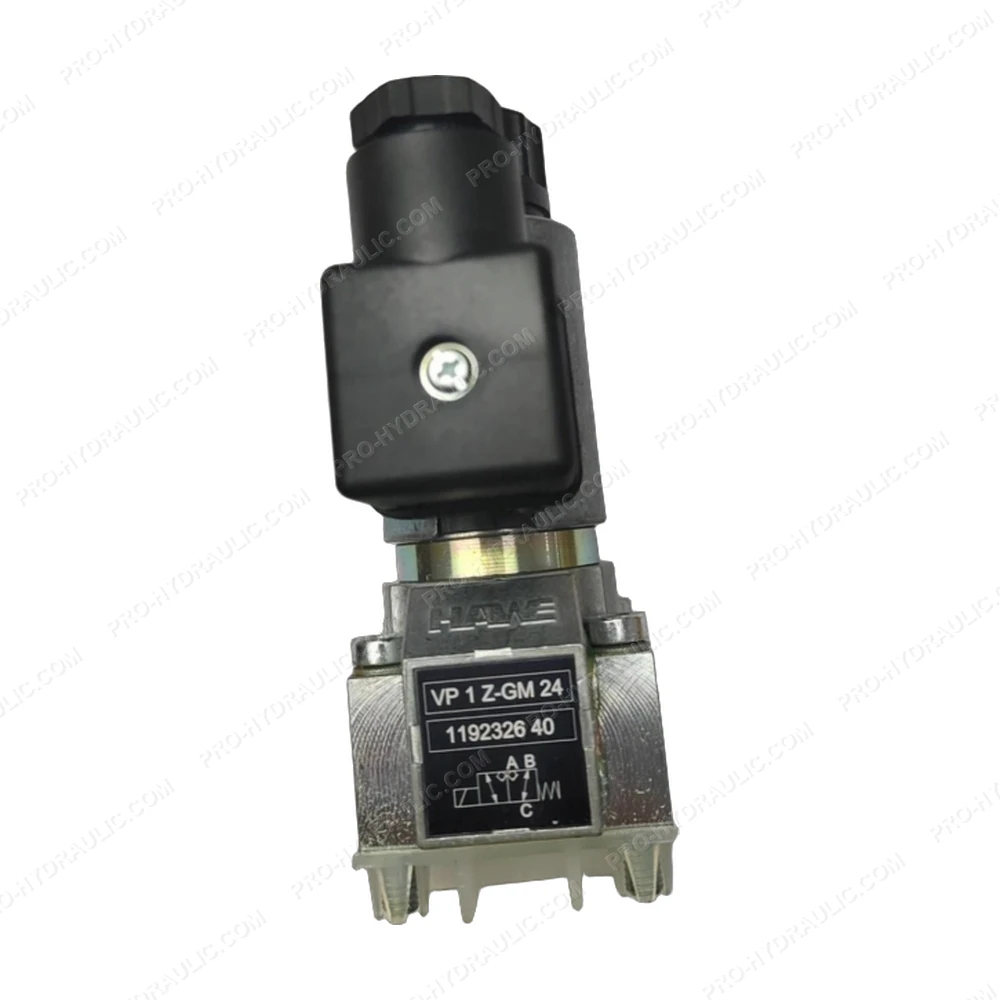

HAWE VP 1 Z-GM 24 Directional Seat Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the HAWE VP 1 Z-GM 24 Directional Seat Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
