The HHL HYDRAULIC WE02-6P100E24/OHN is a heavy-duty industrial directional control valve engineered for precise flow management in demanding hydraulic circuits. This CETOP 3 / NG6 solenoid-operated valve features a robust wet-pin armature design and a 6-position spool configuration, ensuring reliable shifting and long service life under continuous operation.
HHL HYDRAULIC WE02-6P100E24/OHN Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | Directional Control Valve, Solenoid Operated |
| Mounting Standard | CETOP 3 / ISO 4401-03 / NG6 |
| Spool Type | 6P (6-position, closed center) |
| Flow Rate | Up to 100 L/min |
| Coil Voltage | 24 V DC |
| Electrical Connection | DIN 43650 connector |
| Max Operating Pressure | 350 bar (P, A, B ports); 210 bar (T port) |
| Fluid Temperature Range | -20°C to +80°C |
| Seal Material | NBR (Buna-N) |
| Body Material | Cast Iron |
Key Engineering Features
- Wet-pin armature design for smooth, reliable spool actuation
- High-strength cast iron body for durability in harsh environments
- Precision-machined spool and sleeve for minimal internal leakage
- 24 V DC coil with DIN connector for easy integration
- Compact CETOP 3 mounting interface for space-saving installation
- Designed for continuous duty with low hysteresis
Industrial Applications
- Mobile hydraulic systems (construction, agriculture)
- Industrial automation and manufacturing equipment
- Material handling and lifting machinery
- Presses and forming machines
- Marine and offshore hydraulic controls
For technical inquiries, dimensional drawings, or replacement support for HHL HYDRAULIC WE02-6P100E24/OHN, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

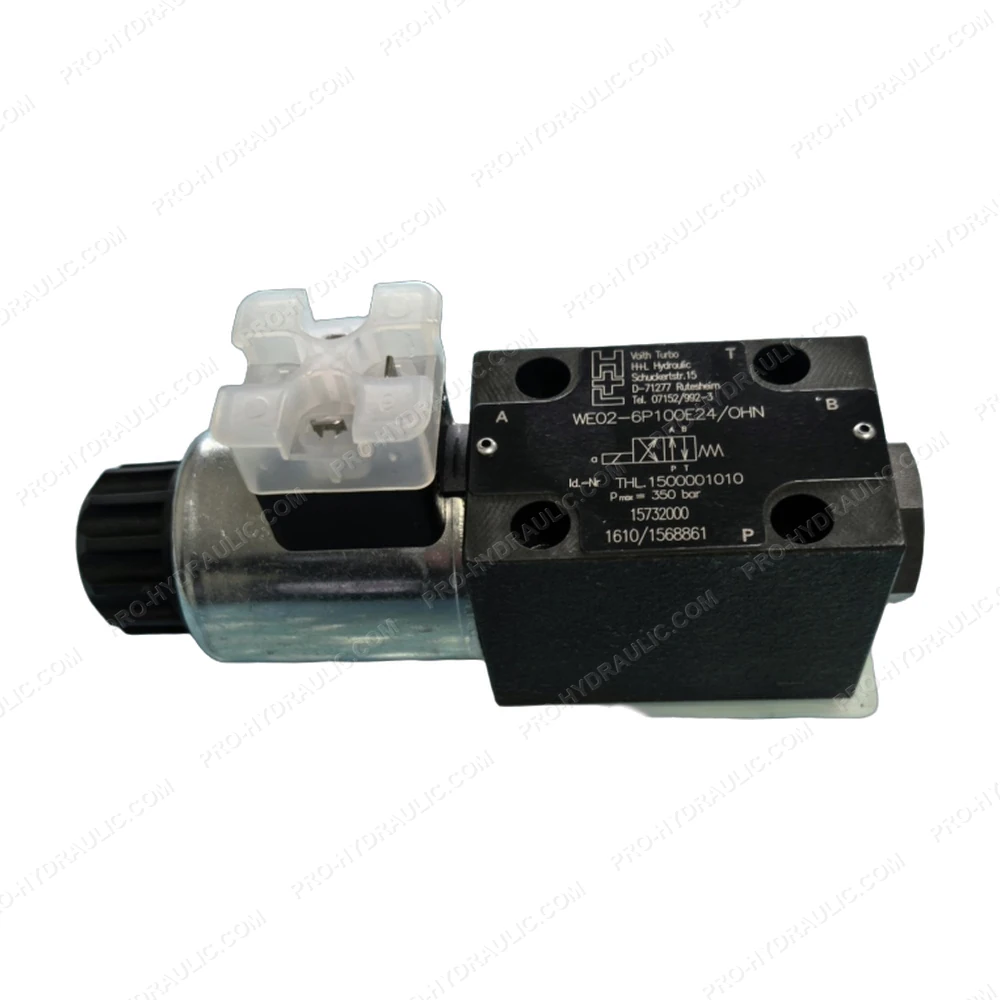

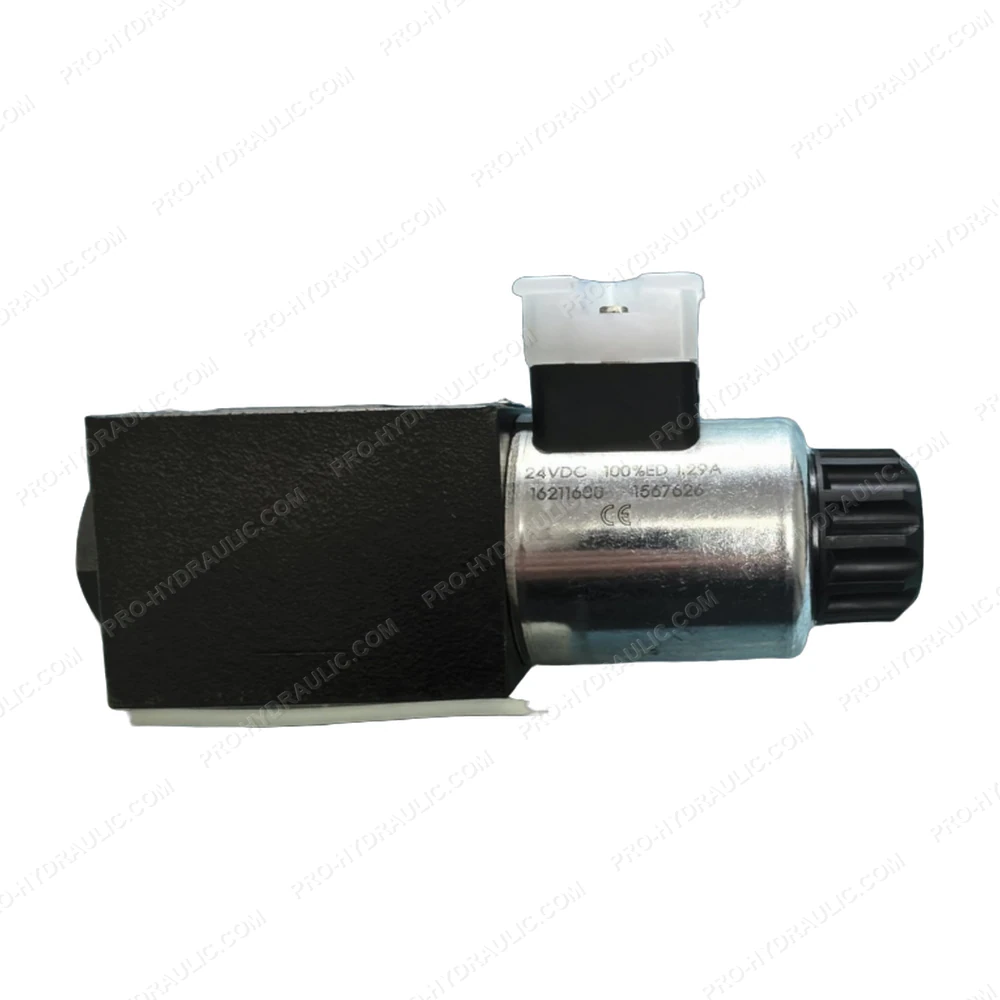

HHL HYDRAULIC WE02-6P100E24/OHN Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the HHL HYDRAULIC WE02-6P100E24/OHN Directional Control Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
