Product Overview
The HIGH-LIGHT TECH CORP AVB-KF40-P is a pneumatically actuated vacuum angle valve engineered for precise isolation and control of vacuum lines in demanding industrial process environments. Featuring a KF40 (NW40) flange interface, this angle valve utilizes a pneumatically driven actuator to deliver rapid, repeatable open/close cycling with minimal particle generation and low outgassing — critical for maintaining vacuum integrity. Its angle-body design promotes unobstructed conductance and laminar flow characteristics, making it a reliable choice for semiconductor fabrication, thin-film deposition, and other high-purity vacuum systems where dependable pneumatic actuation and leak-tight sealing are essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Vacuum Angle Valve (Process & Pneumatic Valve) |
| Model Designation | AVB-KF40-P |
| Flange Interface | KF40 (NW40) ISO-KF vacuum flange |
| Actuation Type | Pneumatic (double-acting / spring-return configuration) |
| Operating Pressure | Standard Industrial Grade (pneumatic pilot supply up to rated bar) |
| Mounting & Connection | Standard ISO-KF clamp interface |
| Body Configuration | Angle (right-angle) body for optimized conductance |
Engineering Features & Advantages
- Precision Performance: Pneumatic actuator delivers fast, consistent valve cycling with reliable open/close positioning, ensuring repeatable vacuum isolation and minimal response lag in automated process sequences.
- High-Conductance Angle Design: The right-angle body geometry minimizes flow restriction and promotes efficient evacuation, reducing pump-down times and improving overall vacuum system performance.
- Leak-Tight Sealing: Engineered elastomer or metal sealing interface provides dependable vacuum integrity across the KF40 connection, minimizing outgassing and particle contamination in high-purity environments.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust actuator construction and corrosion-resistant body materials suitable for demanding process cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, enabling straightforward drop-in replacement without modification to existing KF40 vacuum plumbing.
Typical Industrial Applications
The AVB-KF40-P pneumatic vacuum angle valve is widely deployed in semiconductor wafer processing equipment, thin-film and physical vapor deposition (PVD) systems, vacuum coating and etching tools, and analytical instrumentation requiring precise vacuum line isolation. It is also suitable for pharmaceutical freeze-drying systems, metallurgical vacuum furnaces, and general high-purity vacuum process lines where reliable pneumatic actuation and KF40 compatibility are required.
PRODUCT IMAGES

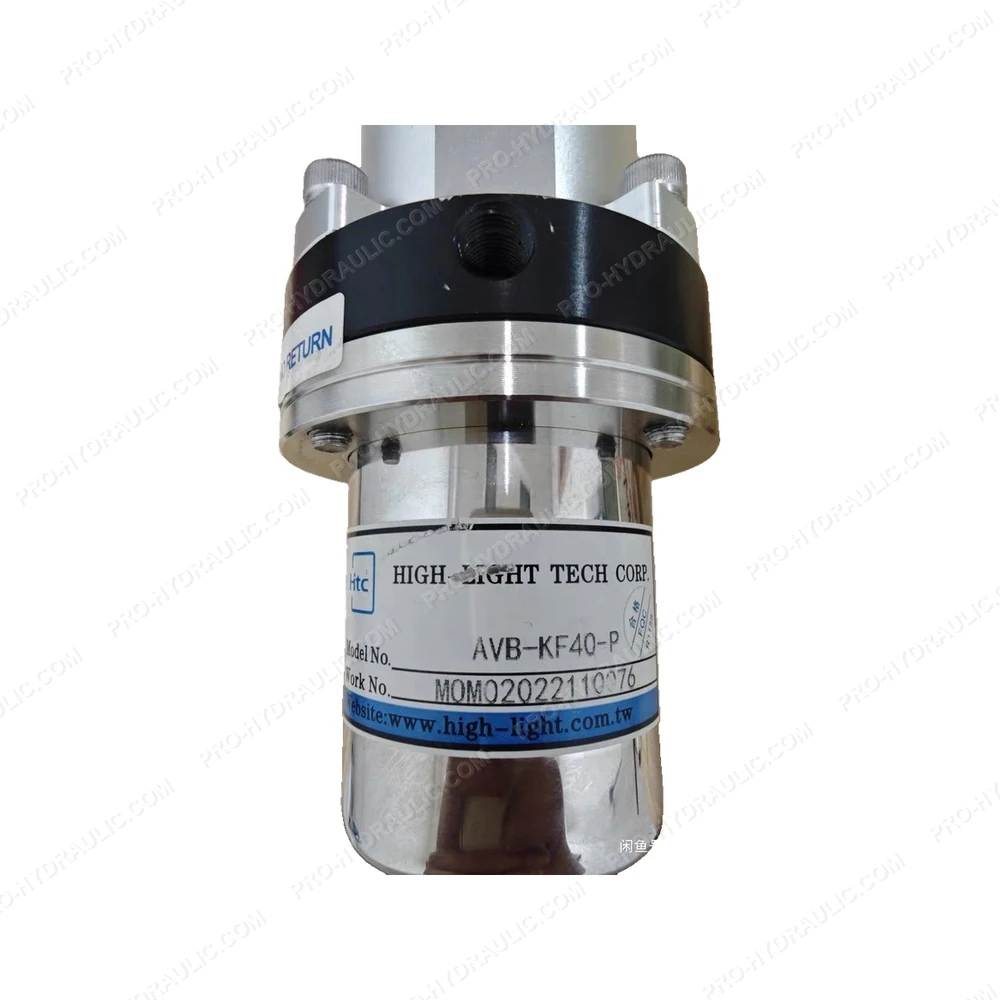

HIGH-LIGHT TECH CORP AVB-KF40-P Pneumatic Vacuum Angle Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine HIGH-LIGHT TECH CORP AVB-KF40-P Solenoid Directional Seat Valve. This German-made 24V DC hydraulic component features a poppet-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
