Product Overview
The Honeywell MVN7234 is a non-spring return (NSR) electric rotary valve actuator from the Honeywell MVN series, engineered for precise modulating and floating control of quarter-turn ball and butterfly valves in commercial and industrial HVAC and process systems. Utilizing a synchronous motor with a maintenance-free gear train, the MVN7234 delivers smooth, bidirectional rotary actuation with high torque output and accurate position feedback. It is designed for direct coupling to valves with ISO 5211-compatible mounting flanges, providing reliable modulating control in hydronic heating, cooling, and industrial fluid handling circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Rotary Valve Actuator (Electric Motor Actuator) |
| Model Designation | MVN7234 |
| Actuator Type | Non-Spring Return (NSR), Modulating / Floating Control |
| Supply Voltage | 24 VAC, 50/60 Hz (standard industrial control voltage) |
| Control Signal | 0–10 VDC / 2–10 VDC modulating input (model-dependent configuration) |
| Torque Output | High-torque synchronous motor drive (refer to Honeywell MVN series torque curve) |
| Rotation Angle | 0–90° quarter-turn with adjustable end limits |
| Mounting & Connection | ISO 5211-compatible direct valve mounting flange |
| Enclosure Rating | NEMA 2 / IP54 equivalent for indoor industrial environments |
| Ambient Temperature Range | Standard HVAC/industrial range (approx. −10 °C to +60 °C) |
| Position Feedback | Integrated auxiliary switch / potentiometer feedback (model-dependent) |
Engineering Features & Advantages
- Precision Modulating Control: The synchronous motor and precision gear train deliver accurate, repeatable positioning of quarter-turn valves, enabling tight temperature and flow control in hydronic and process loops.
- Non-Spring Return Reliability: The NSR design holds the last commanded position on power loss, making it ideal for applications where fail-in-place behavior is preferred over fail-safe spring return.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Precision-manufactured to original HONEYWELL specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
It is designed for direct coupling to valves with ISO 5211-compatible mounting flanges, providing reliable modulating control in hydronic heating, cooling, and industrial fluid handling circuits.
PRODUCT IMAGES

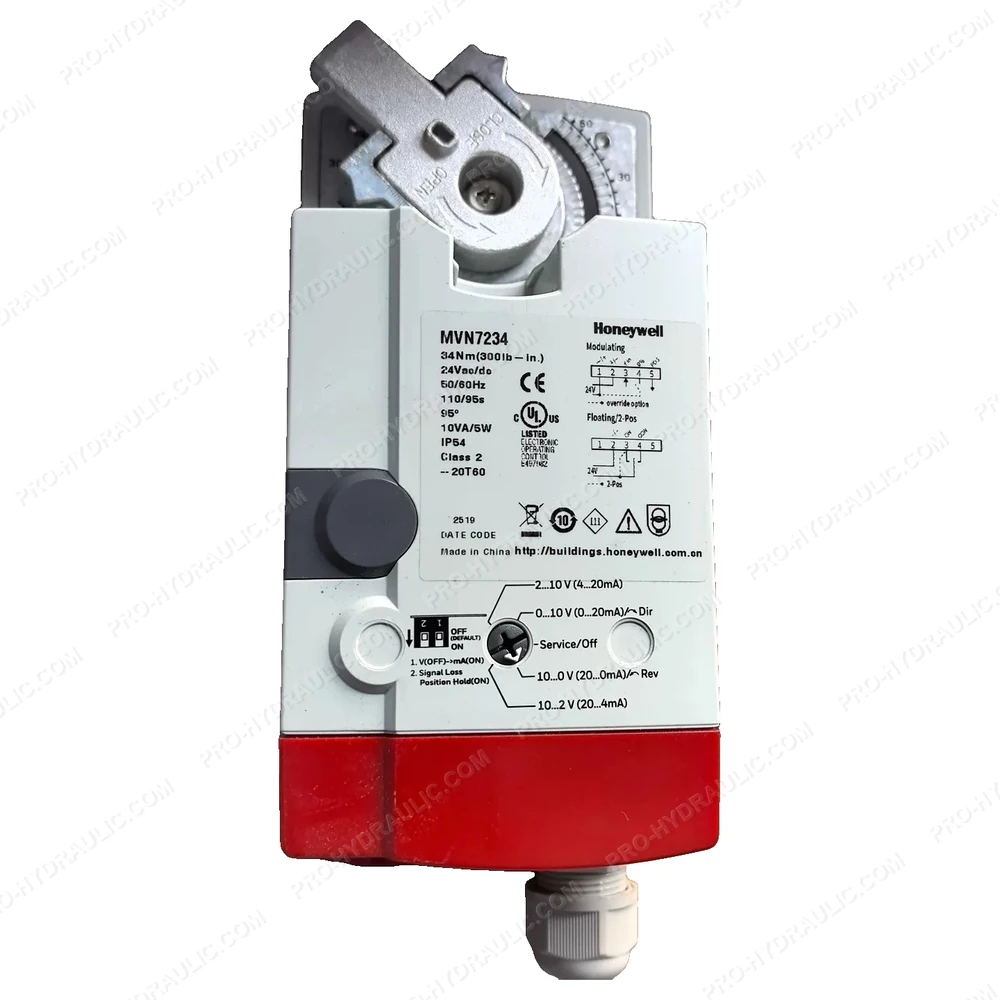

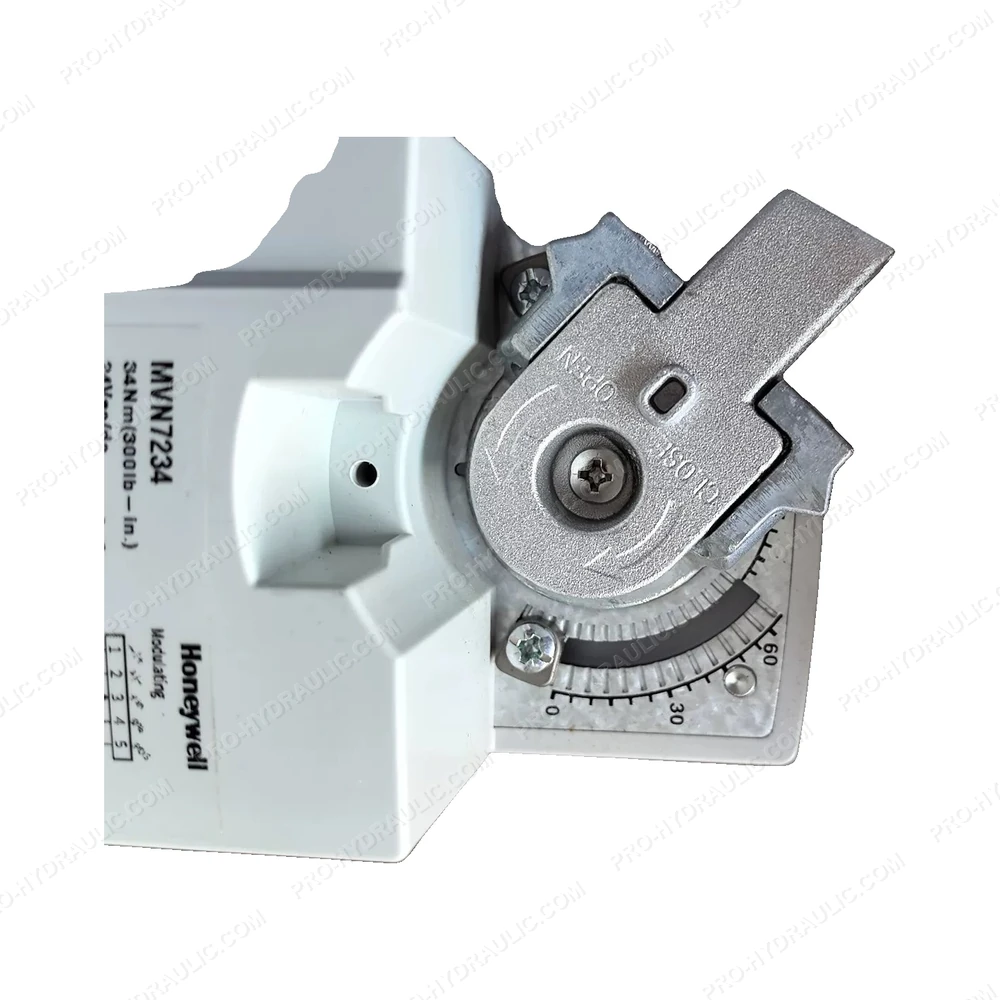

HONEYWELL MVN7234 Rotary Valve Actuator
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine HONEYWELL MVN7234 Solenoid Directional Control Valve. This US-made 24V DC hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
