Product Overview
The Honeywell V4ABFW16-100-112 is a high-performance industrial butterfly valve engineered for precise flow regulation and isolation in demanding process and pneumatic systems. Featuring a wafer-style body design, this valve utilizes a rotating disc mechanism to modulate or shut off media flow with minimal pressure drop. The V4ABFW16-100-112 is constructed to deliver reliable bidirectional sealing and is ideally suited for integration into automated hydraulic and pneumatic control loops where space efficiency and dependable actuation are critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Butterfly Valve (Process & Pneumatic) |
| Model Designation | V4ABFW16-100-112 |
| Operating Pressure | Standard Industrial Grade (Up to 16 bar rated) |
| Mounting & Connection | Wafer Style, ISO 5211 Actuator Mounting Interface |
| Nominal Size | DN100 (4″) |
| Body Material | Ductile Iron / Cast Iron (Standard Industrial) |
| Disc & Stem Configuration | Stainless Steel Disc, Blow-out Proof Stem |
| Seat Material | EPDM / NBR (Resilient Seated) |
Engineering Features & Advantages
- Precision Flow Control: The rotating disc design enables accurate throttling and tight shutoff, ensuring minimal pressure loss and efficient media regulation in process lines.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust body and blow-out proof stem for enhanced safety and longevity.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, including ISO 5211 mounting pad for direct actuator integration.
- Compact Wafer Design: Space-saving construction reduces installation weight and cost while maintaining full bidirectional sealing capability.
- Low Torque Operation: Precision-machined disc and resilient seat interface minimize operating torque, extending actuator life and reducing energy consumption.
Typical Industrial Applications
This butterfly valve is commonly deployed in heavy industrial scenarios including plastic injection molding machines for cooling water control, metallurgical presses for hydraulic fluid isolation, construction and marine hydraulics for ballast and cooling systems, and CNC machine tools for coolant and pneumatic circuit management. Its robust construction also suits general process industries such as chemical processing, water treatment, and HVAC systems where reliable flow isolation is essential.
PRODUCT IMAGES

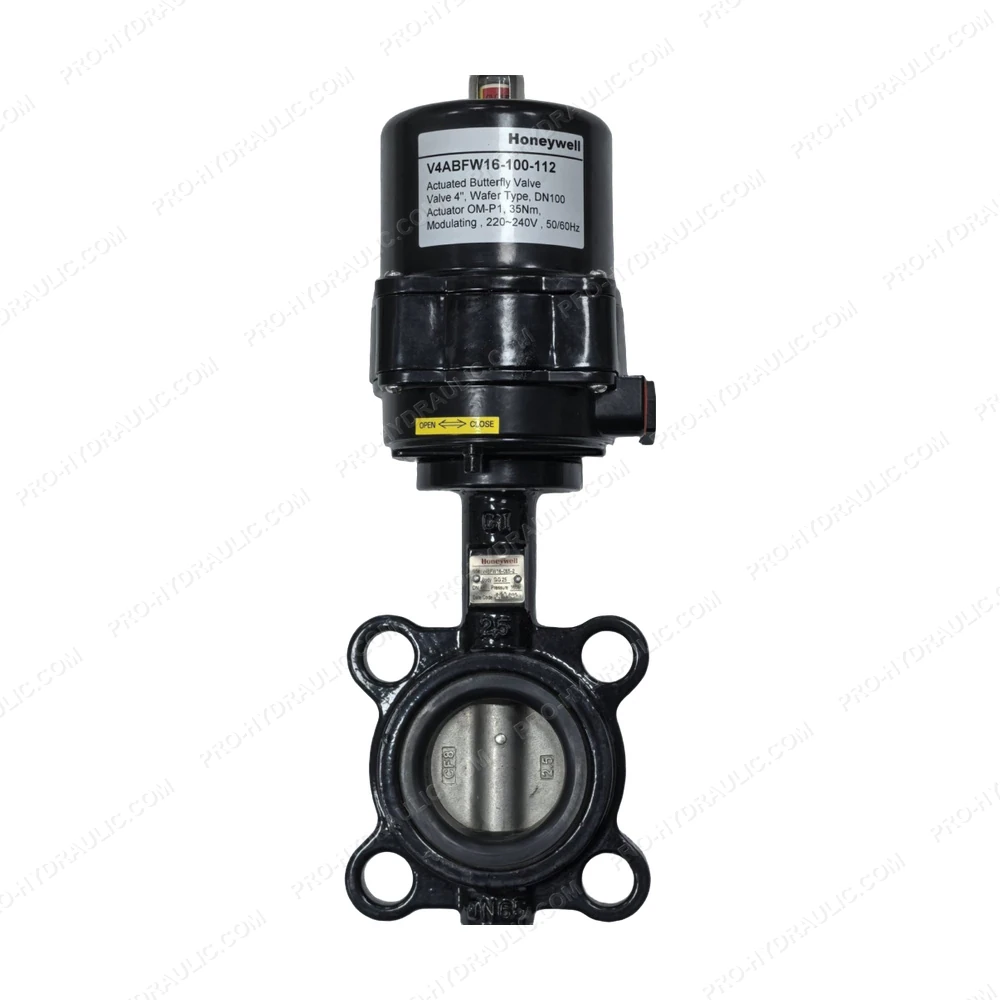

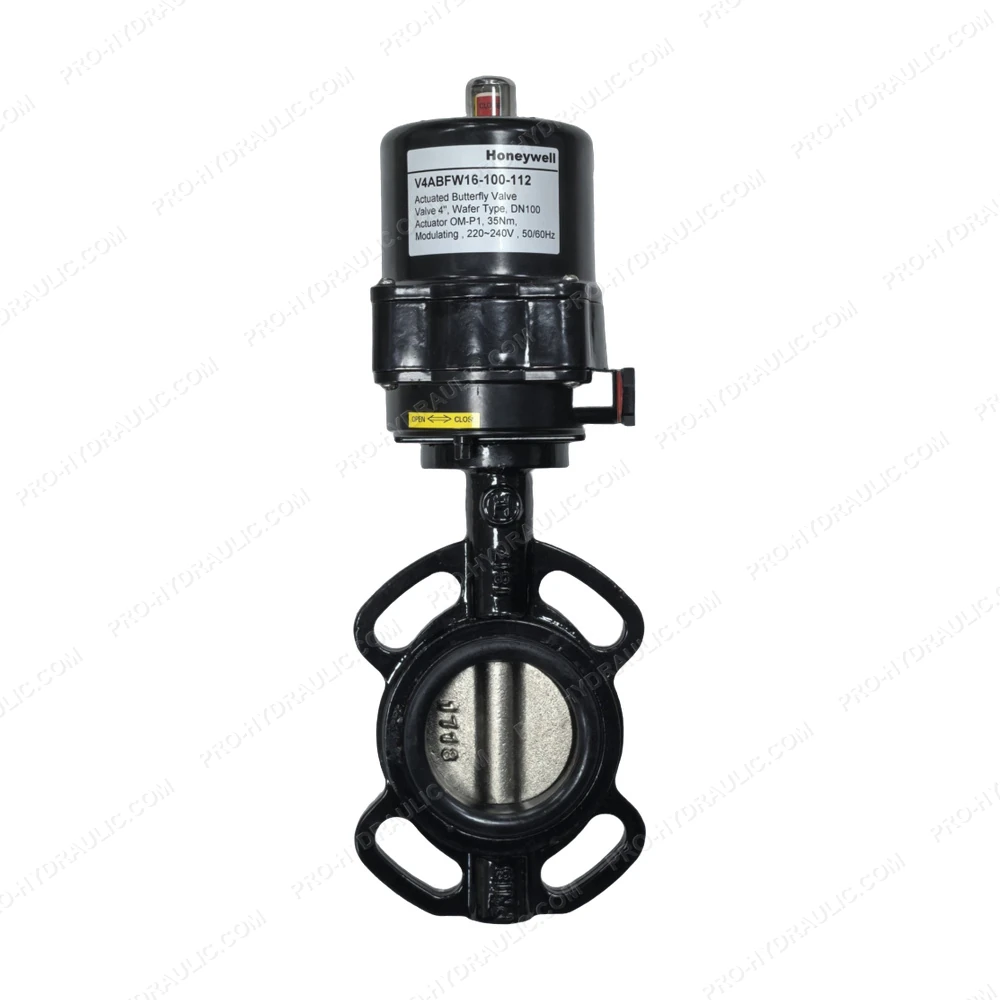

HONEYWELL V4ABFW16-100-112 Butterfly Valve
