Product Overview
The Honeywell V5011P1012 is a two-way, single-seated globe valve engineered for precise modulating control of hot water, chilled water, and low-pressure steam in commercial and industrial HVAC and process systems. As part of the Honeywell V5011 series, this valve features a balanced plug design that delivers accurate flow regulation with minimal actuator force requirements. The V5011P1012 is designed for direct coupling with Honeywell direct-coupled actuators (such as the ML61, ML71, or ML81 series) and is widely deployed in building automation and industrial process control loops where reliable, repeatable valve positioning is critical. Its robust bronze body and stainless steel trim ensure long service life and compatibility with a broad range of media.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | 2-Way Globe Valve (Process & Pneumatic Valve) |
| Model Designation | V5011P1012 |
| Valve Body Material | Bronze |
| Trim Material | Stainless Steel |
| Port Size | 1/2″ NPT (standard for V5011P series) |
| Flow Characteristic | Equal Percentage |
| Operating Pressure | Standard Industrial Grade (Up to 300 psi / 20.7 bar) |
| Media Compatibility | Hot Water, Chilled Water, Low-Pressure Steam |
| Mounting & Connection | Screwed NPT End Connections / Direct-Coupled Actuator Interface |
| Actuation | Electric Actuator (Direct-Coupled, Honeywell ML Series Compatible) |
Engineering Features & Advantages
- Precision Flow Control: The equal percentage flow characteristic ensures stable, accurate modulating control across the full stroke range, ideal for temperature and pressure regulation in closed-loop systems.
- Balanced Plug Design: Reduces actuator force requirements, enabling the use of compact, energy-efficient electric actuators while maintaining tight shutoff performance.
- Industrial Reliability: Bronze body and stainless steel trim provide excellent corrosion resistance and durability for continuous operation in demanding HVAC and process environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Honeywell V5011P series valves, ensuring drop-in replacement without piping modifications.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original HONEYWELL standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The V5011P1012 is designed for direct coupling with Honeywell direct-coupled actuators (such as the ML61, ML71, or ML81 series) and is widely deployed in building automation and industrial process control loops where reliable, repeatable valve positioning is critical.
PRODUCT IMAGES

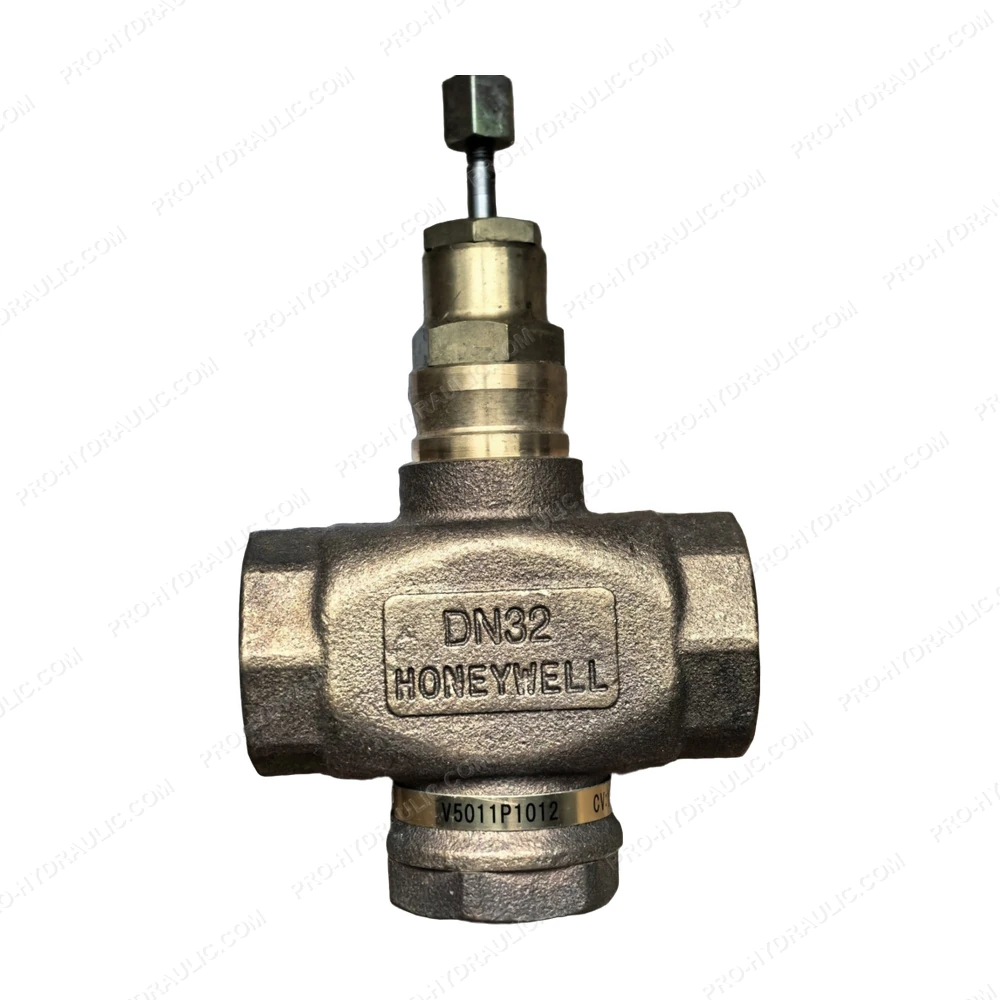

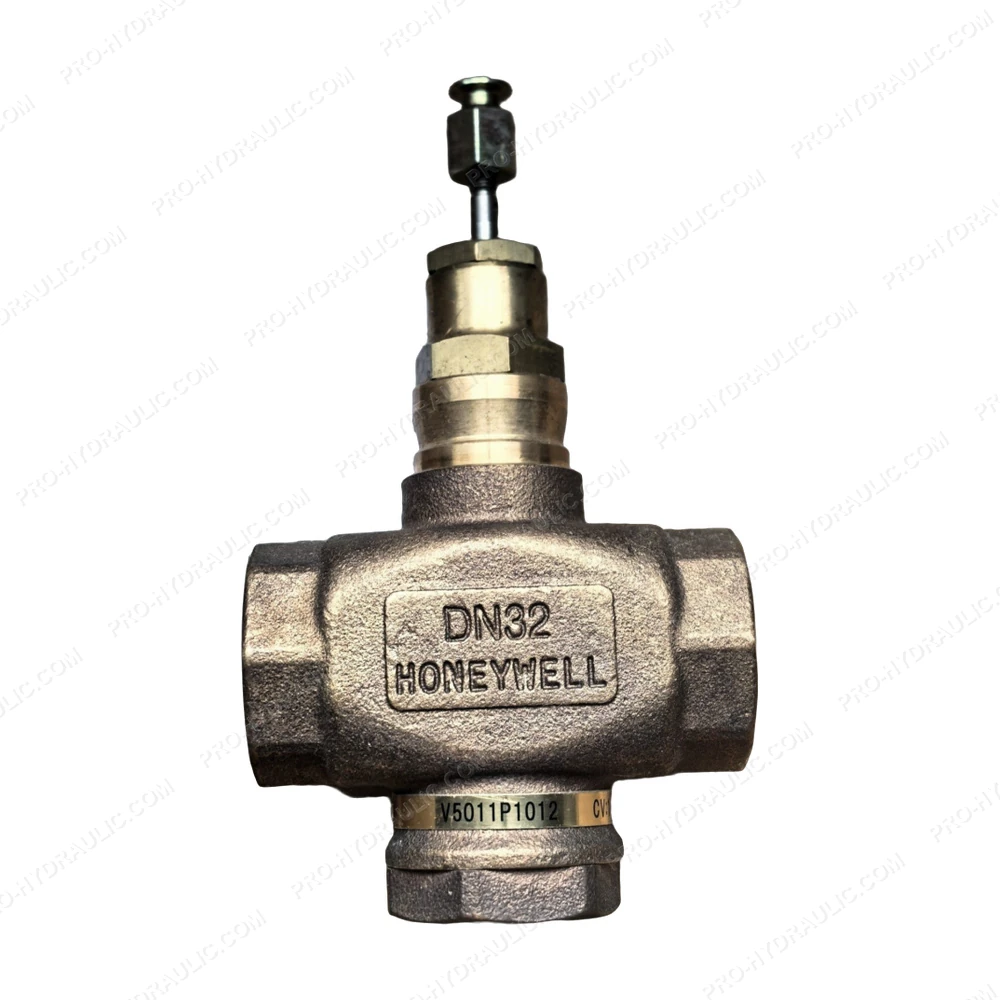

HONEYWELL V5011P1012 2-Way Globe Valve
