Product Overview
The HORIBA STEC LF-F40M-A-EVD1 is a precision liquid flow controller engineered for accurate, repeatable delivery of process liquids in advanced industrial and semiconductor-grade fluid handling systems. As a member of the HORIBA STEC LF series, this device combines a high-resolution flow sensing element with an integrated control valve to provide closed-loop regulation of liquid flow rates. Unlike a pump, the LF-F40M-A-EVD1 does not generate flow; it precisely meters and modulates the flow of liquid supplied from an external pressurized source. Its role in industrial systems is to maintain stable, calibrated flow setpoints for processes requiring exact liquid dosing, mixing, or delivery, making it a critical component in high-purity and high-accuracy fluid circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Liquid Flow Controller (Process & Pneumatic Valve) |
| Model Designation | LF-F40M-A-EVD1 |
| Operating Pressure | Standard Industrial Grade (Up to rated bar) |
| Mounting & Connection | Standard ISO / Manufacturer Interface |
| Control Principle | Closed-loop feedback with integrated proportional control valve |
| Flow Sensing | High-resolution thermal or differential-pressure sensing element |
| Valve Actuation | Electromagnetic proportional solenoid |
| Wetted Materials | Corrosion-resistant alloys and high-purity polymer seals |
| Response Time | Fast dynamic response suitable for real-time process control |
Engineering Features & Advantages
- Precision Metering: The integrated proportional control valve and high-resolution flow sensor deliver accurate, repeatable liquid flow regulation, minimizing overshoot and settling time.
- Closed-Loop Stability: Continuous feedback control maintains the commanded flow setpoint despite variations in upstream pressure or downstream load.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust materials and sealing designed for aggressive and high-purity liquids.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in replacement without system redesign.
- Compact Integration: Space-efficient body design allows installation in dense manifold and process skid configurations.
Typical Industrial Applications
The HORIBA STEC LF-F40M-A-EVD1 is deployed in semiconductor wafer fabrication for precise chemical delivery in etching, cleaning, and CMP processes; in pharmaceutical and biotech production for accurate reagent dosing and buffer preparation; in advanced analytical instrumentation for controlled liquid sample introduction; and in high-purity chemical blending and dispensing systems where exact flow ratios
PRODUCT IMAGES

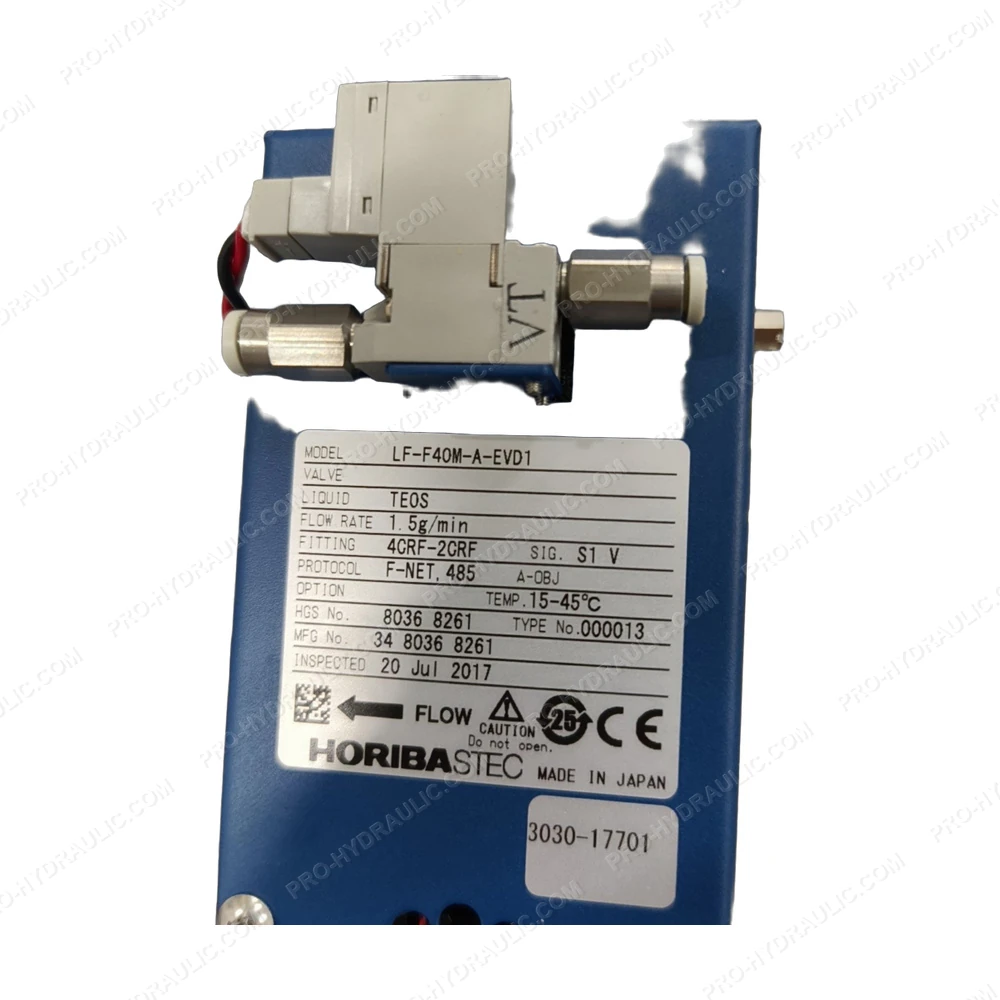

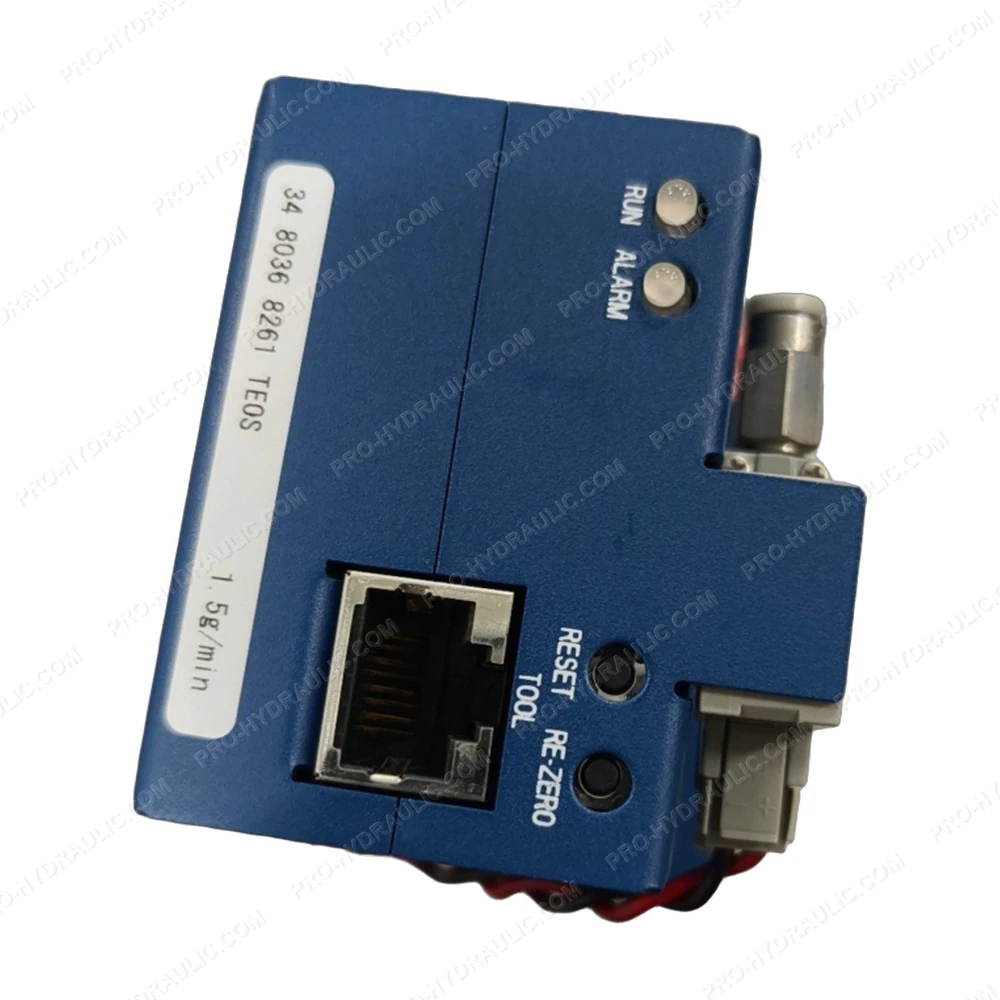

HORIBA STEC LF-F40M-A-EVD1 Liquid Flow Controller
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine HORIBA STEC LF-F40M-A-EVD1 Liquid Flow Controller. This Japan-made precision flow control component features a thermal sensor design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
