The HYDAC KHB3K-10SR-L-1112-04X-A-SW09 / 3288900 is a heavy-duty industrial ball valve engineered for reliable isolation and tight shut-off in hydraulic and process fluid systems. This 3-way, 10-size valve features a chrome-plated steel ball and a reinforced PTFE seat for low-torque operation and long service life under high-pressure conditions. The SW09 stem design allows direct manual actuation with a standard 9 mm wrench, while the L-port configuration enables selective flow diversion between two outlet ports. With a maximum operating pressure of 500 bar and a temperature range of -20 °C to +80 °C, it is suitable for demanding industrial circuits requiring dependable leak-free performance.
HYDAC KHB3K-10SR-L-1112-04X-A-SW09 / 3288900 Technical Specifications
| Type | 3-way ball valve, L-port |
|---|---|
| Nominal size | 10 (DN10) |
| Connection | Threaded ports per ISO 228 |
| Max. operating pressure | 500 bar |
| Temperature range | -20 °C to +80 °C |
| Body material | Steel, zinc-nickel plated |
| Ball / stem material | Chrome-plated steel |
| Sealing material | PTFE / FKM |
| Actuation | Manual, SW09 stem |
| Mounting pattern | Inline, 3-port |
Key Engineering Features
- L-port ball design for selective flow diversion and shut-off
- High-pressure capability up to 500 bar for hydraulic service
- Low-torque operation via chrome-plated ball and PTFE seats
- SW09 stem for direct wrench actuation without additional handle
- Zinc-nickel plated steel body for corrosion resistance
- Leak-tight sealing across full pressure range
Industrial Applications
- Hydraulic power units and test stands
- Process fluid isolation and diversion skids
- Machine tool and press hydraulic circuits
- Offshore and heavy mobile equipment
- Chemical and petrochemical pilot plants
For technical inquiries, dimensional drawings, or replacement support for HYDAC KHB3K-10SR-L-1112-04X-A-SW09 / 3288900, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

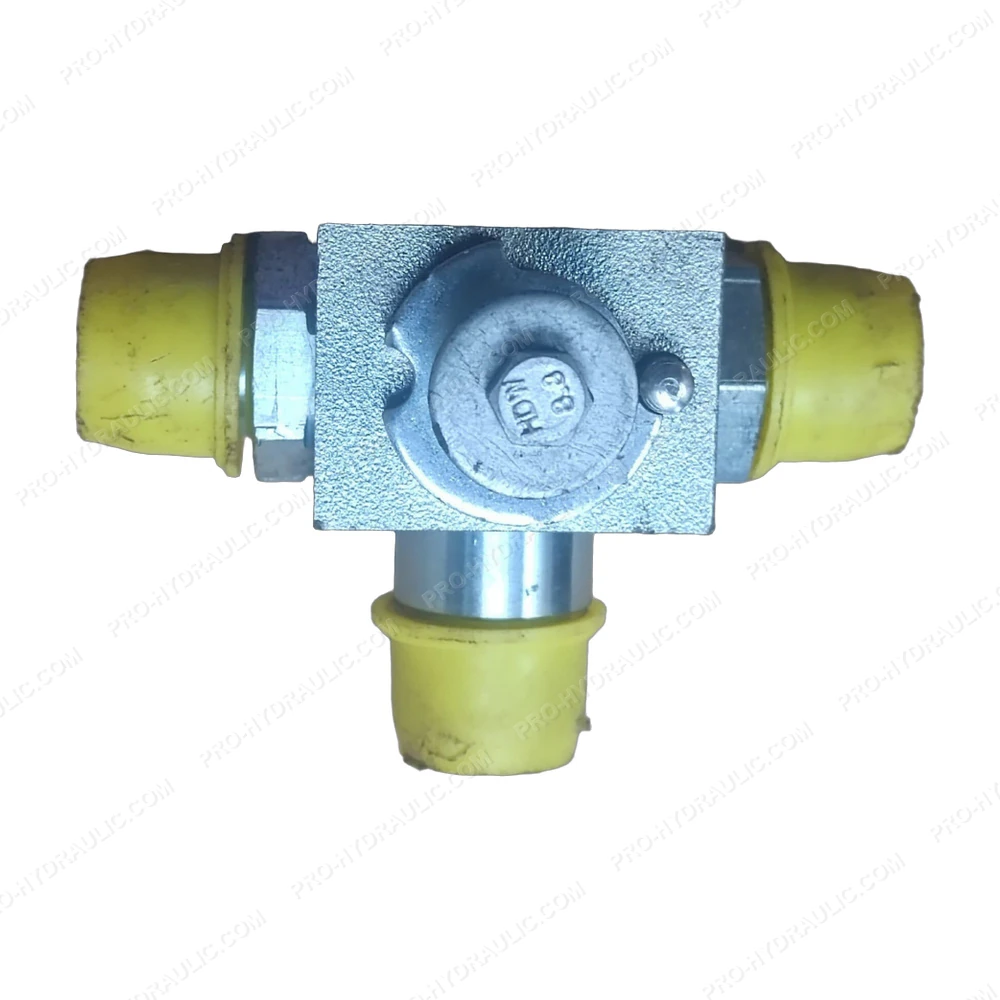

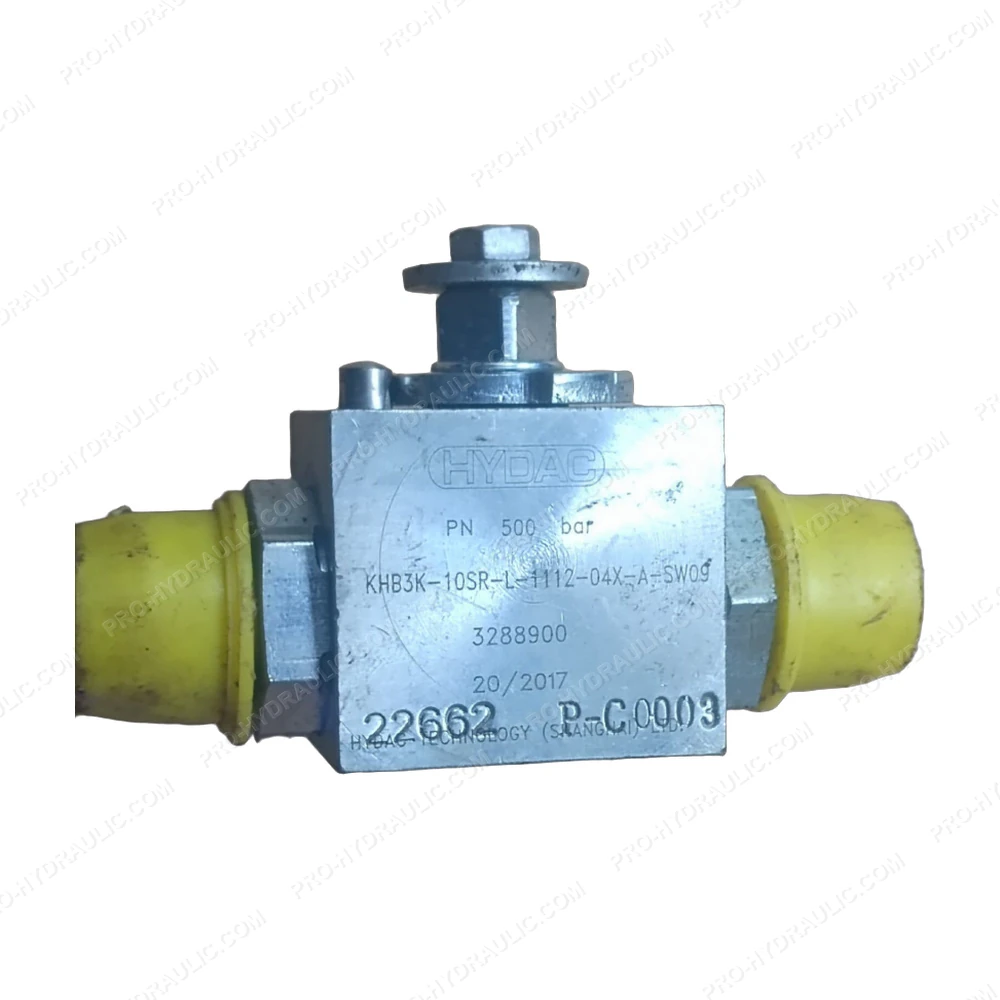

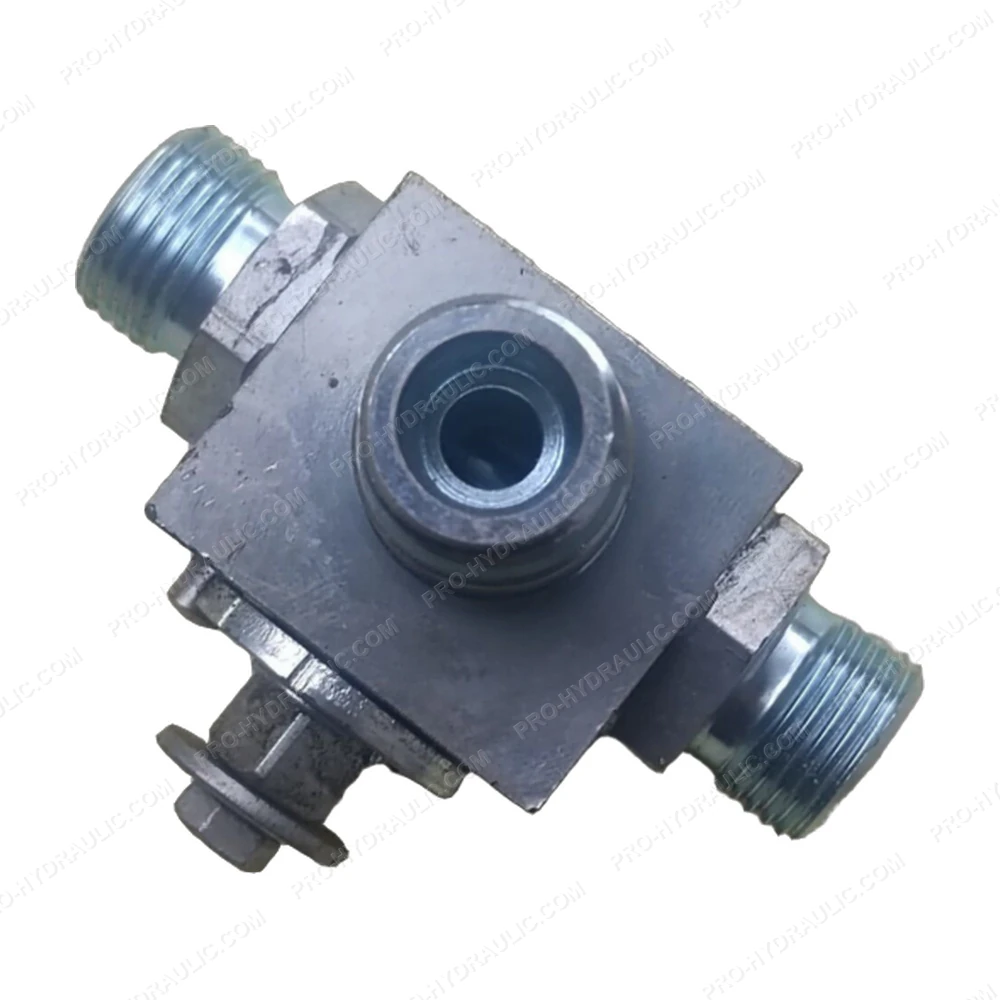

HYDAC KHB3K-10SR-L-1112-04X-A-SW09 Ball Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the HYDAC KHB3K-10SR-L-1112-04X-A-SW09 / 3288900 Ball Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
