Product Overview
The HYDAC WSM 06020 (Part No. 3000249) is a direct-acting solenoid directional spool valve engineered for precise control of start, stop, and direction of hydraulic fluid flow in industrial hydraulic systems. As part of HYDAC’s WSM series, this 4-way, 3-position (4/3) directional control valve features a robust spool-in-body design that ensures reliable switching performance and minimal internal leakage. The valve is actuated by a wet-pin AC or DC solenoid, providing fast response times and high switching reliability. With a nominal size of NG6 (CETOP 3 / ISO 4401-03), the WSM 06020 is designed for manifold mounting and is widely used in demanding industrial circuits requiring accurate directional control of actuators, cylinders, and motors.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Spool Valve (4/3 Way) |
| Model Designation | WSM 06020 / 3000249 |
| Nominal Size | NG6 (CETOP 3 / ISO 4401-03) |
| Operating Pressure | Up to 350 bar (max. working pressure at ports P, A, B) |
| Nominal Flow Rate | Up to 60 L/min (dependent on spool type and pressure drop) |
| Actuation Type | Wet-pin solenoid, AC or DC voltage options |
| Mounting & Connection | Subplate / Manifold mounting per ISO 4401-03; DIN 43650 connector |
| Seal Material | NBR (standard); FKM available for high-temperature or special fluid compatibility |
Engineering Features & Advantages
- Precision Spool Metering: The hardened, precision-ground spool and sleeve assembly delivers accurate flow metering and repeatable directional control, minimizing internal leakage and ensuring consistent actuator response.
- Fast Solenoid Response: Wet-pin solenoid design provides rapid switching times and high cycle rates, ideal for dynamic industrial processes requiring frequent directional changes.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction that withstands high pressure, contamination, and thermal cycling.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original HYDAC WSM series valves and standard ISO 4401-03 interfaces, ensuring drop-in replacement without modification.
- Versatile Circuit Integration: Multiple spool configurations (e.g., closed center, tandem, float) available to match specific circuit requirements for holding, unloading, or regenerative functions.
Typical Industrial Applications
The HYDAC WSM 06020 solenoid directional spool valve is widely deployed in heavy industrial scenarios including plastic injection molding machines for mold
PRODUCT IMAGES

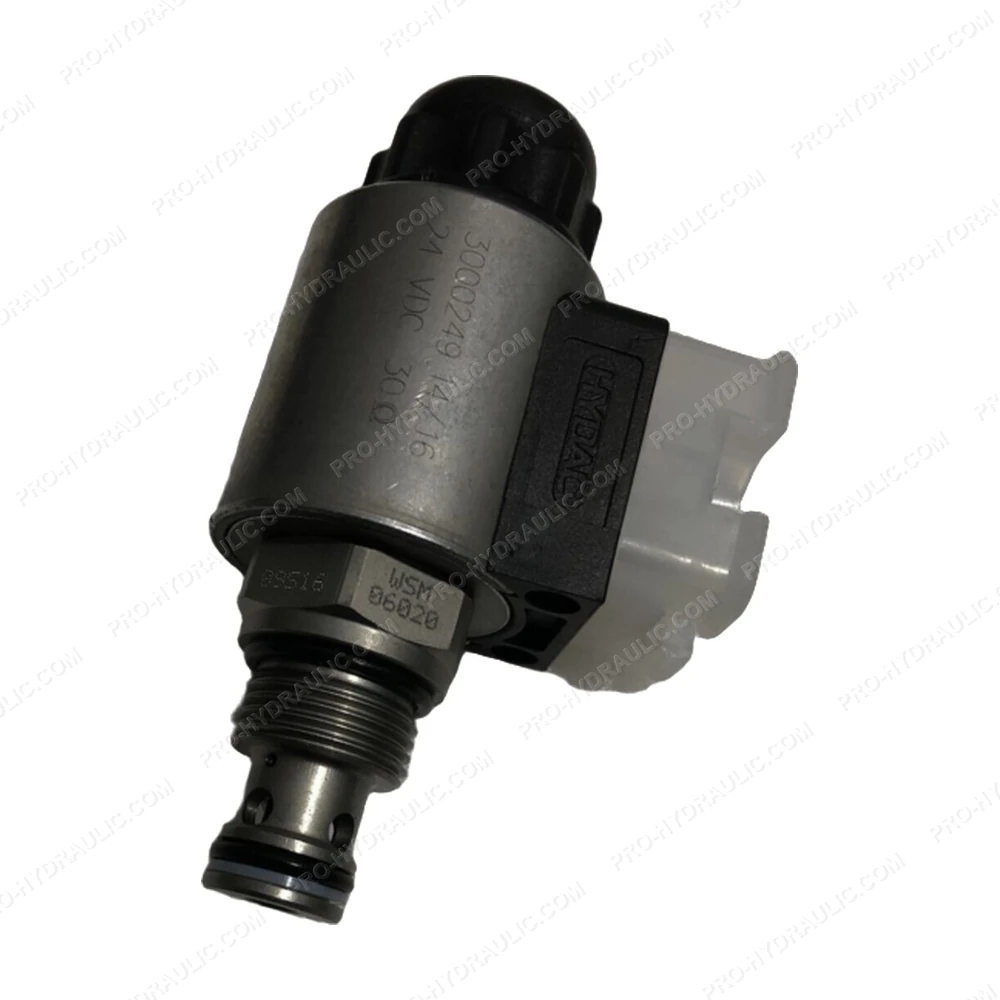

HYDAC WSM 06020 / 3000249 Solenoid Directional Spool Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine HYDAC WSM 06020 / 3000249 Solenoid Directional Spool Valve. This German-made hydraulic component features a reliable spool design, delivering leak-free, precise fluid control for heavy-duty industrial systems.
